Product Description

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

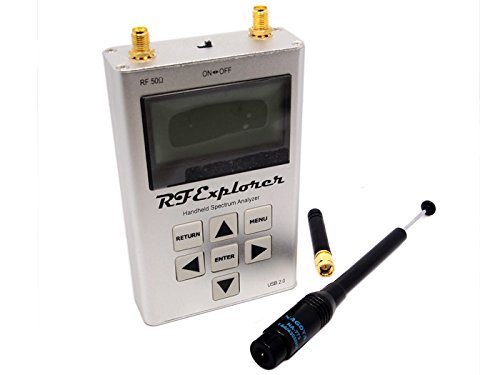

This model includes a WSUB1G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and two antennas,a nice Nagoya NA-773 wideband telescopic antenna for all Sub-GHz frequencies and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

The combination of these two models offer the wide band coverage of the WSUB3G module, together with the highest sensitivity and quick response of the WSUB1G model for the popular sub-1GHz frequencies.

FEATURES
Pocket size and light weight
Solid aluminum metal case
Includes a transport EVA carry case for RF Explorer
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

Feature

Frequency band: 15-2700 MHz
Frequency span: Frequency span: 112KHz - 600MHz
Dynamic range: Left SMA port (WSUB1G): -115dBm to 0dBm Right SMA port (WSUB3G): -110dBm to -10dBm
Absolute Max input power: Left SMA port (WSUB1G): +5dBm Right SMA port (WSUB3G): +30dBm
Resolution bandwidth (RBW): automatic 3Khz to 600Khz
Brand : seeed studio
Item model num : LYSB01JHGK052-ELECTRNCS
MPN(PartNumber) : LYSB01JHGK052-ELECTRNCS
EAN : 0717520029489
Product Dimensions(LxWxH) : 16x8x3cm ; 386 g
Package Dimensions(LxWxH) : 23x19x4cm ; 386 g
