Item Descriptions:
1, VGA monitor distributor:
Distributes and outputs analog RGB signals from one PC to two displays.
You can enjoy high quality images and large screen on projector, display, LCD, TV, monitor etc equipped with VGA terminal.
2. Amplifier circuit that can send clean images:
Since the signal amplification circuit is built in, images can be output to displays up to 25 m in length.
It becomes a high-performance monitor distributor which amplified and stabilized the signal to IC control and greatly reduced noise.
3, high resolution correspondence:
High resolution (1920 × 1440 · image bandwidth 250 MHz) compatible high image quality display is realized.
The VGA output corresponds to DDC (port 1 only).
4, simply connect simply:
Plug and play, driver installation is unnecessary.
It is convenient and easy to output to multiple monitors.
5, quality assurance:
The outer shell adopts ABS resin which is excellent in impact resistance and high temperature resistance, the VGA connector adopts double layer nickel plated material to improve corrosion resistance,
Please use with confidence.
We offer 12 months warranty and high quality customer support for all products.
Smart & useful design:

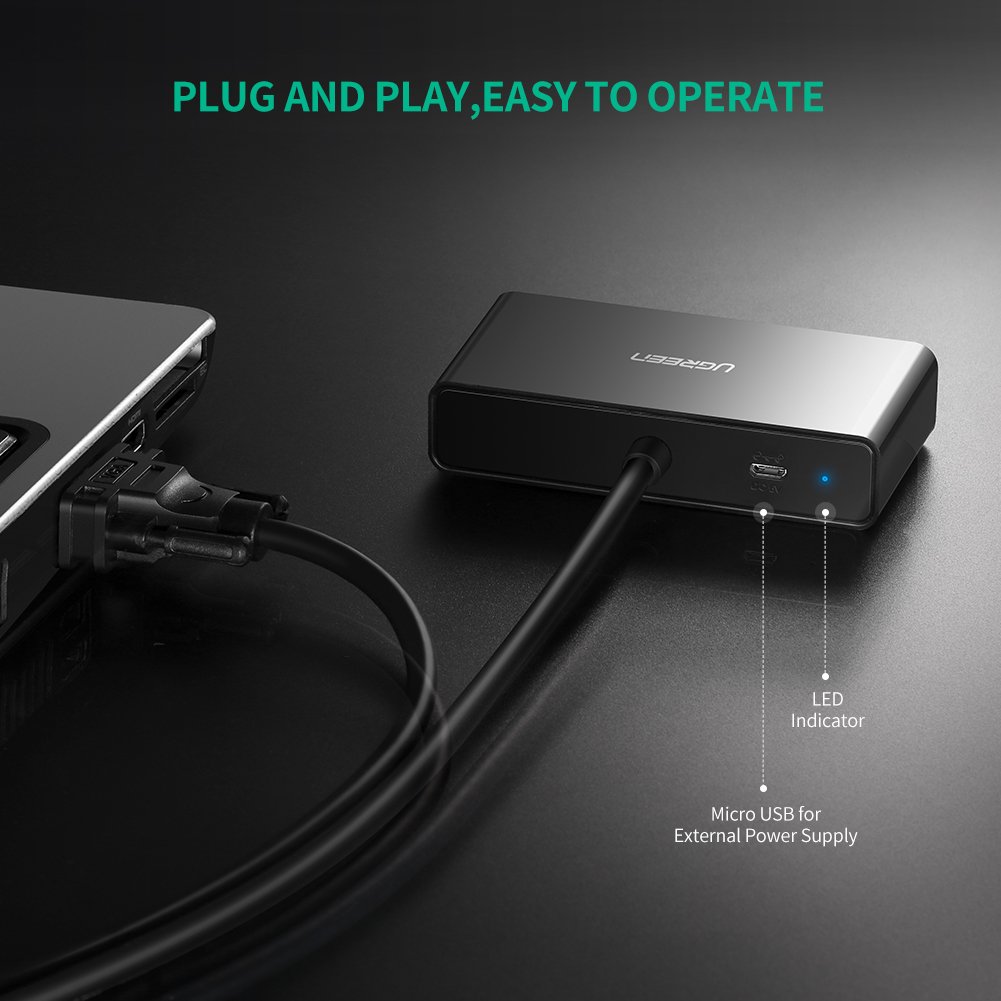

● Blue LED light that understands the operating status at a glance
● Energy-saving mode that is safe to keep constantly connected
● Power supply realization Micro USB port installed (DC-5V)
Please be careful:
※ Optional VGA cable is required.

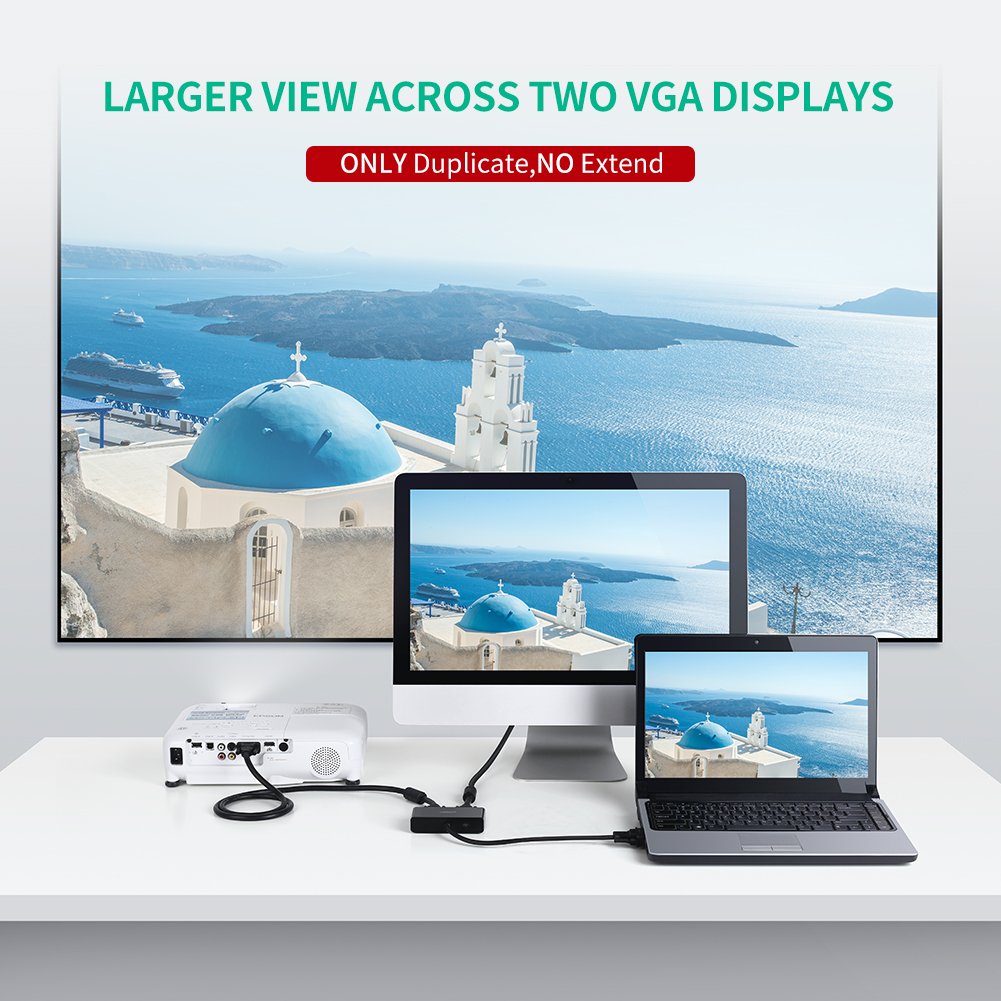

This product is compatible with screen duplication (display copy), but it is not compatible with extended display mode.
* Depending on personal computer / display / VGA card, display may not be possible, degradation of image quality and ghost may occur.
Please note.
Product specification:
Input: D-Sub 15 pin (male) x 1
Output: D-Sub 15 pin (female) x 2

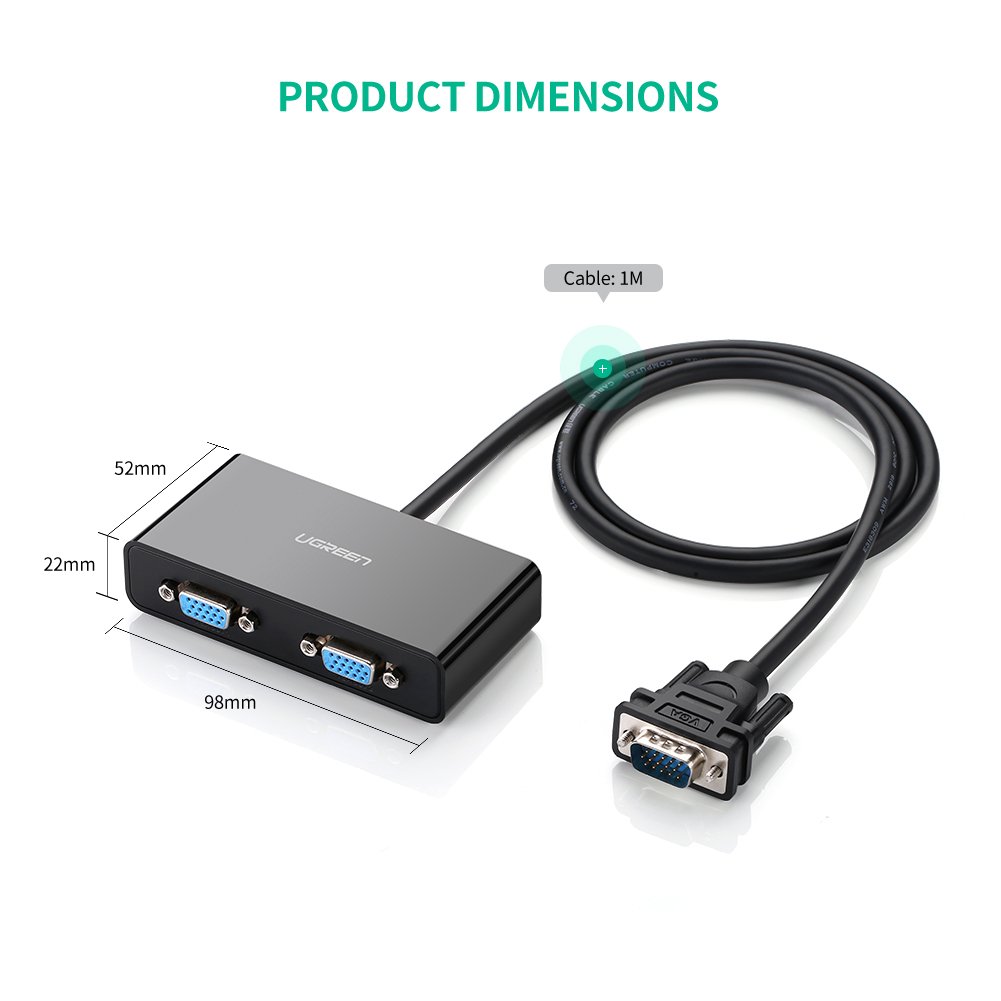

Size: L 51.5 x W 98 x H 22 mm
Cable length: 90 cm
Material adoption: ABS material, 15u nickel plating etc.
Product warranty: 12 months
Features:
- Please enter model number Confirm this is compatible:
- Analog compatible D-Sub 15 pin display distributor that can distribute from one PC to two displays.
- VGA / SVGA / XVGA / UXGA / multi-sync display compatible.
- High resolution (1920 × 1440 · image bandwidth 250 MHz) compatible high image quality display is realized.
- You can produce effective presentations and demonstrations.
- Amplifier circuit which can send clean image is carried.
- Images can be output to displays up to 25 m in length.
- Plug and play, driver installation is unnecessary.
- It is convenient and easy to output to multiple monitors.
- Supported systems: Windows 10/8 / 8.1 / 7 / XP / Vista, Mac OS 10.11 or later, Linux etc.
Product information:
Shipping Weight: 136 g
Package Dimensions: 4.83 x 14.73 x 14.99 cm
