FEATURES

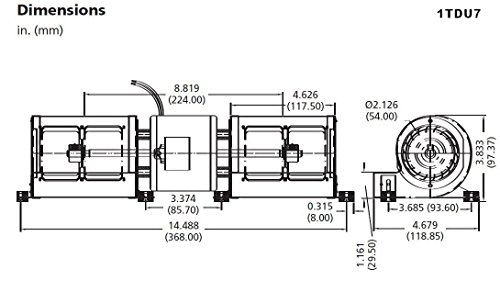

• Price For: Each CFM @ 0.500-In. SP: - CFM @ 0.400-In. SP: - Wheel Type: Forward Curve Housing Finish: Flat CFM @ 0.300-In. SP: - Hz: 50/60 Bearing Type: Ball Housing Material: Rolled Steel Mounting Position: All Position Includes: - Housing Color: Black Dimension A: 3-5/8" Lead Length: 17" With/Without Flange: Without Flange CFM @ 0.800-In. SP: -
• Outlet Shape: Rectangular CFM @ 0.900-In. SP: - CFM @ 0.600-In. SP: - CFM @ 0.700-In. SP: - CFM @ 1.000-In. SP: - Thermal Protection: Auto Phase: 1 Wheel Width: 1-7/8" Motor Insulation: Class B Drive Type: Direct Max. Ambient Temp.: 104 Degrees F Max. Inlet Temp.: 104 Degrees F Motor Type: Permanent Split Capacitor Dimension G: 3-3/8" Dimension J: 5/16"
• Agency Compliance: UL Recognized US and Canada (E47479), CE Motor Enclosure: Open Conduit Box: No Item: OEM Blower CFM @ 1.200-In. SP: - CFM @ 2.000-In. SP: - CFM @ 1.600-In. SP: - Overall Depth: 3-5/8" Voltage: 115 Outlet Width: 4-9/16" RPM: 3200 Outlet Height: 1-1/16" Overall Width: 14-5/8" Inlet Dia.: 2-1/8" Overall Height: 3-7/8" Wheel Dia.: 2-1/2" Dimension B: 3-7/8"
• Dimension H: 14-1/2" Full Load Amps: 0.39 Dimension F: 4-5/8" CFM @ 0.200-In. SP: 105 Dimension E: 8-13/16" CFM @ 0.100-In. SP: 119 Dimension D: 1-1/8" CFM @ 0.000-In. SP: 127 Dimension C: 4-11/16" Replaces: 4C825 Country of Origin (subject to change): China
