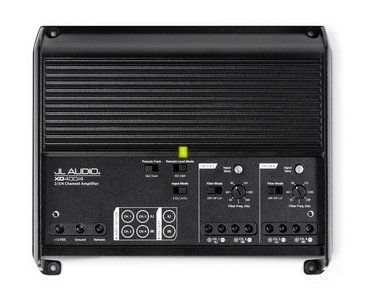

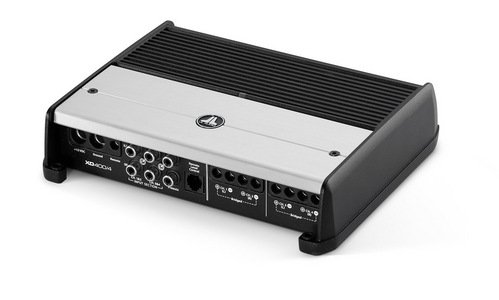

RB XD400/4 JL AUDIO 4 CHANNEL AMP 400 W COMPONENT SPEAKERS TWEETERS AMPLIFIER
[Product Information]
- Description: 400W 2/3/4 Channel Amplifier | Inputs: Two Stereo Pairs | Speaker output connections: Accept up to 12 AWG wire | +12V and Ground connections: Accept up to 4 AWG wire
- Rated Power 14.4 V Stereo: 75W RMS x 4 @ 4 ohms 100W RMS x 4 @ 2 ohms | Rated Power 14.4 V Bridged: 150W RMS x 2 @ 8 ohms 200W RMS x 2 @ 4 ohms | Rated Power 12.5 V Stereo: 60W RMS x 4 @ 4 ohms 90W RMS x 4 @ 2 ohms | Rated Power 12.5 V Bridged: 120W RMS x 2 @ 8 ohms 180W RMS x 2 @ 4 ohms
- THD at Rated Power: 104 dB referred to rated power (A-weighted, 20 Hz-20 kHz noise bandwidth) | >84 dB referred to 1W (A-weighted, 20 Hz-20 kHz noise bandwidth)
- Frequency Response: 12 Hz - 22 kHz (+0, -1dB) | Damping Factor: >150 @ 4 ohms per ch./ 50 Hz | >75 @ 2 ohms per ch. / 50 Hz | Input Range: 100mV - 4V RMS | Dimensions (L x W x H): 8.52 in. x 7.09 in. x 2.05 in. | 217 mm x 180 mm x 52 mm
