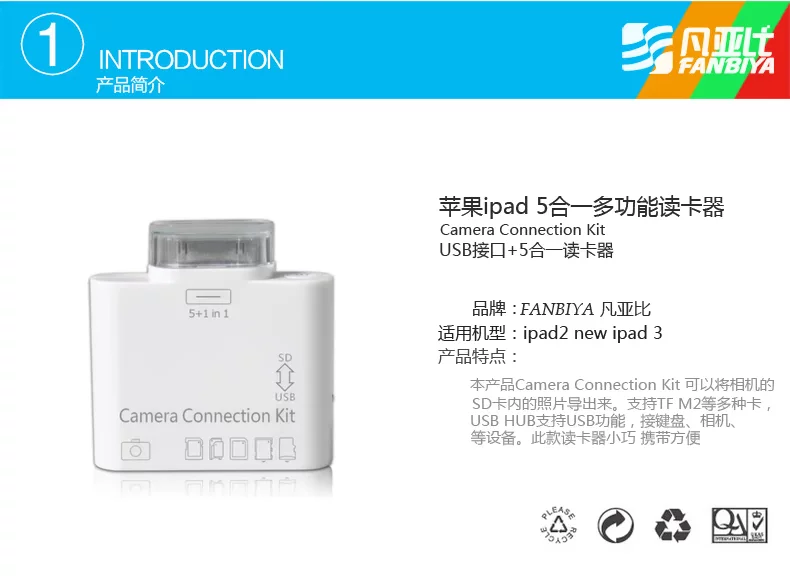

Full support IPAD1， ipad2， ipad3 (new ipad)， supports the latest 5.1.1 system!



Whether or not the basic jailbreak support all wireless keyboard to insert.



The support 16G SD， TF card and camera， U disk support only consume less than 100MA!

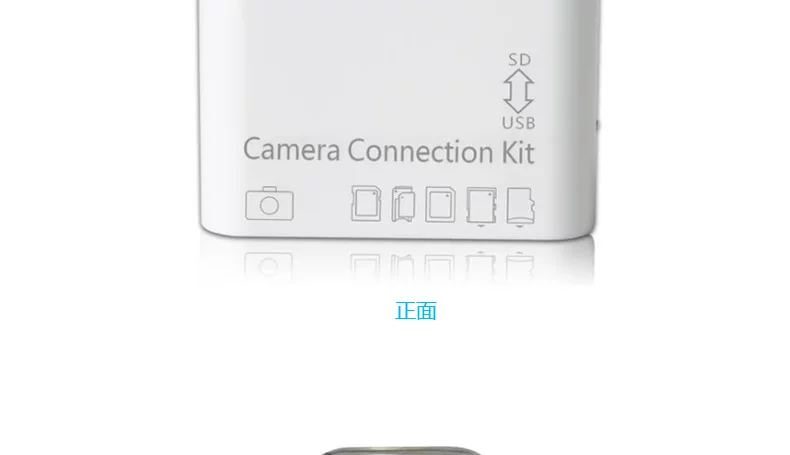

Right side of the camera kit with a switch， switch card reader and USB function， please note that when switching to use!



Our product quality inferior to the original package， please parents who do not have in our products omnipotent fantasies， please read the following Features and description before making purchase!



APPLE IPAD card reader can be connected to a digital camera， imported via USB interface or read the contents of the five bayonet!







  Note! ! ! This product can not use belt holster， will the reach， like the students with a set of full-featured， please buy male to female extension cable， support for audio and video transmission! ! (Also recommended to buy IPAD2 IPAD Interface little bent too thin because of instability)





Instructions for use

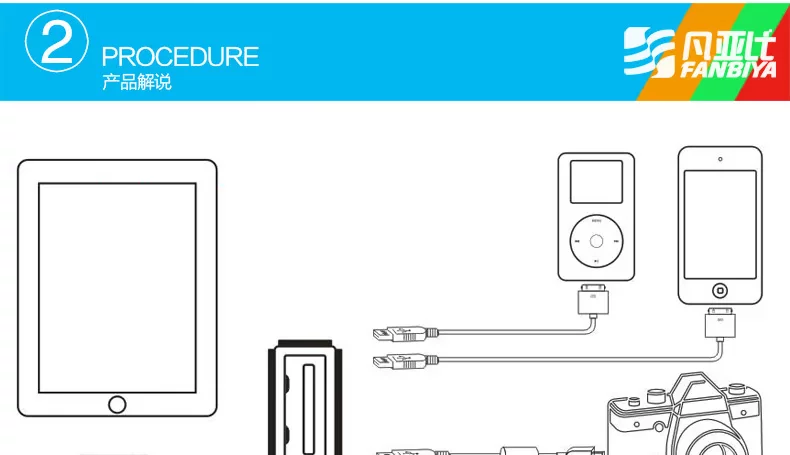

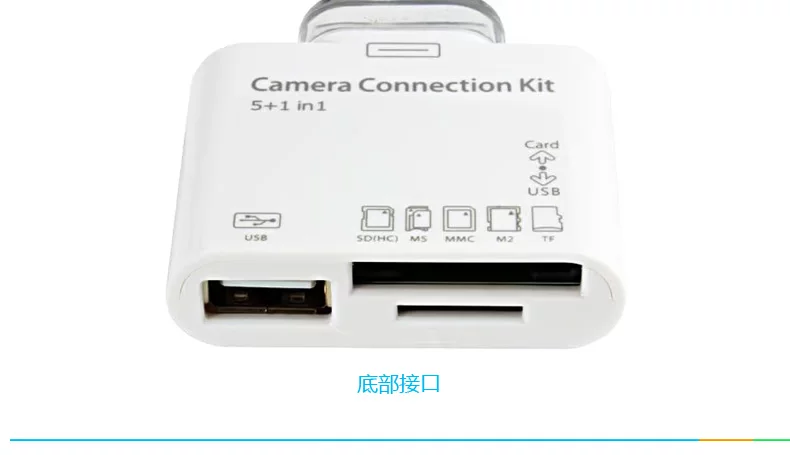

Camera Connection Kit allows you two ways to import photos and videos from a digital camera . Camera Connect can use a digital camera 's USB cable to import your photos and videos to the IPAD. Or you can use the SD Card Reader to import photos and videos directly from your camera 's SD card， support mobile hard disk， removable hard disk large easy to be a little slow to react . Card supports the following five types : SD (HC)， MS DUO， MMC， M2， T-FLASH!



1 Use the USB port can directly import photos from a digital camera using SD card port can read card photo and video files

2 can use an external USB accessories U disk ! 3.2.2 version supports 16G below version 4.2.1 due to insufficient power supply ， up to 4G!

3 external mobile hard disk ( requires external power supply ) ， support 100G less !

4 . The use of USB accessories iphone after the iPhone will connect automatically import photos into the ipad!

5 Use the USB connection ipod accessories can not automatically import photos ， but you can find mnt folder in the ipod music through ifile / VAR in .

6 can be connected using a USB Accessories USB HUB， but requires an external power supply.

7 can not connect the camera while taking pictures while introducing photos， because the camera will enter the USB connection mode ， you can not start the camera function .

8 wired keyboard plugged KIT， even the keyboard can be used， and can type in any place you need to enter .

9 support some readers， now not only can read SD / MS / TF card up ! !

10 Connect USB fan successful ， refreshing summer .



Special Note



This product is a USB port and card reader Observing features combined with original chip ， you can connect the camera can also be readers ， even more advanced than the original !



Applicable models



Suitable for IPAD Dock， IPAD Dock Connector to Adapter， IPAD Camera Connection and other products.



Generation / second generation did not escape : the camera only to directly read / SD.TF.MS.SDHC.MMC.M2 card / U disk directory DCIM folder camera photo shoot MP4 video and camera ， the other can not read !

Generation / second generation already jailbreak : the camera can be directly read / SD.TF. / camera photos and camera DCIM folder under the video shoot MP4 U disk directories， other format photos， movies ， documents， programs and other needs through a third party software ifile read ! Whether jailbreak or not， to support capacity will not change :



Version 3.2 : up to 16G camera and SD.TF card， U disk 8G 's ， 100G mobile hard disk ( requires external power supply ) ， except for most of the keyboards ， some reader ， CF card reader !



4.2 and above : maximum support 16G camera and SD.TF card ， 4G U disk ( U disk 20AH greater consumption of less than 4G does not support ) ， part of the 100G mobile hard disk ( requires external power supply ) ， part of the power consumption less than 20AH keyboard ， power consumption is less than 20AH part of the reader ， CF reader except !



Support for external devices : SD.TF cards ， cameras， small-capacity U disk， keyboard ， part of the mobile hard disk ( requires external power supply ) ， part of the reader， TV， computer ( charging ) !



Reader / camera use



Tip IPAD does not support this accessory : the plug is not inserted in place is generally caused . After the plug will be prompted ， not control， point close to . Does not affect the use !



DCIM folder: camera cards are generally used in the DCIM folder ， the folder will automatically pop up within the photo ， suggesting that the import can not create their own folders in the root directory of the photographs to be read on the folder can be ! direct reading ! As already jailbreak ， which can be found in the card catalog ifile ， if not escape ， you must have the DCIM folder !



Switch : Observing both combo and switch up the reader ， reading down the USB device !



Case : Combo ， Observing ， AV cable Multi- band sets are not used can be equipped with a male to female extension cable ， when the case of no response ， usually blocking the holster ， you can take off !

Use



1 u disk connected via suit ipad， ipad prompts usb device is not supported， do not bother， you can dismiss the point (some versions are good or OK)!

2 Open ifile， jump to the directory / mnt ( some in the VAR directory ) ， you can find more than a mount1 directory ， the directory is u disk， click on the directory ， you can see all the files on the disk so u ， u can copy ipad disk file to any directory on the



Example: There are word documents are copied to ipad on file.doc how u disk， browse with pages

 1 ) u disk connected， then use ifile to the next / mnt/mount1 directory copying files file.doc

 2 ) Go to the directory / var / mobile / Applications directory， usually ipad software are installed to the directory， which is inside the converted ipad ， are some string ， click on any directory go through ***** **. app subdirectory of the directory can know which software the pages of my ipad software corresponding directory is 4763052A. . . . .

 3 ) Copy the file to a subdirectory under the directory Documents ， so ， start pages， I can see the files inside file.doc files ， and other software are similar ， just copy the files to the corresponding directory on the bottom of the documents directory ok， turn operation， you can copy the files to the disk u !

U disk connection problems and solutions :

If you connect U disk， can not properly read， can solve the following two steps :

1 ， if the reminder " accessory is not available ...... too much power ，" basically do not try ， it should be impossible to directly read ， you can consider taking HUB followed by U disk .

2， if there is no response plug (excluding bad ) ， where in iFile can not see the data ( but you should see a "Flash Drive" device ， of course， there may not see ) ， is estimated to be U disk format is wrong ， consider the following ways :

2.1 ， U disk connected to the computer

2.2 ， right-click the U disk， select "Format ... "

2.3 ， the format must choose "Fat32" must remember to click the " Restore device defaults " button

2.4 ， the formatting is completed ， copy the data and re- tested.

Use a card reader to solve common problems :

Note that if the reader clicks into place when inserted into the card reader， the prompt " accessories are not supported " or does not respond ， the general position is not inserted into the card reader plugs cause ， sometimes blocking the reader due holster IPAD .

The following photo files must be saved in SD card or U disk "DCIM" directory， which is a standard directory camera format files in other directories ， IPAD can not be read directly .



When using the USB switch is switched to the side of USB， an SD mode when appropriate ， switch to switch to SD position.



This section reader， regardless of whether the ipad jailbreak ， can be used， you can use third-party software ifile jail before using ifile need to ensure a smooth read reader photos ， if we read the pictures， but not ifile open the USB or SD device ， this is not installed， ifile reasons set and please re- check ifile related settings .



System version of the problem : version 4.2 system ， because of the IPAD output current limiting made ​​from 100mA down to 20mA， so the SD card port supports up to 8G， U disk port supports up to 4G， with U-disk capacity， brand， or without lights independent mainly board.
