Item Descriptions:

Product introduction

Connection example

View larger image

[A versatile stereo amplifier that demonstrates superior mobility.

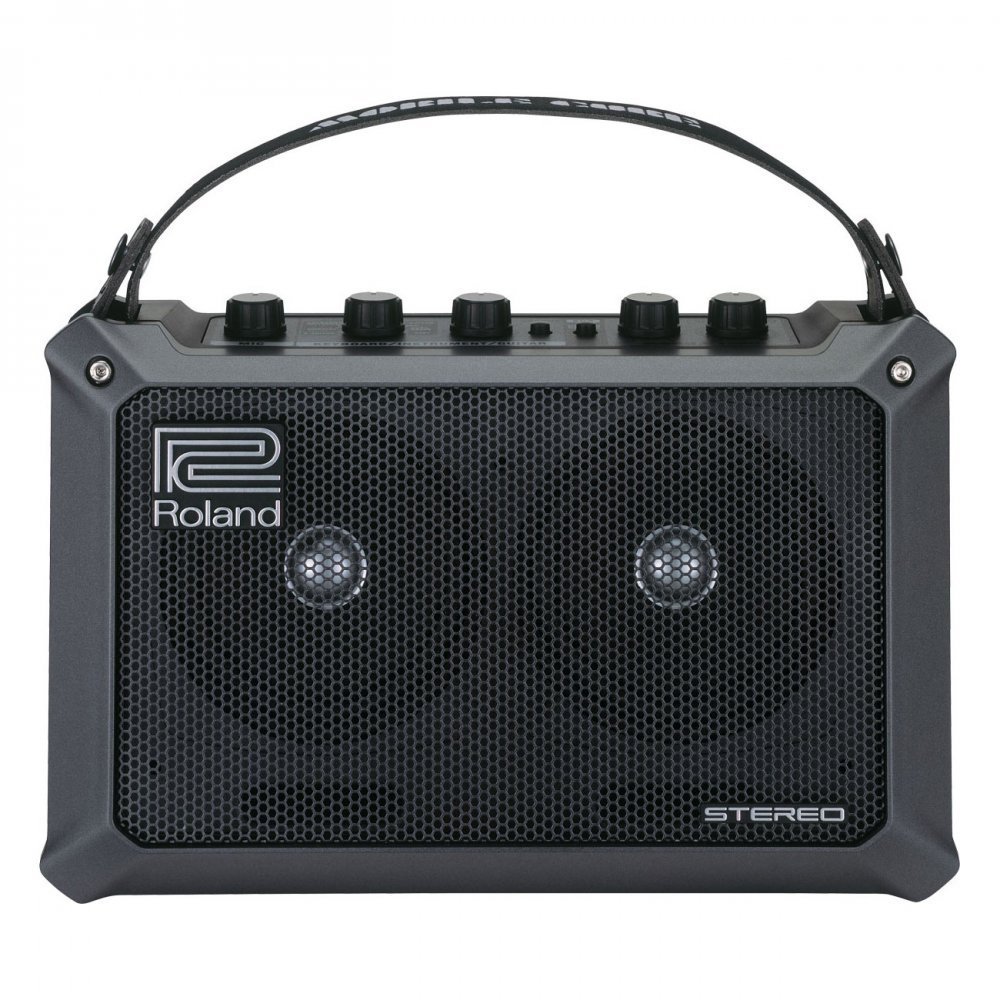

MOBILE CUBE is a battery-powered stereo · mobile amp equipped with 2.5 W + 2.5 W custom speaker.

Adopting a compact design that makes it easy to carry while realizing a wide range and volume sense beyond class.

As a practice / rehearsal in the dressing room and in the car in front of the stage, of course, for a small monitor in the live stage etc, a simple PA such as connecting a microphone and audio equipment, a wide body that can not be imagined from a small body

Activities are possible.

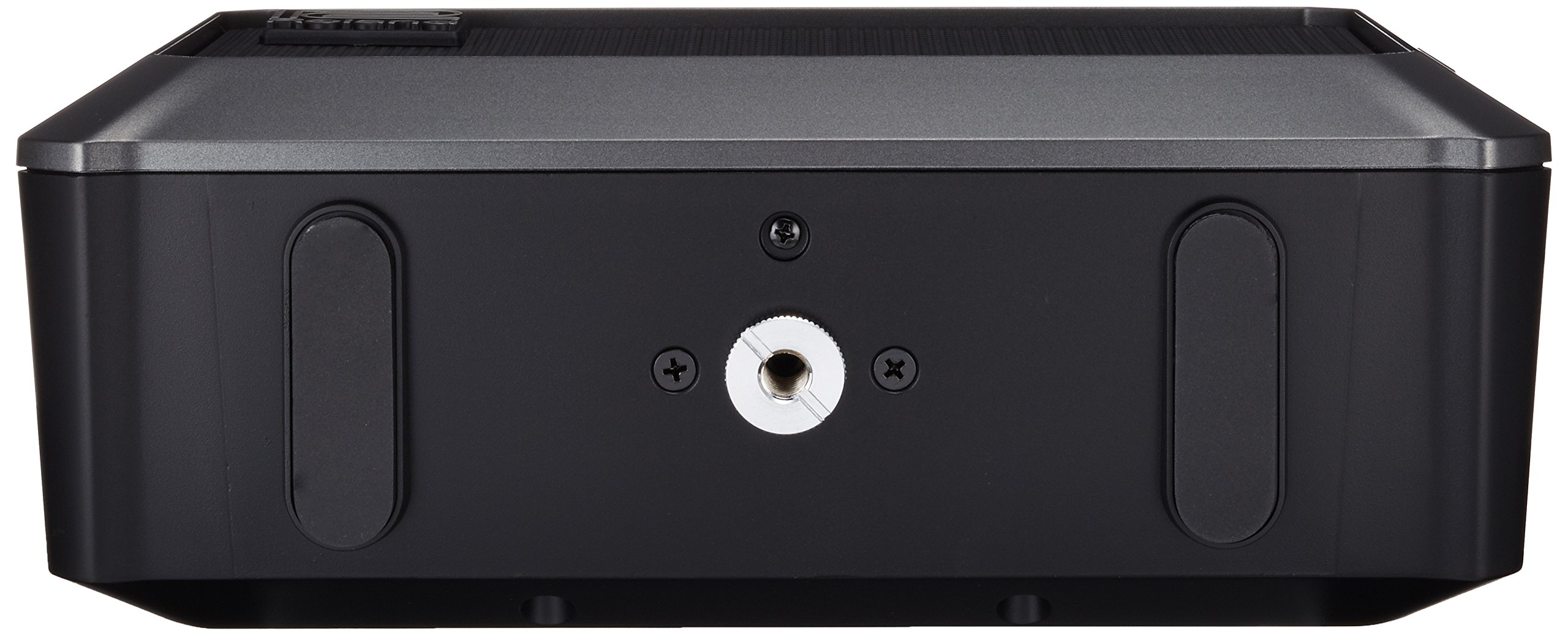

In addition, MOBILE CUBE can also be used by attaching to the microphone stand.

Since it is possible to adjust to the optimum height and position, it is possible to perform a high degree of freedom setting when using it as a keyboard monitor or when using it as a simple PA.

In addition, a special strap convenient to carry is included.

More active use of MOBILE CUBE.

[Corresponds to various inputs such as keyboard, recorder, microphone, guitar.

MOBILE CUBE is equipped with a variety of input systems to accommodate various uses.

It is possible to directly connect various devices such as musical instruments, recorders, microphones, digital audio players, etc. and play them.

In case

Musical instrument input corresponds to stereo input.

Stereo sources such as keyboard and recorder can be monitored beautifully.

In addition, it also supports guitar input, so you can play acoustic guitar, electric guitar etc. directly.

In case

In addition, MOBILE CUBE also has independent microphone inputs.

Since it is possible to mix instruments and microphones at the same time, you can also play keyboard / guitar and vocals.

And, the stereo AUX in which is suitable for connection of digital audio player and personal computer is equipped with two systems of RCA pin and mini stereo jack.

It is possible to play vocals and musical instruments while playing songs.

Application example

View larger image

[Long time use by battery driven is possible.

MOBILE CUBE also supports battery drive so you can use it even where it is difficult to secure power supply.

Because it adopts high efficiency amplifier, it can use continuously up to 15 hours even when it uses full power with 6 AA alkaline batteries.

Of course, it also supports driving with AC adapter (PSB - 100: sold separately).

【Center cancellation function, built-in effect.

The stereo AUX-in has a center cancellation function that makes it difficult to hear stereoscopic vocals, guitar solos, etc. at the center.

You can enjoy songs played from digital audio players etc. as karaoke-like sounds.

It is also possible to apply effects such as delay / reverb and chorus.

With effect processing that is most suitable for vocals and guitar, it is also possible to play comfortably in accordance with the song that the center canceled.

【Main Specifications】

■ Rated output: 2.5 W + 2.5 W

■ Specified Input Level (1 kHz): Microphone Channel = -50 dBu, Keyboard / Instrument / Guitar Channel = -10 dBu AUX In = -10 dBu

Speaker: 10 cm (4 inches) x 2

■ Control:

Power switch, tone knob, delay / reverb knob

[Microphone] Volume knob

[Keyboard / Instrument / Guitar] Type switch, volume knob, chorus switch

【AUX】 Center · Cancel · Switch

■ Indicator: Power

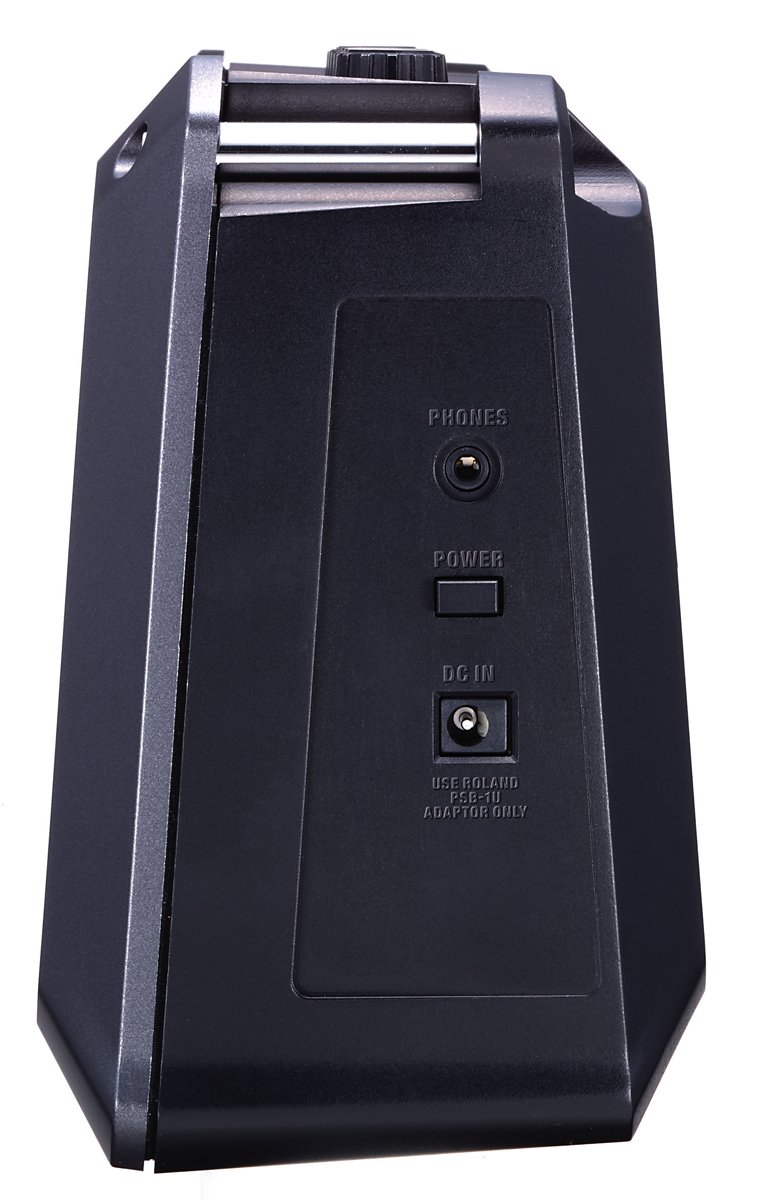

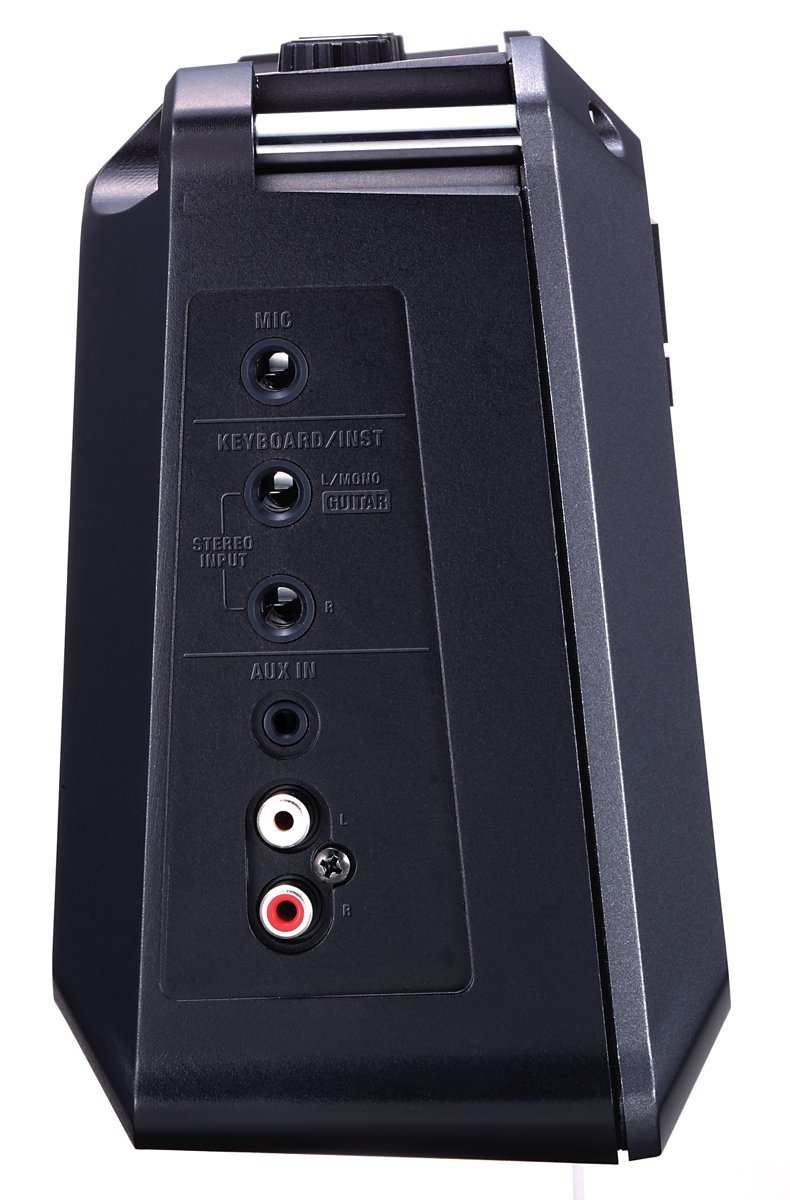

■ Connection terminal:

AC adapter · jack

[Microphone · Channel] Input · Jack (Standard type)

【Keyboard / Instrument / Guitar】 Input · Jack L (GUITAR) / R (Standard Type)

[Headphone] Headphone jack (stereo mini type)

【AUX IN】 stereo AUX in jack (stereo mini type, RCA pin)

■ Power supply: DC 9V: AA batteries × 6 or AC adapter (sold separately: PSB-100)

■ Current consumption: 175 mA (DC 9 V)

■ Accessories: Strap, AA size batteries × 6

■ Optional Accessories: AC Adapter (PSB - 100)

[External dimensions / mass]

■ Width (W): 280 mm

■ Depth (D): 108 mm

■ Height (H): 177 mm

Mass: 2.35 kg

From Amazon

Connection example

View larger image

[A versatile stereo amplifier that demonstrates superior mobility.

MOBILE CUBE is a battery-powered stereo · mobile amp equipped with 2.5 W + 2.5 W custom speaker.

Adopting a compact design that makes it easy to carry while realizing a wide range and volume sense beyond class.

As a practice / rehearsal in the dressing room and in the car in front of the stage, of course, for a small monitor in the live stage etc, a simple PA such as connecting a microphone and audio equipment, a wide body that can not be imagined from a small body

Activities are possible.

In addition, MOBILE CUBE can also be used by attaching to the microphone stand.

Since it is possible to adjust to the optimum height and position, it is possible to perform a high degree of freedom setting when using it as a keyboard monitor or when using it as a simple PA.

In addition, a special strap convenient to carry is included.

More active use of MOBILE CUBE.

[Corresponds to various inputs such as keyboard, recorder, microphone, guitar.

MOBILE CUBE is equipped with a variety of input systems to accommodate various uses.

It is possible to directly connect various devices such as musical instruments, recorders, microphones, digital audio players, etc. and play them.

In case

Musical instrument input corresponds to stereo input.

Stereo sources such as keyboard and recorder can be monitored beautifully.

In addition, it also supports guitar input, so you can play acoustic guitar, electric guitar etc. directly.

In case

In addition, MOBILE CUBE also has independent microphone inputs.

Since it is possible to mix instruments and microphones at the same time, you can also play keyboard / guitar and vocals.

And, the stereo AUX in which is suitable for connection of digital audio player and personal computer is equipped with two systems of RCA pin and mini stereo jack.

It is possible to play vocals and musical instruments while playing songs.

Application example

View larger image

[Long time use by battery driven is possible.

MOBILE CUBE also supports battery drive so you can use it even where it is difficult to secure power supply.

Because it adopts high efficiency amplifier, it can use continuously up to 15 hours even when it uses full power with 6 AA alkaline batteries.

Of course, it also supports driving with AC adapter (PSB - 100: sold separately).

【Center cancellation function, built-in effect.

The stereo AUX-in has a center cancellation function that makes it difficult to hear stereoscopic vocals, guitar solos, etc. at the center.

You can enjoy songs played from digital audio players etc. as karaoke-like sounds.

It is also possible to apply effects such as delay / reverb and chorus.

With effect processing that is most suitable for vocals and guitar, it is also possible to play comfortably in accordance with the song that the center canceled.

【Main Specifications】

■ Rated output: 2.5 W + 2.5 W

■ Specified Input Level (1 kHz): Microphone Channel = -50 dBu, Keyboard / Instrument / Guitar Channel = -10 dBu AUX In = -10 dBu

Speaker: 10 cm (4 inches) x 2

■ Control:

Power switch, tone knob, delay / reverb knob

[Microphone] Volume knob

[Keyboard / Instrument / Guitar] Type switch, volume knob, chorus switch

【AUX】 Center · Cancel · Switch

■ Indicator: Power

■ Connection terminal:

AC adapter · jack

[Microphone · Channel] Input · Jack (Standard type)

【Keyboard / Instrument / Guitar】 Input · Jack L (GUITAR) / R (Standard Type)

[Headphone] Headphone jack (stereo mini type)

【AUX IN】 stereo AUX in jack (stereo mini type, RCA pin)

■ Power supply: DC 9V: AA batteries × 6 or AC adapter (sold separately: PSB-100)

■ Current consumption: 175 mA (DC 9 V)

■ Accessories: Strap, AA size batteries × 6

■ Optional Accessories: AC Adapter (PSB - 100)

[External dimensions / mass]

■ Width (W): 280 mm

■ Depth (D): 108 mm

■ Height (H): 177 mm

Mass: 2.35 kg

Features:

• Please enter model number Confirm this is compatible:
• Rated output: 2.5 W + 2.5 W
• Power supply: DC 9 V: AA size batteries × 6 or AC adapter (sold separately: PSB - 100)

Product information:

Shipping Weight: 3238 g

Package Dimensions: 16.00 x 24.00 x 33.60 cm
