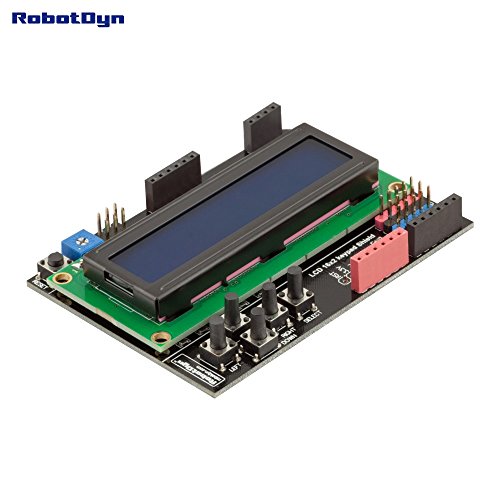

Product Description

Useful LCD display for Arduino with 16 symbols and 2 lines. Display background LED is connected to potentiometer regulating screen brightness and contrast. You can control switching on/off with sketch.

LCD display uses standard HD44780-compatible driver. Arduino "LiquidCrystal" library is used for display programming and can be found in Arduino IDE coding environment. You can use standard characters or make your own characters.

LCD display uses digital Arduino digital outputs: 4, 5, 6, 7, 8, 9.
Initialization string in sketch seems as: LiquidCrystal lcd(8, 9, 4, 5, 6, 7);

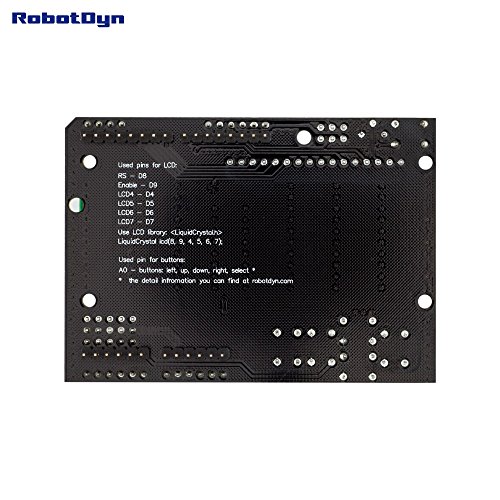

*( RS - D8; Enable - D9; LCD4 - D4; LCD5 - D5; LCD6 - D6; LCD7 - D7)

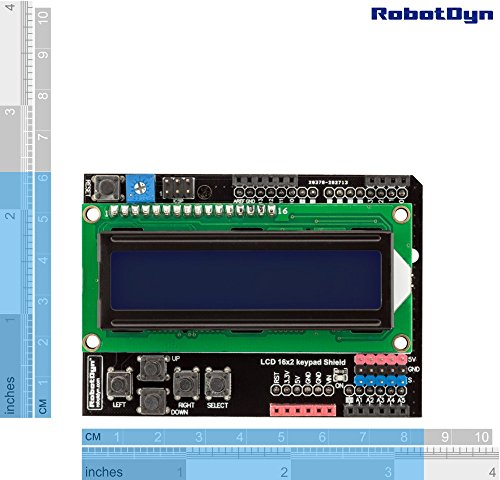

Under LCD there are 5 navigation buttons: Up, Down, Left, Right.

Option. Buttons are connected with A0 analog input only, so you can monitor button status using just one Arduino input. Pay attention: status monitoring is unavailable when several buttons are pressed.

Shield includes blocks of digital and analog inputs/outputs and also it has A1-A5 analog input blocks (5V/GND/IN) for quick connection to periphery.

Shield is powered with Arduino 5V output.

Feature:
Display type: character LCD display
Screen resolution: 16x2
Used Arduino i/o: digital - 4, 5, 6, 7, 8, 9; analog - A0.
Voltage: 5V(by Arduino)
Current consumption: LCD backlight - 150mA, LCD controller - 3mA

Product official page:
http://robotdyn.com/catalog/shields/lcd_16x2_keypad_shield_for_arduino_/
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacture.

Feature

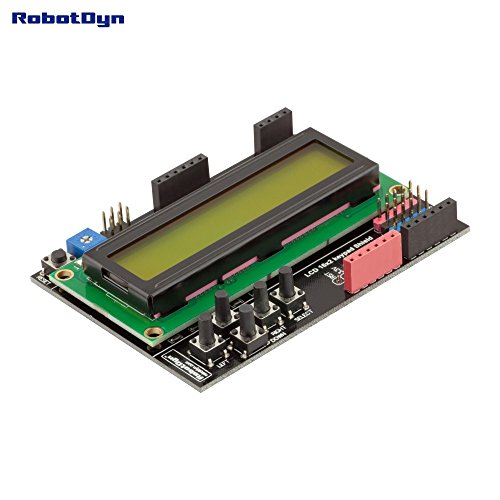

Useful LCD display for Arduino with 16 symbols and 2 lines, adjustable back-lighting. Variations for 2 colors: Green and Blue. Buttons height 10mm, for easy embed to case.
. Arduino "LiquidCrystal" library is used for display programming and can be found in Arduino IDE
Used Arduino i/o: digital - 4, 5, 6, 7, 8, 9; analog - A0
Brand : RobotDyn
MPN(PartNumber) : LCD Shield
EAN : 6970622930365
Product Dimensions(LxWxH) : 14x9x3cm ; 68 g
Package Dimensions(LxWxH) : 10x6x4cm ; 68 g
