Product Description

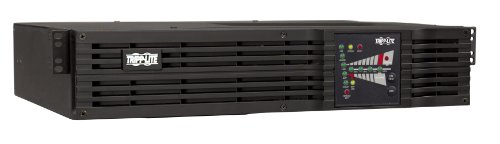

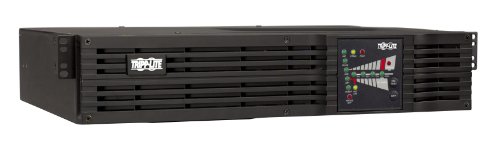

Product Type: Dual Conversion Online UPSPlug/Connector Type: NEMA 5-20PReceptacles: 6 x NEMA 5-15/20R - Battery/Surge-protected 1 x NEMA L5-20R - Battery/Surge-protectedInterfaces/Ports: 1 x DB-9 RS-232 SerialNetwork Management: SNMP Manageable OptionalBatteries: User-replaceable Hot-swappableBackup/Run Time: 0.08 Hour 1.6 kW Full Load 0.23 Hour 800 W Half LoadBattery Recharge Time: 5 HourLoad Capacity: 2.20 kVA/1.6 kWInput Voltage: 110 V ACInput Voltage Range: 120 V ACOutput Voltage: 100 V AC to 120 V AC NominalForm Factor: 2U Rack-mountable TowerDimensions: 3.50" Height x 17.50" Width x 19" DepthWeight: 47.40 lbPackage Contents: SmartOnline SU2200RTXL2UA 2200VA Tower/Rack Mountable UPS User Installable NEMA 5-15P Replacement Plug PowerAlert software CD-ROM and plete cabling Mounting hardware for 4 post rack enclosures Instruction manual with warranty infoStandard Warranty: 2 YearFeature
2200VA/1600W power capacity in 2U of rack space
