Item Descriptions:

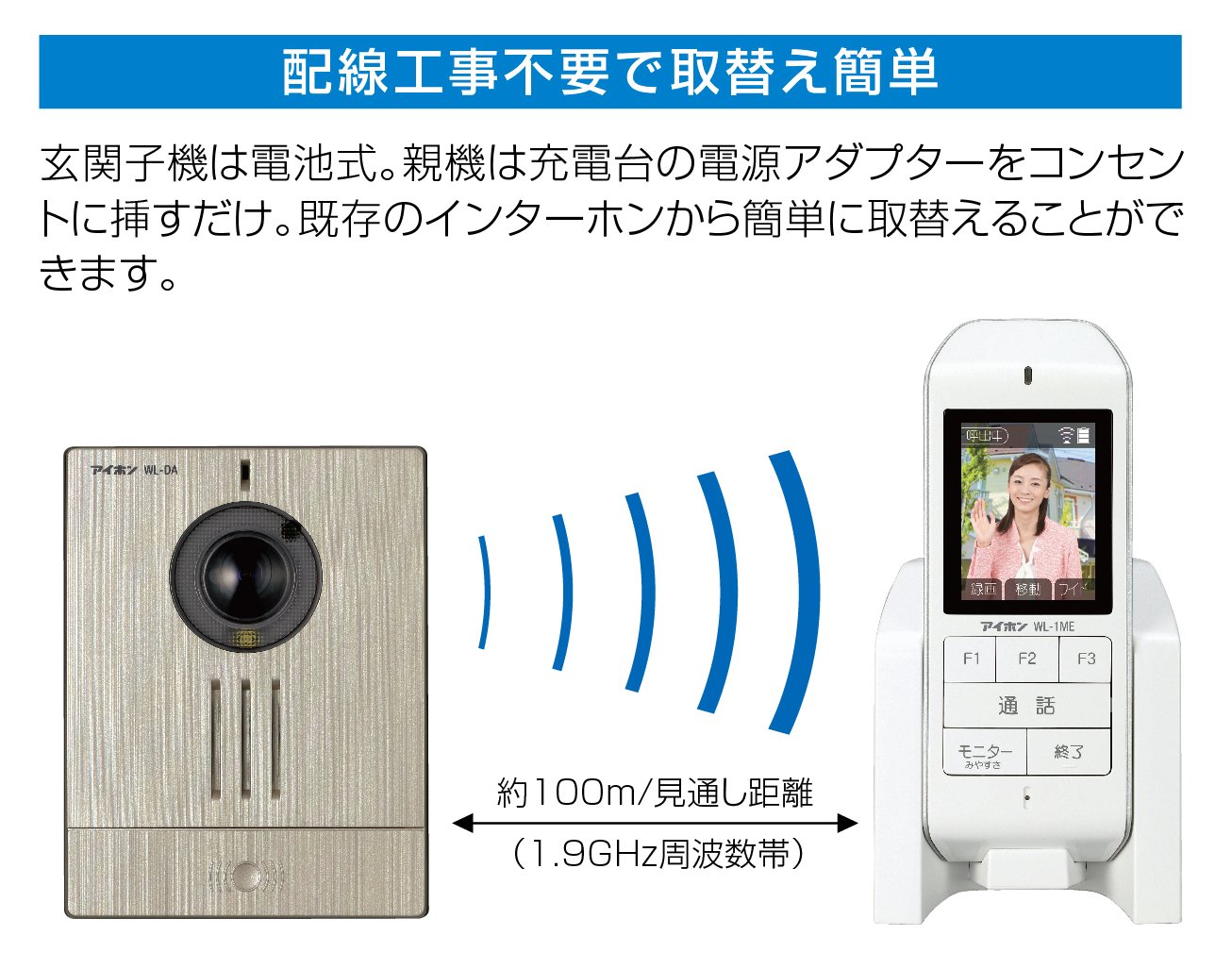

● Easy to replace with no wiring work required

The entrance door machine is a battery type.

Just plug the power supply adapter of the charging base into the mains outlet.

It can easily be replaced from the existing interphone.

Battery life

The battery life of the camera equipped wireless entrance machine is about 2 years.

Frequent exchange is unnecessary.

* When using the recommended battery, the entrance monitor setting is set to "None".

"None" by default.

If set to "Yes", battery drain will be faster.

* Recommended: Nickel-metal hydride batteries with a capacity of 2500 mAh or more (The life of batteries may be shortened when using nickel-metal hydride batteries with a capacity less than 2500 mAh, alkaline batteries, lithium batteries, etc.)

● Design pursuing luxury

The entrance machine is a hairline finish with a sense of quality.

It matches any external structure.

The base unit is white and silver two tone color.

It is a shape that fits comfortably in the hand.

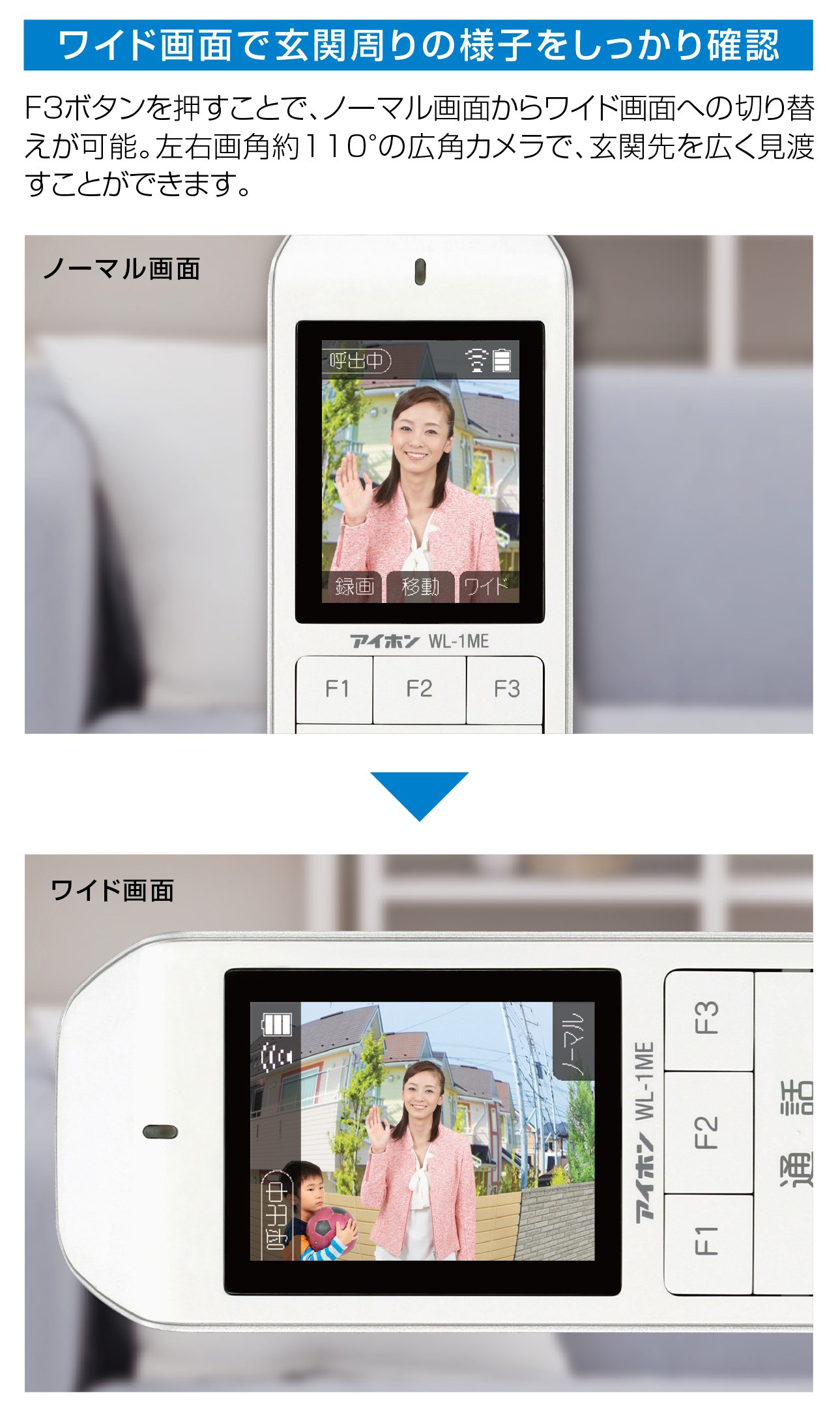

● Firmly check the appearance around the entrance on a wide screen

You can switch from normal screen to wide screen by pressing F3 button.

It is a wide angle camera with left / right field angle of about 110 °, and you can look around the entrance widely.

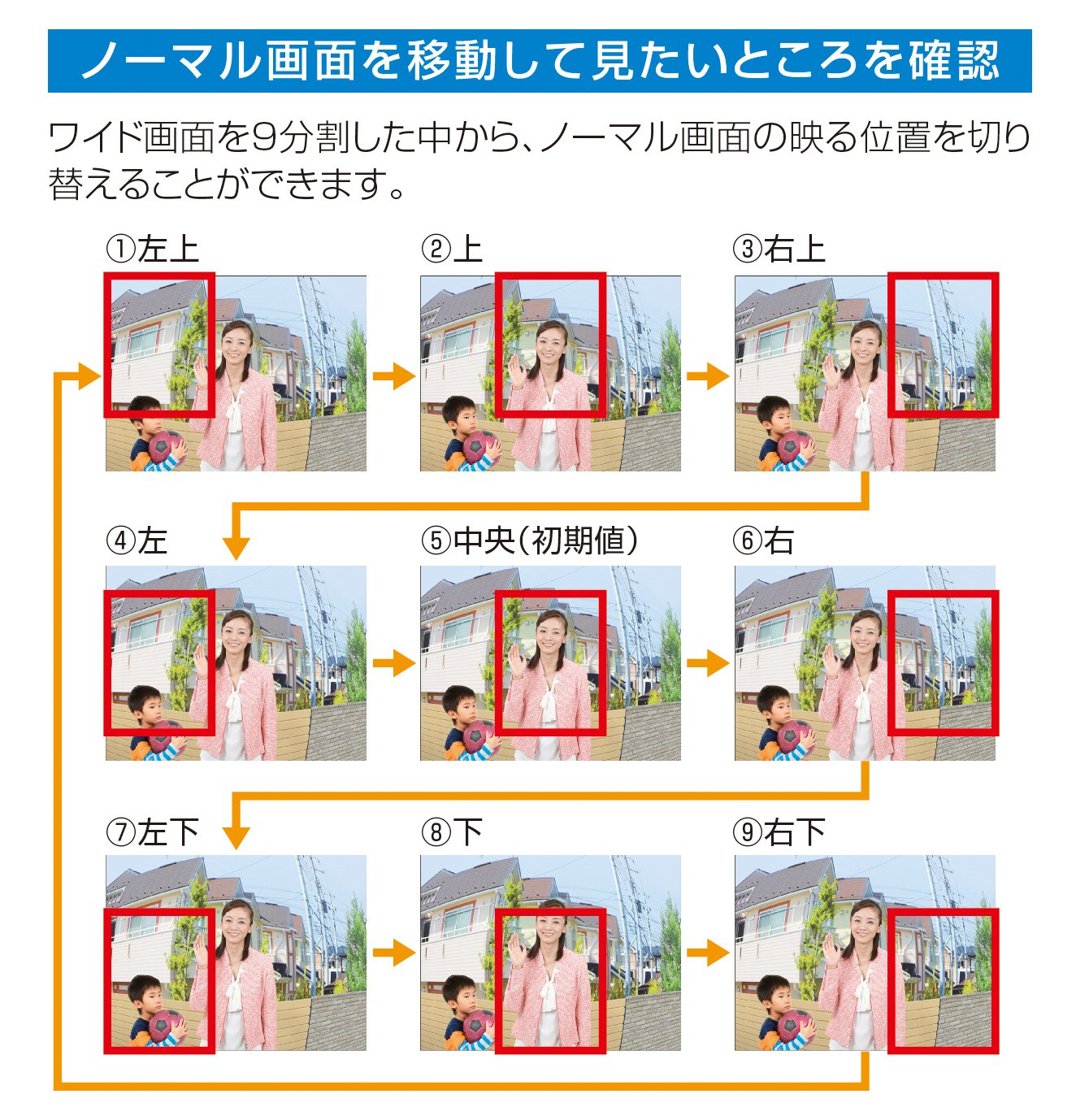

● Normal Moving the screen to see where you want to see

You can switch the position of the normal screen from among 9 divided wide screen.

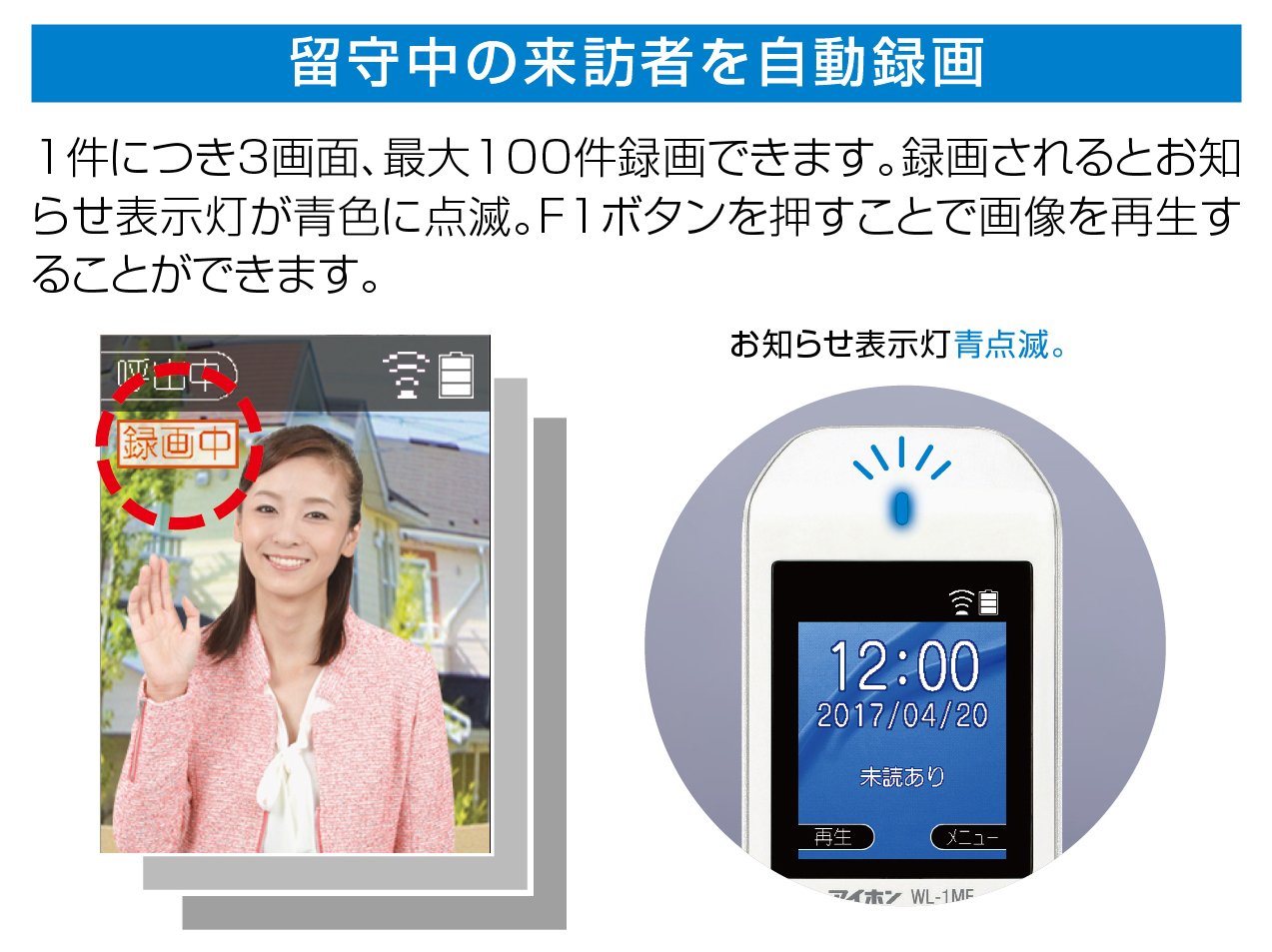

● Automatic recording of visitors in absence

Up to 100 scenes can be recorded with 3 screens per case.

The notification light flashes blue when recording.

You can play the image by pressing the F1 button.

● Easy to use correction function

When backlit makes it difficult to see the image, use "Miyasu" button to make the image easier to see.

● Specification

· Wireless master with monitor (WL-1ME) · · · Power supply voltage: DC 2.4V (dedicated nickel hydride battery), use time: Full charge standby time About 18 hours cumulative calling about 4 hours, display: 2.4 TFT

Color liquid crystal, communication system: 1.9 GHz TDMA-WB (time division multiple access system), communicable distance: about 100 m / straight line sight distance (between the main unit and the entrance door machine)

· Charging stand (WLW - C) · · · Power supply voltage: AC 100 V (50/60 Hz), Power consumption: Maximum charging time of 1.8 W

· Wireless gateway with camera (WL-DA) · · · Power supply voltage: AA battery × 6 (recommended: nickel hydrogen battery capacity 2500 mAh or more), imaging device: 1/4 color CMOS, imaging range: wide

Approximately 80 cm above and below about 50 cm in front of the camera × 110 ° on the left and right, dustproof and anti-dust type (equivalent to JIS C 0920 IP 54)

Features:

• Wireless type without wiring work required
• Includes: Wireless entrance door with camera, Wireless master with monitor (with charging base) 1 each
• Size: Wireless entrance gate machine with camera: height 13 × width 10 × depth 4.2 cm, monitor with wireless base station: height 15 × width 5.7 × depth 2.7 cm, charging base: height 8.8 × width 8.4 × depth 6.3 cm
• Weight: Wireless entrance door machine with camera: Approximately 220 g, Wireless parent with monitor: Approx 170 g (including battery pack)
• Screen display: 2.4 inch TFT color liquid crystal
• Calling method: Handsfree / Press talk
• Recording function: ○ (3 still image recording / screen, 100)
• Maximum number of connected units: 1 entrance and 1 room

Product information:

Shipping Weight: 730 g

Package Dimensions: 7.39 x 16.21 x 23.09 cm
