1, as far as possible the transmitter and receiver on the high, do not put the ground;

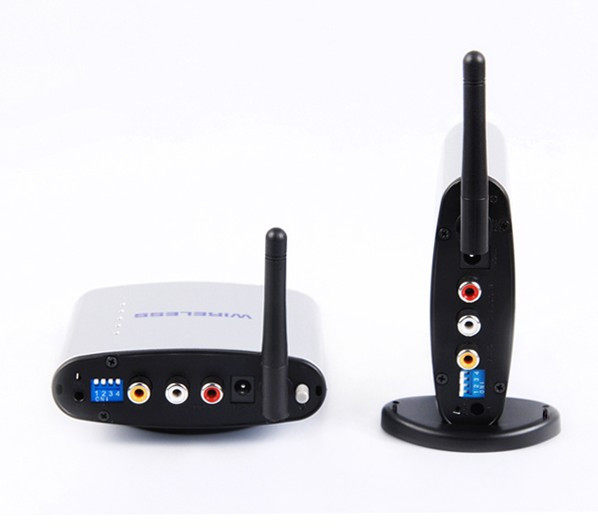

2, try to adjust the back of the small switch, it is recommended to use the 1234 band all up, or 1 down, or 2 down, or 3 down, or 4 down, or 12 down, or 13 down or 14 down The As long as the transmitter and receiver settings can be transmitted the same, each combination in different environments, anti-jamming effect is not the same, select the most appropriate corresponding band.

Product Description:

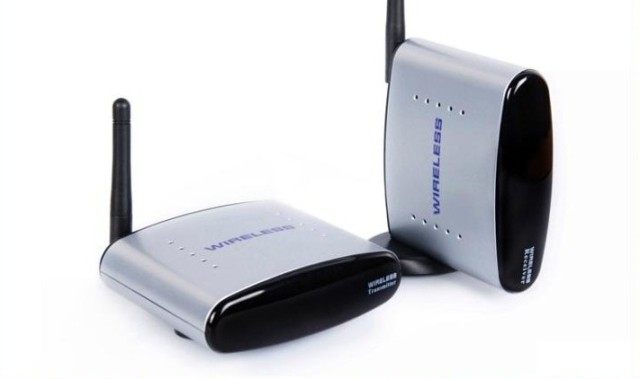

The PAT-330 Wireless Video Receiver Receiver consists of a transmitter and a receiver. Using the international advanced 2.4GHz wireless transmission program, transmission distance, anti-interference and mobility. Can be DVD, DVR, camera, IPTV, satellite set-top boxes, digital TV set-top boxes and other audio and video signals to wireless transmission and remote reception, input to the TV display. Allowing you to easily achieve high-definition audio and video wireless sharing, enjoy the free high-fidelity audio and video effects.



•



  Applications:

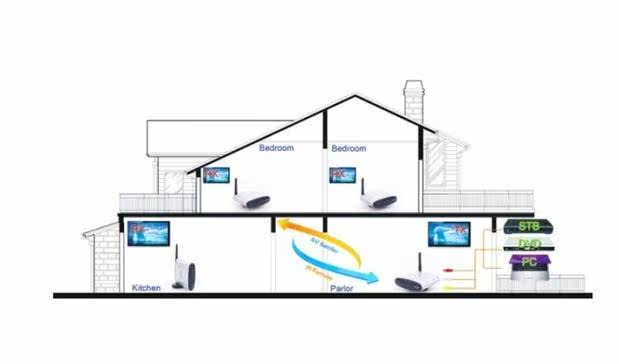

  ■ wireless audio and video transmission, can be used for multiple TV wireless shared DVD, DVR, camera, IPTV, satellite set-top boxes, digital TV set-top boxes and other audio and video equipment;
  ■ large-scale video conferencing systems, multimedia classroom wireless audio and video transmission construction program;
  ■ external monitoring camera, real-time live image monitoring, can be applied to security systems;
  ■ audio and video wiring construction difficult or costly audio and video transmission sites;



  Features;



  ■ use 2.4GHz ISM band;
  ■ support 4 groups of channels to choose to use, effectively avoid the interference of wireless routing signals;
  ■ wireless transmission distance ≤ 150 meters;
  ■ transmitter and receiver with the channel in pairs, can be one to many, many to use;
  ■ compatible DVD, DVR, camera, IPTV, satellite set-top boxes, digital TV set-top boxes and other audio and video output devices;
  ■ wireless receiving images clear and stable, colorful, clear sound without noise;
  ■ support PAL / NTSC standard video transmission and stereo audio transmission;
  ■ full hardware design, no need to install the software, plug and play, simple and convenient;
  ■ Size: 10cm (the longest) × 8.5cm (the widest) × 3.0cm (the highest);
  ■ 2.4GHz module has been certified by the US FCC CLASSB, wireless applications safe and reliable;Precautions;



  1, as far as possible the transmitter and receiver on the high, do not put the ground;


  2, try to adjust the back of the small switch, it is recommended to use the 1234 band all up, or 1 down, or 2 down, or 3 down, or 4 down, or 12 down, or 13 down or 14 down The As long as the transmitter and receiver settings can be transmitted the same, each combination in different environments, anti-jamming effect is not the same, select the most appropriate corresponding band.

•
