The AS3202T series devices redefine the aesthetics of a NAS. The stylish diamond-plate finished cover makes it an elegant addition to any space.
Quad-Core Power: Topflight Performance
Equipped with Intel Celeron quad-core processors and 2GB of dual-channel memory. Features read/write speeds of over 112 MB/s and 110 MB/s under RAID 1 configurations.
Built-in Intel AES-NI hardware encryption engine features read/write speeds of 112 MB/s and 80 MB/s, giving you both performance and security advantages. Your data is completely protected from the moment it is first stored on the NAS.
Built-in Intel AES-NI hardware encryption engine features read/write speeds of 112 MB/s and 80 MB/s, giving you both performance and security advantages. Your data is completely protected from the moment it is first stored on the NAS.
Toolless Hardware Installation
The sliding outer cover design and hand screws allow for easy installation and setup in minutes without any extra tools.
PC-less Software Installation
Mobile installation with AiMaster takes only 3 steps! Finding your NAS, system initialization and installation, power management, ADM firmware updates, system information and more are all available from the convenience of your mobile device at any time.
Hardware Specifications
CPU: Intel Celeron 1.6GHz Quad Core (burst up to 2.24 GHz) ProcessorAES-NI hardware encryption engine integrated
Hardware acceleration engine supported format: H.264 (AVC), H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1
Memory: 2GB DDR3L (not expandable)
HDD: 2 x SATA3 6Gb/s; 3.5" HDD
Maximum Internal Raw Capacity: 20 TB (10 TB HDD X 2, Capacity may vary by RAID types)
Expansion: USB 3.0 x 3
Network: Gigabit Ethernet x 1
Output: HDMI 1.4b x 1
System Fan: 70mm x 1
Infrared Receiver
Power Supply Unit / Adapter: 65W x1
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK
Network
TCP/IP (IPv4 & IPv6)
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network³
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Network Protocols
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, SyslogPackage Contents
Package Weight: 2.12 kg / 4.67 lbsPackage Size: 237(H) x 323(W) x 143(D) mm
AS3202T Unit x1
Installation CD x1
AC Power Cord x1
AC Power Adapter x1
RJ-45 LAN Cable(Cat 5e) x1
Thumb Screw (for 3.5" HDD) x8

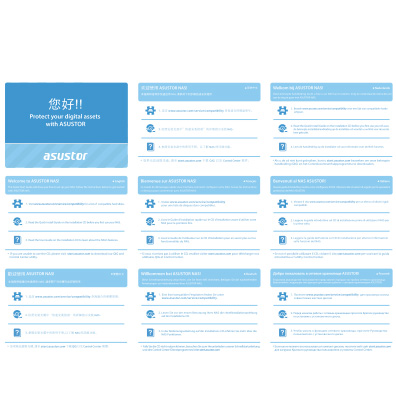

Quick Start Guide
