Item Descriptions:

About us:

Perbeat products are sold in the United States and other countries in Japan and Canada, and have earned high praise from customers all over the world.

Since our shop has absolute confidence in our products, the quality of all products of Perbeat is guaranteed.

In addition, we provide high quality customer support for all products, so thank you very much for your purchase.

Thank you.

Perbeat 67 Function description:

Bluetooth:

Bluetooth is one of the standards for short range wireless communication for digital equipment.

You can connect personal computers, mobile phones, peripheral devices, etc. wirelessly without using cables, and can perform voice and data between the devices.

hands free:

Handsfree calling is possible by connecting with Bluetooth compatible smartphone or mobile.

Comfortable driving is possible, such as business scene or long distance driving.

FM transmitter:

With the FM transmitter you can listen to music and sounds played on smartphones and portable music players with car audio using radio waves in FM frequency band.

A2DP:

Brother file that efficiently transmits music data using Bluetooth wireless communication technology

USB Charger:

You can charge the smartphone terminal using the USB port of this machine.

* When Bluetooth is connected with another device with the AUX terminal or USB terminal of this product connected, Bluetooth takes precedence.

"Soft gooseneck"

Since it is linked, it can be strong, or can be hardened into a cigar socket and plugged in!

Regardless of where the car's cigarette lighter is located, you can adjust the angle of the display and operation buttons at your convenience.

It is very convenient to use and makes life more!

package

FM transmitter

IR Remote

Japanese Instruction Manual

Product Specifications

Bluetooth version: CSR BC 8635 Stereo 4.0

Connected equipment display name: BT 67

FM transmission frequency: 87.5 - 108.0 MHz

Frequency stability: ± 10 ppm

Output frequency: 20 Hz - 20 KHz

Supports both input voltage: 12 to 24 V

Output voltage: 5 V / 2.1 A

Support file: MP3

USB memory: 0 to 32 GB

SD card: 0 ~ 32GB

USB and SD format: FAT 32

Audi input: 3.5 mm stereo jack

Transmission distance: within 10 m

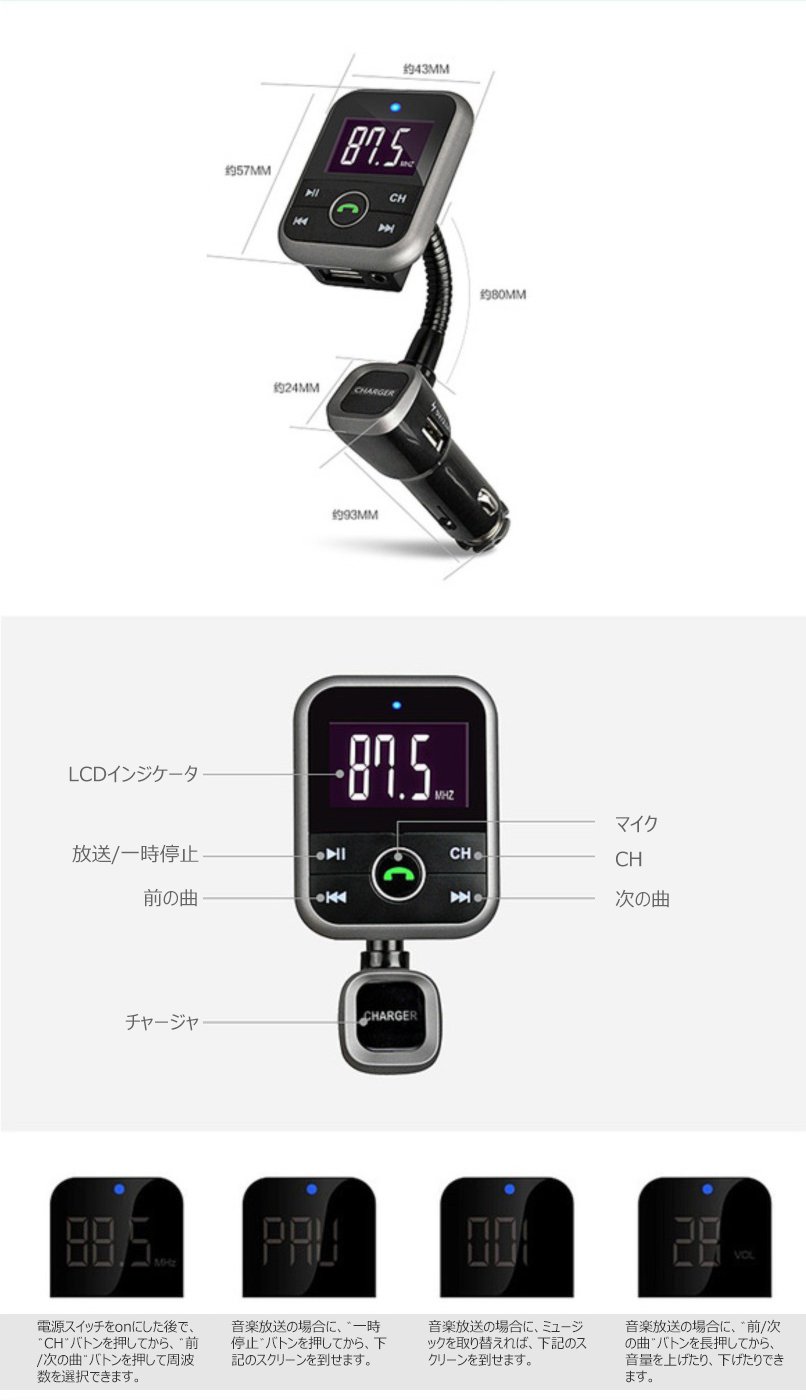

Remote controller

In case

0 - 9 You can select a song using the numeric keys

.

For example: 012, then the current song changes the 12th song.

Frequency adjustment is also possible.

For example: After pressing "1057" or "CH + / CH-", the frequency has been adjusted to 105.7 MHz.

Wireless compatibility and remote control are attached so you can freely select various songs from the rear seats as well as adjust the volume.

Bluetooth function

It is necessary to pair this machine and carefs with Bluetooth.

Open the Bluetooth function of the mobile phone / smartphone, choose the name of the body (BT 67) searched, pairing is completed.

When a call is made in the music playback mode, this unit can automatically switch to the communication mode.

FM

transmitter

Operating procedure

1, Plug this product firmly into the cigarette lighter.

2, Please match the same frequency after matching radio with unused FM frequency

3, Follow the instructions, insert the SD card and mp3 data into the memory card slot and USB port

Into

Please insert it.

And music can be broadcasted automatically.

Please be aware that it can be used only with the inner USB port as a USB reader.

4, Line-in function: When Bluetooth is connected with another device with the AUX terminal or USB terminal of this product connected, Bluetooth takes precedence.

If you want to play music again with the AUX terminal or USB terminal device, you can use it by removing the AUX terminal on this product side and reconnecting the cable.

Music playback is also possible!

It is also excellent in music transmission capability and playback ability, and it is possible to listen to your music with beautiful sound.

Thimble Convert Design

Since it is a waste-free thimble design, it will not become a hindrance to the interior after the installation as well.

Frequency, the number of call buttons is small and large buttons are installed, so it is easy to operate.

Bluetooth call

Music can be played using FM transmitter / Bluetooth connection!

Because built-in microphone is installed, hands-free calling can also be done!

You can talk by hands free by pressing the "Talk / End" button (red) when a call comes in.

Press the "Talk / End" button (Red) to end the call.

You can dial the last number after pressing the "Call / End" button (red) twice.

In the case of a call, you can only use a phone number to dial a phone number, because you are connected, you can enjoy using it handsfree.

USB Charger:

This product is a USB cable, you can connect the USB port and smartphone, charge it to the cigar socket of the car, and can be a charger.

Please note that this product can be powered 2.1 A from the double USB terminal, so it will automatically be divided by the voltage required by the smart chip.

USB has double sided plug type, but you can charge iPad with external USB port only.

"please note"

① When inserting the product into the cigar socket according to the car model, the USB port part may be hidden and can not be tried.

② Volume becomes smaller as characteristics of FM transmitter.

③ Direct sunlight, extremely high frequencies, too low bass may cause malfunction.

④ It may be impossible to connect depending on the model of mobile phone or smartphone.

⑤ The color taste may rich with real products due to the monitor.

※ Please contact us if you have defects etc. in the case of arrived goods by any chance.

In case

※ By the monitor, how the color looks may differ from the actual product.

* We can not accept returning goods bought by the image difference of goods.

※ In case of defective item · content difference · damage · damage, please contact Amazon Customer Service after delivery.

We will exchange items.

* Please use it after reading the terms of use carefully.

Features:

• Please enter model number Confirm this is compatible:
• 【BT and FM】 By paired with car audio and FM frequency of main unit by Bluetooth and FM transmission, you can enjoy music from car speaker.
• 【AUX-IN and SD card】 You can play music from car speaker even if the main unit, Phone, iPad or other device etc. are continuous with AUX cable, and FM frequency adjustment is unnecessary.
• You can also load the SD card and send the favorite music saved in the file to the main unit via Bluetooth connection.
• 【Charge】 Double (2.1 A 5 V)) With USB port, you can charge Phone, iPad or other rechargeable device.
• Since you can listen to music while charging while driving, you do not have to worry about disconnecting the battery.
• [Hands-free] There is a built-in microphone, with hands-free high-quality call function!
• You can also make calls while driving safely.
• [Remote control] Built-in remote control, it can be selected by using numbers, it is very convenient because it can adjust the frequency.

Product information:

Shipping Weight: 154 g

Package Dimensions: 4.90 x 11.40 x 13.79 cm
