Product Description

Product Contents:

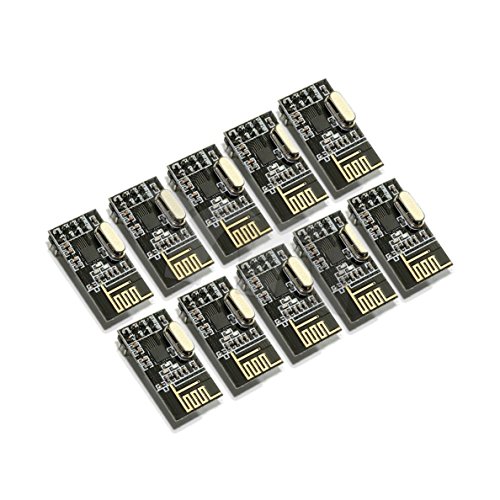

10 pieces RobotLinking nRF24L01+ modules
10*14mil thick resealable clear plastic bag

Specifications:

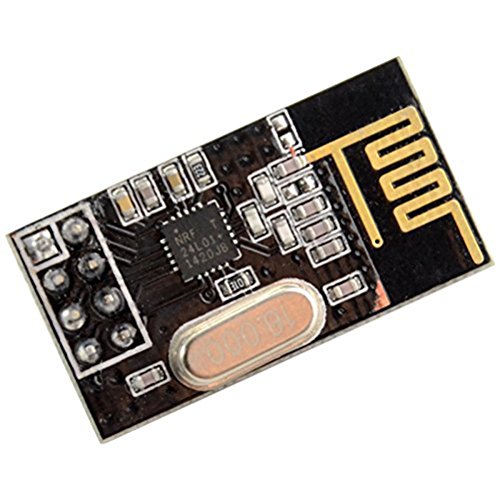

The Addicore nRF24L01+ is a 2.4GHz ISM band transceiver.
Includes on board support components and a 2.4GHz antenna for easy implementation into designs without additional hardware.
Communication range 262 feet (80 meters) in ideal conditions.
A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection.
Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V. When using the nRF24L01+ with an Arduino be sure to use the 3.3V output pin from the Arduino board to power the nRF24L01+ module.
The module has 5V tolerant inputs which allows for direct connection of SPI pins to the Arduino.
Ultra low power consumption as low as 11.3mA transmitting, 13.5mA receiving at 2Mbps, 900nA in power down, and 26uA in standby.
Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC).
The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex: Arduino), from sleep when the module receives a transmission providing great power conservation in battery devices.
Auto-acknowledge and auto-retransmit.

Feature

Applications: wireless peripherals, control systems such as consumer electronics and remote RC vehicles , wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation
you can find several resources available online easily, such as tutorials, data sheets, and notes
nRF24L01 is a single chip radio transceiver for the worldwide 2.4 - 2.5 GHz ISM band
Auto-acknowledge and auto-retransmit
Compatible with Arduino and Raspberry Pi
Brand : Quimat
Item model num : QK19
MPN(PartNumber) : QK19
EAN : 6932083809031
