Product Description
Specification

Nominal Voltage: 48V
Rated Capacity: 17.5Ah
Watt Hours:840Wh
Cell inside: Sanyo NCR18650-GA 3500mAh cell
Configuration: 13S5P
Standard Charge Current: 2A
Max charge voltage: 54.6V
AC input: 110-240v,50/60HZ
BMS Continue Discharge Current: 30A
Peak Discharge Current: 80A
Fit for Motor: 750W 1000W
Charged Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 32.5V
Battery Net Weight: 4.5Kg

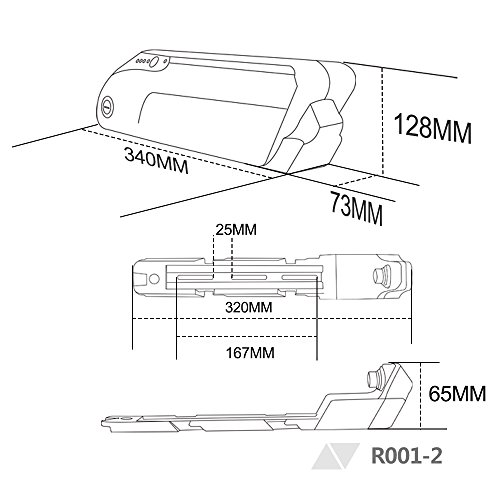

Battery Dimensions: 340*128*80mm (12.25 x 5 x 3 ")
Charger Connector: US AC plug and DC Connector
Operating Temperature: Charging 0℃-45℃, Discharge -20℃~65℃
Lifecycle: 800-1000 Cycles with DOD80%

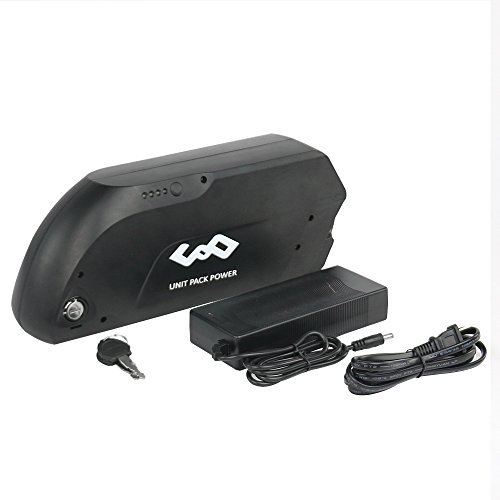

Parts included

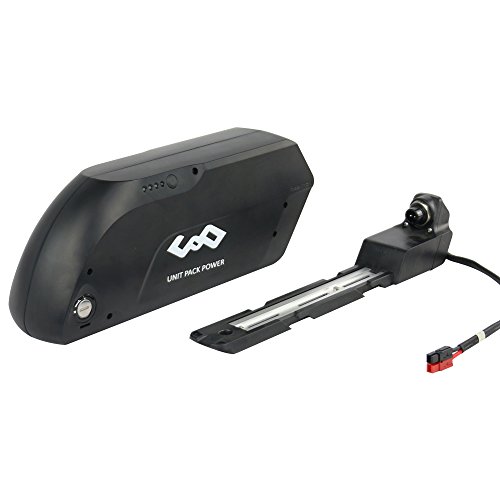

1pc Lithium Battery Built-in Sanyo GA cells and 30A BMS

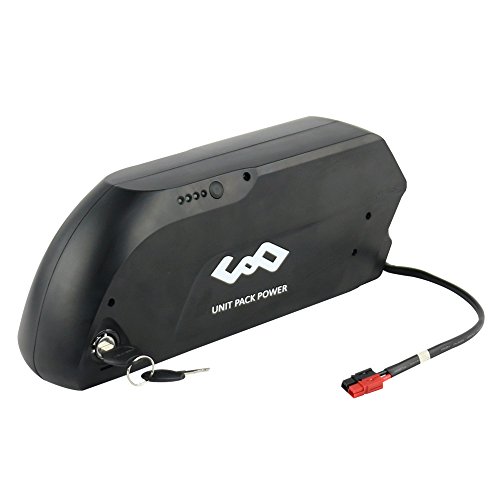

1pc Battery holder with 30CM discharge cable soldered Anderson connector

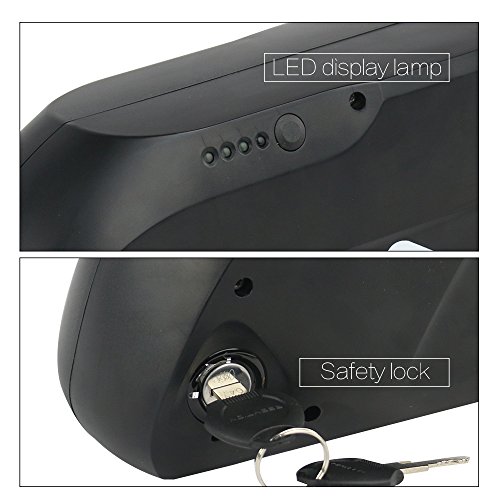

2pcs Keys
1pc 58.8V 2.0A Charger With US AC plug DC plug

Long term storage

Under 3 months without use under 20 ℃~ 45 ℃.
Over 3 months fully discharge and store under 23℃±3 ℃ and humidity of 65 ％±20％RH in a dry cool place.
