Brand Name:

FSHOW

Model Number:

D5344A

is_customized:

Yes





Thanks for your interest in our products!All the items are at very low price and with high quality!



Brand New HDMI ARC Adapter Enables Display Audio Return Channel HDMI 1.4 Cable CEC Audio Toslink Signal Output D5344A



Introduction:

1. HDMI ARC adapter enables display that supported ARC (Audio Return Channel) to be connected with the old AV receiver that do not support ARC. It can let old AV Receiver equipment to support ARC also. (Note: When you need to use the ARC function， please confirm the CEC function of the Display enabled and please use the standard HDMI 1.4 cable)
2. Our devices offer solutions for noise， space and security concerns， data center control， information distribution， conference room presentation， school and corporate training environments.

Feature:

1. All of our items are Brand New
2. One ways of HDMI signal input and output， one ways ARC audio (Toslink) signal output
3. HDMI output port support ARC (audio return channel)
4. HDMI supports 4K. Support CEC function
5. Support input and output up to 5 meters AWG26 HDMI standard cable length

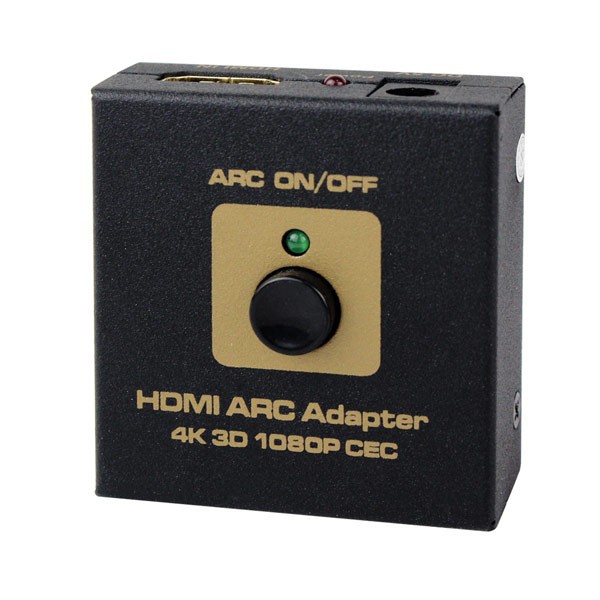

6. The device has ARC switch and indicator light to let you know if ARC is disabled or enabled

Specification:

HDMI Resolution	24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i，24/30/2160P
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support ARC audio output format (Relate with display devices)	LPCM2.0/DTS/Dolby-AC3
Max bandwidth	340MHz
Maxtransmission bandwidth	10.2Gbps
Input cable distance	≤5m AWG26 HDMI standard cable
Output cable distance	≤5m AWG26 HDMI standard cable
Optical fiber cable output distance	≤30m(Use the optical fiber cable loss less the 0.2dB/m)
Max working current	0.15A/5V DC
Operating Temperature range	0 to +40C
Operating Humidity range	5 to 85%RH (No Condensation)
Storage Temperature range	(-10 to +55C)
Storage Humidity range	0 to 90%RH (No Condensation)
Dimension (Lx W x H)	52.5x48.5x20 mm
Weight	69g

Operating and Connecting:

1. To use the HDMI Cable to connect the HD sources with the HDMI Input port and uses the HDMI cable to connect the HD display with the HDMI Port.(This mode the HDMI port is pass-through channel， pls make sure the ARC is off).
2. To use one HDMI Cable to connect the Display that supported ARC with the HDMI output port of the device and use one optical cable to connect the AV receiver and the SPDIF output port.(At this mode， you can use ARC， pls make sure that the ARC of device and Display is on).
3. Connect DC 5.5mm cable to device DC 5V input port. And connect the USB port to standard USB(Type A) power interface.

Note: Please use HDMI v1.4 standard cable for the display device and ARC adapter connection

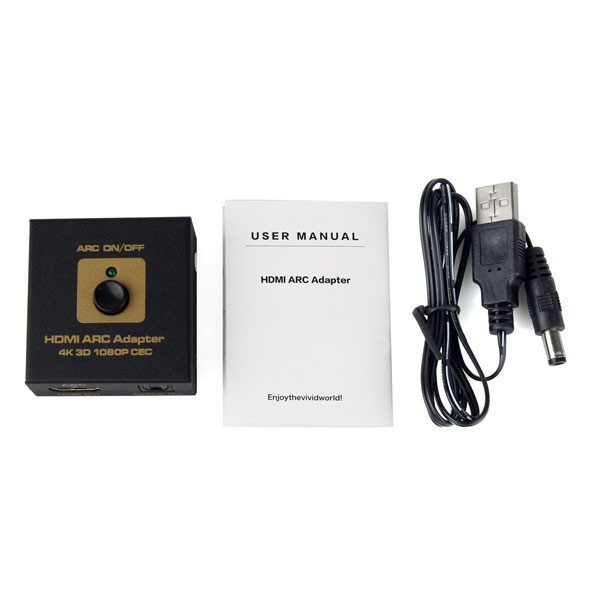

• 1 x HDMI ARC Adapter
• 1 x USB to DC 5.5mm Power Cable
• 1 x Operation Manual



';

Unit Type:

piece

Package Weight:

0.140kg (0.31lb.)

Package Size:

10cm x 8cm x 4cm (3.94in x 3.15in x 1.57in)
