DIY M12864 Graphics Version Transistor Tester Kit LCR ESR PWM

If you need the Supporting Shell for this kit, please check this, http://www./Supporting-Shell-For-DIY-M12864-Graphics-Version-Transistor-Tester-Kit-p-989949.html

If you need the chip of this kit: >>>SKU300959

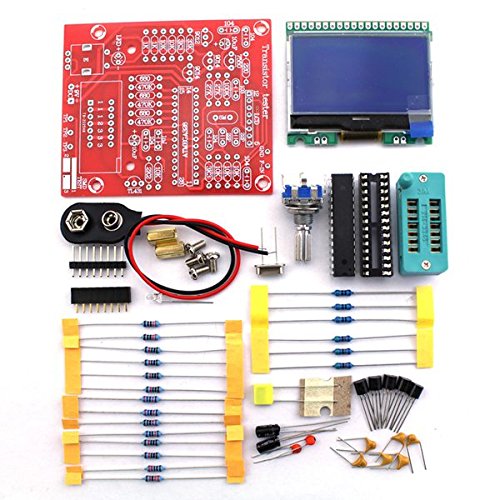

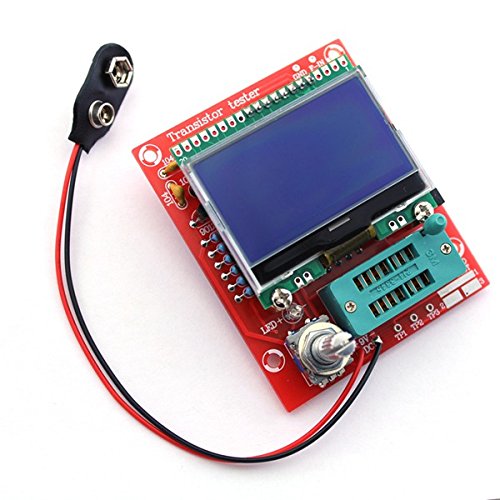

Product title marked "DIY kit" of both parts, you need your own assembled by soldering, to demonstrate for convenience, the main products picture is a physical map, the second picrure are all parts that you receive, be sure to pay attention to distinguish

Description:

1. Resistors, capacitors, inductors, diodes, transistors, SCR, and most commonly used devices will automatically recognize and measure
2. The capacitance line measurement capacity and ESR
3. The square-wave generator
4.PWM pulse signal generator
5. Frequency meter function

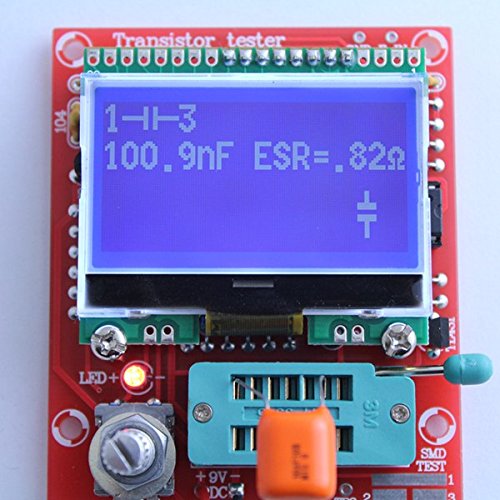

6. The graphical display of measurement results, easy and intuitive, the whole function is performed by a rotary encoder switch control, easy to operate.

Feature:

Power supply voltage: DC 5.5-12V
Working Current: 24mA @ 9V PCB Size: 75 x 63 mm

Main Function:

1. One key measurement operation, auto power off delay. Shutdown current is only 20nA, support for battery operation
2: Automatic detection of PNP and NPN bipolar transistor, N, P-channel MOSFET, JFET field effect transistors, diodes, two diodes, thyristors, resistors, capacitors, inductors. Automatic detection of current amplification factor (B) Pin Definitions and turn-on voltage of the transistor and the emitter junction (Uf), Darlington transistor through a high threshold voltage and high current gain recognition.
3: Can detect bipolar transistors and MOSFET internal protection diode and displayed on the screen. It can be measured threshold voltage and the gate capacitance of the MOSFET.
4: Support two resistance measurements, the potenti
