Item Descriptions:

color:

black

Image sensor: CMOS sensor

Screen: 6.1 cm color TFT liquid crystal, 480 x 234 pixels

Lens: F = 3.1, F / NO = 2.6, FOV = 73 °, auto IR filter

Recording medium: Supports up to 32 GB memory card

Photo resolution: 8 M: 3264 X 2448 (interpolation); 5 M: 2592 X 1944

Video resolution: 1280 × 720 (30 fps), 848 × 480 (30 fps), 640 × 480 (30 fps)

Video length: 1 second to 10 minutes

Effective: Daytime: 1 m to infinity.

Night time: 3m - 20m

Trigger distance: Up to 20 m

Trigger time: about 1 second

Infrared flash: 26 infrared LEDs for range shooting (range 15 meters)

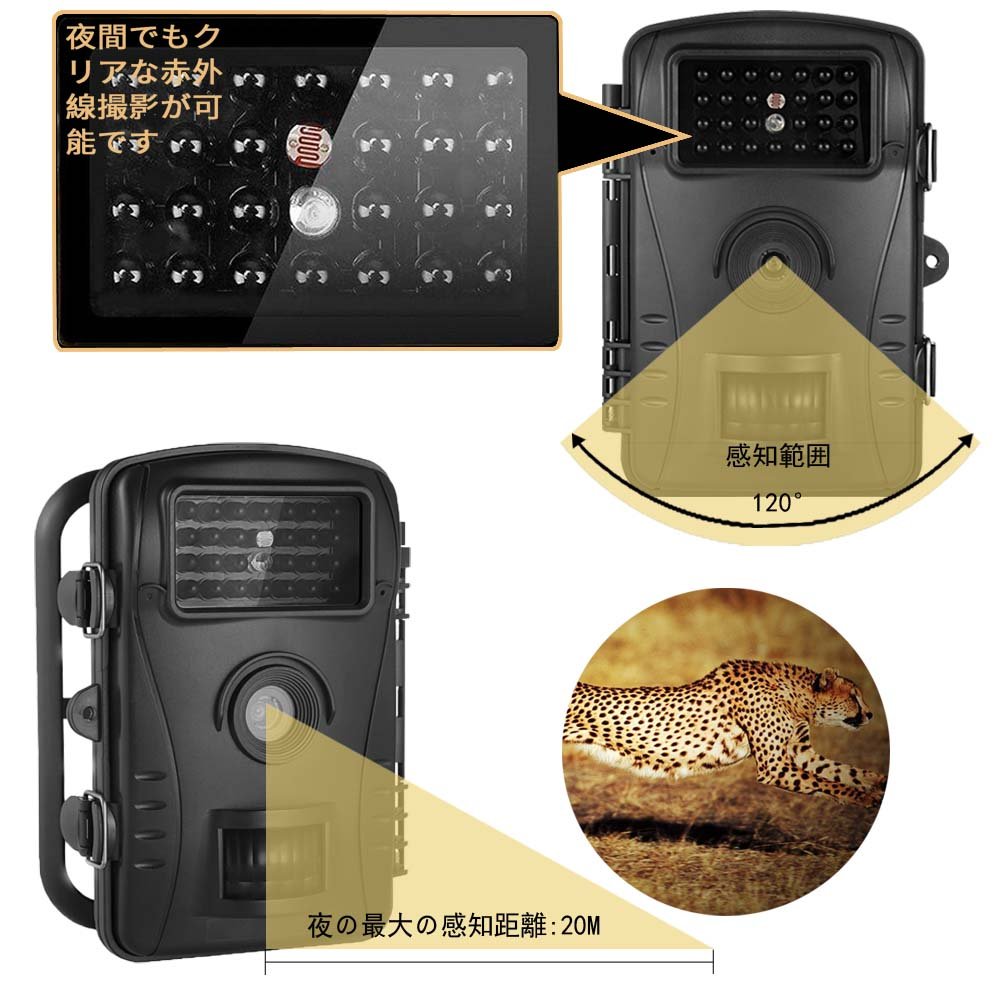

Detection angle of sensor: 60 °

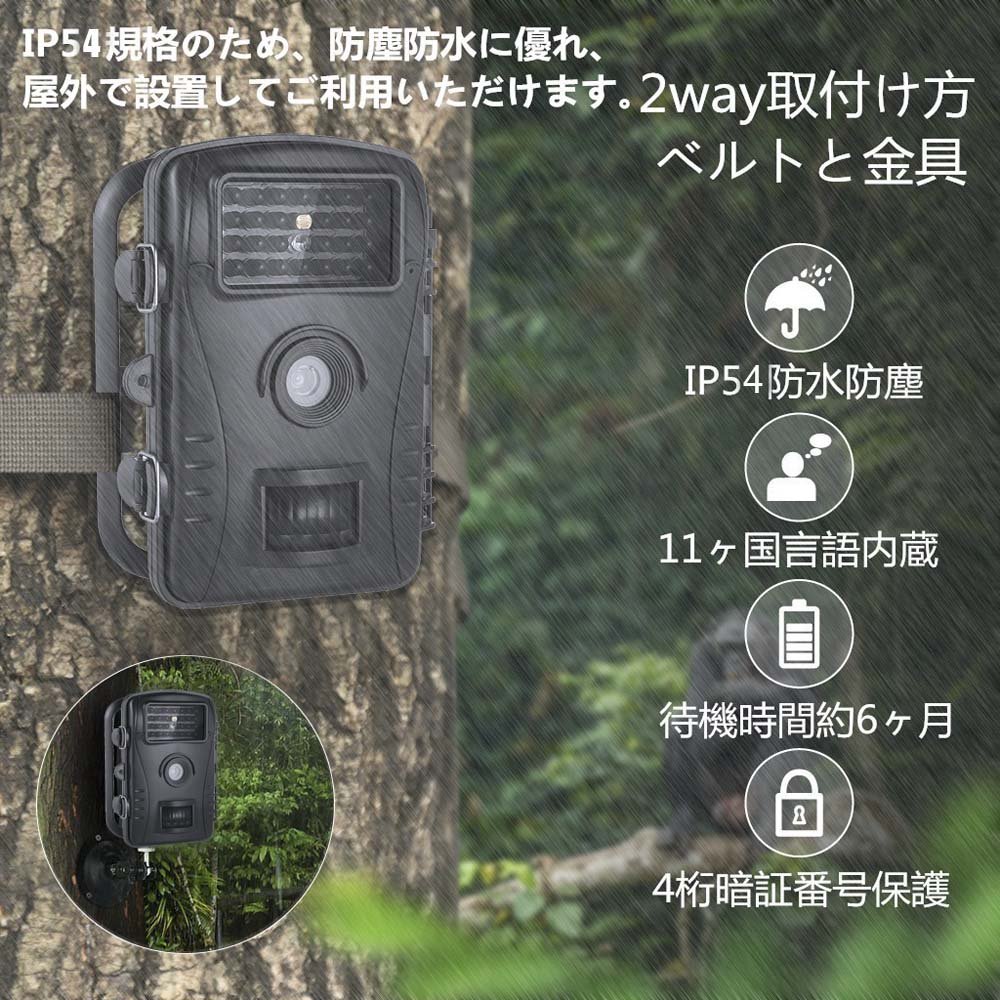

With waterproof design, it can be installed outdoors.

Using the included belt, you can easily fix it to wood and balls.

Waterproof rating: IP54

Operating temperature range: -20 ℃ ~ 60 ℃

Note: Since the human sensor detects temperature change, it can not detect anything that has no temperature change, such as a stationary object.

Night photography is also possible using infrared irradiation.

Save format: Photo: JPEG.

Video: AVI Motion JPEG

Connection: Mini USB 2.0 (USB and TV output)

Power supply (not included): 8 times single tri-type battery

External 6 V power supply, at least 1.5 A (not included)

Standby time: about 6 months (at 8 batteries)

Product size: Approx 13 * 9 * 5.5 cm

Item weight: about 260 g

Night photography is also possible using infrared irradiation.

There are a wide range of applications as monitoring and security cameras and crime prevention, such as surveillance at ranches and agricultural wildlife damage and parking lots where there is no power supply.

Animal observation · Reconnaissance at hunting ground · Confirmation of trap · Also useful for crime prevention

Operation preparation:

8 batteries are required.

(DC connection is 12 V adapter)

Switch: OFF / Turn off, TEST / setting mode, ON / monitoring mode

Please initialize even before using the memory card for the first time: Unlock the camera, open the battery box → insert the battery → insert the SD card → press SWITCH to TEST → press MENU → initialize the SD card → restore installation

→ Select the time of the system and fix it.

When the power is insufficient, it automatically enters the standby state.

How to use the wall mount: With the wall mount, the camera can be fixed to the wall or ceiling.

Once fixed to the wall or ceiling, please check the condition of the screw and nut once.

Features:

• Please enter model number Confirm this is compatible:
• 【High image quality】 Sensor detection angle 60 °, wide angle lens 110 °, photo resolution 5/8/12 million / resolution, 720/1080 P resolution, and high resolution photos and movies are output for only 1 second trigger time
• [Usefulness] With a digital camera with a moving body sensor and infrared ray irradiation function, photographs are taken automatically in response to moving objects, if you set them on the path of animals.
• Since date, time, temperature and lunar phase can be displayed on the image, it is the best machine for wildlife observation.
• [Energy saving] Adopt latest power saving technology, low power consumption, long operation!
• In the case of no power supply, if you use 4 AA batteries or 8 AA batteries, it will operate for up to 3 months to 6 months.
• (※ It depends on usage environment, shooting situation.)

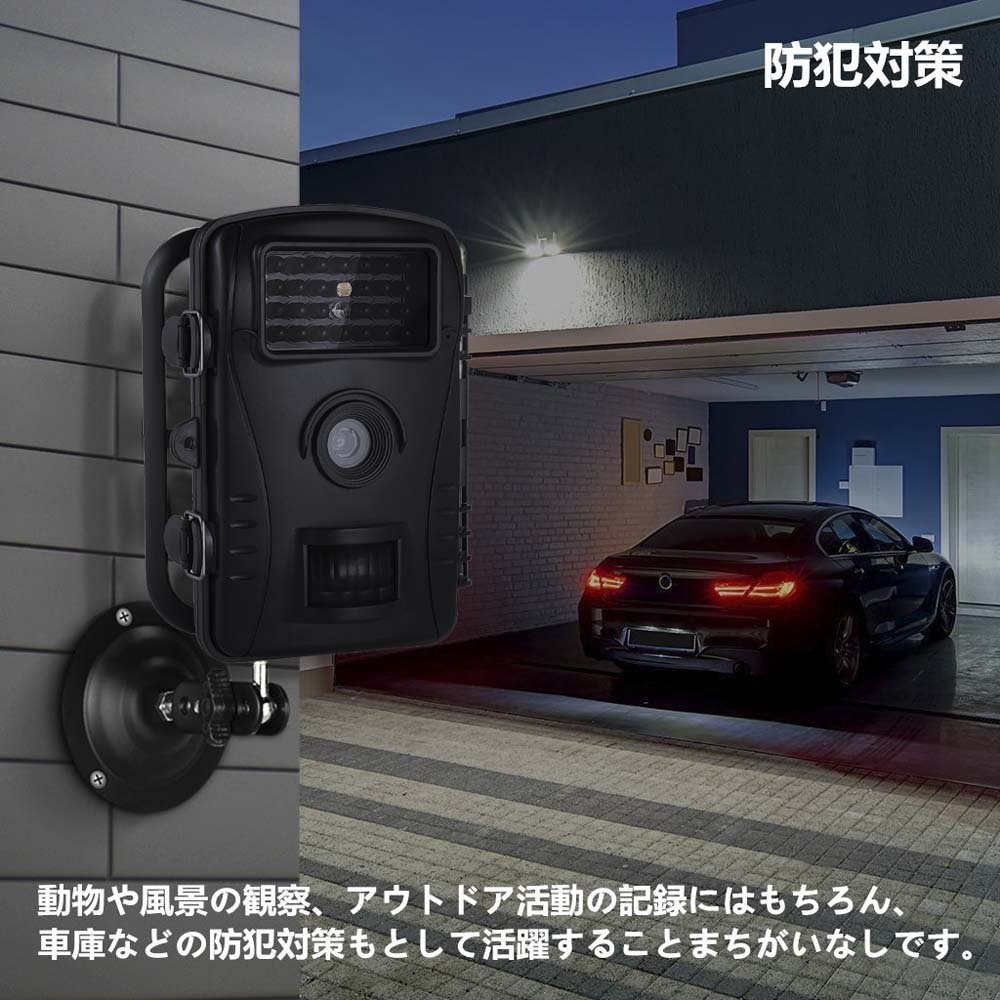

• 【Multi-purpose】 When installed in indoor (home / office), outdoor (garden / parking lot) for safety, you can monitor crime prevention and observe animals / plants outdoors.
• With 42 infrared LEDs, you can shoot not only during the day but also at night.
• 【Design】 The size of the main body is about 95 x 66 x 135 mm, 270 g, installation is also easy to operate, it operates immediately even if it is put in a small space.

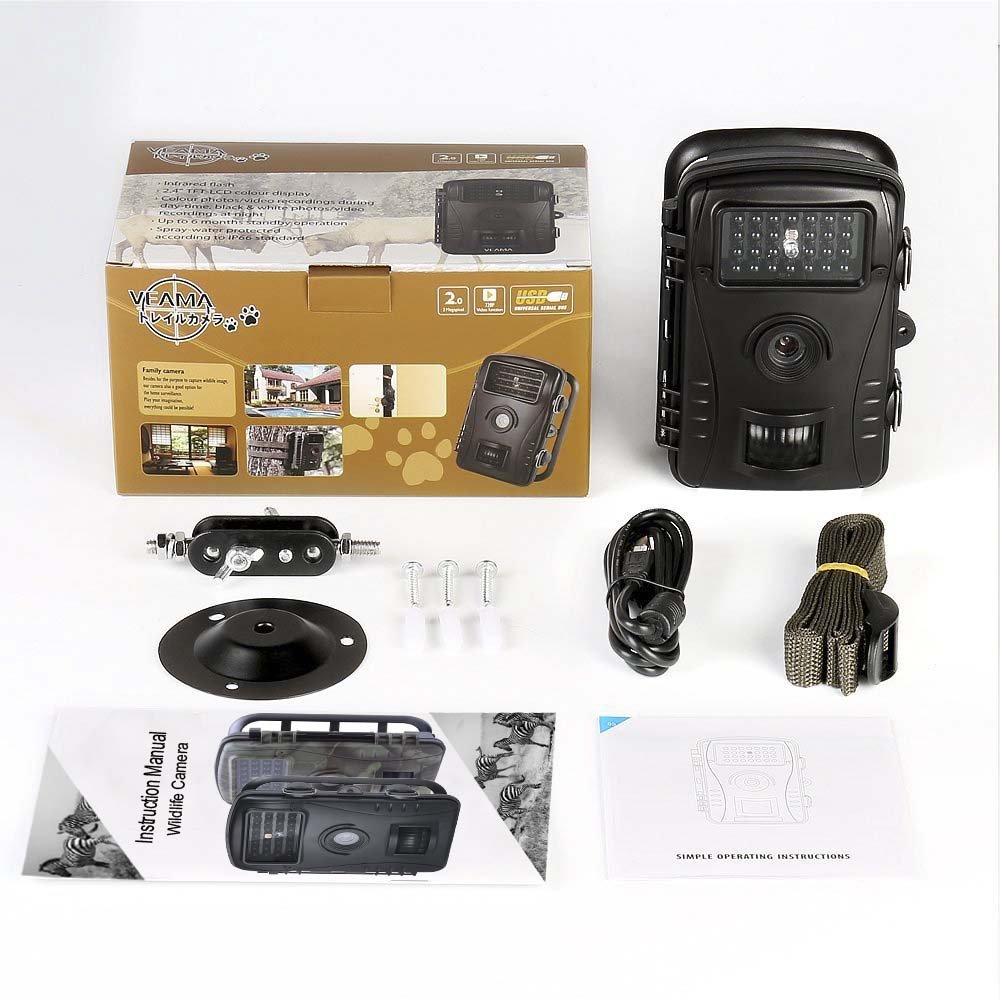

• Supplied items: 1 x main unit, 1 x video output cable, 1 x fixing strap, 1 x manual (English)

Product information:

Shipping Weight: 557 g

Package Dimensions: 9.91 x 12.19 x 18.39 cm
