Product Description
feature 1 Built-in 200MA polymer battery for 30-Minutes even the car is powered off.
2. GOOGLE SMS tracking with map links, text location query
3. Applications: mainly used for vehicle management and location tracking services
1.GSM：850/900/1800/1900MHz
2. GPRS：Class12,TCP/IP
3. Working Voltage：9-36V DC
4. Working current：≈22mA (12vDC)
5. Working current：≈12mA (24vDC)
6. .GPS locating time：Cold start≈38s（Open sky）Warm start≈32s Hot start≈2s（Open sky）
7. GPS Precision：10m（2D RM）
8. Working temperature：-20℃～+70℃
9. . Working humidity：20%～80%RH
10. Measurement：71（L）×49（W）×24（H）mm
How to use it: 1. Buy a SIM card that supports the SMS and GPRS service from your mobile ISP provider. Please make sure you have activated this SIM card for SMS and GPRS service from your ISP provider. Please note, SIM card is NOT included in the kit.
2. Insert the SIM card with the tray into the GPS OBD GPS Navigation system device.

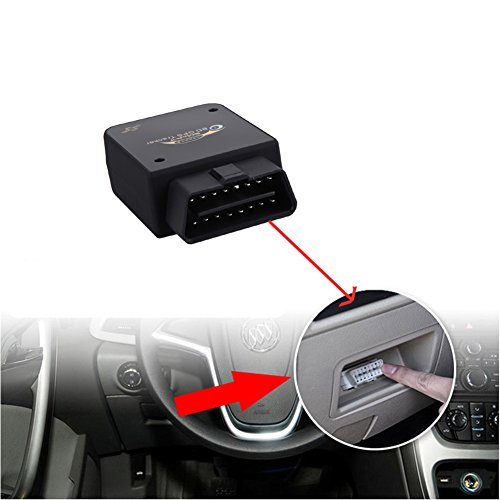

3. Connect the OBD GPS Navigation system into your car's 16-Pin OBD interface, the interface usually can be found around ECU area.
4. Now you can start tracking. Please choose the tracking solutions you'd like to have: GPSTO Website tracking system: http://www.gpsto.net/index.aspx Choose your language, and login the online system(choose "Acount" login method), user name is your IMEI number, default password is 123456. Apple's iPhone users: Seach for the "qichezhixing" in Apple app store, install the app(winthink), open it, and choose the "login by license plate number", user ID is your device's IMEI number, default password is 123456. Android's users: Download the app at http://www.gpsto.net/gpsv3.apk

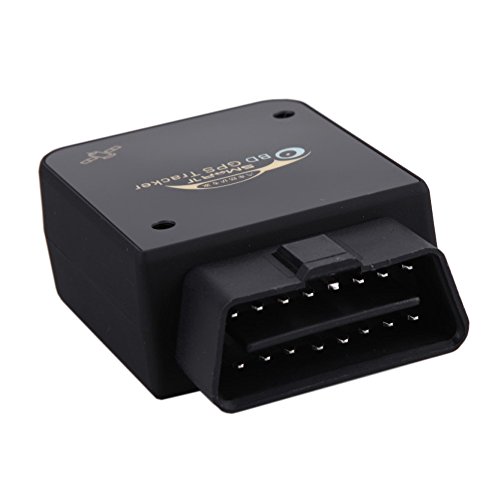

Package Contains GPSTO OBD GPS Tracking device
User Manual(English version)
SIM Tray
Feature
Quite Easy to install, no need to wiring or change your car. Plus, it comes with Free iOS app and Android app, which allows you to receive the position data on your mobile
based on GSM/GPRS network and GPS satellite positioning system, Built-in GSM and GPS antenna, Built-in 2.4G attendance management functions
work with any 16-Pin OBD interface cars. Just insert into the car OBDII interface directly to work, you can locate and get the postion of your vehicle remotely VIS SMS or GPRS.
With this GPS tracker,you can easily monitoring your car to protect it.
GPS blind spots, vibration, displacement, electronic fence, over speed, low power, external power failure alarm Vibration sensor,regular reporting, multiple power-saving mode
Brand : Camecho
Item model num : CM00- k001702
EAN : 0702248565036
