Item Descriptions:

【Product Specifications】

CMOS sensor: 5 MP

Lens: F 2.5 f = 3.6 mm

PIR: Led infrared sensor x 42 pieces

LCD: 2.4 inch LCD

Memory: Micro SD card / up to 32GB

File format: JPEG / AVI

USB terminal: USB 2.0

Rated voltage: 6 V

Operating system: Windows XP / Vsita 7/8 Mac 10.2

Size: 97 * 140 * 67 mm

Photographic pixels: 12 M (4000 * 3000) / 8 M (3264 * 2448) / 5 M (2592 * 1944) / 3 M (2048 * 1536) / 1 M (1280 * 960)

Movie resolution: 1920 * 1080/1280 * 720/720 * 480/640 * 480/320 * 240

Language: English / French / German / Spanish / Portuguese / Italian / Chinese etc.

【Basic handling / function】

On the lower right part of the operation board, there is a switch of ON / SETUP / OFF.

You can change the operation mode by dialing the switch to the left / middle / right.

SETUP mode

: When setting options of the facility, select to SETUP mode.

In this mode, when the PIR sensor detects a moving object, the LED light blinks once in blue.

ON mode

: After selecting option, please select ON mode to operate the equipment.

After selecting ON mode, countdown is done for 15 seconds, the screen and the LED light go out, and the shooting mode is entered.

OFF mode

: Be sure to select this mode in order not to damage the data before trying to turn off the power of the equipment.

You can select in shooting mode on the menu.

Movie mode

: When moving subject is detected, only movies are taken automatically.

Photo mode

: When a moving object is detected, you can take pictures only automatically and shoot continuously.

Movie & Photo Mode

: When moving subject is detected, movies and photos / continuous shooting are taken automatically

Monitoring time zone setting

: In the "Monitoring time zone" item of the menu, you can set the start time and end time of operation.

Scheduled shooting

: You can take pictures at a specific time in the "Shoot with timing" item.

In this mode, the motion detection function is stopped.

Date setting

: After purchasing equipment, first set the date manually in the "Time and date" item, after that, no date setting is necessary.

Date display

: You can display time and date in photos and movies with "Photo mark" item.

3.5 mm AV port

Also you can connect to another player with a data cable (adapter required) and remote monitoring can also be done (in set mode).

【Package Contents】

1 x Trail Camera

1 x Multilingual Instructions (Japanese)

1 x Mounting tool + mounting base plate + band

1 x USB cable

LED indicator

: In SETUP mode, it is installed to test the motion of the moving body detection sensor or the camera.

The LED indicator does not light up after entering the shooting mode.

LED Infrared Detector

: More than Oita's trail camera on the market, 42 LED infrared detectors are installed, sensitively detect infrared rays emitted by human bodies and animals at night and start shooting.

Caution

The more LED infrared detectors there are, the more sensitive the detection is.

The picture quality of shooting is unchanged depending on.

In the night mode, the LED infrared detector functions, so you may not be able to start with low voltage, increasing power consumption.

In the daytime, since daylight is available, it operates normally even at low voltage.

In the shooting mode, the screen and the LED light all disappear, not attracting attention as a security camera and a trail camera, the hiding power is high (Because the LED detector catches the infrared ray, the LED detector emits a very weak new crimson, but to hiding

Damage is negligible).

Automatic motion detection

: The PIR detector can detect moving objects within the range of 20 m / 110 ° with high sensitivity of 5 million P.

0.8 S Trigger time

: PIR will start shooting automatically within 0.8 seconds after moving object is detected.

Trigger interval

: Trigger interval function is installed so as not to record much of the same scene in order to use memory card rationally.

Set the trigger interval time (minimum 5 seconds) on the menu and do not trigger again within this interval time.

Write protection

To protect important files from accidental deletion, the write protection function is designed.

Select "Current write protection" and lock the specified file.

Select "All write protection" and lock all files.

Select "Release Current" to unlock the specified file.

Select "Release All" to unlock all files.

Power supply selection

: It can start with 8 or 4 AA batteries, or 6 V continuous power supply method.

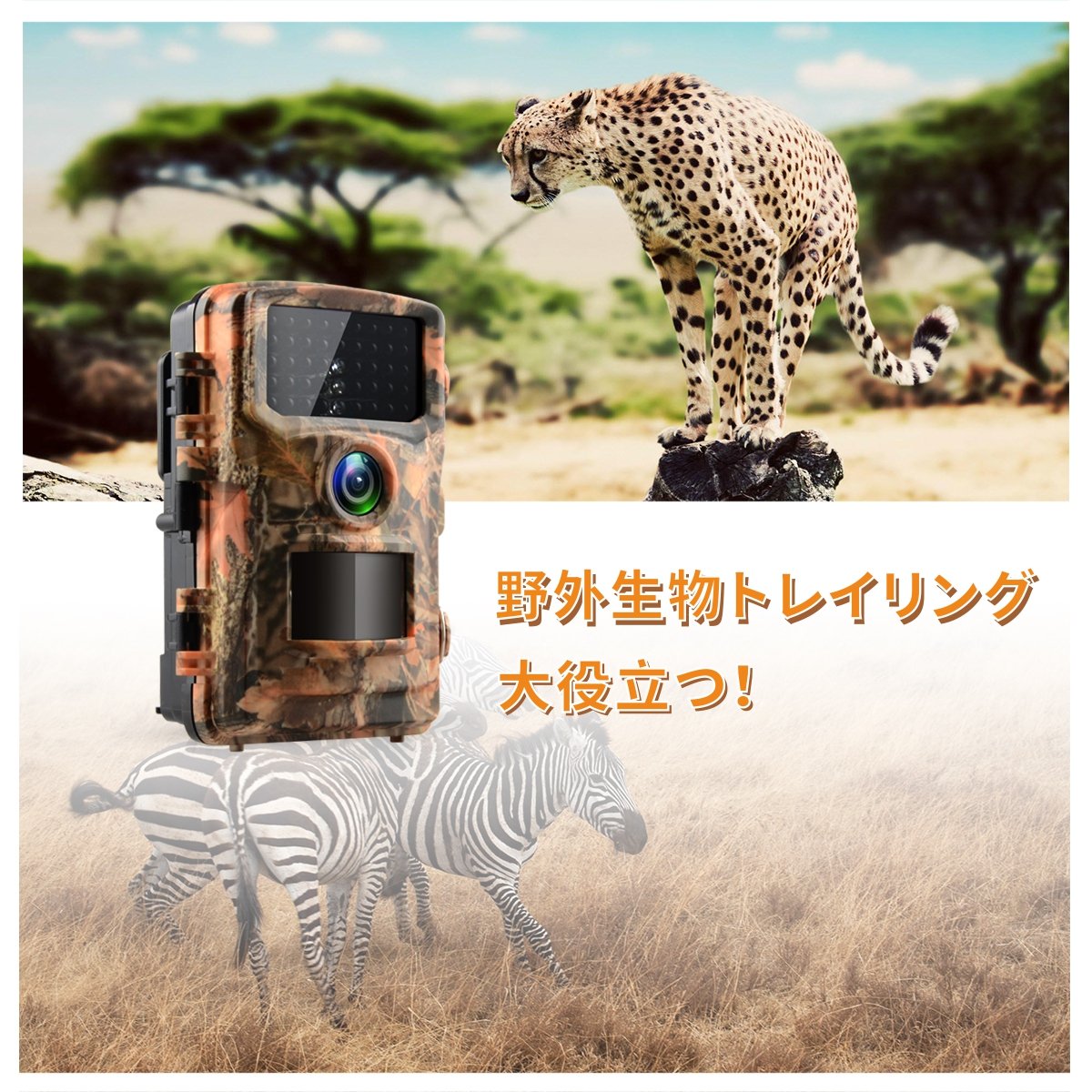

Usually, we recommend a battery type for wildlife trailing.

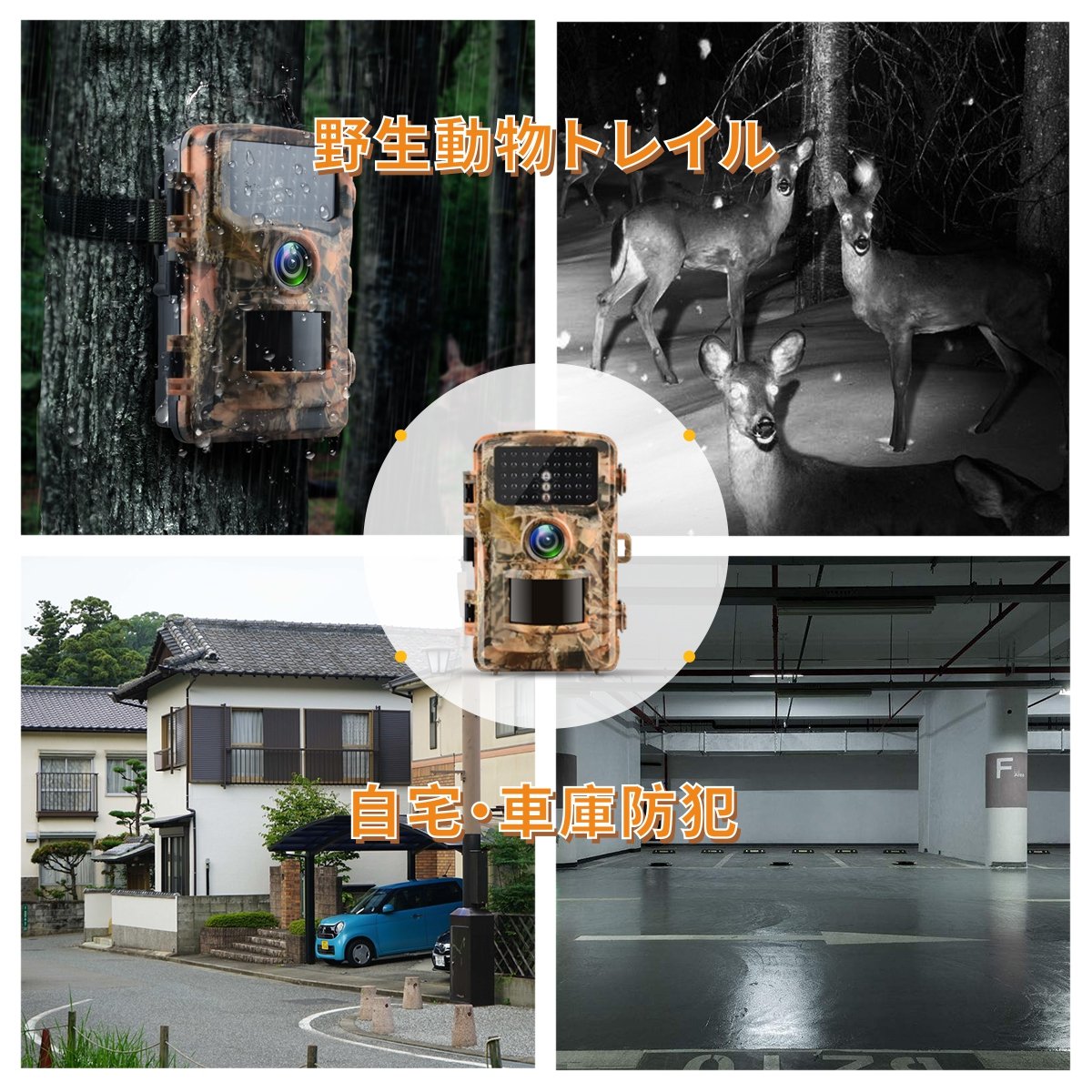

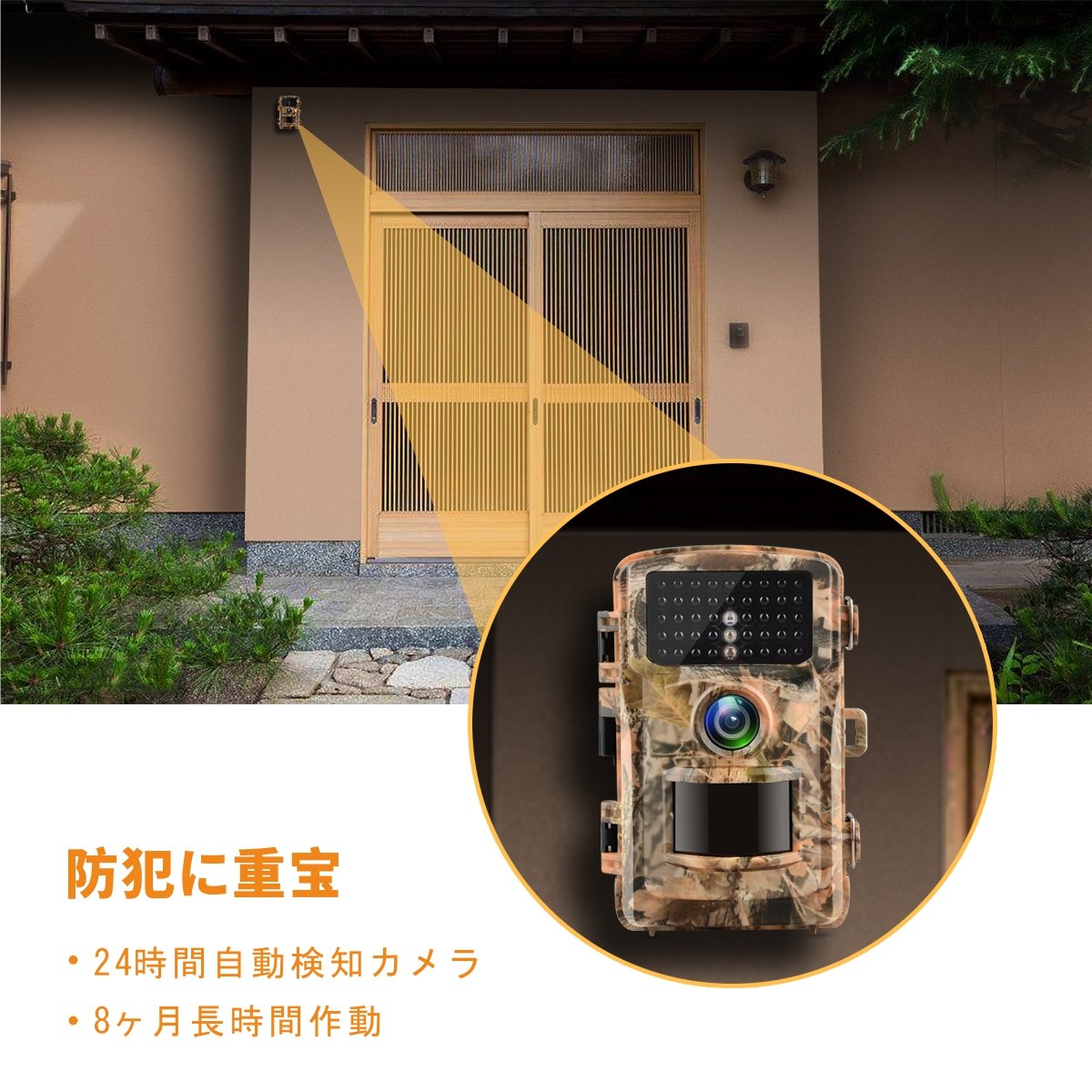

As a security camera, when you monitor your garage or home during your absence, we recommend an always-on power system.

When supplying power with 8 batteries, you can maintain 8-month standby time.

Actual operating time varies depending on the shooting frequency.

When using the DC / AC constant power supply, please select the 6 V input / 3.5 mm power adapter according to the rated voltage.

camouflage

: For wildlife monitoring and home security, camouflage pattern is adopted for this trail camera to enhance hiding power.

With fittings

Attachment (bracket + bottom panel) and mounting band are attached to the package.

Installation attention

When attaching, please keep away from 2 m or more from the ground so as not to affect the sensitivity of the detector.

And please be careful not to put moving objects (tree branches etc) in the 2 m range closest to the front of the camera or detector.

Waterproof / dustproof

: Since this trail camera is waterproof or dustproof function specification, it is not necessary to maintain once it is installed outdoors.

It can operate normally with IP 56 waterproof specification, weather in rain and snow.

Strong sunlight affects the sensitivity and image quality of the detector, so avoid installation from direct sunlight when mounting.

【12 months warranty in Japan】

Free shipping / replacement correspondence within 12 months from purchase in Japan.

If you have any doubts about the product, please contact this customer support.

Features:

• Please enter model number Confirm this is compatible:
• Recording / photo / photo & recording mode selectable.
• High resolution of up to 12 million full color pixels, equipped with 42 LED infrared detectors, shoot clearly without leaking even in the daytime even at night.
• Automatic detection of human / animal (photographic pixels: 12 M, 8 M, 5 M,; recording resolution: 1920 × 1080/30 fps, 1280 × 720/30 fps, 720 × 480/30 fps) with a CMOS sensor with 5 million P sensing, 20 ⅿ infrared sensing distance.
• 110 ° auto detection range / 120 ° shooting range available, video length adjustable.
• Always shooting / Time zone automatic shooting / Auto detection shooting There are 3 operation modes, Trigger time 0.8 seconds.

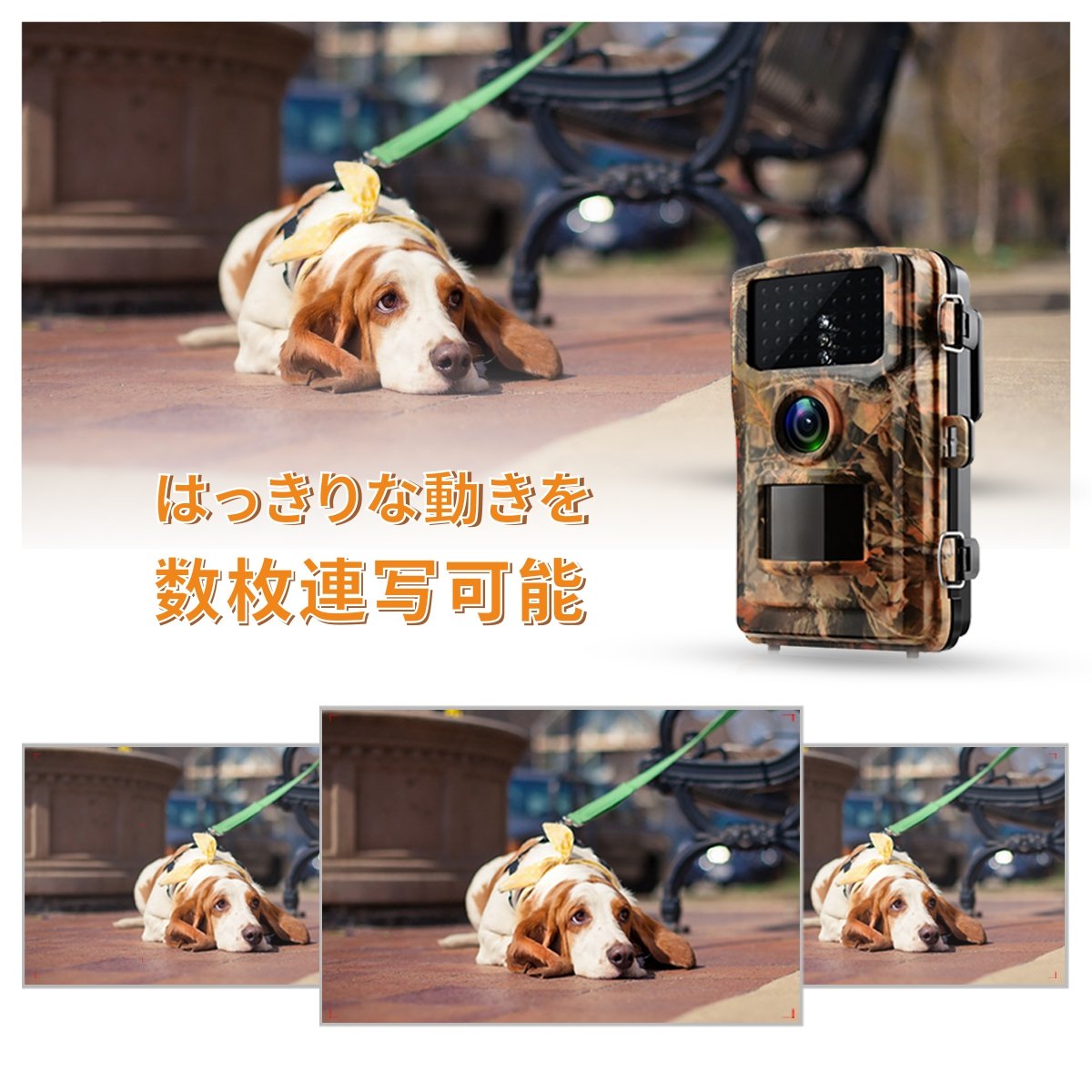

• With continuous photograph function (maximum of 3), you can record.
• With AV terminal, can connect to TV player to record and play, supports SD card up to 32GB.
• Designed with low power consumption, it can operate normally for 8 months, and frequent battery replacement is not required (operation time depends on shooting frequency)!
• It can operate with 4/8 AA size batteries (not included).
• With a DC terminal, it can also operate directly connected to a large capacity power supply, do not worry about missing important scenes where power is cut off!
• IP56 waterproof / dustproof specification, operating temperature range -20 ° to 60 °, installed outdoors and operate normally even in the rain.
• Japanese manual attached, equipped with Japanese operating system, English / French / German / Spanish / Portuguese / Italian / Chinese also correspond, can also be used conveniently for foreign people.
• 【12 months Japan domestic warranty】 There!
• It is compact and camouflaged painted, easy to install, indoor / garden / entrance / company and so on as a security camera greatly, it is very useful as a camera for recording animals and landscape, weather, outdoor activities attached to the outdoors!
• It is cheaper than the product, excellent COSPA!
• Also, we will promise Japan domestic warranty for one year!
• Safety purchase realized!

Product information:

Shipping Weight: 508 g

Package Dimensions: 8.99 x 12.50 x 20.50 cm
