Product Description
ICAN carbon lightweight track bike frame

Material: full carbon fiber T700
Finish: UD matte
Frame size: 49/51/54/59cm
Wheel size: 700C
Tire width: 700x23mm

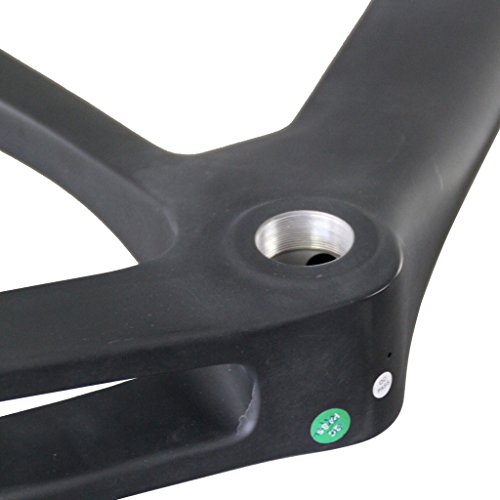

Bottom bracket: BSA/DI2

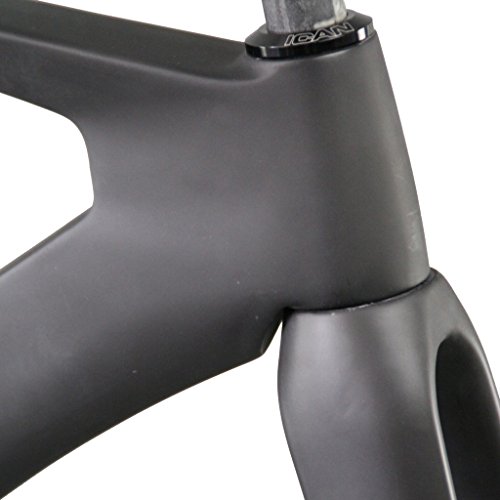

Headset : Top: 1-1/8" , Down:1-1/2"
Frame weight: 1600±40g
Fork weight: 370±20g

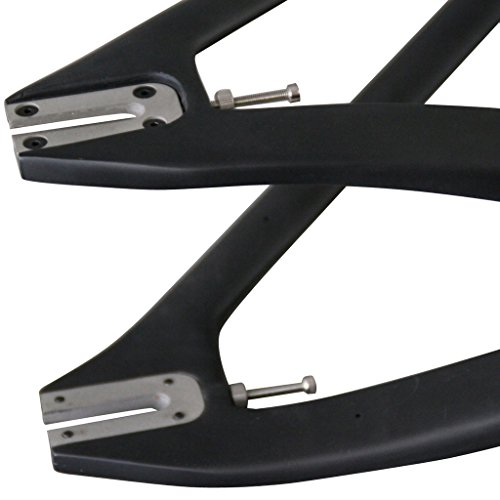

Rear dropout: 120x9mm
Guarantee: 2 years

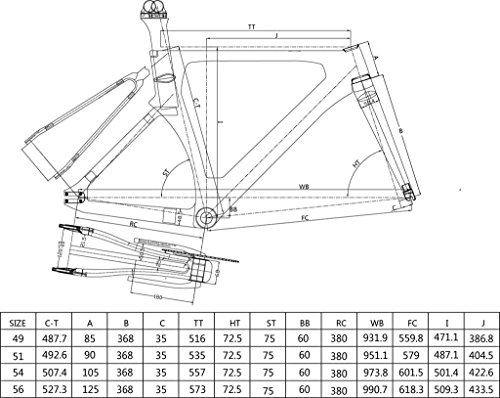

Geometry
Size 49cm you can see other size geometry on the photo)
Top Tube (effective): 516mm
Seat Tube (BB Center to Top): 487.7mm
Chain Stay (actual): 380mm
Front center: 559.8mm
Seat Tube Angle: 75°
Bottom Bracket Drop: 60mm
Head Tube Length: 85mm
Head Tube Angle: 72.5°
Fork offset: 35mm
Wheelbase: 931.9mm
Stack: 471.1mm
Reach: 386.8mm

Package included: Frame fork seat post headset
