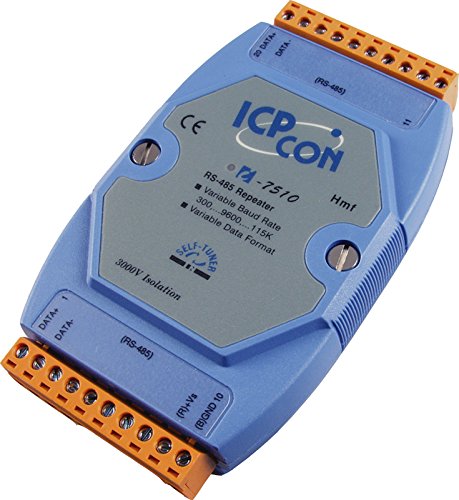

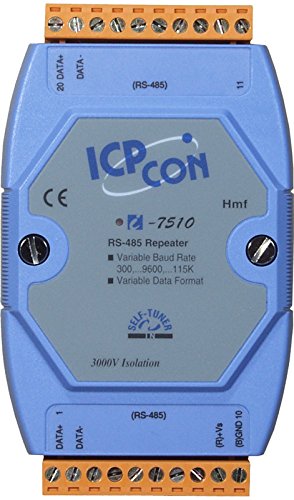

ICP DAS USA ICP-I-7510 RS-485 Isolated High Speed Repeater.









Product Description

The I-7510 is a RS-485 Isolated High Speed Repeater. Supports operating temperatures between -25 to 75°C. It provides 2-way optical isolation between one piece of RS-422/RS-485 equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a four-wire RS-422 signal into a 2-wire RS-485 signal, and vice versa. More info: http://www.icpdas-usa.com/i_7510.html?r=amazon

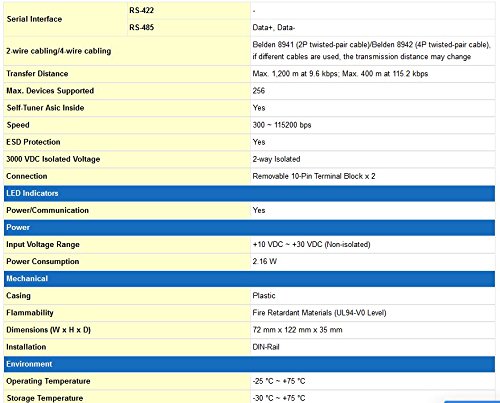

Feature

Provides 2-way optical isolation between one piece of RS-422/RS-485 equipment and the rest of the system. Auto Switching Baud Rate, 300 ~ 115200 bps

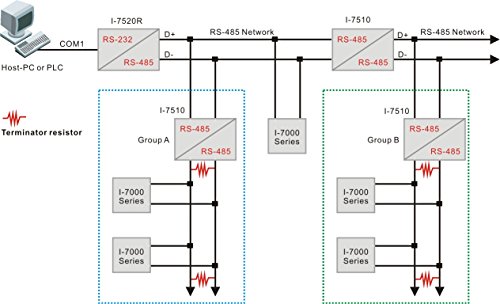

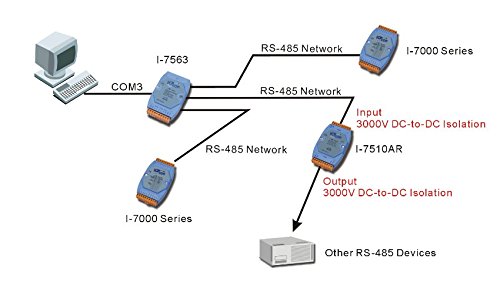

Can be used as a repeater to extend the transmission signal of an existing RS-485 network. Extends RS-485 signal beyond 4000 feet. ESD Protection for RS-485 Data Line
Can also be used to convert a four-wire RS-422 signal into a 2-wire RS-485 signal, and vice versa.
Transmission Speed of up to 115200 bps. 2-way 3000 VDC Isolation Protection.
Power Input of +10 ~ +30 VDC. Transmission Speed of up to 115200 bps. DIN rail mountable. Supports operating temperatures of -25 °C ~ +75 °C (-13F ~ 167F).
Brand : ICP DAS
Item model num : I-7510
MPN(PartNumber) : I-7510
Product Dimensions(LxWxH) : 8x4x13cm ; 227 g
Package Dimensions(LxWxH) : 18x17x7cm ; 227 g
