-. Binding : Electronics
-. Brand : KVE
-. Color : KVE
-. EAN : 0764210565833
-. Feature : Frequency Range:133-177/195-280/395-520MHz / Frequency Step: 0.11/1/10/100/1000KHz / Display: Shar Transflective TFT, 1600 million color, QVGA. Mitsubish hardened scratch resistant acrylic protective lenses. / SPAN:0.3-75MHz
-. Label : Jancore
-. Manufacturer : Jancore
-. PackageQuantity : 1
-. ProductGroup : Car Audio or Theater
-. ProductTypeName : TWO_WAY_RADIO
-. Publisher : Jancore
-. Studio : Jancore

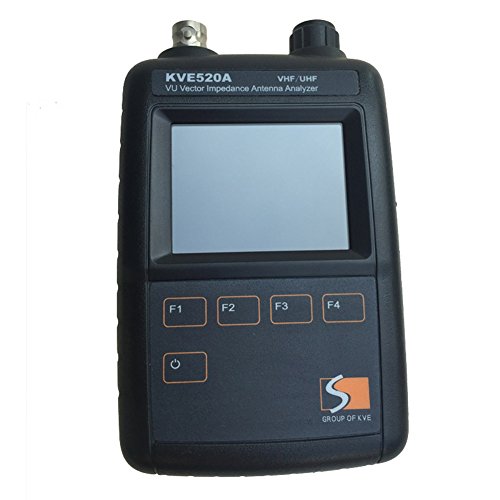

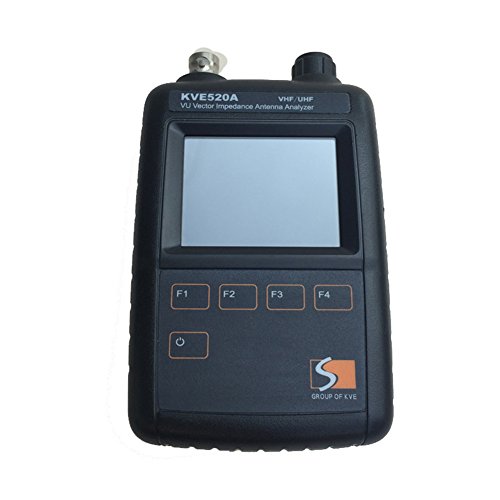

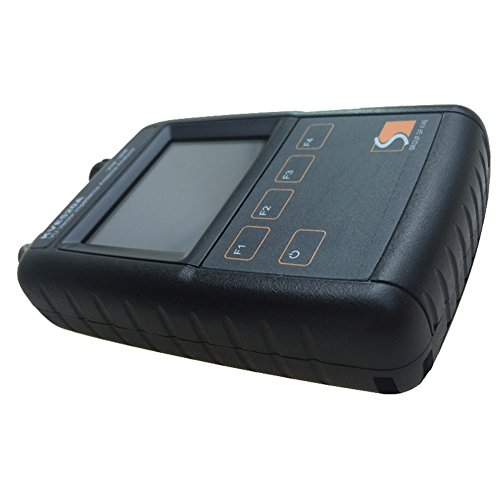

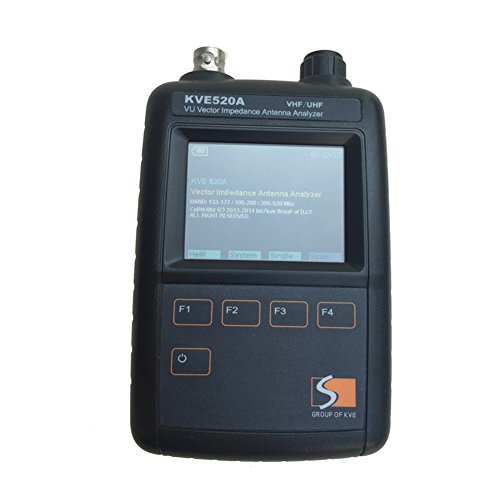

-. Title : VHF/UHF VU Vector Impedance Antenna Analyzer KVE520A With 5pcs Adapters For Walkie Talkie
-. UPC : 764210565833
Lightweight and precision set in one talent kve vna analyzer, who can rival?

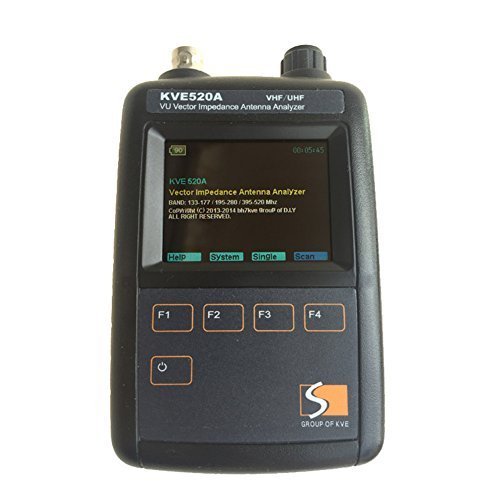

Screen: Sharp transflective TFT, 1600 million colors, QVGA resolution. External Hard
Mitsubishi scratch-resistant acrylic screen protecter
Measuring range: VSWR: 1: 1.00 - 1: 99.99, Impedance: 0.1 - 999.9 Ohm, Resistance: 0.1 - 999.9 Ohm, Reactance: 0.1 - 999.9 Ohm
Frequency range: 133-177/195-280/395-520MHz
Frequency Stability: <0.5PPM
Frequency step: 1000Hz
Output Power: 3dbm (at 438.500MHz)
Scan width: 300KHz/1.5MHz/3MHz/6MHz/12MHz/24MHz/42MHz/75MHz
Scanning step: 1KHz/5KHz/10KHz/20KHz/40KHz/80KHz/140KHz/250KHz
Power Management: 3.7-V, 1800-mAh Lithium Polymer battery, Removable
Charger Source: Any USB port, analyzer accepts, Micro-USB port(DC output voltage is 5.0-5.5V, and the current output capacity> 500mA)
Charging indicator: LED charging-status indicator
Connector: BNC

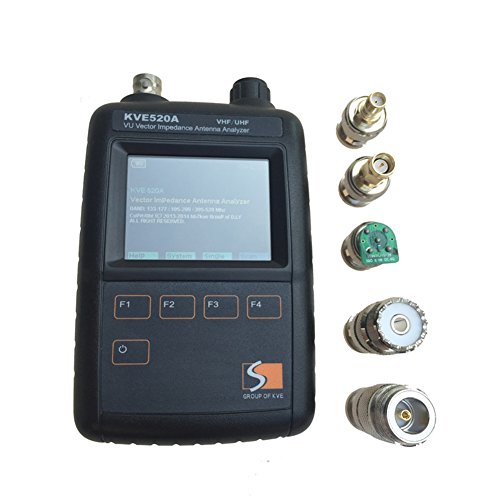

Package Contents:
1× KEV520A Vector Impedance Antenna Analyzer
5× Adapter
