Description:

Item name: S-OSD Module

Size: 4.3cm x 3.8cm

Dynamic voltage detection: 3S-6S

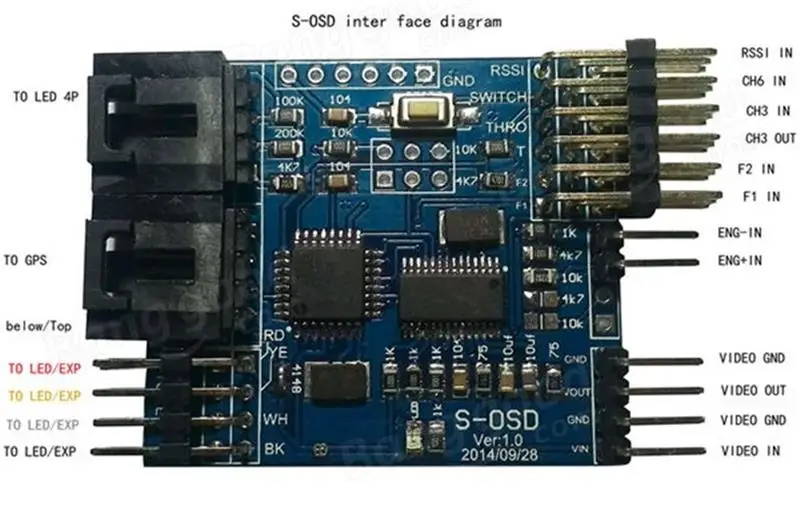

GPS Module and LED module connection:

1. GPS and LED: Use 4P-4P connect main controller GPS port and LED port supply power to flight controller. If S-OSD power light lits then it is right.

2. Then plug GPS module and LED module at S-OSD port.

3. Switch port: The function of switch port is screen switch. There are plenty of contents S-OSD will display so need two screens display. One time one screen content. The screen switched by transmitter 3-step switch through switch port.

4. Throttle channel: S-OSD could display throttle channel signal data from 0%-100%. Two THRO port on S-OSD one connects receiver throttle the other connects flight controller.

5. Attitude cable: connects with flight controller f1/f2

6. RSSI: S-OSD could display receivers signal strength this port is used to connect receivers RSSI port

7. Voltage detection function: wiring as picture shows

8. Video port: wiring as picture shows

Features:

Compatible with ordinary OSD display function

Added function: Flight mode Flight attitude throttle channel signal data(0%-100%) receiver signal strength(if receiver with RSSI function) screen switch function(dual screen display)

Note:
Suit to senior player.

Players can share GPS data that from flight controller to this S-OSD but this may disturb the flight controller we won't be responsible for any risks.

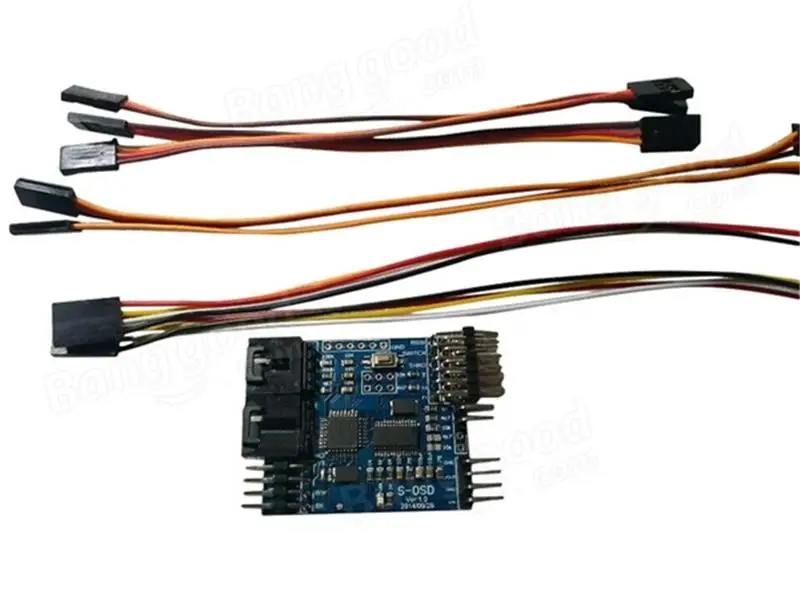

Package included:

1 x S-OSD

1 x 3P(10cm) switch thro T connect signal line

1 x 3P(15cm) F1 F2 connect signal line

1 x 4P(20cm) LED GPS connect signal line
