TP Link Wireless Router
Model: WR841N
What This Product Does
300Mbps Wireless N Router TL-WR841N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. TL-WR841N’s exceptional and advanced wireless performance make it ideal for streaming HD video, making VoIP and online gaming. Also, WPS button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.
Wireless N Speed & Range
Complying with the IEEE 802.11n standard, TL-WR841N can establish a wireless network and get up to 15X the speed and 5X the range of conventional 11g products. Also, with transmission rates up to 300Mbps.
Better Wireless Performance
It shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not! Which also means, the router has the speed to work smoothly with almost any bandwidth intensive application including VoIP, HD streaming, or online gaming, without the lag.
| HARDWARE FEATURES |
| Interface |
4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT |
| Button |
WPS/Reset Button
Wi-Fi On/Off Button
Power On/Off Button |
| Antenna |
2*5dBi Fixed Omni Directional Antenna |
| External Power Supply |
9VDC / 0.6A |
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) |
7.6 x 5.3 x 1.3 in.(192 x 134 x 33 mm) |
| Compatibility |
NBN - Fibre to the Premises (FTTP)
NBN - Fibre to the Home (FTTH)
For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
| WIRELESS FEATURES |
| Frequency |
2.4-2.4835GHz |
| Signal Rate |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity |
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER |
| Transmit Power |
CE:
<20dBm
FCC:
<30dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES |
| Quality of Service |
WMM, Bandwidth Control |
| WAN Type |
Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond |
| Management |
Access Control
Local Management
Remote Management |
| DHCP |
Server, Client, DHCP Client List,
Address Reservation |
| Port Forwarding |
Virtual Server,Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec (ESP Head) |
| Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
| Protocols |
Support IPv4 and IPv6 |
| Guest Network |
2.4GHz Guest Network x1 |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
Wireless N Rotuer TL-WR841N
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Warranty |
Limited 3-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
Belkin Wireless Range Extender
Model: N600 Dual Band
Eliminates dead zones in remote areas of your home
Extends Wi-Fi range throughout home and outdoors
Dual Wi-Fi bands for speeds of up to N300 + N300 Mbps (2.4 GHz and 5 GHz)
Easy setup
Two external antennas for improved Wi-Fi coverage

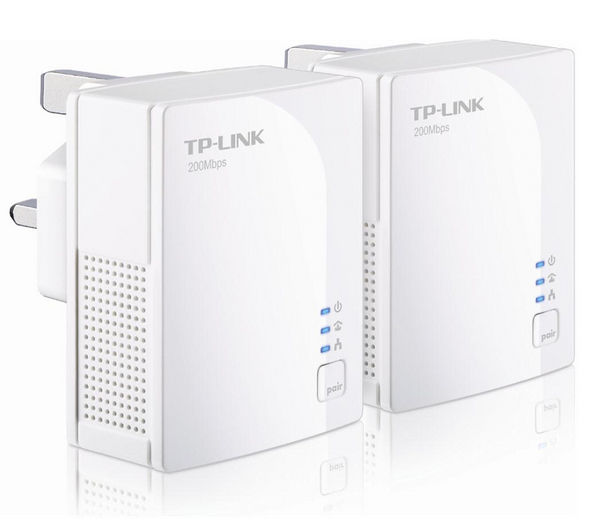

TP Link Powerline Adapter Kit
Model: PA211KIT
What This Product Does
TP-LINK's TL-PA211KIT powerline adapters take advantage of your home's existing electrical wires to transfer data while simultaneously transferring traditional power. That means, with no additional wiring required, users can simply plug the TL-PA211KIT into existing power sockets and instantly establish a networking infrastructure. With its miniature design, you’ll enjoy the flexibility of plugging it anywhere in your home!
Up to 200Mbps, 300 Meters
With advanced HomePlug AV technology, TL-PA211KIT provide users with stable, high-speed data transfer rates of up to 200Mbps on a line length of up to 300 meters. Together with its built-in powerful AES encryption, the TL-PA211KIT are a great choice for a whole home solution to connect all network compatible devices--from computers and game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Miniature Design, Ultra-compact
With its new ultra-compact housing design, TL-PA211KIT are much smaller than TP-LINK’s legacy mini 200Mbps Powerline Products. At just 28.5mm thick and with its high quality, elegant white shell, they nearly blend completely in front of any power outlet.
Pair Button for Easy Network Security
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection. It's that simple!
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the encryption buttons—and you're done!
Reduces Power Consumption Up to 75%
The TL-PA211KIT, a new-generation Powerline Adapter, with its practical design and sophisticated Power-Saving Mode consumes less power when compared with existing Powerline Adapters. When there is no data transmission or reception occurs over a certain period of time, it will automatically switch from its regular "Working" Mode to "Power-Saving" Mode that will reduce its energy consumption by up to 75%*. *Actual data will vary because of the network conditions and environmental factors

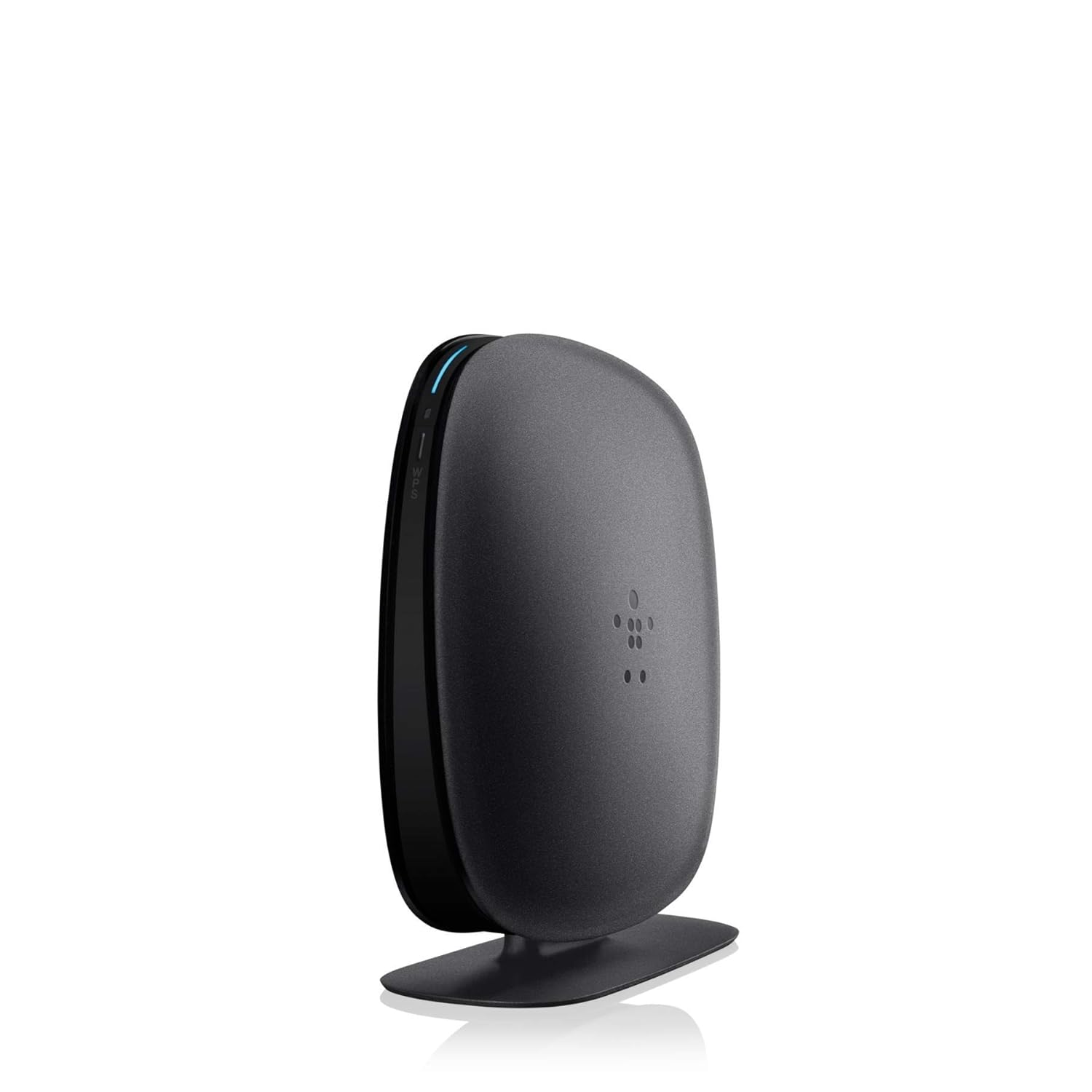

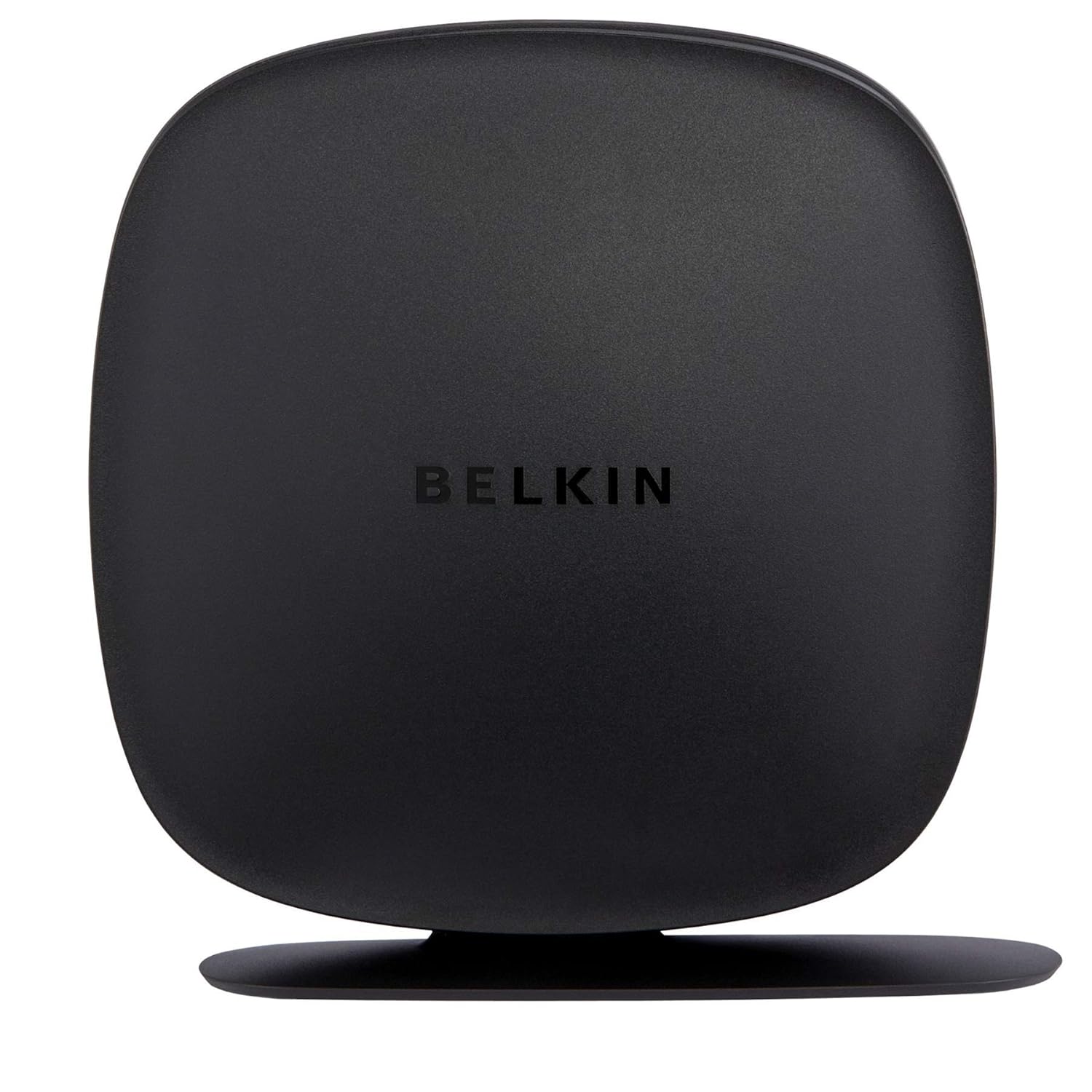

Belkin Wireless Router
Model: N150
The Belkin N150 Wi-Fi Router features speeds up to two times the speed of standard G technology, providing and maintaining a reliable high-speed connection. This makes surfing the Internet and staying in touch with friends and family a breeze.
In addition, the N150 lets you connect to the Internet on either your laptop or desktop computer, providing versatility to suit your needs.
2X faster than G,Ports: 1 x 10/100M WAN; 4 x 10/100M LAN
- N technology for speeds up to 150Mbps*
- MultiBeam technology for a high-powered signal throughout your home
- Easy setup for getting your network up and running in 3 steps
- Preset with a unique security code to get you up and running safely

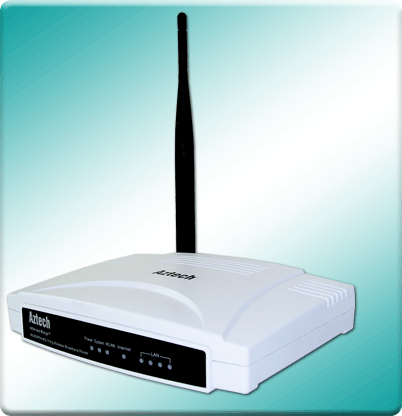

Aztech Wireless Router
Model: WR830RT4
