GeeekPi 7 inch 1024 x 600 HDMI Screen LCD Display with Driver Board Monitor for Raspberry Pi






Product Description

7 inch 1024*600 TFT LCD Display Driver Board HDMI VGA 2AV for Raspberry Pi
Pls click below link to buy a holder for this display. https://www.amazon.com/dp/B071D3QP4K/ref=twister_B06ZZ1MMJP?_encoding=UTF8&psc=1

This 7 inch HDMI TFT LCD display is especially designed for Raspberry Pi. With two driver boards, all you need is to plug and play. Multiple languages are supported. You may apply them to different devices such as mobile DVD, digital photo frames, car systems, multimedia applications and other audiovisual systems.
Specifications:
Display size: 7 inch
Touch screen: Not support
Dimensions: 165 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 1024 × 3 (RGB) ×600
Point distance: 0.05 (W) × 0.15 (H) mm
Viewing angle: L70 ° R70 ° U50 ° D60
Panel type: TFT
Display color: 262K
Contrast ratio: 500: 1
Brightness: 220cd / m2
Interface type: Digital
Number of connections: 50 PIN Digital (TTL) TCON
Backlight: LED
Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
Rated power: 6-7W
Signal input: AV + VGA + HDMI (HDMI 1.2)
Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board

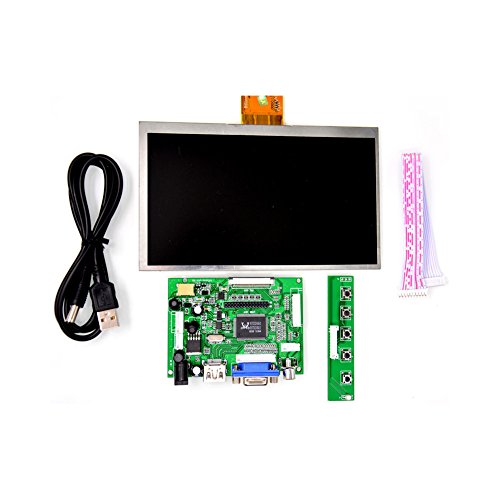

Package Includes:
1 x 7-inch LCD screen

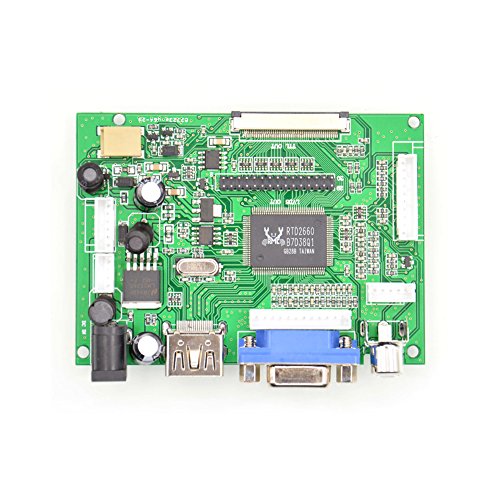

1 x LCD Driver board
1 x White cable (connected to the key board)

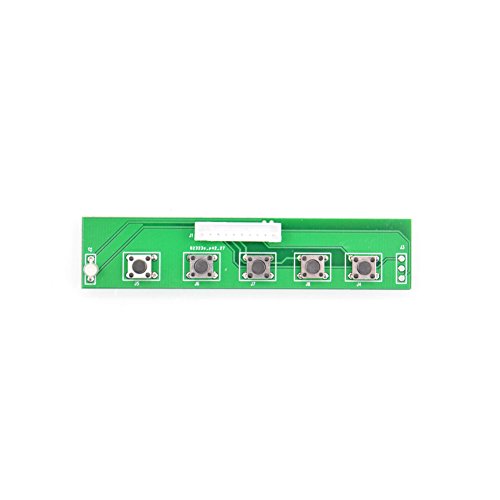

1 x Long Green Key Board

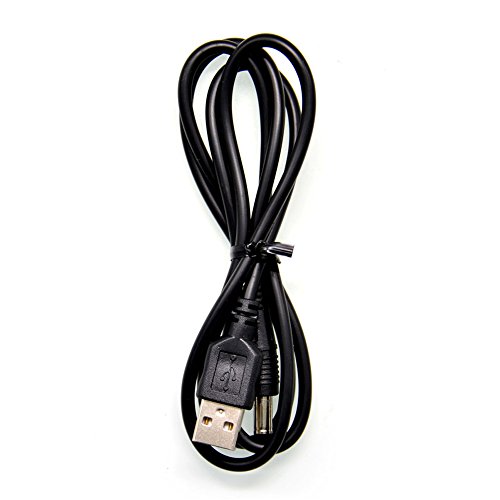

1 x USB to DC5.5 power line
Technology Support:
The five buttons are as follows: S1 = Power, S2=Menu/Select, S3=Up, S4=Down, S5=Video Source Select
For wheezy-raspbian system, you should modify config.txt to support full screen display.
http://wiki.52pi.com/index.php/7-Inch-1024x600_Display_Kit_(without_Touch_Screen)_SKU:Z-0051
For raspbmc/xbian system, you needn't modify config.txt.

Feature

Plug and Play Supported
Dimensions: 165 (W) × 100 (H) × 5 (D) mm.Resolution:1024 X 600
Touch Screen Not Supported
Package Includes:1 x 7-inch LCD screen 1 x LCD Driver board 1 x White cable (connected to the key board) 1 x Long green key board 1 x USB to DC5.5 power line
Technology Support: The five buttons are as follows: S1 = Power, S2=Menu/Select, S3=Up, S4=Down, S5=Video Source Select For wheezy-raspbian system, you should modify config.txt to support full screen display. http://wiki.52pi.com/index.php/7-Inch-1024x600_Display_Kit_(without_Touch_Screen)_SKU:Z-0051 For raspbmc/xbian system, you needn't modify config.txt.
Brand : GeeekPi
Item model num : Z-0051
EAN : 0703501197575
Product Dimensions(LxWxH) : 17x1x11cm ; 286 g
Package Dimensions(LxWxH) : 22x15x6cm ; 286 g
