GPS positioning accuracy: 50 m (m)
Warning: fence alarm, overspeed alarm, vibration alarm
Dimension: 50 * 35 * 10 (mm) (mm)
Battery type: lithium-ion batteries
Waterproof function: good
Antenna types: built-in GSM antenna
The power converter forms: car power supply
Map function: baidu, Google high-definition real-time satellite view
The 3 c certificate number: 2014011606700269
Technical parameters:
1, GSM frequency band: MHZ universal MHZ 900/1800 or 900/1800
2, GPRS: Class12, TCP/IP
3, voltage range: 9-38 VDC
4, the standby current: material 0.2 mA
5, working environment temperature: - 20 ℃ to + 70 ℃
6, work environment humidity: 20% 80% RH

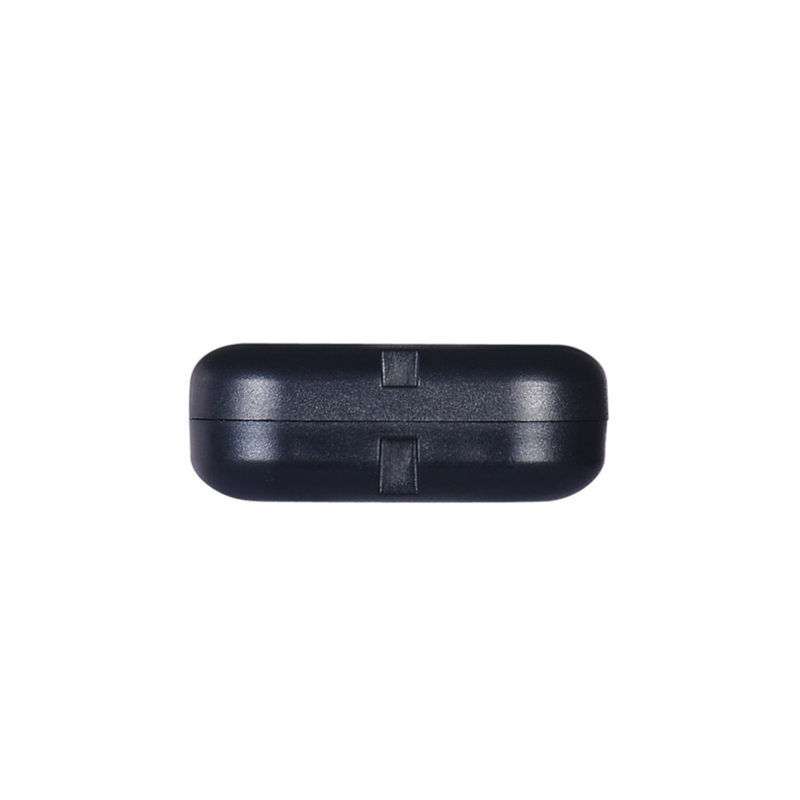

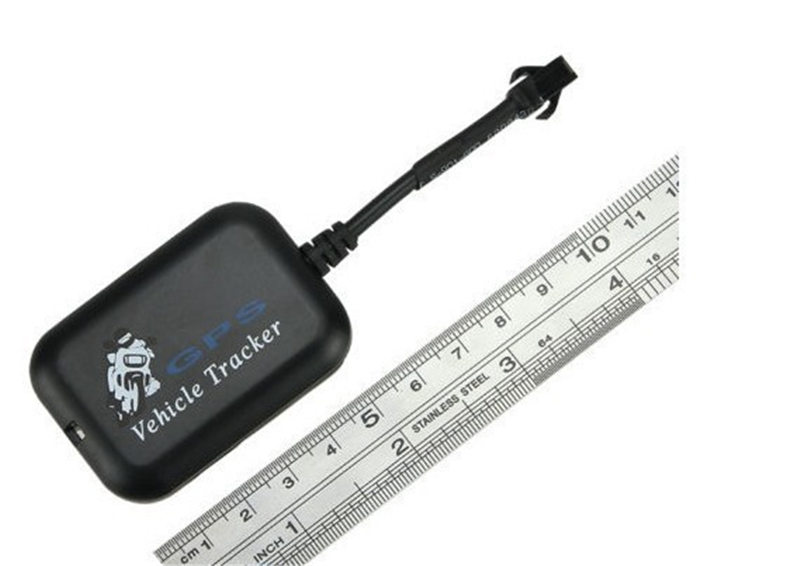

7, appearance size: 50.0 * 35.0 (L) (W) * 10.0 mm (H)
8, weight: 26 g
Installation method:

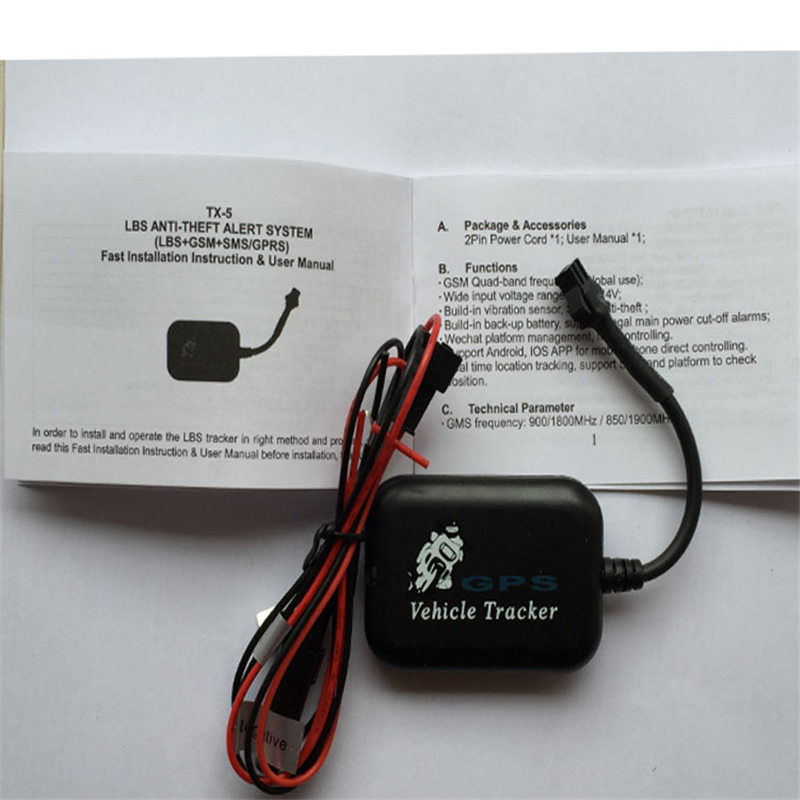

1, product inspection, opened the box, and check the terminal type is correct, accessories are complete
2, choice of SIM CARDS, terminal need to insert a GSM SIM card, SIM card please refer to the choice of dealers;

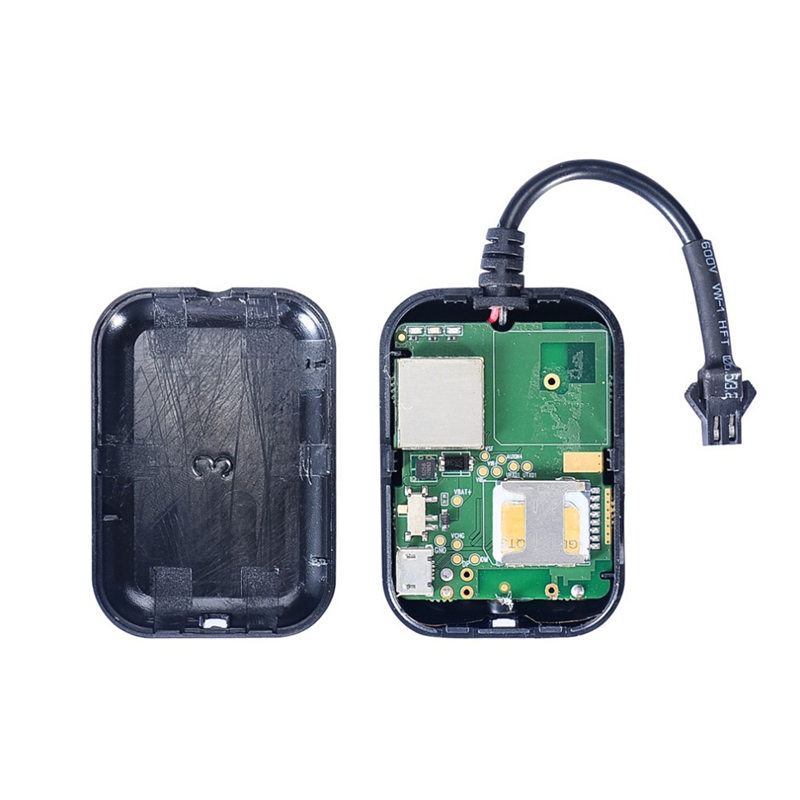

3, the installation of the SIM card and opened the terminal cover, open the SIM card slot cover, the SIM card face down into the metal to the SIM card slot, and then fasten the card slot cover, finally put on the back shell.
Note:
Don't put wrong terminal SIM card;
Terminal SIM card need to open the GPRS function;
Please ensure that the terminal SIM card charges;
Recommend the use of a dedicated GPS devices traffic card (only support the GSM network)
Terminal one and installation
This terminal is the high-tech GPS products, it is recommended that you choose professional units designated by the dealer, personnel for installation and commissioning.
Please make terminals installed in the following order, not the horse.
During the installation process, please don't give the terminal power supply.
The installation method for hidden terminal.
Terminal hidden installation recommendations by the professional organizations designated by the distributor for installation, pay attention to the following items:
1) in order to avoid the thief destruction, end the one should be hidden as far as possible, note waterproof;
2) avoid put together with the source, such as alarm and other vehicular communication terminal;
3) can be used to plunge into the belt, or strong double-sided tape to stick with a wide sponge;

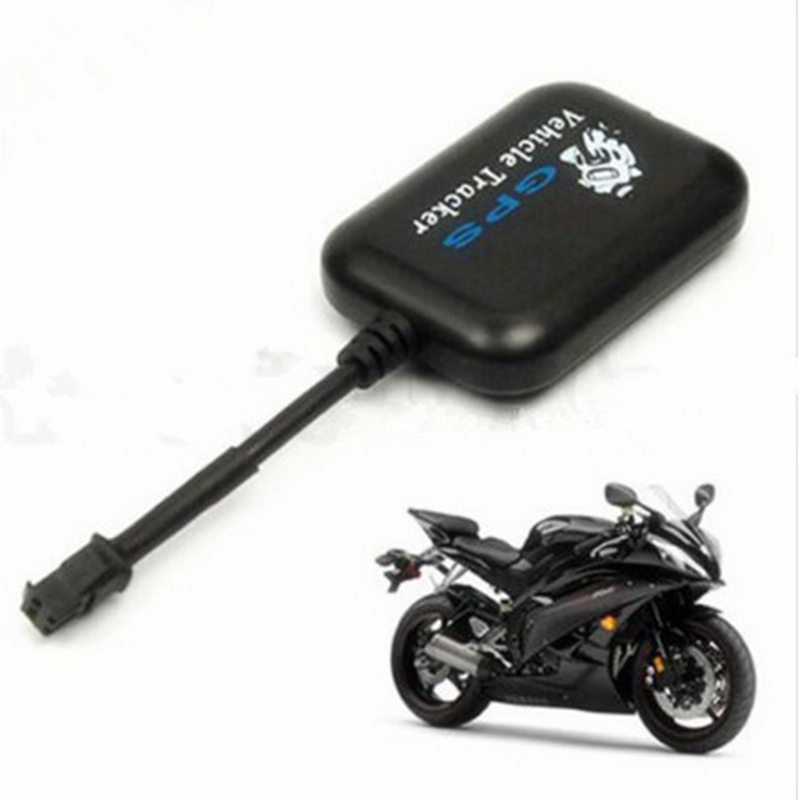

4.1 motorcycle connection mode: open the battery compartment after 12 v voltage.

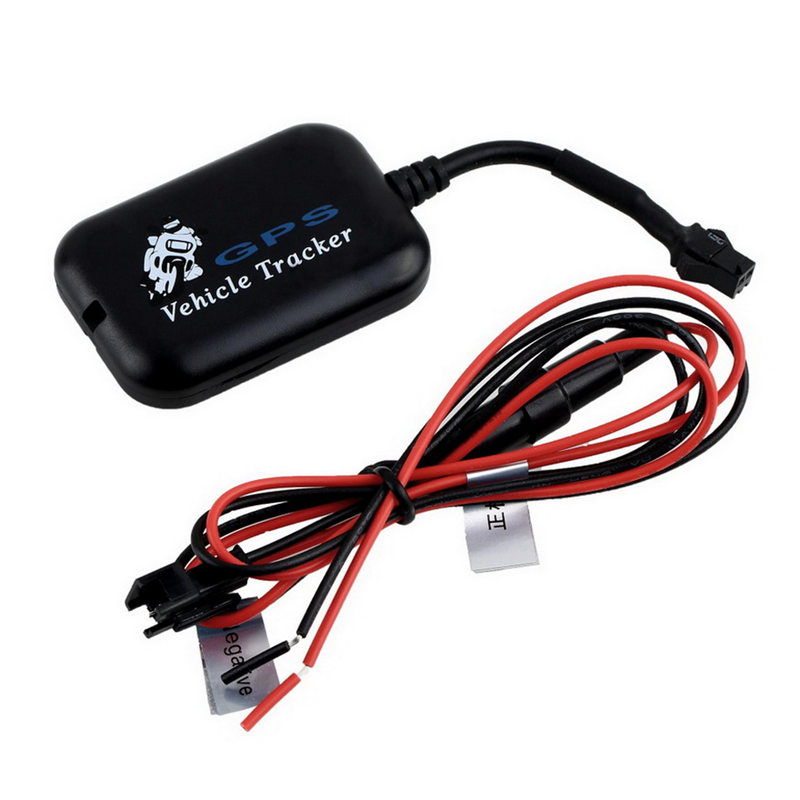

Red line is the positive (DC +), connect the battery positive electrode, the black wire is negative level (GND), connect battery cathode.
4.2 storage battery connection mode: the storage battery is 48-60 v voltage, battery there are four groups, each group is 12 v, open the battery compartment, the one for the 12 v voltage battery positive electrode (DC +) to red, the cathode (GND) by black.
Note:
1. 48 v battery electric vehicle is usually, usually in large power high speed up to 80 v, the equipment is easy to burn, so the installation time must pick one or two pieces of battery, positive, negative.
Safe to use.
