Item Descriptions:

Product

specification

■ Size: 60 (W) x 114 (D) x 22 (H) mm

Weight: 336 g

■ Material: Steel

■ Interface:

For input / HDMI type A (19 pin) female × 4

For output / HDMI type A (19 pin) female × 1

Switching content: HDMI input 4: HDMI output 1

■ HDMI standard:

HDMI Ver 1.3b

Full HD 3D compatible

HDCP compatible

■ Maximum resolution: 1080p (1920 × 1080 dots), WUXGA (1920 × 1200 dots)

■ Switching method: body switching button (touch button type), remote control

■ Data rate: Up to 2.5 Gbps / ch (7.5 Gbps)

■ Power consumption: 2 W

■ Package: Product Body * 1, Power Adapter * 1 (DC 5 V 2A), Remote Control, Instruction Manual

Features

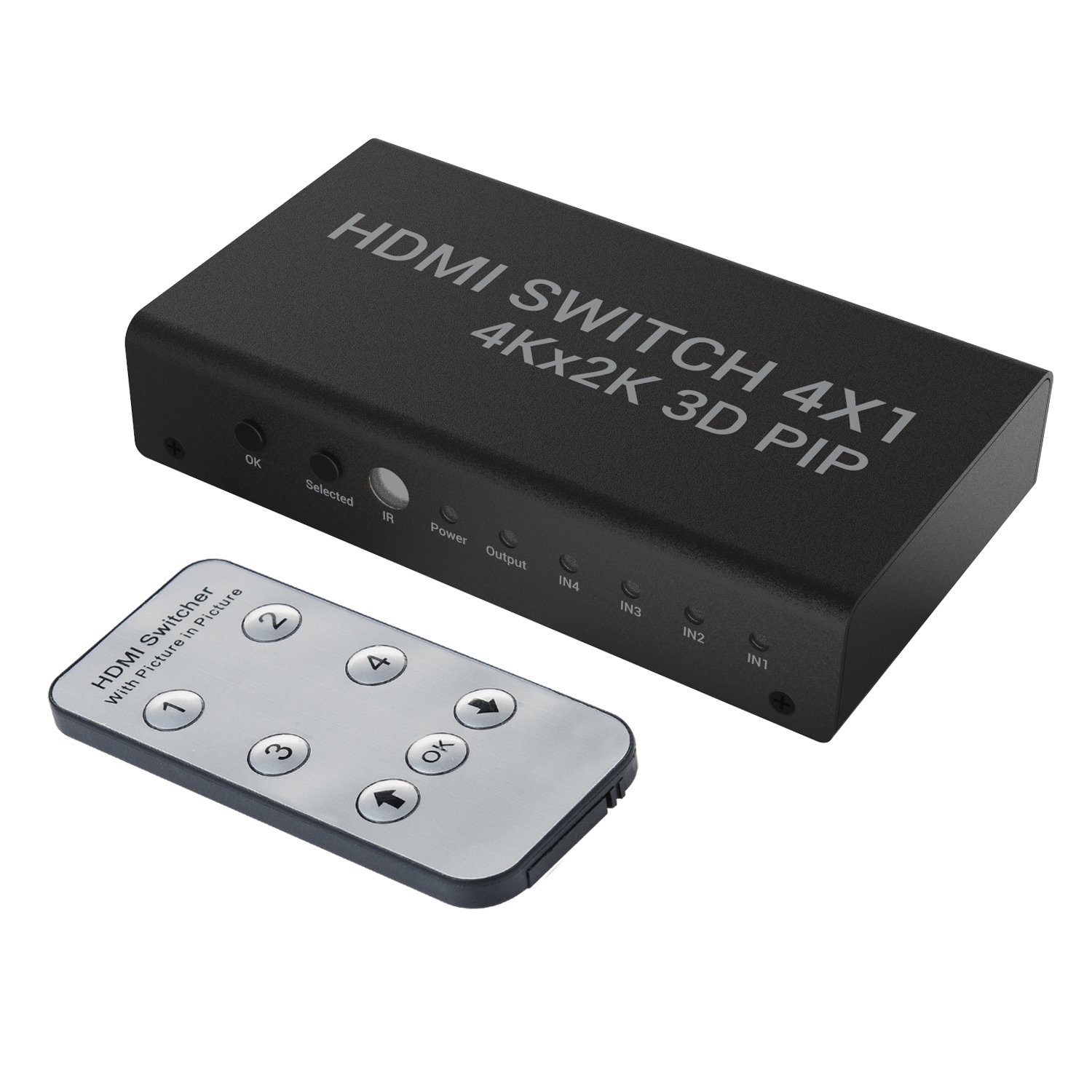

● HDMI device This is an HDMI switching device that can easily switch and output the video / audio of one device to one HDTV or projector.

● 3D image · It corresponds to high quality image of full Hi-vision.

● You can toggle the port by touching the touch button switch lightly.

● You can also switch from a remote place with the included remote control.

- It corresponds to 1080P (1920 × 1080 pixels) full high vision image and WUXGA resolution of 1920 × 1200 dots.

● It is a product compatible with HDCP (High-bandwidth Digital Content Protection).

● All the HDMI terminals adopt gold plating process, and strong against rust preventing signal degradation.

● It corresponds to DTS Digital, Dolby Digital (DTS-HD, Dolby True HD).

● It supports Deep Color input / output up to 36 bits (12 bits / each color).

● It corresponds to various HDMI equipment such as HDD recorder, projector, PlayStation (R) 3, etc.

PIP (Picture in Picture) function

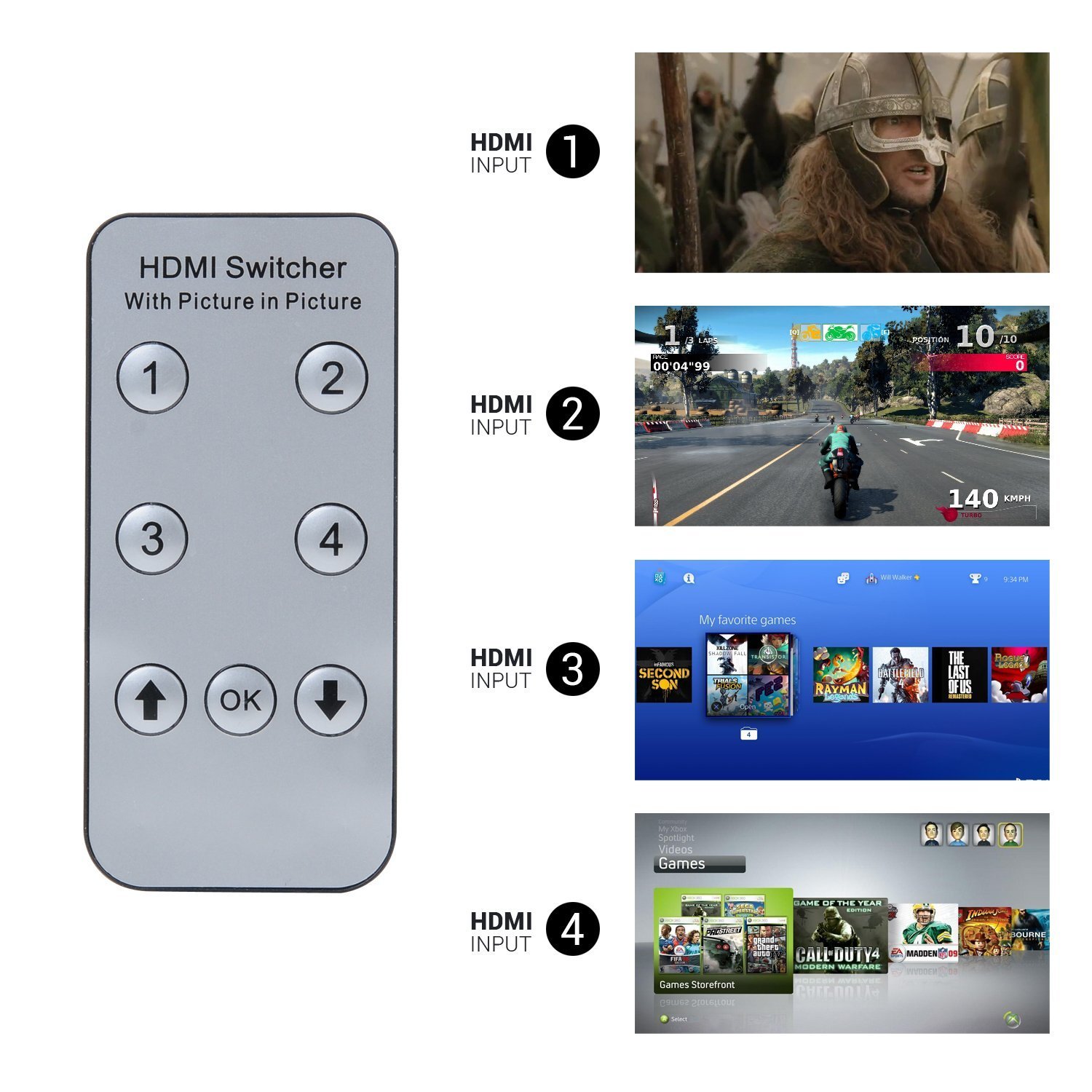

On the screen of one display, the main screen and three sub screens, four simultaneous screens are displayed.

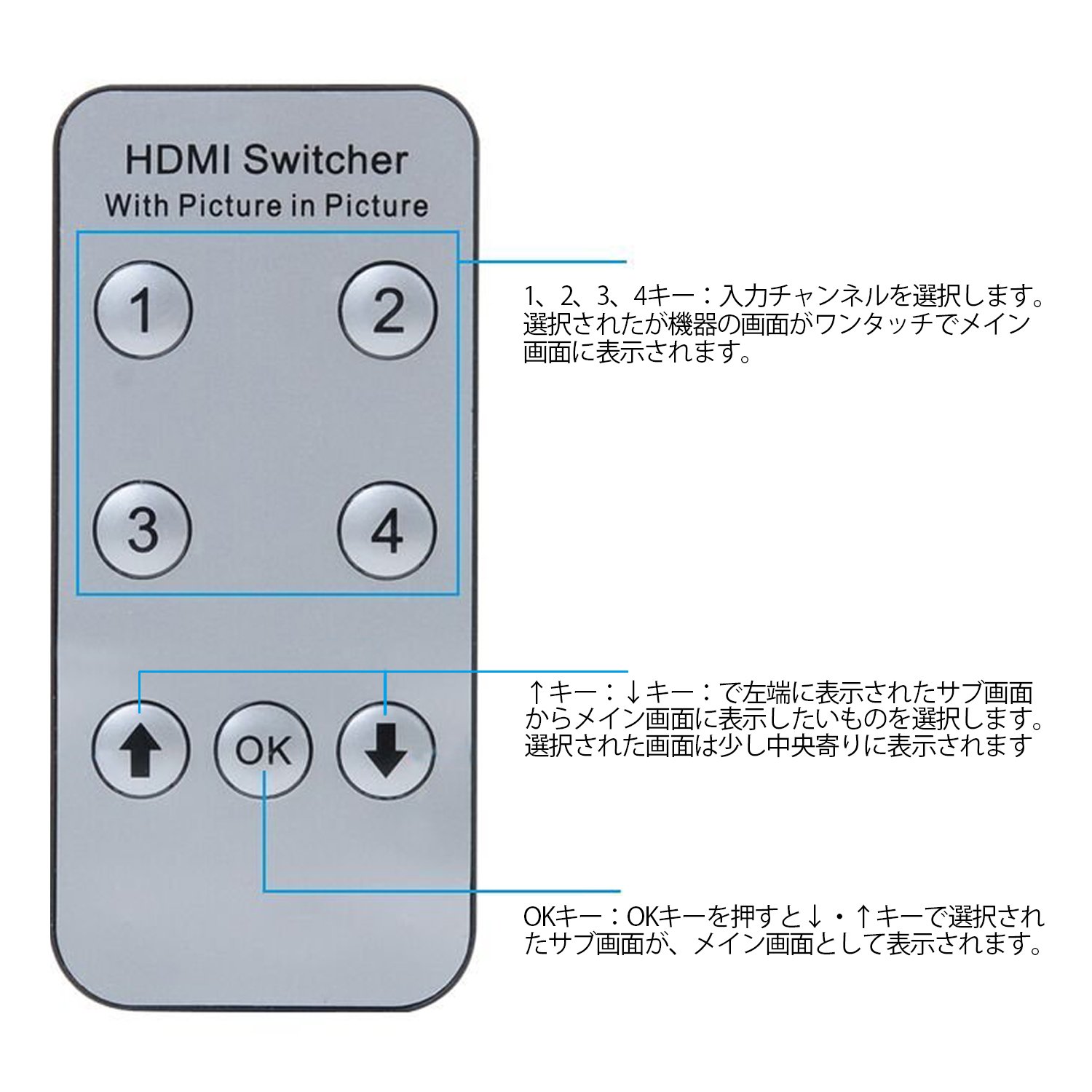

With remote control

Easily switch between the main screen and the sub screen.

It displays sports live broadcasts, Blueray movies, security camera videos, PS4 game videos, etc. at the same time, and easily switches with remote control.

"Gold plating process resistant to deterioration"

All HDMI ports are plated with gold, they are strong against rust and prevent poor contact.

"High functionality but compact"

Compact size that does not get in the way.

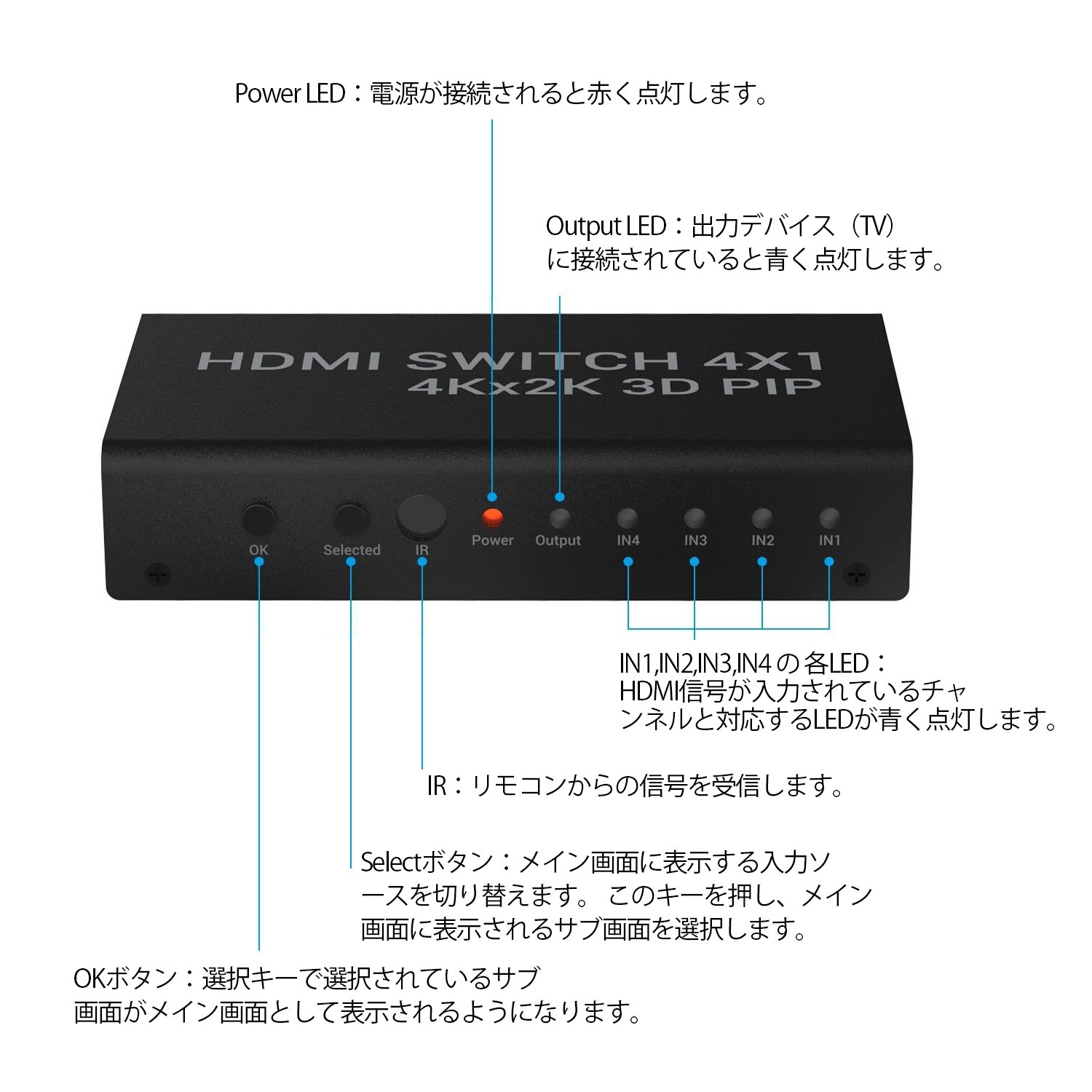

Since all the terminals are on the back, you can wire it beautifully without leaving the cables in front.

The power supply cable is screw fastening type that will not come off unexpectedly.

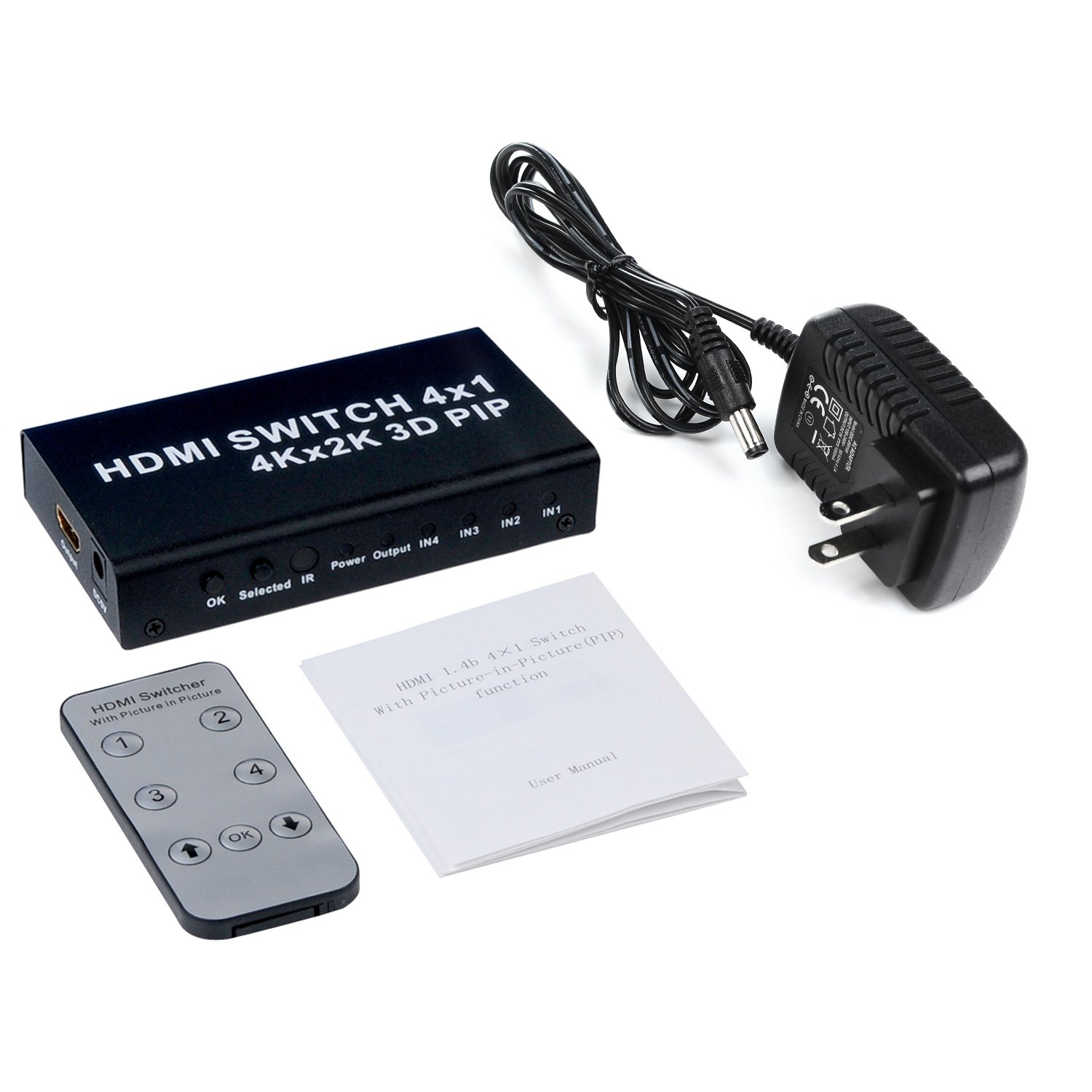

Package list:

In case

Product body x1

IR remote control x 1

Power adapter * 1 (DC 5 V 2A) x 1

Instruction manual x 1

Features:

• Please enter model number Confirm this is compatible:

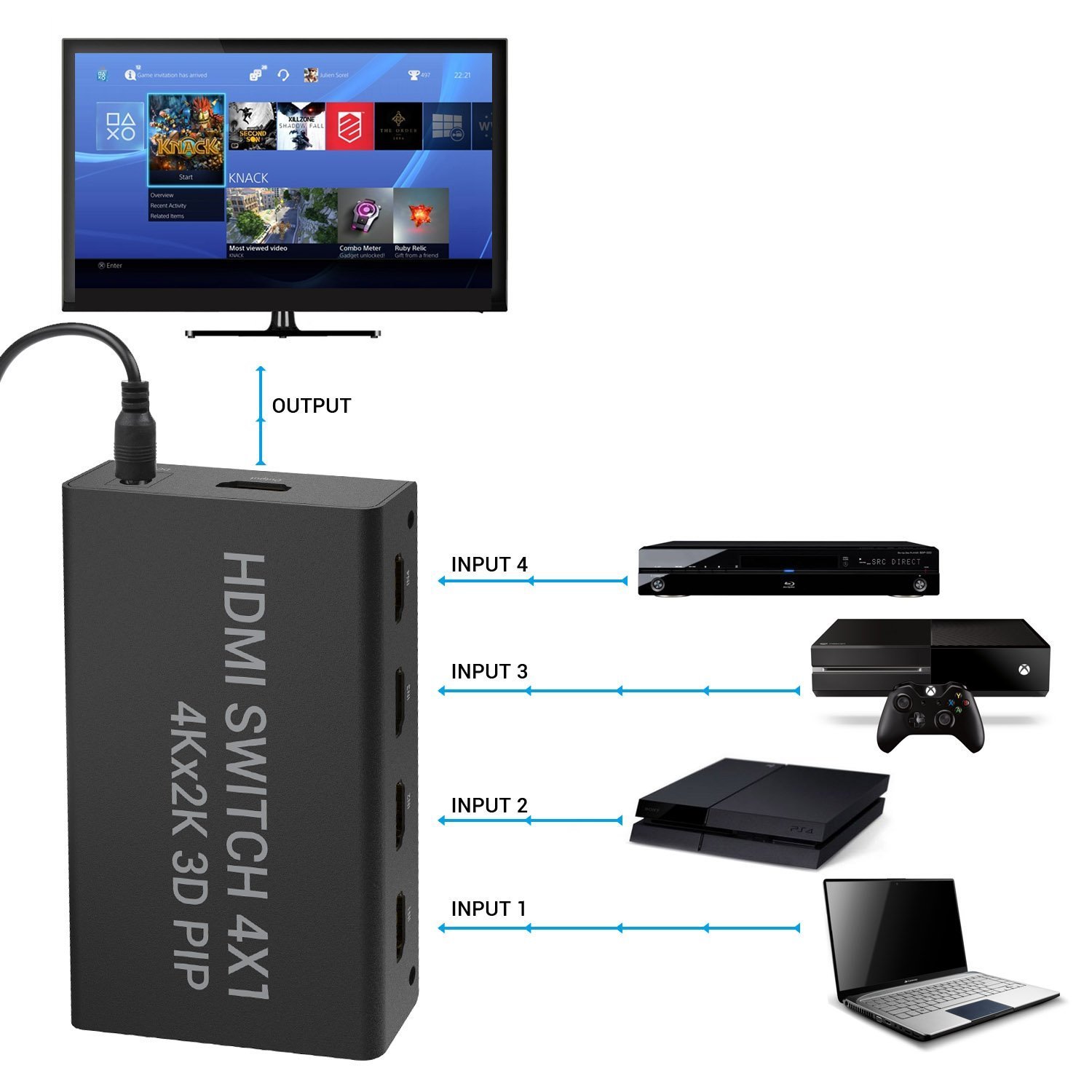

• HDMI 4 X 1 switching: Outputs four HDMI signals to one display.
• PIP (Picture in Picture) function: Displays the main screen, three sub screens, and four simultaneous screens on one display screen.
• With remote control: Easily switch between the main screen and sub screen.
• It displays sports live broadcasts, Blueray movies, security camera videos, PS4 game videos, etc. at the same time, and easily switches with remote control.
• Resolution: 4 K * 2 K @ 30 Hz, 1080 P @ 120 Hz, 1080 P @ 3D 60 Hz etc, HDMI 1.4 version, 4 K resolution and 3D video, HDCP compatible.
• Fire TV stick / Xbox / PS3 / PS4 / Blu-ray / personal computer / game machine Nintendo Switch etc. correspondence.
• [Semi-annual warranty for security] If a malfunction occurs due to normal use (including defective products), if within half a year from purchase, please contact our service.
• Here new products will be exchanged free of charge.

Product information:

Shipping Weight: 322 g

Package Dimensions: 6.10 x 12.19 x 17.40 cm
