Product Description
1.Description

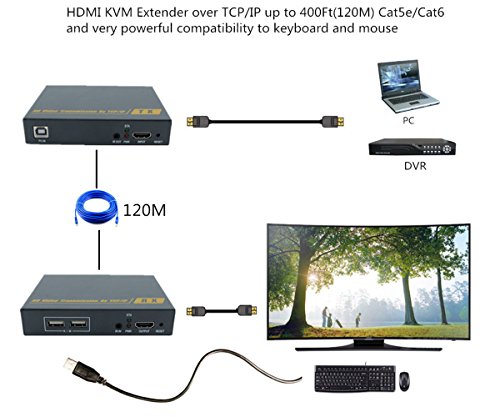

The extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2.Features

Support over TCP/IP
Compliance with HDMI 1.3 and HDCP 1.2 standard
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Simple to install, plug and play

3.Specifications

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080P@60Hz

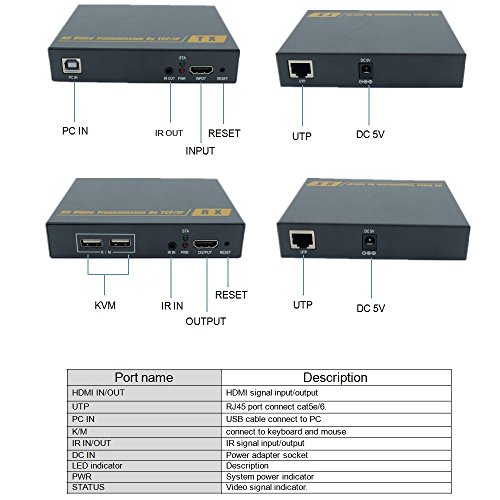

Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

IR
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------Digital
IR frequency--------38kHz ; Optional (20 KHZ - 60 KHZ)

UTP

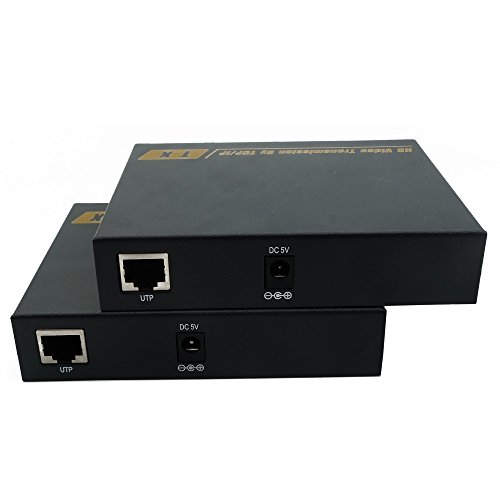

Interface-----RJ45

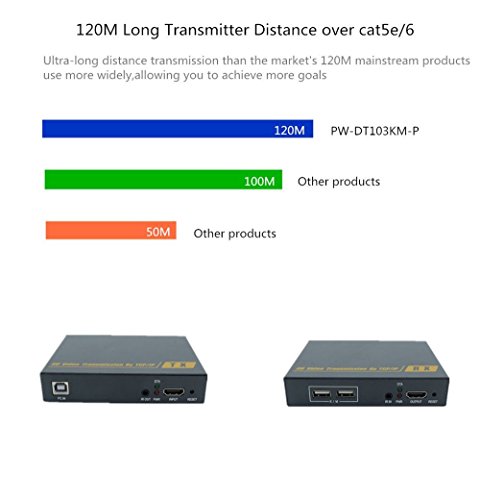

Transmission distance--------CAT5e/6---120m

Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ 70℃
Humidity-------Operating: 5% ~ 90%

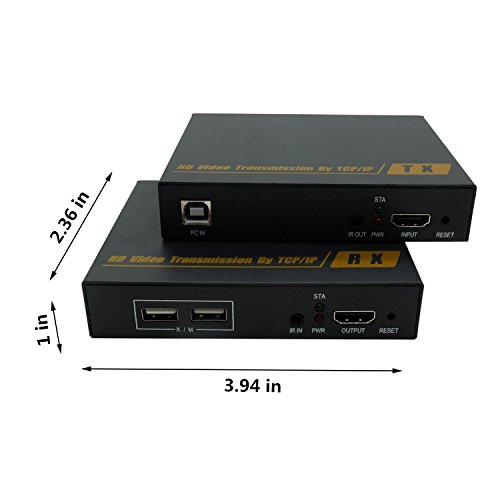

Dimension-------100*60*25mm
The warranty--------1 year free warranty

4.Package list

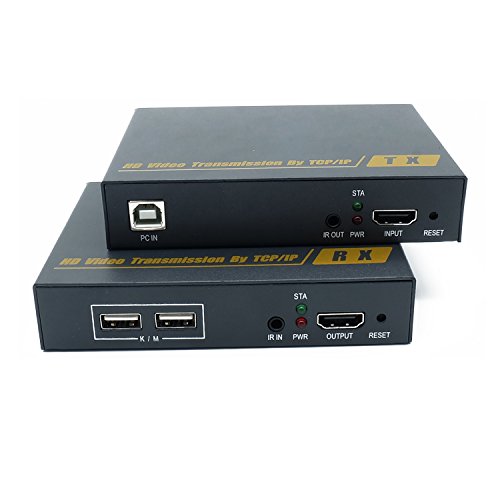

HDMI transmitter ................................... 1 pcs
HDMI receiver ........................................ 1 pcs
USB Cable ............................................... 1 pcs
Power adapter ........................................ 2 pcs
User manual ............................................ 1 pcs
