Product Description

Specifications:

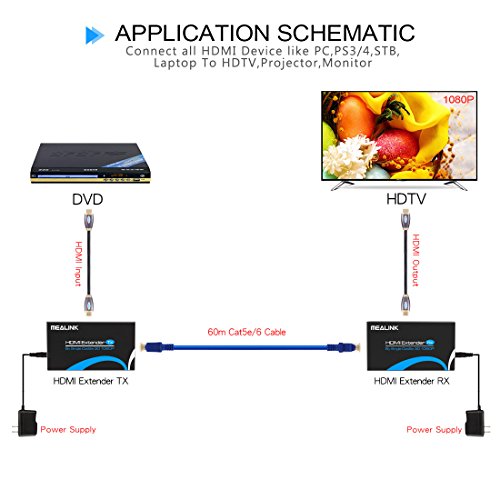

Length of CAT-6/CAT-5E cable between Rx and TX:Up to 60 meters
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1081p080i/720p/576p/576i/480p/480i
Support audio output: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max baud rate: 1.65Gbps
Input video signal:0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input HDMI cable distance: 15m AWG26 HDMI standard cable
Output HDMI cable distance: 20m AWG26 HDMI standard cable
TX Max working current: 510mA
RX Max working current: 100mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to 55 ℃)
Operating Humidity range:5 to 90%RH (No Condensation)
Dimension (L x W x H): 82x45x23 (mm)
TX Weight: 110g
RX Weight: 110g

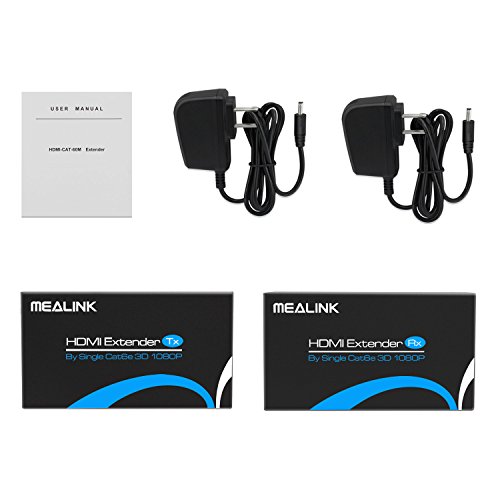

Package includes:
- TX Extender :1pc RX Extender:1 pc
- 5V 1A DC Power adapter x 2pcs
- English User Manual
