Product Description

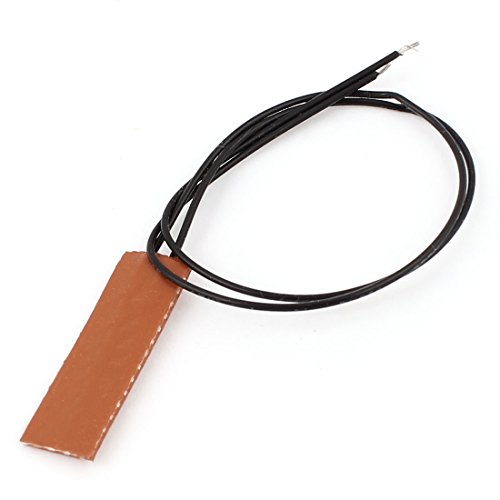

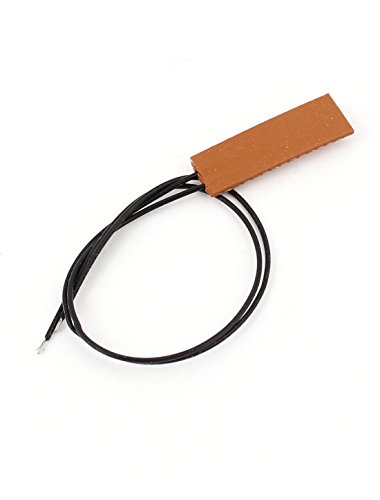

• Made of silicone rubber, rectangle shape, easily bonded and mechanically mounted to heat sink.
• Which has advantages of thinness, lightness and flexibility. It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone stabilize the dimension of the heater.
• Simply sticking to your components through sulfuration, adhesive, fixer or driling to install.
• The working temperature should be less than 200C, the instantaneous temperature does not exceed 300C.
• When the temperature in workspace does not exceed 200C, the power density can up to 1.2W/cm2
• In the type of paste installation conditions, allow the working temperature less than 150C.
• Freezing protection and anti-pressure, can be used in all kinds of instruments and equipments.
• Applianced in the hospital equipments, such as: blood analyzer, test pipe heater, etc.
• The auxiliary equipments of computer, such as: lacer printer, etc.

Feature

Country of Manufacture: CHINA; Material: Silicone Rubber; Net Weight: 2g; Package Content: 1 x Silicone Rubber Heater
Main Color: Orange Red; Working Voltage: 5V; Power: 4W
Insulation Material Heat Resistance: 250C (Max.); Maximum Service Temperature: 200C; Power Telorence: +/-8%
Power Density: 0.1-1.2W/cm2; Mechanical Pressure: 100kg/cm2; Insulation Resistance: >=50Mohm
Withstand Voltage Strength: 1500V/5s; Size: 30 x 10 x 1.5mm/ 1.2 x 0.4 x 0.06inches (L*W*H); Wires Length: 20cm/ 8 inches
Brand : uxcell
MPN(PartNumber) : a15012800ux0351
