AC80-300V 100A aperture 15.5mm Suitable for AC 110V 220V

               Main Specifications

1. Measurement accuracy: 1% plus or minus 2 words

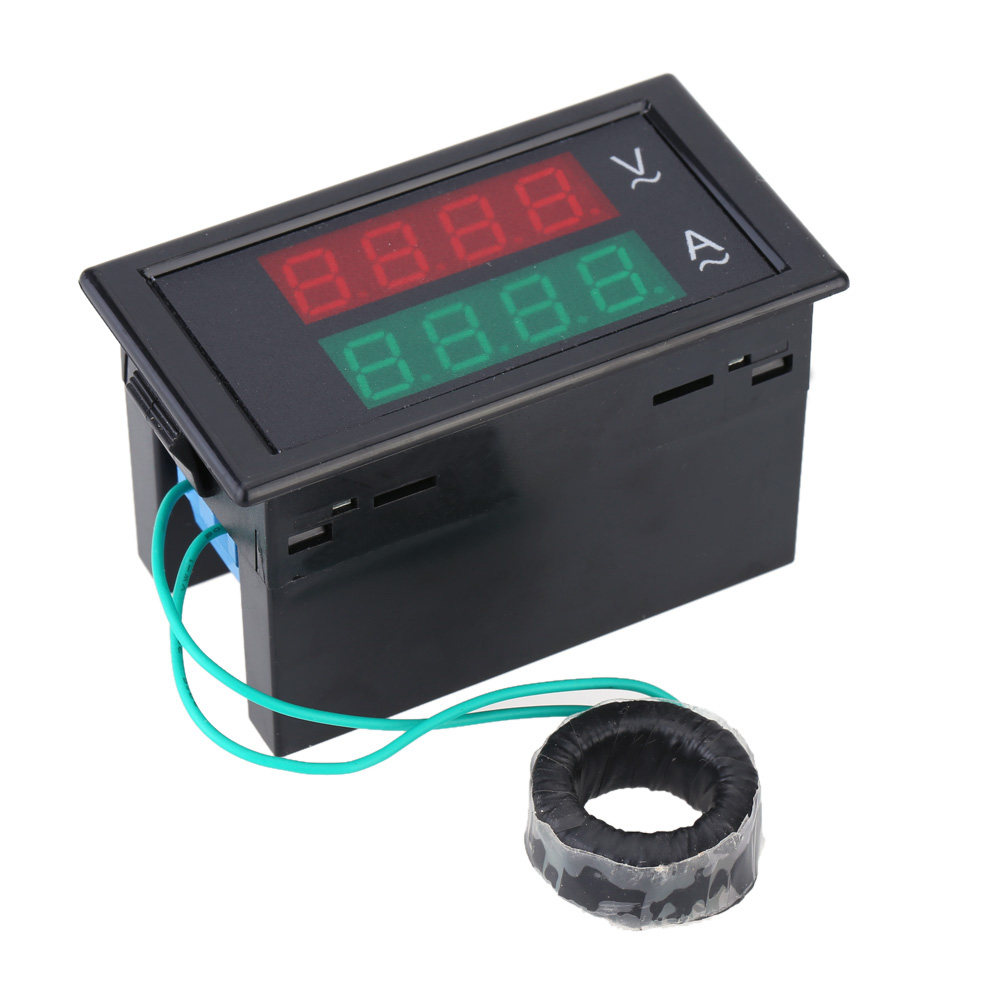

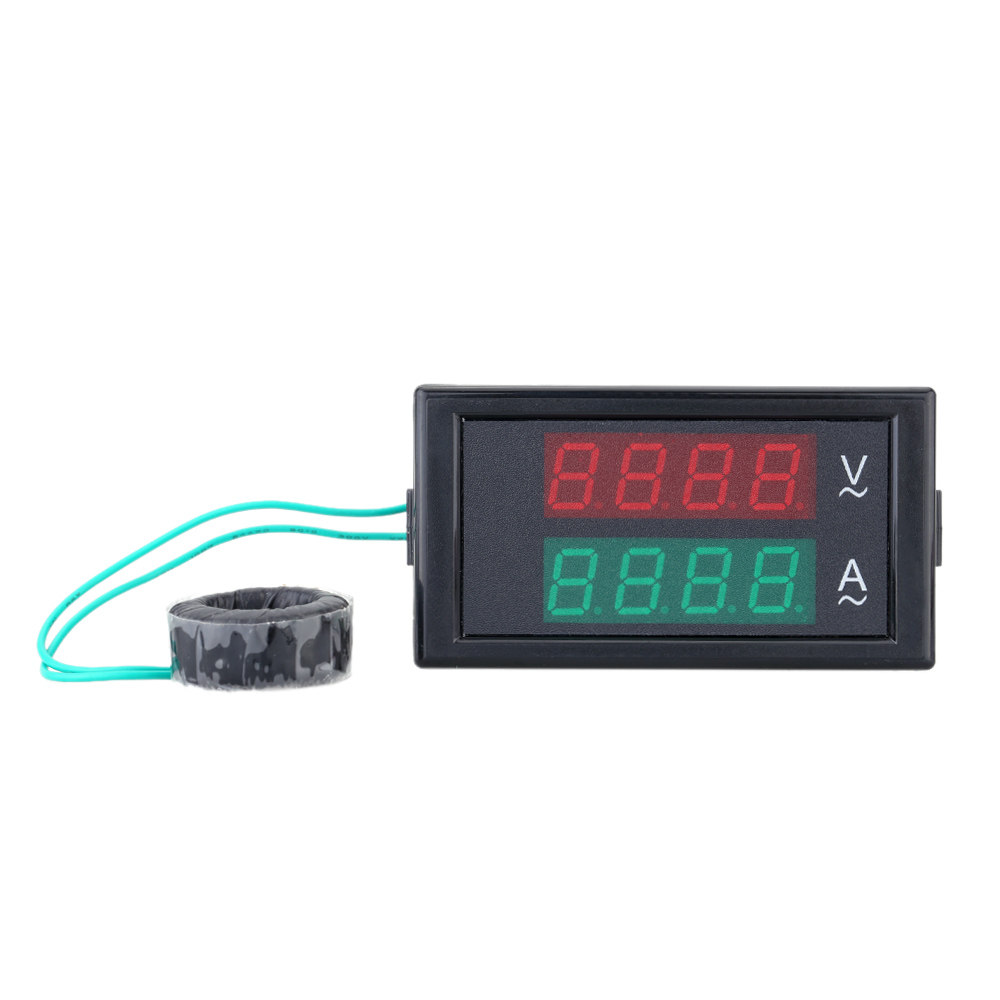

2. Display: Voltage Display: 4-digit red 0.39-inch LED digital tube, current display: 4-bit pure green 0.39-inch LED digital tube

3.Measurement range: AC voltage: AC80-300V (single phase) 200-450V (three-phase) AC current: AC0-100.0A, the current display resolution is 0.01A when the measurement current is less than 10A, and the resolution is displayed when the measurement current is greater than 10A Rate of 0.1A, range automatic conversion (automatic decimal point shift) True RMS measurement

Power consumption: 0.2VA

5. Measurement speed: about 2 times per second

6. Dimensions: 79 (long) * 43 (paragraph / high) * 42mm (thick)

7. According to size: 76 * 39mm (embedded installation)

8. The instrument is only suitable for pure AC 50-60HZ mains power supply, can not be used for square wave, inverter output and sine wave circuit to correct sine wave measurement, otherwise the meter will be permanently damaged!

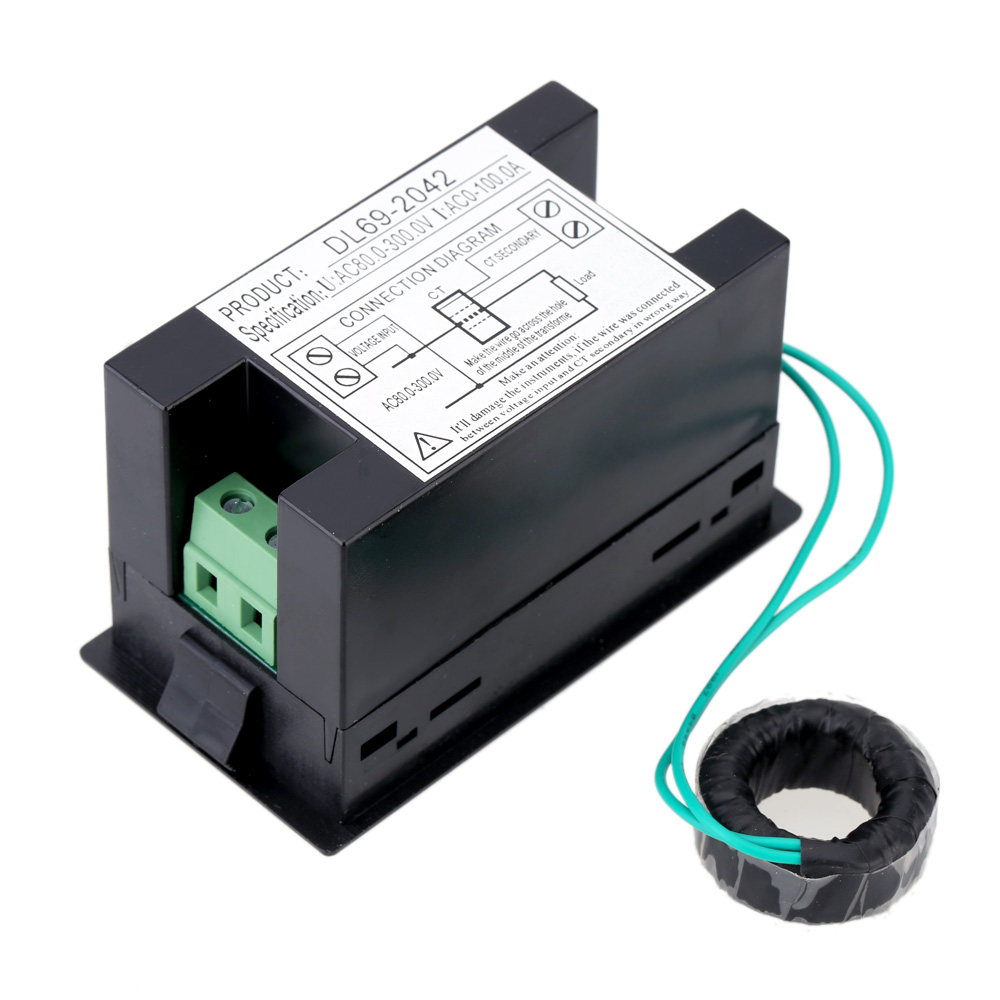

9. Description: Transformer and instrument separation, the transformer can be measured according to the actual location of installed. (That is to say the lead can be extended to the ideal location of the device installed) See baby description of the main map

★: If at home: (C45 / DZ47) air switch on the road by the installation of instruments, real-time monitoring of the current grid voltage and load current, current * voltage = power (so you can also calculate your home all the current power appliances, but also That is, how much W. But can easily check to see if there is a large current display, to avoid forgetting to turn off the operation of some high-power electrical appliances, wasting electricity and resources.

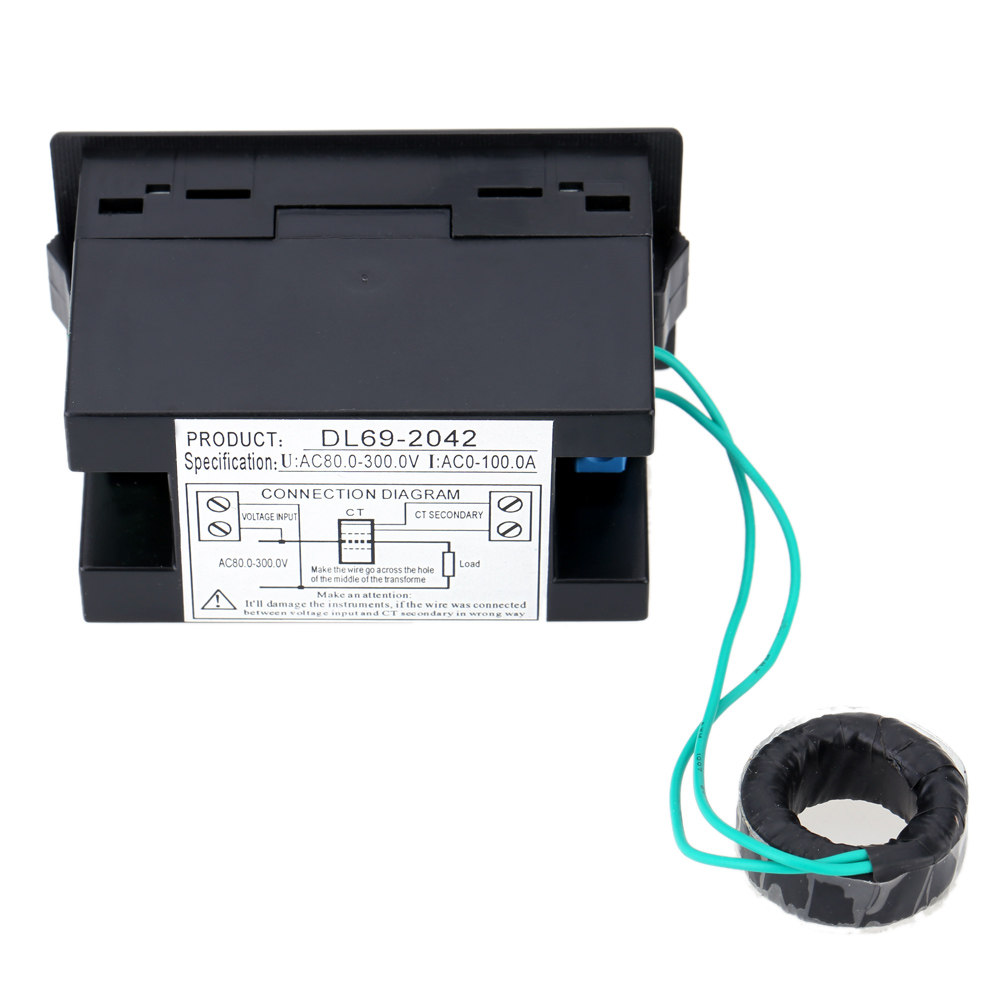

Note: Voltage input - green terminal

         Current transformer secondary input blue terminal can not be wrong or it will burn table
