Item Descriptions:

■ Projection display of speed, clock, direction for windshield.

The movement of gaze decreases and the familiar car window scenery turns into near-future SF style!

■ With Japanese manual.

Just connect it to the cigar socket inside the car and fix it to the dashboard.

Tool unnecessary, setting unnecessary Installation completed in 1 minute.

■ GPS + cigar socket use therefore vehicle type. Selection does not do.

It is small, 9 x 5.3 cm and easy to install.

3.5-inch high brightness multi-color LED adoption that is easy to see even during the day.

■ Accurate time display by GPS.

With automatic brightness control sensor.

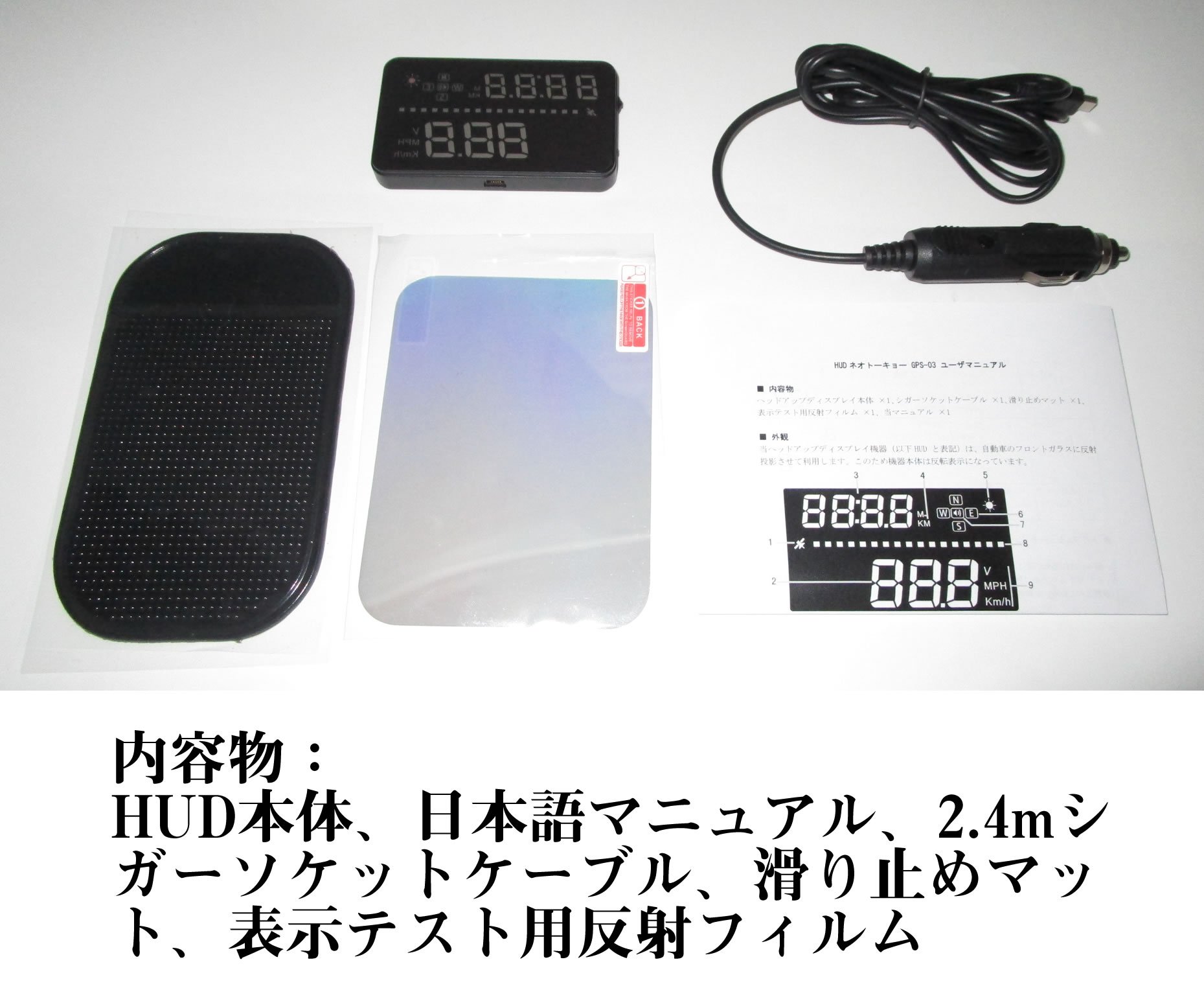

Contents: HUD body, 2.4 m cigar socket cable, anti-slip mat, reflective film for display test, Japanese manual

Operating temperature: -40 ° C to 80 ° C

Operating voltage: DC 8 - 18 V

Operating current: 40 mA

Body size: 90 x 53 x 10 mm

Body weight: 40 g

Direction accuracy: ± 1 °

Clock accuracy: same as GPS satellite

Satellite capture time: 30 seconds at cold start, 1 second at hot start

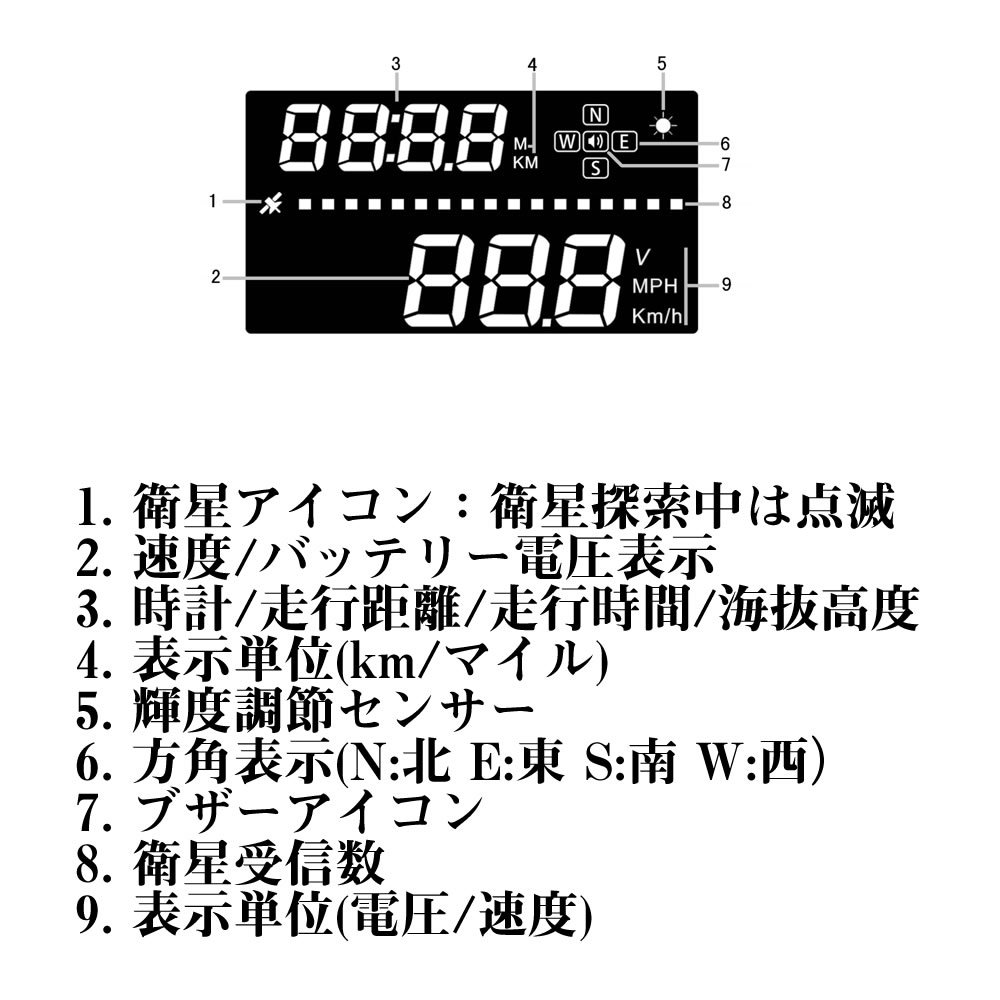

Displayable items:

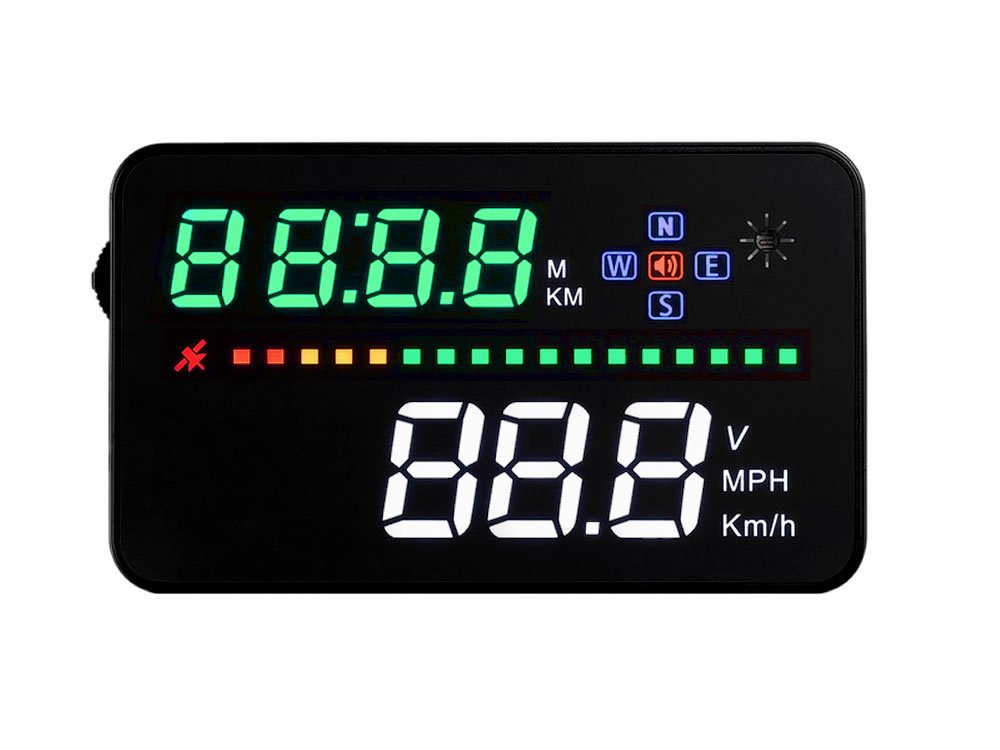

Speed, clock, direction, battery voltage, mileage, running time, altitude above sea level, number of satellites received

Other functions:

· Speed ​​indication km / mile switchable

· Speed ​​warning alarm On / Off

· Clock display time zone switching

■ Frequently Asked Questions

Q. Can I install it in my car too?

A. Every car can be installed if there is only a cigar socket.

Q. Is installation easy?

A. I will operate only with a cigar socket.

Normally you do not need to set anything.

Q. Where are the producing countries?

A. It is planned in Japan and is manufactured in a factory in China.

I am applying for Product Liability Insurance (PL) insurance in Japan and applying for a registered trademark.

Q. Can you withstand the high temperature of the dashboard?

A. It is designed to operate up to 80 degrees Celsius.

Also we use heat resistant material for the main body.

Q. The speedometer is different from the meter's value

A. The deviation can be adjusted by setting.

Please refer to the manual for setting.

Q. Is the clock display accurate?

A. It is very accurate because it displays time information from GPS satellites.

Also, there is no shift while using it.

Q. Can I use it overseas?

A. By resetting the time zone, it can be adjusted to the time of each country (the initial state is Japan time).

The speed works anywhere GPS reception is possible.

Q. Speed ​​is not displayed properly in tunnel

A. This HUD calculates the speed by communication with the GPS satellite.

For this reason the speed display can not be performed correctly in tunnels where satellite radio waves can not be received or indoors.

Also, for the same reason speed may not be displayed correctly even in high-rise building streets and places with a lot of tall trees etc. Please understand.

Q. Is it necessary to paste a reflective film on the windshield?

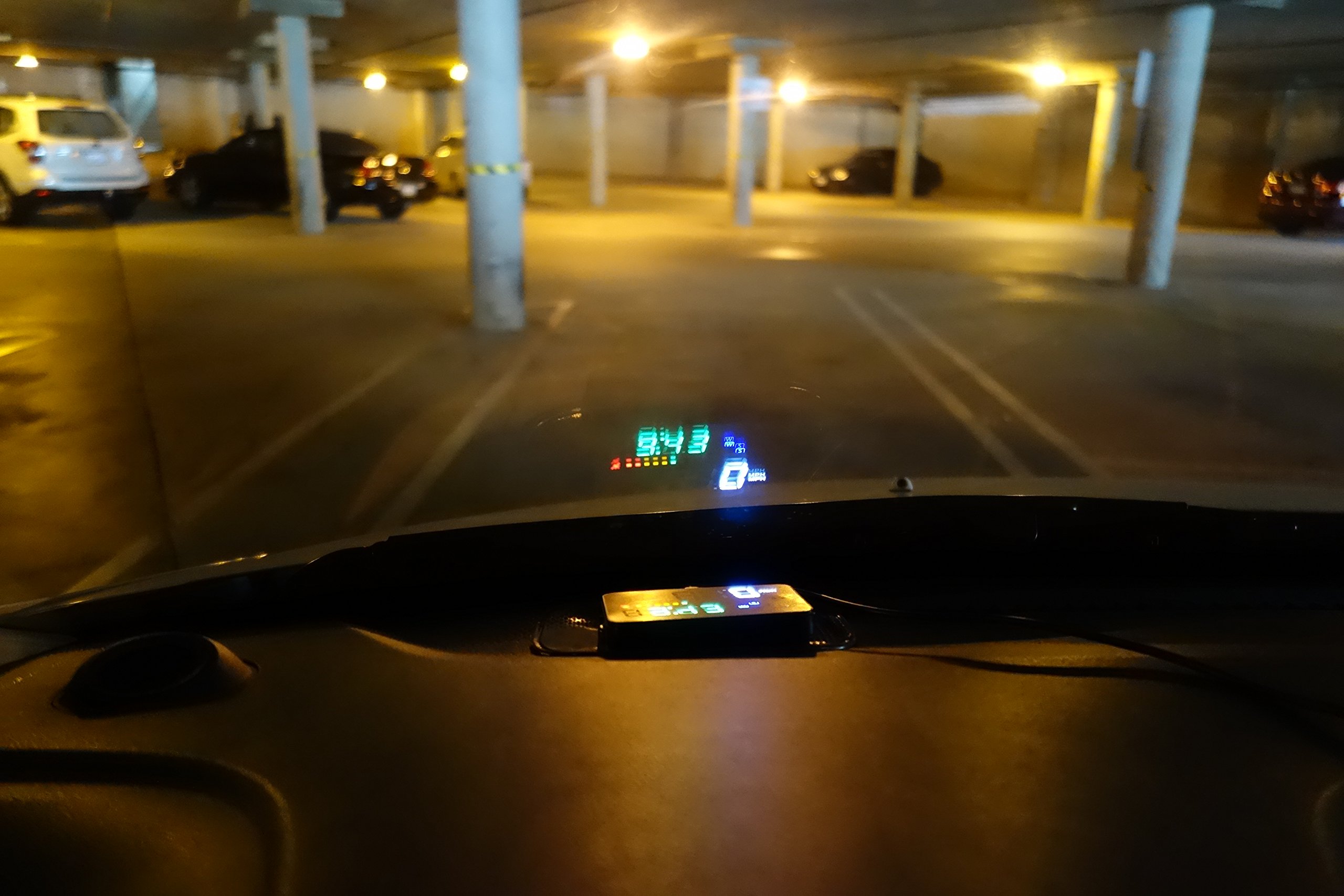

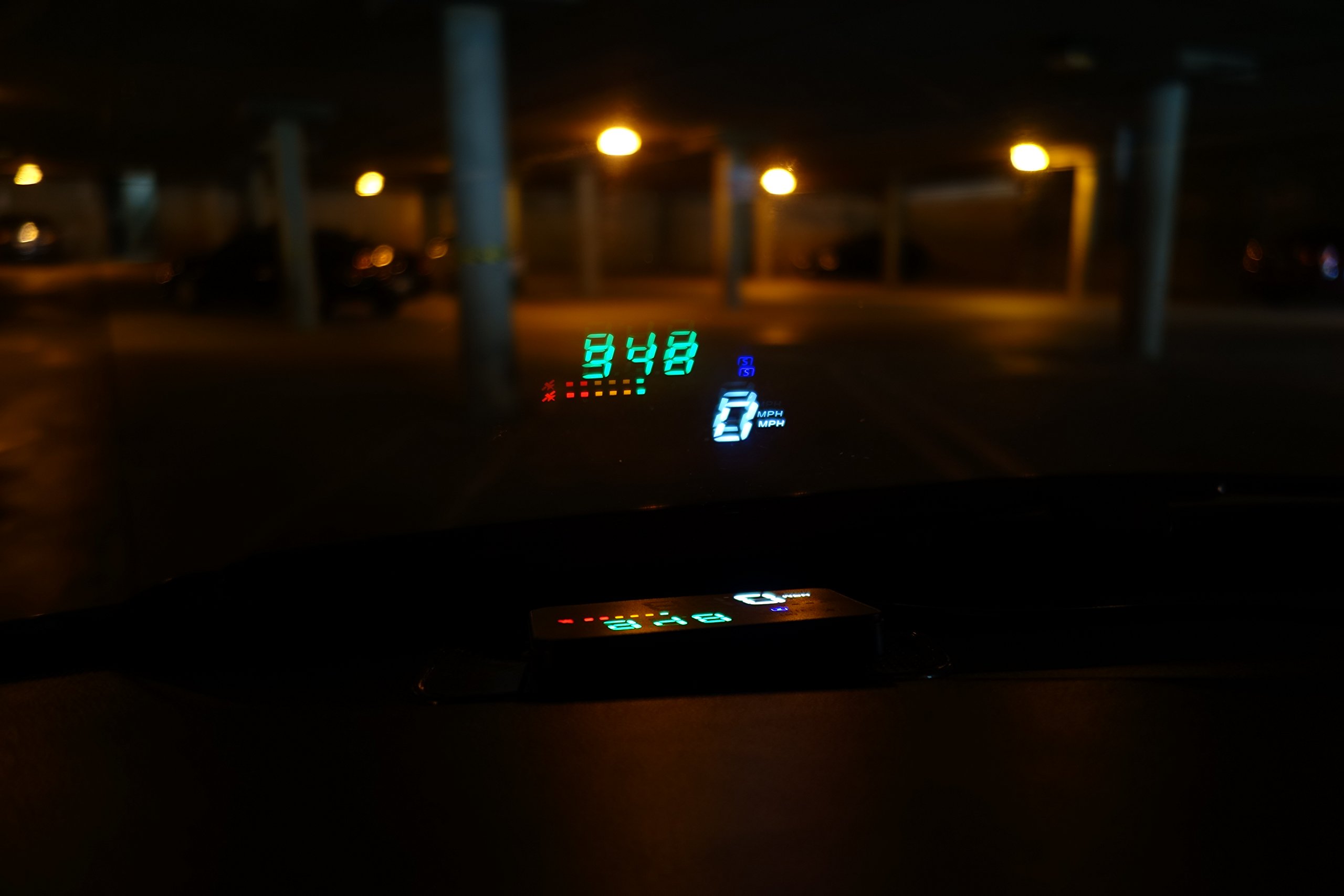

A. By adopting a high-intensity color LED, it can be used by directly projecting on the windshield.

However, because the front windshield of the car is a compound type, projection images may appear twice.

If you are concerned please affix a commercially available film for glass to the projected part (provided that the visible light transmittance of 70% or more is required by law).

* The included reflective film is for display test.

Please do not use on public roads.

Q. I would like to change the installation location, but is it possible to reposition the anti-skid mat or reflection film?

The attached anti-slip mat and reflective film can be reused by peeling and washing with water.

Even when applying a reflective film, wet it with water and stick it and stick it cleanly by pushing bubbles with a towel etc.

Q. I sometimes restart automatically or sometimes the power supply goes down?

A. When the battery voltage of the vehicle falls below a certain level, the power will be turned off automatically.

Since setting change is possible, please check product manual for details.

Q. It does not seem to work properly.

Is it the initial malfunction?

A. First, check whether the power cable is properly connected, the switch is ON, and whether satellite radio waves can be received.

If the problem persists, please contact your dealer.

Q. What is the difference between OBD 2 type HUD NeoTokyo?

A. Since this product is compact with GPS + cigarette lighter socket, it can be installed anywhere.

Old cars without OBD 2 and hybrid cars can be used without problems.

Moreover, it is recommended also for those who request clear vision because of simple display with speed + clock only.

Q. What is the advantage of "HUD NEO TOKYO GPS - 03" over conventional products?

A. It is small with GPS + cigarette lighter so it's easy to install without choosing the car model, accurate clock display by GPS, support in Japan, with Japanese manual.

What is "HUD NEO TOKYO"

"HUD NEO TOKYO"

The image of Tokyo in 2020 as seen from the 1980's

It is a head up display series to make driving more fun, with the concept as a concept.

"HUD NEO TOKYO" is a registered trademark application completed by Modji Corporation.

This product is a direct-sale product by the manufacturer.

HUD NEO TOKYO OBD 2 type

https://www.amazon.co.jp/dp/B071S3YRTJ

HUD NEO TOKYO GPS-05

https://www.amazon.co.jp/dp/B07831VSBK

Features:

• Display speed and clock on the windshield.
• The movement of gaze decreases and the familiar car window scenery turns into near-future SF style!
• With Japanese manual.
• Just connect it to the cigar socket inside the car and fix it to the dashboard.
• Tool unnecessary, setting unnecessary Installation completed in 1 minute.
• For GPS + cigar socket use vehicle type is not chosen.
• It is small, 9 x 5.3 cm and easy to install.
• 3.5-inch high brightness multi-color LED adoption that is easy to see even during the day.
• Accurate time display by GPS.
• With automatic brightness control sensor.
• Accessories: Japanese manual, 2.4 m cigar socket cable, anti-skid mat, reflective film for display test
• "HUD NEO TOKYO" is a registered trademark application completed by Modji Corporation.
• This product is a direct-sale product by the manufacturer.

Product information:

Shipping Weight: 199 g

Package Dimensions: 4.39 x 13.49 x 16.79 cm
