Item Descriptions:

Product introduction

It is a USB audio processor that connects to PC with USB, upgrades PC sound & can import external sound source to PC.

The patented VLSC circuit that reduces harmful pulse noise generated at the time of D / A conversion to the limit is installed.

The real existence of the sound and the reproducibility of the sound field space are dramatically improved, and it reproduces without fail to subtle nuance.

Asynchronous transfer system adopted, dramatically reduces jitter noise caused by temporal drift of signal transmission.

A reproduction SN ratio of 115 dB comparable to high-end audio equipment is realized.

Burr Brown "PCM 1796" high performance DAC installed.

Bundle the recording editing software 'DigiOnSound 6 L.E.'.

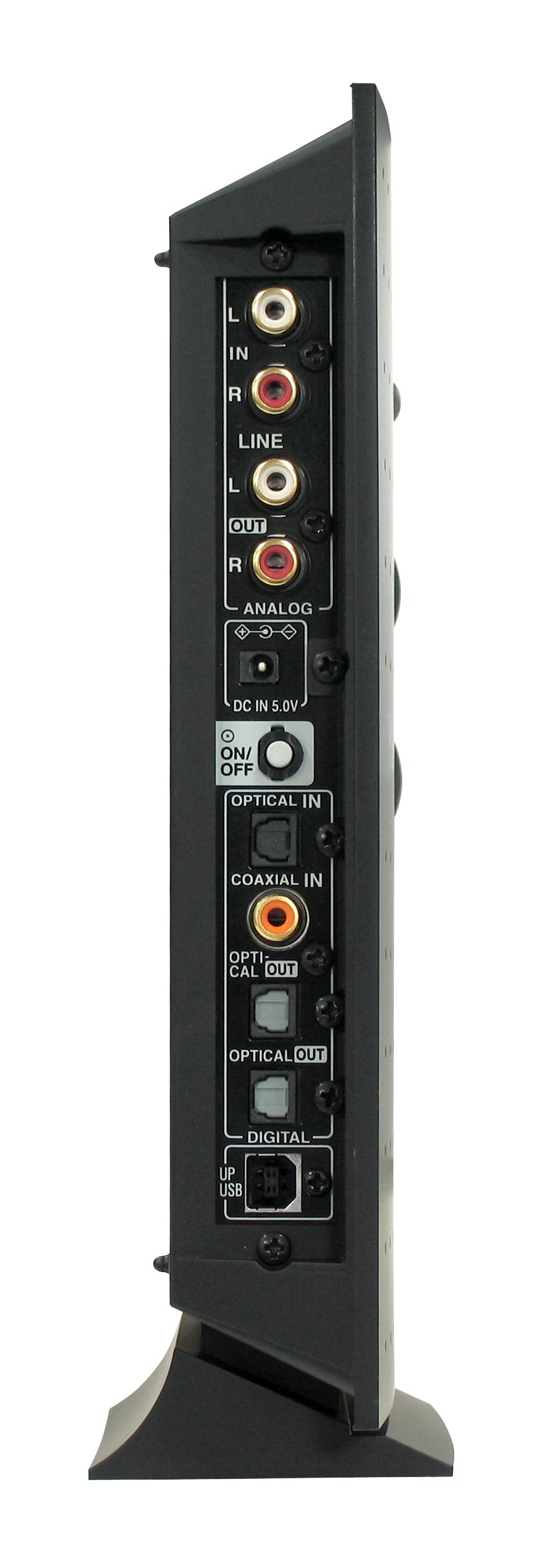

Output terminal: LINE OUT × 1 (stereo RCA), DIGITAL OUT × 2 (light 2), headphone terminal × 1 (φ 3.5 mm / stereo)

Input terminal: LINE IN × 1 (stereo RCA), DIGITAL IN × 3 (light 2, coaxial 1), microphone terminal × 1 (φ 3.5 mm / mono)

Accessories: USB cable × 1, optical digital cable × 1, stereo RCA pin code × 1, AC adapter, software CD-ROM, others

From Amazon

● High-definition playback of digital music in PC

● High quality recording of music assets such as records, cassettes, MD to PC

● Connecting digital equipment with PC-less, enjoying high-quality sound as single item DAC

● PC-less, connect various music equipments, use it as an audio selector

■ "High Performance D / A Converter" that converts digital sound source in PC into high quality analog converter

In "DAC" which converts digital sound source to analog sound source, PCM1796 made by "Bar Brown" which is highly evaluated by the good quality and adopted also for high-end AV center is installed.

The signal-to-noise ratio realized 115 dB (20 kHz AES 17 LPF, A-Weighted) over single item CD player.

It is possible to realistically reproduce even the fine nuances of the sound and convert the digital sound source to a beautiful analog waveform.

Built-in high precision "clock circuit" that greatly reduces jitter value

Clock oscillator with highly accurate crystal oscillator with oscillation frequency deviation ± 10 PPM, which dramatically reduces jitter (waveform fluctuation) value with about 5 times higher accuracy than usual ± 50 PPM (one part of one)

Circuit "built-in.

As a result, noise generation due to the time lag of signal transmission caused by synchronizing with PC clock (crystal oscillator) and jitter value with low accuracy are improved.

It dramatically improves the real existence of music and the space depiction ability, and realizes high-quality sound reproduction comparable with ordinary audio equipment.

■ Onkyo's patented technology "VLSC (R)" circuit mounted, achieving high-level playback quality

"VLSC (R)" circuit is a revolutionary circuit that greatly suppresses pulse-like digital noise generated during D / A conversion.

By realizing the generation of a smooth music signal which dramatically reduced the pulse noise which could not be realized with the conventional low pass filter, the reproduction quality of the digital sound source including the compressed sound source has been dramatically improved.

In "SE-U 55 SX II", the left and right independent and full symmetrical arrangement of the entire circuit, dedicated independent power supply, high performance output coupling capacitor are mounted, and the analog reproduction quality has been improved.

■ Supports HD high-quality sound source "24bit / 96kHz" signal

Corresponds to 24bit / 96kHz music signal which has expressive power far exceeding the amount of information of CD (16bit / 44.1kHz) with both digital input and output.

Moreover, by using a high-performance sound chip for the A / D converter, it achieves high specification of 114 dB SN ratio.

In addition to vibrant vocals and deep instruments' sounds, detailed information such as the breathing of artists and the sense of air in the recording studio is reproduced without limit.

■ Equipped with a wealth of input / output terminals that can be connected to PCs as well as audio equipment

Equipped with a USB terminal, 3 digital inputs / 2 outputs, 1 analog input and 1 output.

Moreover, gold plating treatment is applied to analog input / output and coaxial input (COAXIAL IN) to prevent aged deterioration.

In addition, three digital inputs are equipped with a "digital input auto selector" function that automatically detects the digital input signal and switches the input.

It is possible to connect and play back PC's digital sound source with powered speaker etc. with high quality sound without deterioration or transfer / save analog sound source such as cassette which we saved until now to PC.

Regardless of digital / analog, you can exchange all music data freely.

* When copying protected data, you can not record data when SCMS (Serial Copy Management System) compatible equipment is digitally input.

* It is not possible to record signals from the digital output of SE-U 55 SX II.

● Adopted "self power system" that can be used both as an audio selector and as a single product DAC

● Design that combines usability and beauty

● Easy to use large dial

● Bundle recording / editing software 'DigiOnSound 6 L .E. For ONKYO'

Features:

• Please enter model number Confirm this is compatible:
• Supported OS: Windows 8/7 / Vista / XP
• SN ratio: 115 dB (USB → LINE OUT)
• Bundled software: Recording and editing software DigiOnSound 6 L.E. for ONKYO

Product information:

Shipping Weight: 1451 g

Package Dimensions: 10.01 x 21.79 x 36.09 cm
