Product Name: Car Pedal
Brand: Tirol
Number: T20544
Origin: Ningbo
Color: Black + Silver
Material: aluminum alloy + plastic
Packing size: 15X26.5X4.5CM
Product size: Brake and accelerator pedal: 7.3 * 8.1CM
Clutch pedal: 5 * 11CM
Package weight: 0.3KG

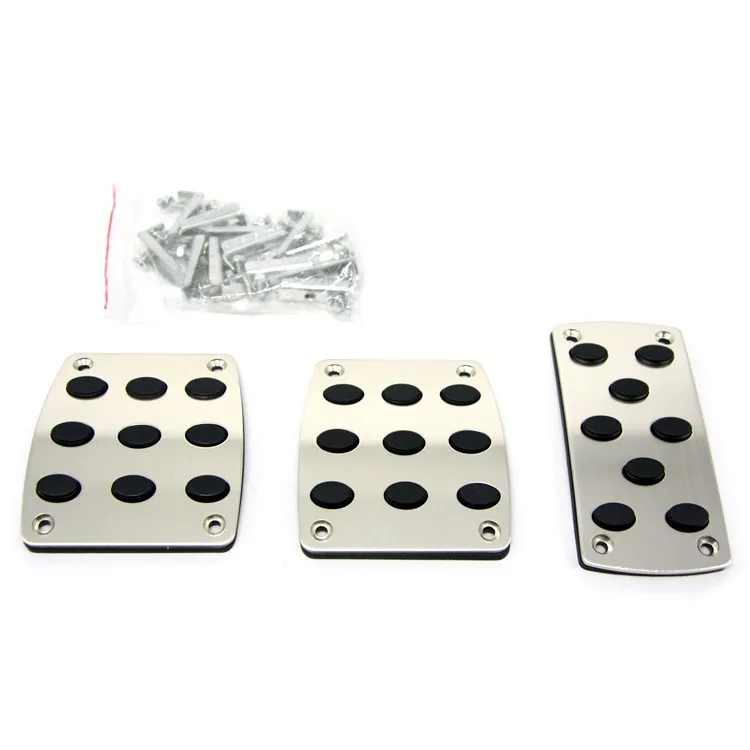

Accessories: L-bracket, bolts, nuts
Suitable for: the basic models available on the market, installed in the car's accelerator pedal and brake pedal.

【Product Features】:
Products using aluminum alloy material and anti-skid particles, designed in place,
Easy to clean, wear-resistant, corrosion-resistant, can increase the foot surface and pedal friction coefficient,
Enhanced driving safety factor! Cool exterior design, color contrast, fine texture,
Never rust. Easy to install, foot feeling very comfortable.

Note: be sure to stop in the car and completely stalled before installation

Installation Methods:
First, removable installation
    Remove the L-bracket

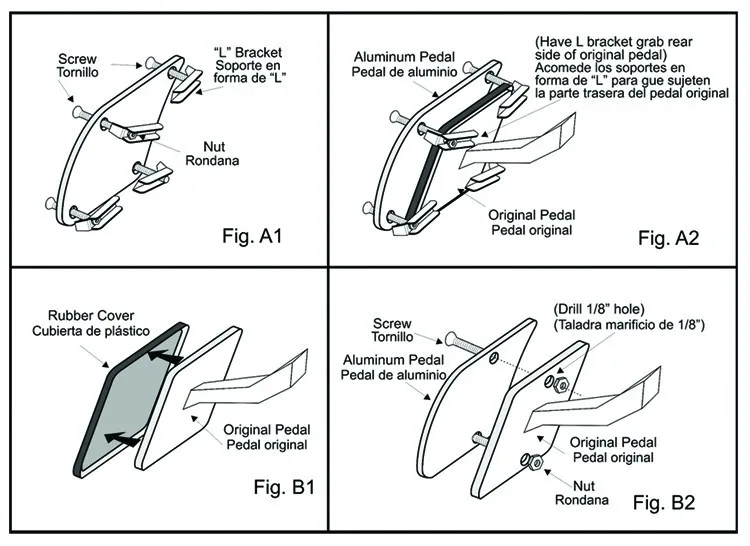

    Place the L-bracket to the aluminum pedal. (Figure A1)
    Align the aluminum pedal to the original pedal, turn the L-bracket to hold the original pedal, and then tighten the screw / nut. (Figure A2)

Second, permanent installation
1. Requirements for drill bits (1/8 "). (Excluding drill bits)
2. Pry off the original plastic pedal cover, attached to the pedal of aluminum (Figure B1)
3. To align with the original pedal, drill four 1/8 "holes in the mounting holes on the aluminum foot pedal, and tighten the bolts and nuts to make the foot pedals safer (Figure B2).
