Studio : SF Cable

Publisher : SF Cable

Binding : Electronics

Product Description

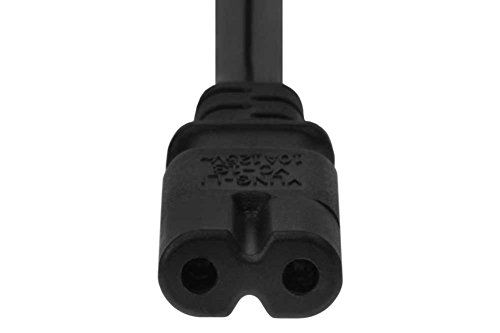

Angled USA to C7 power cord: NEMA 1-15P USA low profile 45 degree angle 2 prong plug to IEC C7 with 18/2 SPT-2 wire, 1 foot power cord with cUL approval. Specifications Male Plug NEMA 1-15P down angle (molded with 35P PVC) Female Receptacle IEC60320 C7 (molded with 35P PVC) Wire Jacket Standard SPT-2 Gauge 18 AWG Conductors 2 Wire copper wire stranding 41 strands of 0.16mm Jacket Material PVC Temperature Rating Up to 105°C Wire Outer Diameter 6.8x0.2 by 3.4x0.1mm (Two dimensions because this is not round wire) Conductor Color Code ribbed side and smooth side Voltage Up to 125 Volts AC Amperage Up to 10 Amps Cord Length 1 Feet
