Transmission rate: 150Mbps
Interface type: USB
Wireless standard: IEEE 802.11n, IEEE 802.11b, IEEE 802.11g
Working frequency: 2.4G
Support agreement: USB2.0/1.1
Color: yellow
Product weight: 21.5g

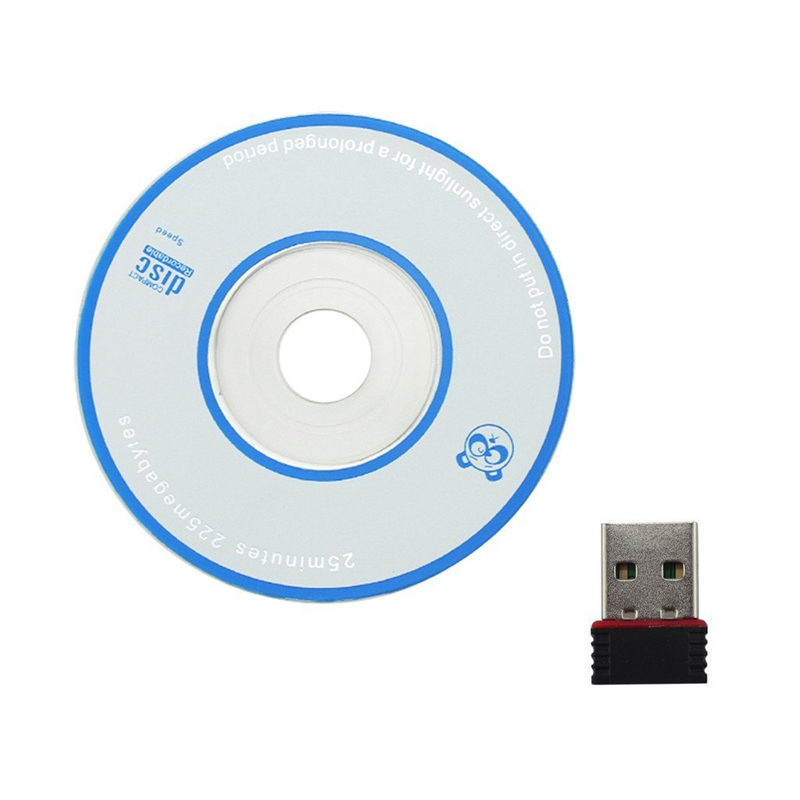

Packing list: network card
Coverage: 300 m
Product characteristics:
2 main chip: MT7601UN
2 support protocols and standards: IEEE 802.11g, IEEE 802.11b, IEEE 802.11n
2 interface type: USB1.1 USB2.0
2 frequency range: 2.4-2.4835GHZ
2 working channel number: 14
2 data modulation: OFDM/CCK/16-QAM/64-QAM
2 working mode: centralized control (Infrastructure), equality (Ad-Hoc)
2 transmission rate: 150Mbps (max) t
2 spread spectrum technology: DSSS (direct sequence spread spectrum)
2 sensitivity @PER:135M:-72dBm@10% PER; 130M:-72dBm@10% PER; 108M:-72dBm@10% PER; 54M:-72dBm@10% PER; 11M:-85dBm@8% PER; 6M:-88dBm@10% PER; 1M:-90dBm@8% PER
2 RF power: 15dBm (max)
2 antenna: 2dBi built-in smart antenna
2 transmission distance: depending on the environment
2 support operating system: Windows XP/VISTA/WIN7/WIN 8/MAC/LINUX
2 working voltage: DC 5V +-0.2V
2 LED instructions: Status
2 size: 20*15*6mm
Working environment: working temperature: 0 ~40
Storage temperature: -40 DEG C ~70 C
Operating humidity: 10%~90% RH non condensing
Storage humidity: 5%~90% RH does not condense

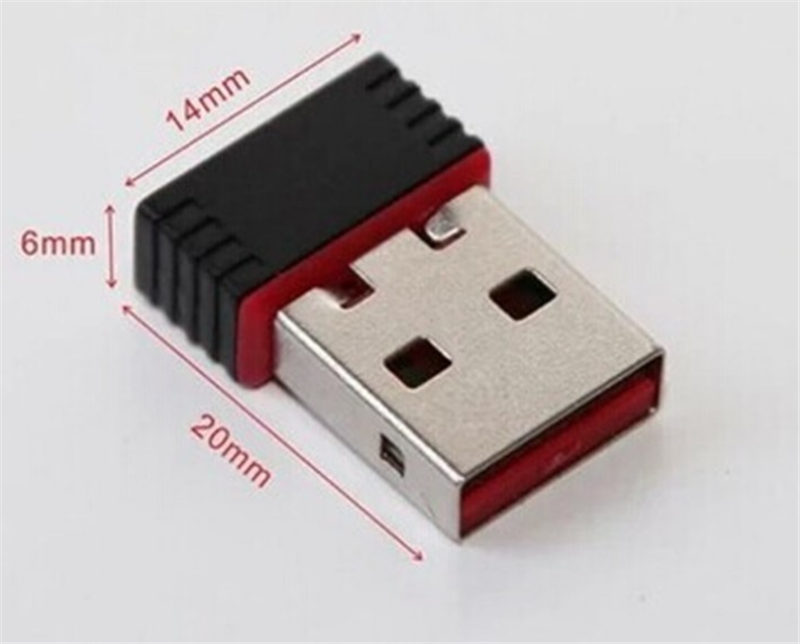

Physical picture:
