Item Descriptions:

size:

V1

| Color:

Silver

OVTECH - DV 01 has a possibility of various usage combined with various accessories.

Have OVTECH - DV 01 and enjoy the way of outdoor recreation such as racing, cycling and remote drone surveillance aircraft.

Product specification 1

Application: XDV 360

Video format: MP4

Deo compression format: H.264

Lens: 220 ° FOV

Memory format: SD card (MAX 64GB)

Shooting mode: Standard / Interval shooting / Self-timer

Recording mode: Standard / Loop / Low speed shooting

Slow Motion: 1440 P (60 FPS)

Reduced flicker: 50 Hz / 60 Hz / Auto

Wireless function: WiFi compatible (for Android and iOS)

Fine speed shooting: 0.5 s / 1 s / 2 s / 5 s / 10 s / off

Compression recording: 0.5 s / 1 s / 2 s / 5 s / 10 s / 30 s / 60 s / off

Interval shooting: 3 s / 10 s / 15 s / 20 s / 30 s / off

White balance: Auto / sunny / cloudy / incandescent / fluorescent light

Automatic shutdown: 1 Min / 3 Min / 5 Min / OFF setting possible

Continuous mode: Off / 3p / 5p / 10p

Self-timer: 3 s / 5 s / 10 s / 20 s / off

Exposure compensation: -3 / -2 / -1 / 0 / + 1 / + 2 / + 3 Loop recording: 2 minutes / 3 minutes / 5 minutes / off

Image rotation: Support vehicle mounted mode: support

LED indicator: Yes LCD OFF setting: 10 s / 20 s / 30 s / off possible setting

Image resolution: 16M / 12M / 8M / 5M

Video Resolution:

(30 FPS) / 2048 P (30 FPS) / 1440 P (60 FPS) / 1440 P (30 FPS) / 1072 P (60 FPS) / 1072 P (30 FPS)

Display: 0.96 inch LCD

Language: Japanese / Chinese / Korean / English / Thai / Portuguese / Dutch / Polish / Spanish / Italian / French / German / Russian etc.

Multifunction video camera

【Wifi connection method】

There is built-in wireless LAN, IOS / Android play scans the QR code in the box and downloads the app called XDV 360.

You can control the shooting with the application by detecting the application "Wireless".

Wireless control Wireless recording and photo shooting can be done by downloading application dedicated to smartphone, Iphone, tablet wirelessly.

[Approach shooting mode (Eight types)]

Dynamic expressions that can not be tasted with conventional video cameras can be easily created with various video expressions.

Panorama mode: Panoramic shooting with only one lens

All-sky ball mode: Full spherical shooting with spherical screen

SQUARE MODE: Total sky shot at full screen

VR mode: Two screen shooting for VR experience

Inner mode: Take the same view from the scene that moved the mobile screen with ON / OFF

Up / down mode: Shooting with 2 top and bottom screens

Ring mode: Shooting in ring shape

Semi circle mode: Half celestial photography

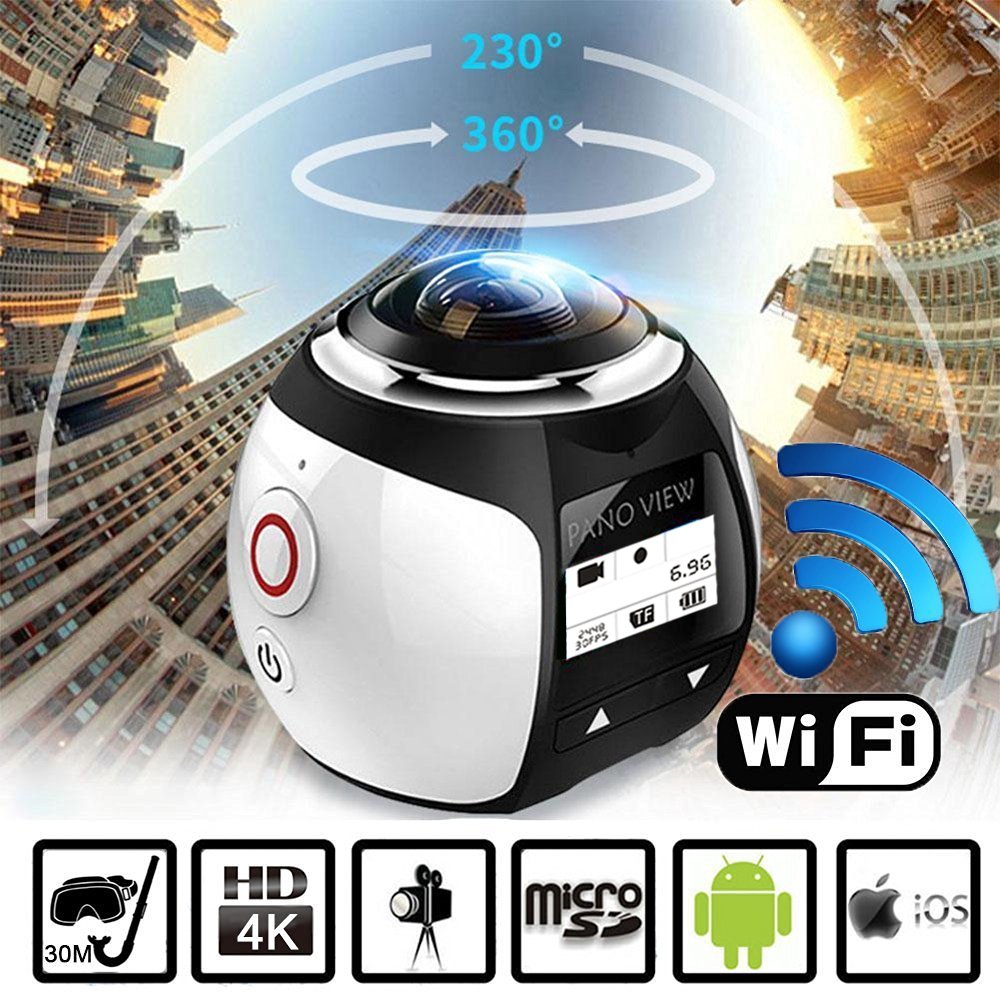

Large wide angle

】 Suitable for almost all scenes in horizontal direction 360 ° / vertical direction 220 ° (230 °)!

Since the shooting angle of view is 360 ° in the horizontal direction and 220 ° in the vertical direction, you can shoot omnidirectionally, so you can shoot almost all scenes by merely placing it.

You can shoot videos full of presence in various uses and places, such as outdoor scenes.

In case

High pixel

】 4K image quality

(16 million pixels) compatible!

It is possible to shoot for the longest 50 minutes with 4K image quality.

With overwhelming high image quality, you can record a wonderful screen anytime anywhere and record lively.

I record lots of richly changing landscapes.

In case

[Useful application control]

By downloading the application called XDV 360, you can freely select the eight different shooting modes as well as remotely control the camera, upload photos and videos you take to real time on Facebook, Instagram etc.

I can.

Also, even if you select one shooting mode, you can upload it to the Internet after screens are confirmed by the application, other modes are selected, and so on.

Large capacity

SD cards with a maximum capacity of up to 64 GB are supported by the previous cameras.

Or you can use the application, you can download and save the file.

When playing it will not worry about insufficient memory card capacity.

Widely used place

220 degree wide angle camera lens, waterproof function to depth of 30 meters, with plentiful accessories, high sky rose shoots, extreme sports such as underwater diving, outdoor sports as well as suitable for activities, bicycles,

Car (drive recorder), even big success in home security etc!

please note

】 Products purchased at shops other than our shop (OVTECH) can not provide after-sales service.

Let's order a real OVTECH 360 degree panoramic camera.

Also,

10 class macro card

TF card

Please use.

Button introduction and system installation

1. Introduction of button

POWER

Press and hold, power on / off.

When pressed briefly, switch between recording installation / shooting installation / camera installation / system installation / return.

Also, once installation is complete, once again

POWER

Press the button to return.

OK:

You can check.

Enter the installation screen and finish setting with the OK button.

▲ ▼: Select.

Also, hold down ▲ key and turn WIFI connection on / off

2. Let's enter the system installation!

(1) Photo:

① Image resolution: 16M / 12M / 8M / 5M installation possible.

Initial value = 5 M

② Self-timer: 3 s / 5 s / 10 s / 20 s / off installation possible.

Initial value = off

③ Interval shooting: 3 s / 10 s / 15 s / 20 s / 30 s / off installation possible.

Initial value = off

④Shot Mode: Off / 3p / 5p / 10p Installable.

Initial value = 10 p / S

(2) Recording

In case

① Video Resolution:

2448P (30 FPS) / 2048 P (30 FPS) / 1440 P (60 FPS) / 1440 P (30 FPS) / 1072 P (60 FPS) / 1072 P (30 FPS) installation possible.

Initial value = 1440 P (30 FPS)

② Audio recording: On / off installation possible.

Initial value = on

③ Compression recording: 0.5 s / 1 s / 2 s / 5 s / 10 s / 30 s / 60 s / off installation possible.

Initial value = off

④ Loop recording: 2 minutes / 3 minutes / 5 minutes / off installation possible.

Initial value = off

⑤ Slow Motion: 1440 P (60 FPS) (Fixed)

(3) Camera

① Exposure compensation: -3 / -2 / -1 / 0 / + 1 / + 2 / + 3 Installation possible.

② White balance: Auto / sunny / cloudy / incandescent / fluorescent lamps can be installed

③ WIFI: Can be selected on / off

④ Image rotation: On / off can be selected

⑤ In-vehicle mode: On / off selectable

⑥ Flicker reduction: 50 Hz / 60 Hz / Auto can be installed

⑦ LCD OFF setting: 10 s / 20 s / 30 s / off setting possible.

Initial value = 30S

⑧ Automatic shutdown: 1 Min / 3 Min / 5 Min / OFF setting possible.

Initial value = 5 Min

⑨ LED pilot light: Can be set on / off.

Initial value = on

(4) System installation

language:

You can choose Japanese / Chinese / Korean / English / Thai / Portuguese / Dutch / Polish / Spanish / Italian / French / German / Russian etc.

Date: year / month / day / hour / minute / second

Format: Memory card format data will be deleted forever.

It's better to first format the memory card to use a new memory card.

Reset to factory setting: When performing a resort, all previous installations containing passwords are deleted.

How to download XDV 360

[Product specification 2]

Supported OS: Windows XP / 7/8 SP3 / Vista, Mac 10.5 and higher systems

Audio recording: On / off connection: USB 2.0

Adapter: 5 V / 1A Battery: 1200 mAh

Consumption power: 400 mA @ 40 V Charging time: about 2 hours

Waterproof: 30M Housing material: ABS

Dimension: 55 * 54 * 61 MM Weight: 93 G

Operating temperature: -10 ℃ to 55 ℃ Operating time: 2448 * 2448 @ 30 FPS / about 90 minutes

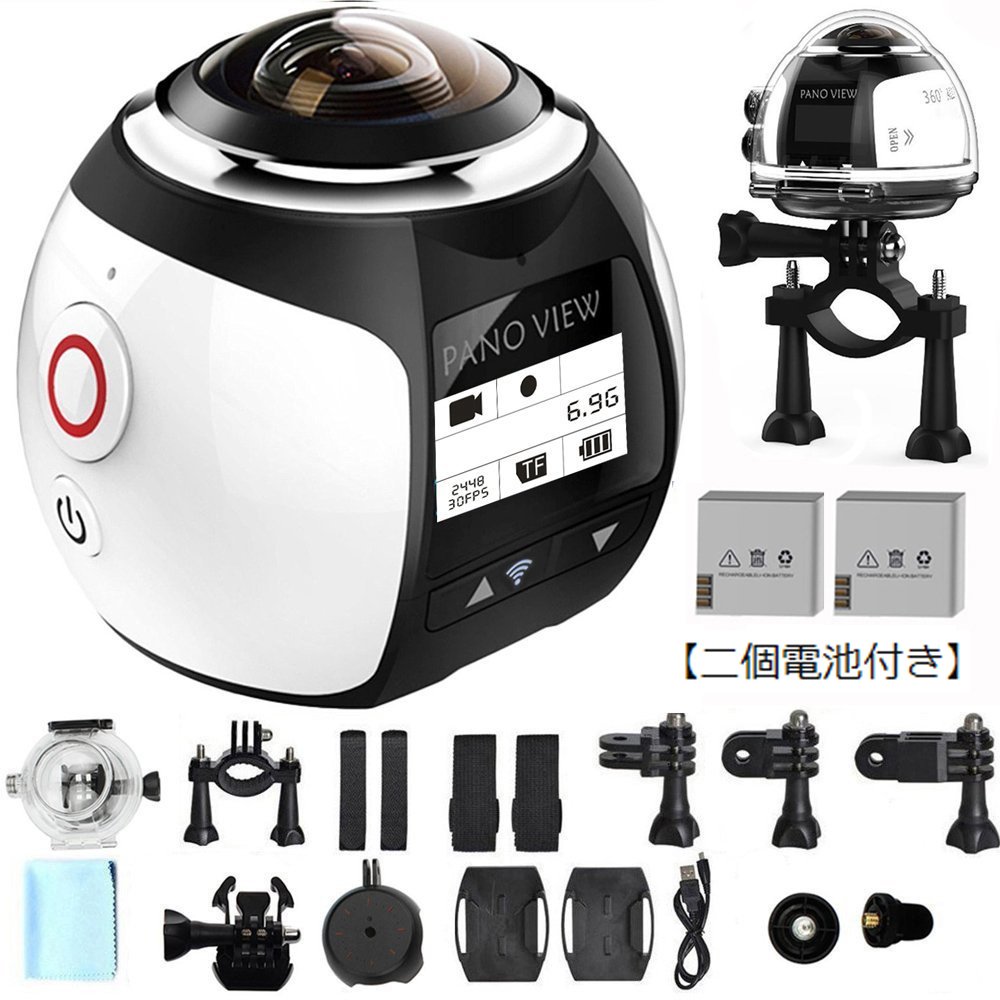

List of packages:

1 x OVTECH 360 degree camera

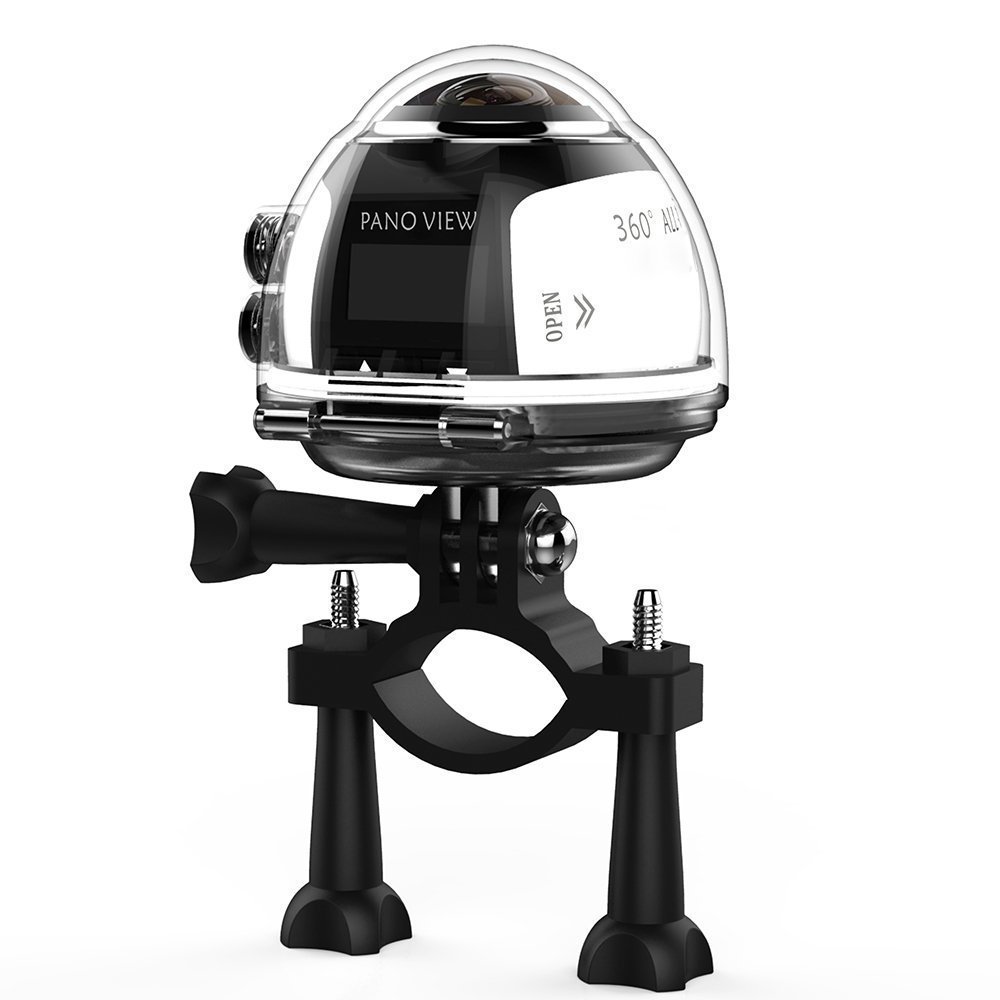

1 x Waterproof case (30 meters in water standard)

2 x Batteries

1 x Bicycle Bracket

2 x helmet base

3 x switch support

1 x data cable

1 x User Manual (

Japanese manual

1 x Cleaning cloth

APP download link for PC (windows XP, windows 7, windows 8.1, windows 10): www.omallagroup.com/download/XDV360-PC.rar

Please download "XDV 360" to Google-Play for Android smartphone.

IOS smartphone please download "XDV 360" to the Apple Store.

※ Note: There is no Japanese manual, but Japanese can be set as the system language.

In addition, since the seller made the operation explanation of the English-Japanese contrast in particular, we will ship to you by e-mail after purchase.

Also, since the operation screen is simple, please purchase with confidence.

Features:

• Please enter model number Confirm this is compatible:
• 【Large Wide Angle】 Since the shooting angle is 360 ° in the horizontal direction and 220 ° in the vertical direction, you can shoot in all directions, so you can shoot almost all scenes without missing just by placing.
• You can shoot videos full of presence in various uses and places, such as outdoor scenes.
• 【High Pixel】 4K image quality, 16 million pixels, overwhelming high image quality, you can record vivid screens anytime anywhere You can record lively.
• [Convenient application control] By downloading the application called XDV 360, you can freely select the eight different shooting modes as well as remotely control the camera, and you can also take pictures and videos taken on Facebook, Instagram
• You can upload to etc.
• Also, even if you select one shooting mode, you can upload it to the Internet after screens are confirmed by the application, other modes are selected, and so on.
• 【Large Capacity】 SD cards with a maximum capacity of up to 64 GB are supported by the previous cameras.
• Or you can use the application, you can download and save the file.
• When playing it will not worry about insufficient memory card capacity.
• 【Wide use location】 220 degree wide angle camera lens, waterproof function to depth of 30 m, with abundant accessories, high-quality rose shoots, extreme sports such as underwater diving, outdoor sports as well
• , Activity, Bicycle, Car (Drive Recorder), Home Security and so on!

Product information:

Shipping Weight: 467 g

Package Dimensions: 9.19 x 14.20 x 23.29 cm
