Raspberry PI expansion board, 32 line extension board, SMART HOME, ROBOTS and AUTOMATION solution kit inventoryProduct Description

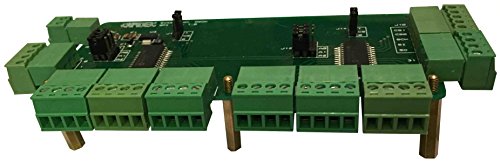

Extension Deck - The module provides the ability to extend the number of control lines provided by the microcomputer.
Сharacteristics: - Power supply 5-12V DC (protected);
- Signal input 3.3V DC SPI (not protected);
- 32 extended lines in the module;
- Maximum connected modules to one microcomputer - 16 (512 lines).
Supplied with six 20mm spacer diameter 3mm.
Connect the module to the Raspberry Pi ® through Communication Deck.
It is intended for fast and reliable expansion of the number of connected various peripheral devices.
The number of additional pins in one module is 32. The maximum number of additional modules that can be connected to one microcomputer is 16 (512 pins).

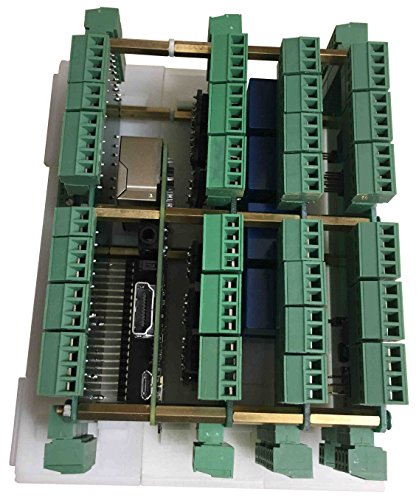

The module can be combined with other modules in a complex of peripheral devices for a microcomputer format 85x56 mm.
Combine other products of the company CAMDEC Inc. For the creation of automation complex use:
• Communication Deck - Universal GPIO expansion module, compatible with Raspberry PI ® 3/2/B/B+.
• Breakout Deck - Optocoupler module for connection of peripheral devices: switches, sensors, indicators, motor controllers, etc.
• Relays Deck - Module for connecting peripheral output devices: commutators, starters, indicators, low power load, etc.
Complectation:
• Extension Deck 1.1 - 1 pcs.

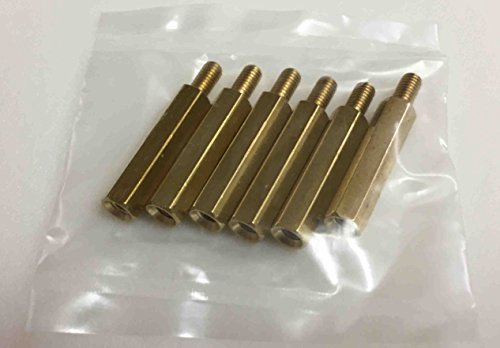

• Spacers 20mm D M3 - 6 pcs.
• Antistatic bag - 1 pcs.
• Shipping box - 1 pcs.
See DataSheet: www.camdec.net
Feature
Universal extension module, compatible with Raspberry PI ® 3/2/B/B+.

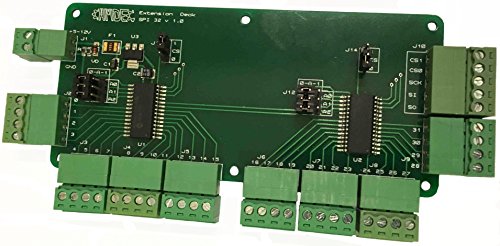

Extension Deck - an output extension module for a microcomputer with a signal voltage of 3.3 VDC.
SIMPLE AND RELIABLE WIRING.
It is intended for fast and reliable expansion of the number of connected various peripheral devices. The number of additional pins in one module is 32. The maximum number of additional modules that can be connected to one microcomputer is 16 (512 pins). The module has mounting holes for fastening the microcomputer with screw connections.

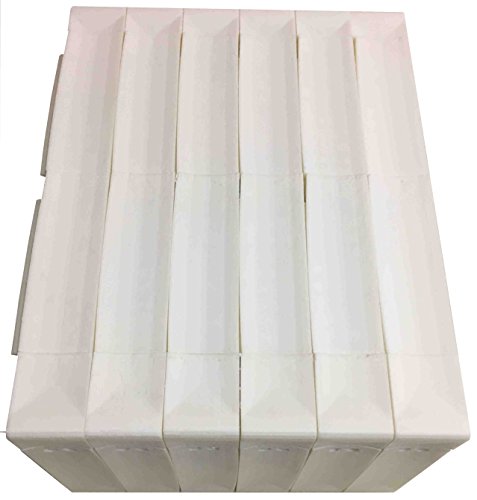

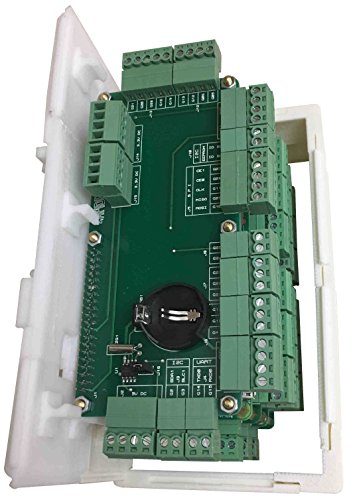

There is a possibility of installation in a special box. All features on our website or by email.
Brand : CAMDEC Inc
MPN(PartNumber) : EDS_1_0
EAN : 0653476916766
Product Dimensions(LxWxH) : 16x8x4cm ; 18 g
Package Dimensions(LxWxH) : 20x11x7cm ; 18 g
