F7 Flight Controller 30.5X30.5mm STM32F745 100lqfp 216MHz MPU6000 SPI Support Betaflight for RC Multicopter
Features:
Fine workmanship and high quality.
STM32F745VGT6 100lqfp 216MHz; MPU6000 SPI
All 8 uarts available + VCP
10 pwm outputs + 6 inputs
External I2C; external SPI (shared with U4/5)
Support for CAN
SD card logging (SPI)
3 AD channels， one with 10k/1k divider， two with 1k series resistor
Configurator: The factory default setting is Betaflight， it also supports Cleanflight， Raceflight and INAV
Supports DSHOT， Oneshot， specially designed for small multirotors 180-350mm

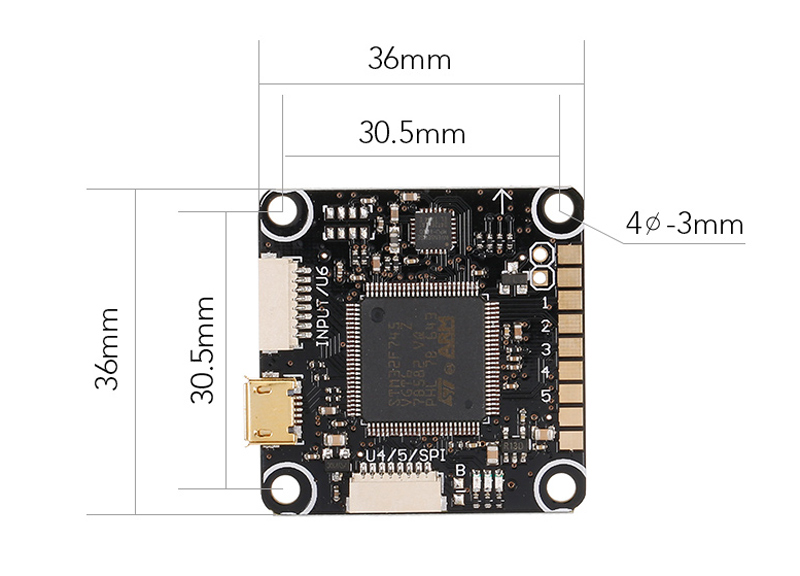

With a 36x36mm layout and 30.5x30.5mm hole setup
Specification:
Item name: F7 Flight Controller
Factory default firmware: betaflight
Processor: STM32F745VGT6 100lqfp 216MHz
Sensor: MPU6000 SPI
Power supply: 2-4S battery input
Flight controller size: 36 * 36mm
Mounting hole: 30.5 * 30.5mm M3 hole
Flight controller weight: About 7g
There may be some deviation due to manual measurement.
Package Information:
Package size: 9 * 5.5 * 2cm / 3.5 * 2.16 * 0.78in
Package weight: 18g / 0.6oz
Poly bag package
Package Included:
1 * F7 Flight Controller
1 * Cable Set
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
