Product Description

Product description
Produce Parameters:
Voltage: 14.8V
Power: 18W
voice : 45DB
Height: 7.5CM
Battery Capacity: 2200mAh
Battery Life: 1000 times
Single Working Time: 120min
Remote Range: ≤10m
First Time Charging Time: 8h
Normal Charging Time: 3-4h
Dust Box Capacity: 450ml

Common Problem and Solution:
-The red light flashes after power on.
-Reason：
a. Battery is low.
b. Host is raised.

-Method of exclusion
1. Charging batteries.
2. Main engine back to the ground.

-Fault content: no suction
-Reason
a. Dust box is full.
b. Dust box is not properly installed.

-Method of exclusion
1. Clean the dust box.
2. Re-install the dust box.

-Stop the machine when cleaning
-Reason
a. Edge brush winding.
b. Machine is exhausted.

-Method of exclusion
1. Clean the edge of the brush.
2. Charge the machine.

-Machine can not start
-Reason
a.Battery is not installed properly.
b.b. Not enough power.
c. Host is in a protected state.
-Method of exclusion
1. Make sure the battery is properly installed.
2. Charge the machine.
3. Restart the machine.

NOTICE:
1. When the host is discarded, the battery must be removed.
2. When removing the battery from the host and the virtual wall, the switch must be turned off.
3. Do not store the battery at temperatures above 45°C or in the water.
4. Do not exert an external force on the battery or fall from a height.
5. Battery must be recycled, safe disposal.
6. Host does not use a non-rechargeable battery.

Feature

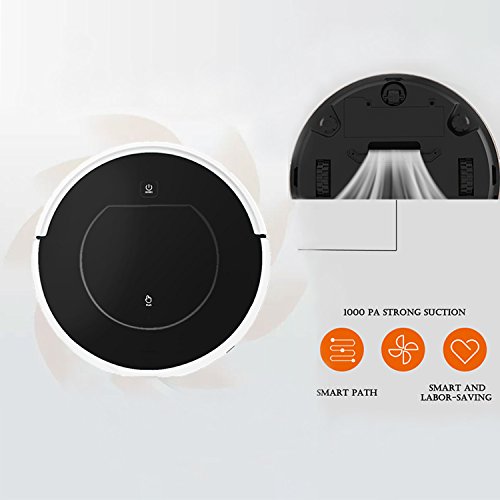

*POWER CLEANING SYSTEM --Suction function up to 1000-1200pa. Low-profile design allows it to go under furniture and eliminate hidden, hard-to-reach dirt. Dual spinning side brushes pull in debris from corners and edges. Two side brushes, and powerful suction ensure a thorough clean.
*SELF-SENSING --Adopt advanced ultrasonic navigation technology--Anti-scratch tempered glass cover for protection, infrared-sensor for evading obstacles and drop-sensing tech to avoid falls. Perfect to use on low-pile carpet, tile, laminate, and hardwood floors.
*MULTIPLE CLEANING MODES --A-variety of cleaning mode ensure ensure 5 star level cleaning- Including Automatic random mode, Z line cleaning mode and Wade-side around cleaning mode. Help you enjoy the great environment with your family.
*450 ML CAPACITY DUSTBIN --Larger anti-spill box pick up more dirt and dust. A unique dustbin design supports high-efficiency air filtration system, prevents debris spillage when cleaning the dustbin. Keeps Floors Spotless.
*HIGH-CAPACITY LI-ION BATTERY --Delivers at least 120 minutes* of constant, Long-life lithium-ion battery allows more than an hour of cleaning time.
Brand : HavenJanny
MPN(PartNumber) : 43237-2
EAN : 7117081351532
Package Dimensions(LxWxH) : 40x38x12cm ; 2422 g
