Product Description

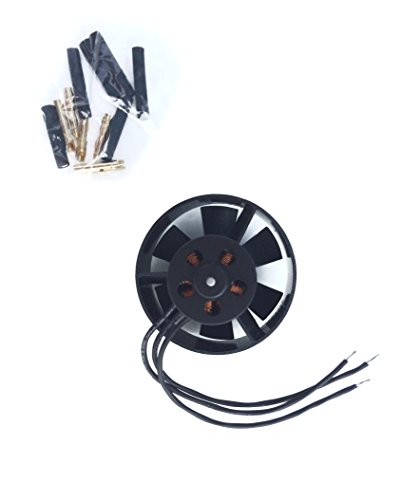

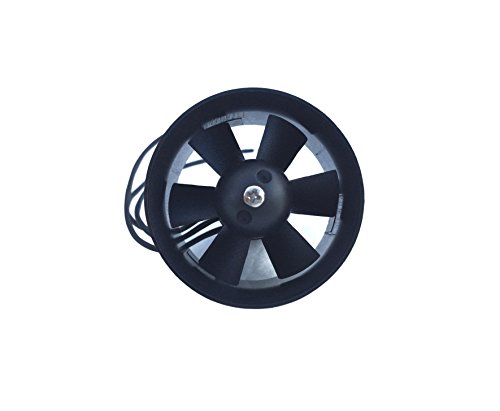

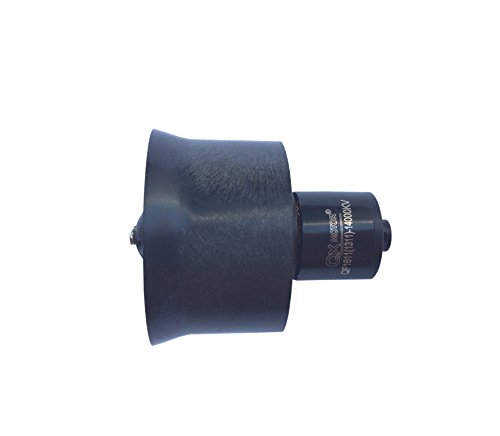

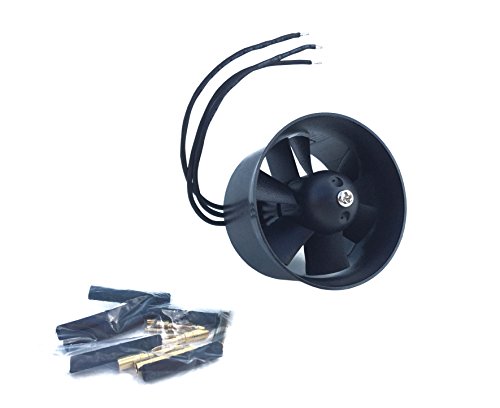

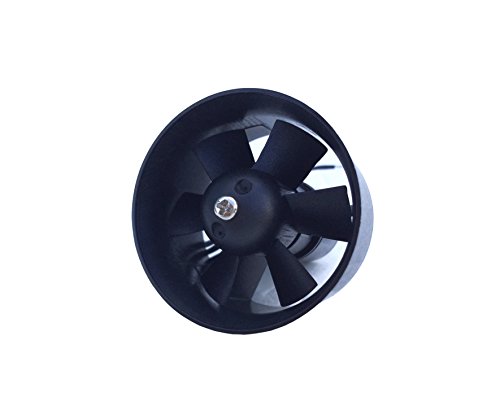

14000 KV Brushless Duct Fan motor for 30 mm Duct Fan For mini / small RC Jet EDF Model

Weight: 19.5 gram (Motor)

Motor Dimensions (Diameter x Length):16mm x 25mm

30mm Duct Fan unit for ducted fan Jet RC EDF

Ducted Fan Exterior Dimensions (Diameter x Length):35mm x 22mm

Ducted Fan Interior Dimensions (Diameter x Length):30mm x 22mm

6-Blade propeller

Rotational Speed : 14000 RPM/V

The Max Thrust :215g

The Max Continuous Current :20A
I
nput Voltage : 7.4 V

No Load Current : 0.5A

Recommend esc : 20A

Recommend number of cells : 2S lipo battery (7.4V)
