Product Details & Item specifics
Item Type: Electrical Plug & Sockets
Item Name: 7-13 Pin Adapter
Place of Origin: NingboChina(Mainland)
Brand Name:Tirol
Item NO.: T12926
Size: 8x5x4.5cm
Weight:85g
Material: Plastic
Color: Black
Input: 12V
Features: Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer.
Product Description

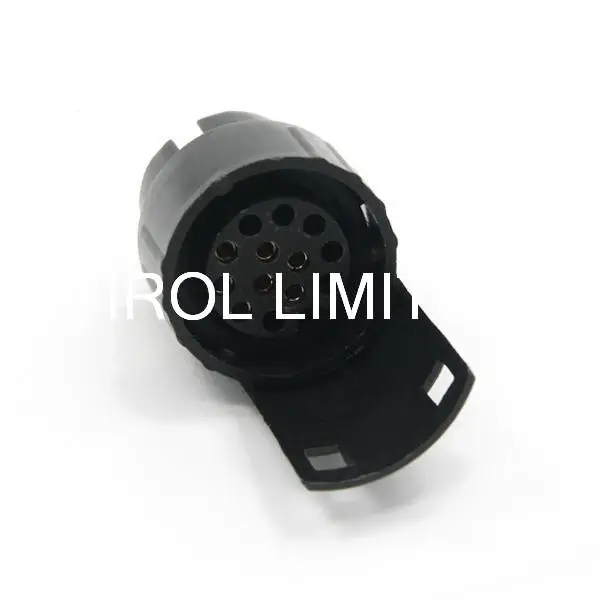

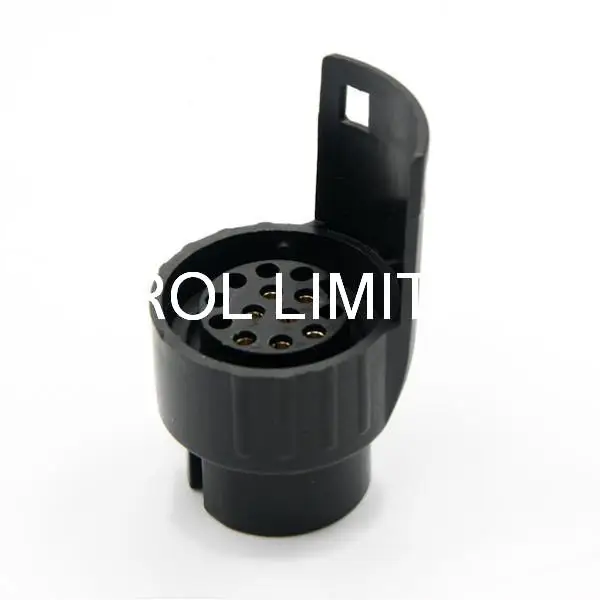

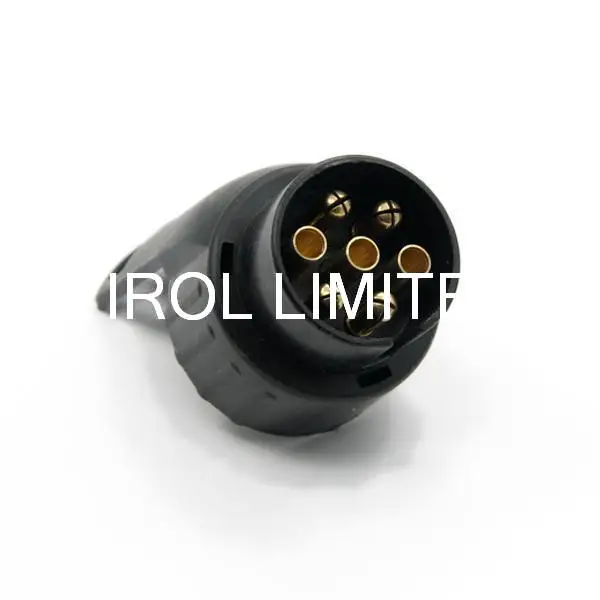

Black Plastic 7 to 13 Pin Towbar Electrical Converter 12V ,EuropeStyle
l This adapter converts the 7-pin socket on your car to the 13-pin female socket
l Will operate all road legal lighting for your trailer / caravan
l Slim line design - same diameter as a normal trailer plug and just over half the length
l Specification: Dimension: 8 x 5 x4.5cm
l Please do not mistake this item for the 13 to 7pin one, please check the socket male or female type before purchasing, we do sell the 13 to 7 pin converter.
Specs:
•Wiring configuration:
7 Pin Lighting Connections - 12 N Black Cable Function
l PIN 1 - Yellow Wire (Left/H Direction Indicator)
l PIN 2 - Blue Wire ( Rear Fog Lamps )
l PIN 3 - White Wire ( Earth Return )
l PIN 4 - Green Wire (Right/H Direction Indicator)
l PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
l PIN 6 - Red Wire (Brake lights)
l PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
13 Pin Lighting Connections - Cable Function
l Pin1 - Yellow Wire ( Left Indicator )
l Pin2 - Blue Wire ( Fog Light )
l Pin3 - White Wire ( Earth Return )
l Pin4 - Green Wire ( Right Indicator )
l Pin5 - Brown Wire ( Right tail / Side Light )
l Pin6 - Red Wire ( Brake / Stop Lights )
l Pin7 - Black Wire ( Left tail / Side Light )
l Pin8 - Pink Wire ( Reversing Light )
l Pin9 - Orange Wire ( 12V Pemanent power from battery )
l Pin10 - Grey Wire ( 12V Ignition on (Batterycharging or Fridge )
l Pin11 - White / Black Wire ( Earth for Teminal 10 )
l Pin 12 - White / Blue Wire ( NOT usually used )
l Pin 13 - White / Red Wire ( Earth for Teminal 9 )
This shows the standard wiring colours, but your car might not be standard. If it is not then you should note which pin number each wire goes to before removing the old socket and simply connect the new one the same.
