Item Descriptions:

Video analytic crime prevention and surveillance camera capable of detecting moving subjects through glass

"DVR - SGUARD 01" is a crime prevention and surveillance camera that detects the sudden change of movement and brightness of people and things and automatically records it in the built - in flash memory of the main unit.

Since other security cameras detect correspondence and temperature change of people and animals, movement can not be detected through glass.

but,

Since DVR - SGUARD 01 detects changes in motion and brightness on the image, it can monitor watching over glass!

Motion is detected by video analysis and automatic recording.

Night shooting possible with infrared LED!

The greatest feature of this product is our company's first security camera product

Equipped with motion detection function by image analysis

, Motion object detection could not be done so far

It is possible to detect anomalies over glass and start recording

have become.

For example, it is possible to monitor and record mischief damage of a car of yourself from the inside of the car, and detect and record the entrance and the garden side from the window glass of the room.

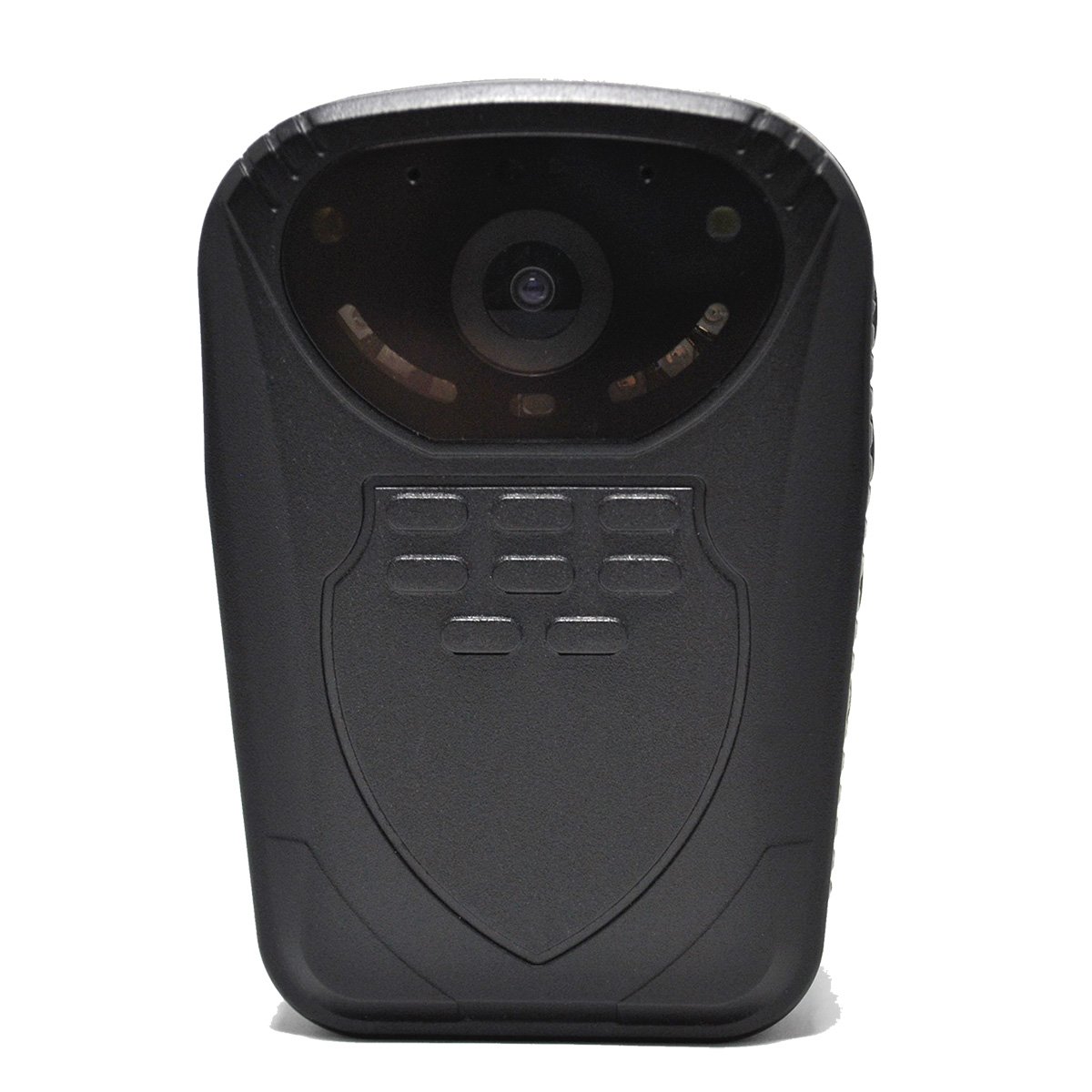

■ It is possible to take night photography with infrared LED

The illuminance sensor detects the surrounding brightness, and the infrared LED is automatically lit depending on the shooting situation.

Monochrome shooting can be performed up to 8 meters ahead in dark places such as nighttime.

※ Infrared LED turns on monochrome image.

■ Waterproof / dustproof, built-in battery also safe for outdoor use

Waterproof / dustproof design equivalent to IP54.

Built-in 2,600 mA large capacity, it can be used outdoors.

It also supports power supply operation from a mobile battery for smartphones.

■ Built-in 32 GB memory and no recording media required

Built-in 32 GB flash memory inside the main body.

There is no need to prepare memory such as SD card separately.

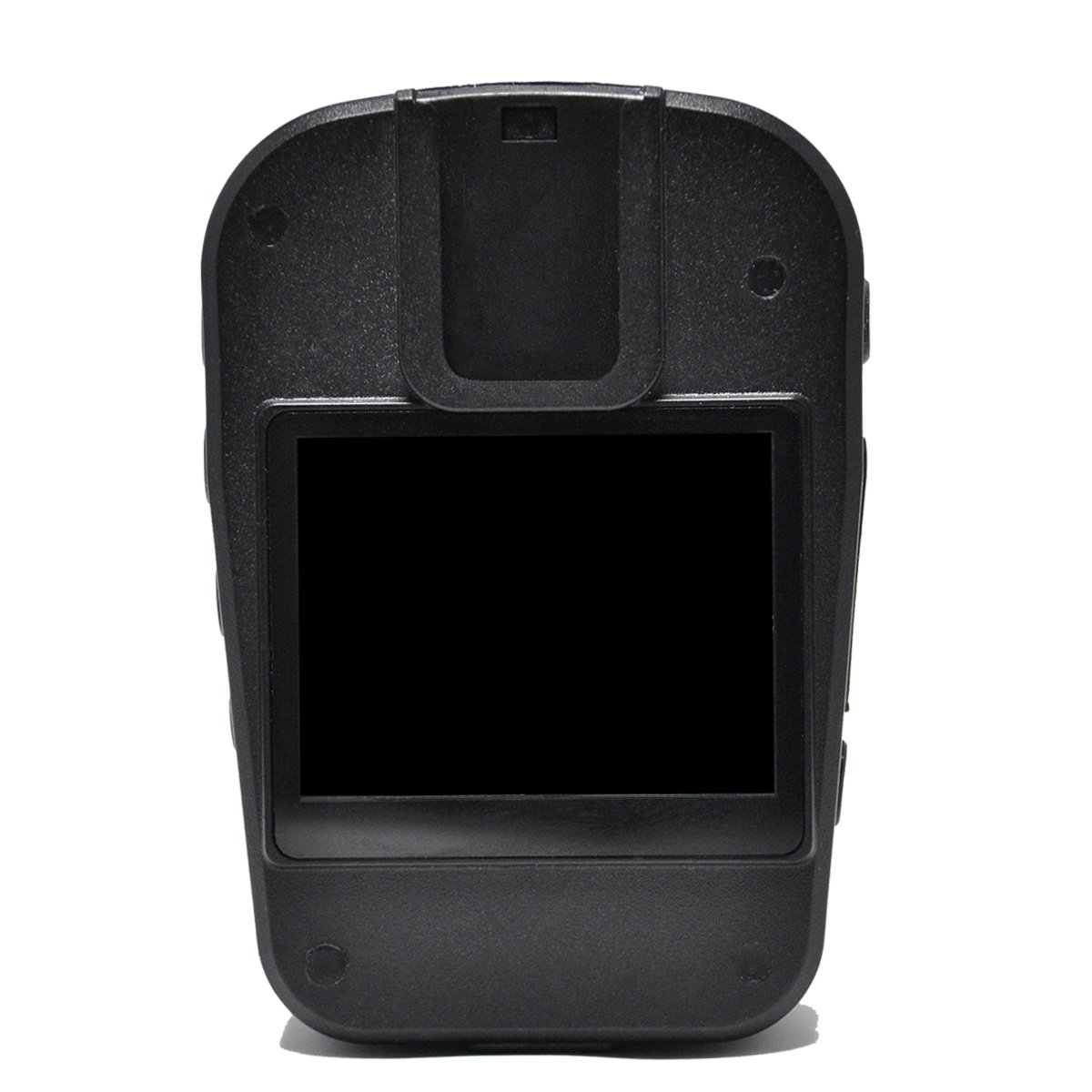

■ 2.0-inch LCD monitor mounted

Recorded video can be checked and played on the LCD monitor on the back of the unit.

* Of course, you can also connect to a PC or HDMI input compatible TV, and playback on a large screen is also possible.

Compact design not troubling installation location.

Equipped with a large capacity 2600 mA battery!

Compact design not troubling at the place!

Because it fits easily in the bag, it also helps crime prevention on traveling destinations.

The included clip stand rotates 360 ° and can change the angle up to 150 °.

Since it is a clip type, it can be easily installed in various places.

A 2600 mA battery is installed inside the main body.

It works independently in environments where power can not be secured, such as in the car or outdoors.

Also, by connecting a mobile battery such as for smartphones, you can significantly extend the battery's holding time.

Installation example / Product specification

DVR - SGUARD 01 is a motion detection type security camera (security camera) that analyzes the image in front of the camera in real time, detects movement of people and things, and automatically records it.

Unlike a general human body detection type (sensor type) security camera, it is possible to detect through glass, so it is also ideal for countermeasures against car roughness.

Equipped with infrared LEDs, it also supports shooting in dark places such as nighttime and in the dark.

Just charge and turn on the power to complete installation.

Easy to understand Japanese manual with attachment, setting change is also easy.

Since it operates with a battery, it is not necessary to install power supply equipment or installation work, and it can be installed completely wirelessly.

Because it is waterproof design it can be used safely as a surveillance camera, trail camera, pet camera outdoors.

You can extend the operating time with the battery by connecting a commercially available mobile battery for smartphones.

If you use multiple mobile batteries, you can continuously monitor and record while charging the main body at intervals of battery replacement.

It is ideal for monitoring pranks on cars being parked and for monitoring parking lots and bicycle parking spaces.

【 Product Specifications 】

Image sensor: 1/2 inch 3 million pixel CMOS sensor

Lens: 120 ° wide angle lens

Focal length: 0.3 m to ∞

Video size: 1920 x 1080/1440 x 1080/1280 x 720/848 x 480

Frame rate: 29.97 frames

Video Specifications: MP4 Format (Video: H.264 MPEG-4 AVC / Audio: AAC)

※ Only for images.

Audio is not recorded.

Photo size: 4608 x 3456/4000 x 3000/3200 x 2400/2048 x 1536

Photo specification: JPEG format

Liquid crystal display: 2 inches * Various settings, confirmation of recorded data can be played back

Infrared LED (IR): 6 lights / automatic lighting with illuminance sensor

Infrared irradiation range: about 8 m horizontal: about 60 ° vertical: about 60 ° range

Time stamp: Automatically synthesize date and time on video

Built-in memory capacity: 32 GB * Use approximately 29.95 GB as the recording capacity

Body size / weight: Approximately 58 mm (W) x 28 mm (D) x 84 mm (H) / approximately 111.5 g

Built-in battery: 3.7 V 2600 mAh

Battery operation time: Up to about 12 hours * It varies greatly depending on the installation environment and operating conditions.

Charging time: Approximately 7 hours and full charge

Power supply specification: DC 5 V / 500 mA USB mini B connector

* Supports USB charge and power supply operation from mobile battery

Video output terminal: HDMI mini output terminal

Product structure: main unit, clip stand, clip, USB cable (USB A - USB mini B), instruction manual

Product warranty: 6 months from date of purchase

※ The shooting of the security camera varies depending on the installation environment.

※ All of the numerical values ​​of this machine are notation with maximum value.

* Please be aware that the function may fall below the numerical value depending on the installation environment.

Features:

• Please enter model number Confirm this is compatible:
• This product is a crime prevention / surveillance camera for automobiles that automatically detects the movement of people and things and the rapid change of brightness and automatically records it in the built-in flash memory of the main unit.
• Surveillance recording over the glass that can not be done with conventional general heat source sensor or PIR sensor is possible.
• For example, it is possible to record surveillance recording of a mischief damage of a car of yourself from the inside of the car or detect and detect the garden side from the window glass of the room.
• It is also ideal for car mischief prevention.
• It is also possible to shoot at night with an infrared LED.
• The illuminance sensor detects the surrounding brightness, and the infrared LED is automatically lit depending on the shooting situation.
• Monochrome shooting can be performed up to 8 meters ahead in dark places such as nighttime.
• ※ Infrared LED turns on monochrome image.
• Waterproof / dustproof design equivalent to IP54.
• Built-in 2,600 mA large capacity, it can be used outdoors.
• It also supports power supply operation from a mobile battery for smartphones.
• Built-in 32 GB flash memory inside the main body.
• There is no need to prepare memory such as SD card separately.
• Please refer to https: //www.youtube.com/watch? V = tUi0KPr6VXs for sample movie taken.

Product information:

Shipping Weight: 381 g

Package Dimensions: 6.60 x 14.81 x 18.59 cm
