Item Descriptions:

color:

Wide angle 120 °

This product is important to protect your family, property and yourself.

I think that it is an indispensable tool in fields such as home and office.

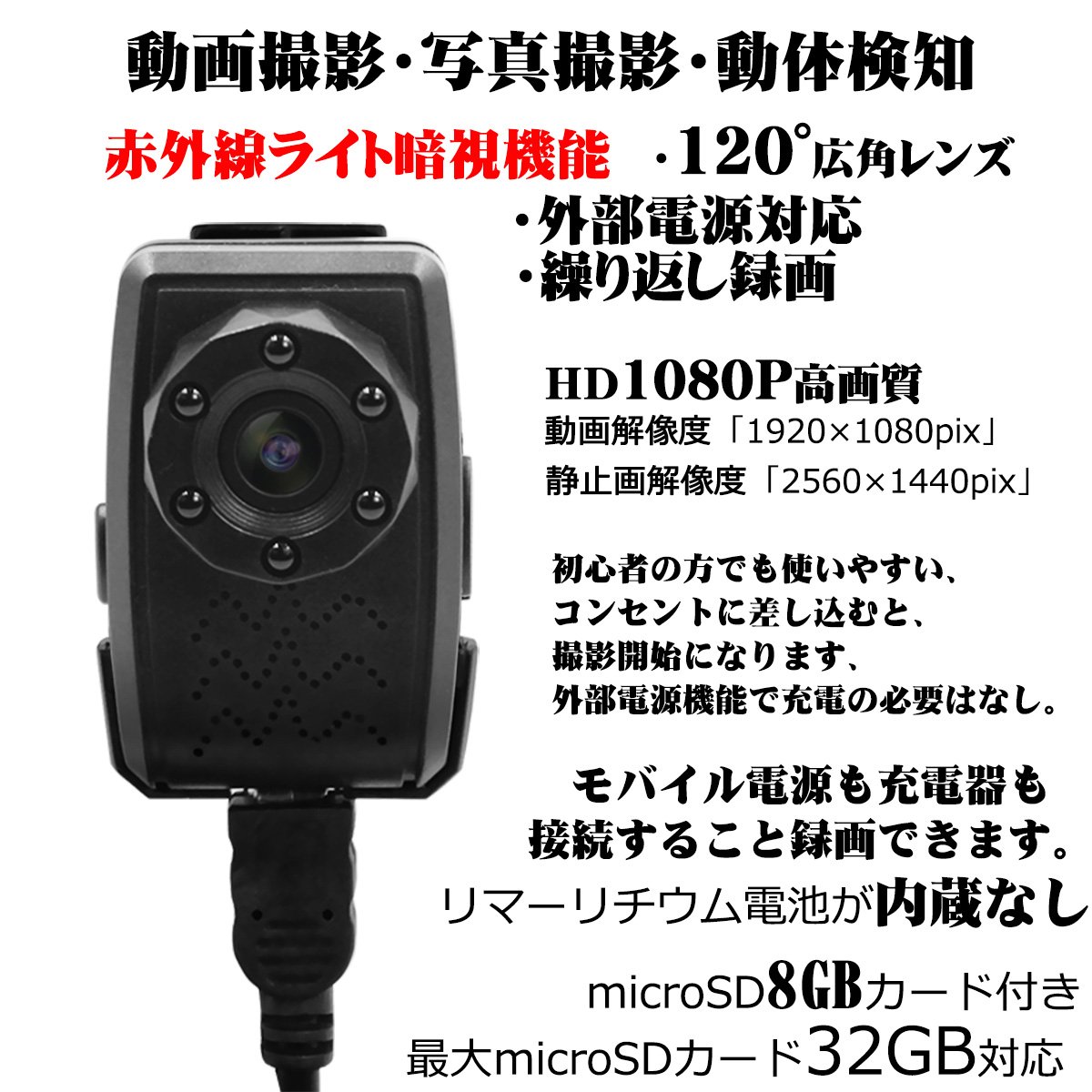

【Product function】 Movie shooting · Photography shooting · Motion detection function · Infrared light night vision function · 120 ° wide angle lens · External power source correspondence · Repeat recording function.

【Place of use】

◆ Security and surveillance in rooms, offices, etc. If you are installing cameras, evidence collection is possible.

◆ You can shoot without being noticed by children, pets, etc.

◆ There is a terrible thing that you can not see bullying and abuse of recent years in collecting evidence such as bullying, abuse, DV etc.

◆ In order to compete against malicious power harassment and sexual harassment, it is essential to gather decisive evidence.

▷ Only evidence of infidelity such as cheating and affair, the evidence video becomes important.

[Easy operation] I think that it is easy to use even for beginners, just plug in the power outlet when you want to shoot, no need for charging with external power supply function, with microSD 8GB card, no need for optional, can be used immediately.

Both the mobile power supply and the charger can be connected.

Product specification

Video Format

: AVI

Video code

: M-JPEG

Video Resolution

: 1920 * 1080 P

Video frame rate

: 30 fps

Still image resolution:

2560 * 1440 P

Built-in microphone:

New high performance microphone

Save support

: microSD card compatible with 32GB, microSD with 8GB card

Image Proportion:

4: 3

Interface type

: Mini 5Pin USB

Charging voltage

: DC-5 V

Battery type

: There is no built-in battery

Lens angle

: 120 °

Media player:

Mainstream audio / video media player

Supported OS:

Windows me / xp / 2003 / vista; Mac OS; Linux

【About operation】

Record shooting:

After the SD card is inserted, the product will start recording if it is connected to the outlet with the power USB cable, then the red light turns off after the blue lamp goes out.

If you need to stop recording, you can save the recording file by pressing the mode button, the red lamp will be in the standby state.

Recorded shooting:

When the red lamp is in the standby state and the mode button is pressed for a long time and the blue lamp blinks once and then goes out, the re-recording shooting will start.

photography:

When the red lamp is on standby, press the mode button for a short time, and when the red lamp flashes once, I took a picture.

Motion detection:

If there is no operation in the standby state of the red lamp, after 1 minute, moving object detection will be started after moving object is detected while waiting for motion detection recording.

Motion Detection If you need to stop recording, you can save the motion detection recording file by pressing the mode button, the red lamp returns to the standby state.

About reproduction

Please use it with the SD card reader (it can not play with the attached power USB cable), when connected to the PC, it can be used as U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

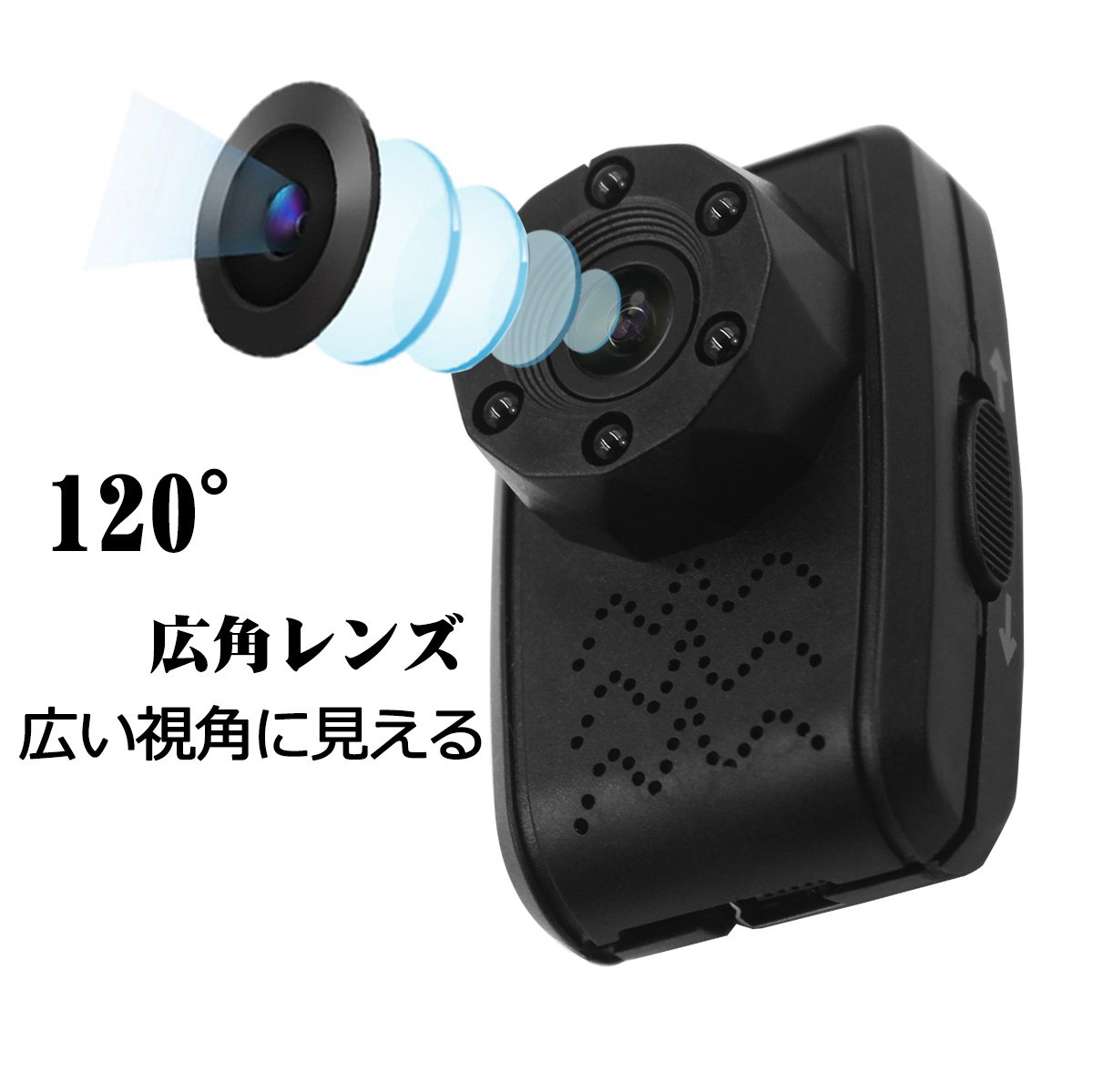

Wide viewing angle of 120 ° can be taken by actual measurement.

Shooting illuminance:

Avoid damaging the optical equipment and do not direct the camera directly to an ultra-strong light source such as sunlight.

Cleanliness requirement:

Do not use the lens and other parts in excessive environmental conditions because it may adhere to dust and affect shooting.

Infrared on / off

: When connected to power supply,

Infrared light turns on when infrared button is turned to ON side.

Infrared light turns off when infrared button is turned to OFF side.

use

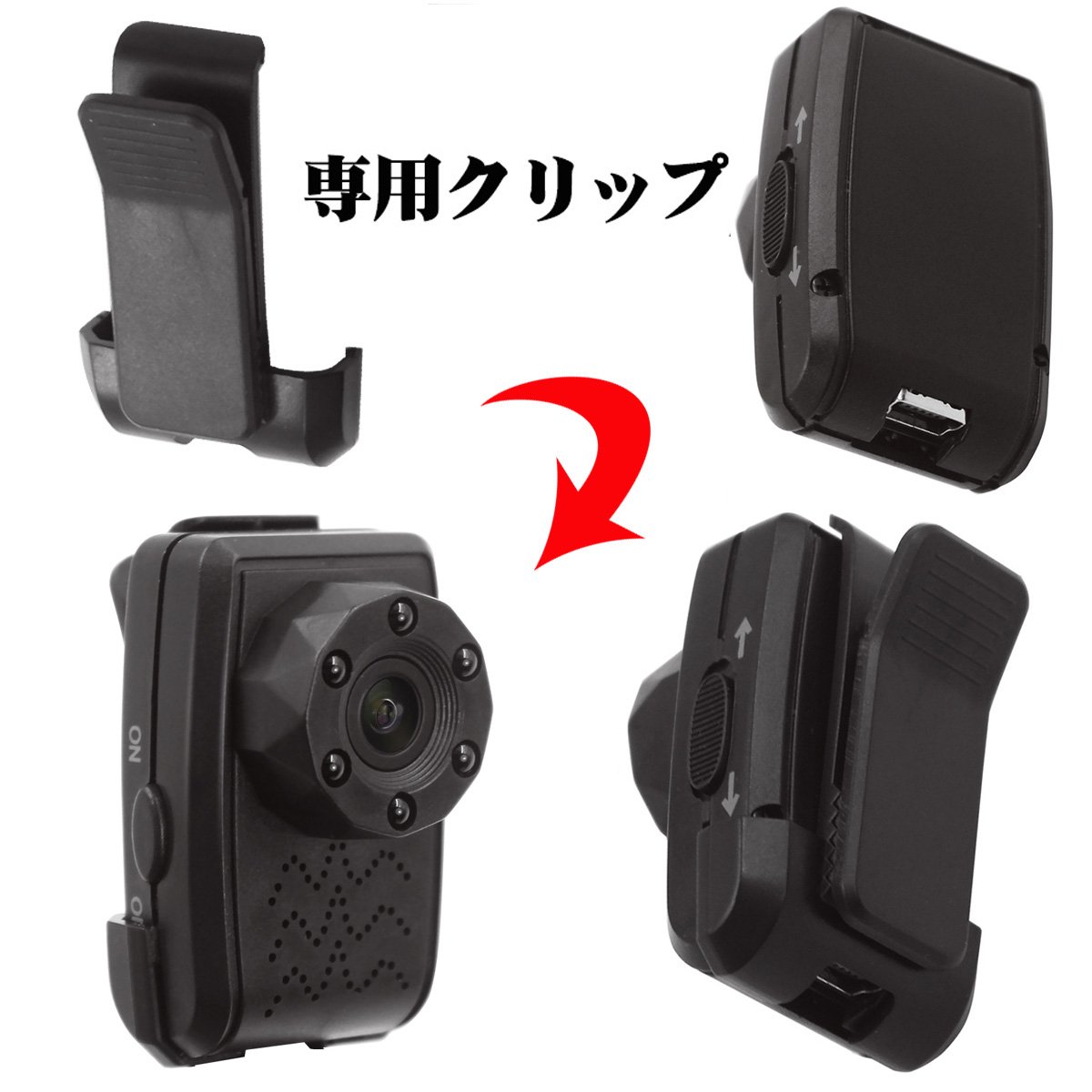

Attached with a special clip.

【accessories】

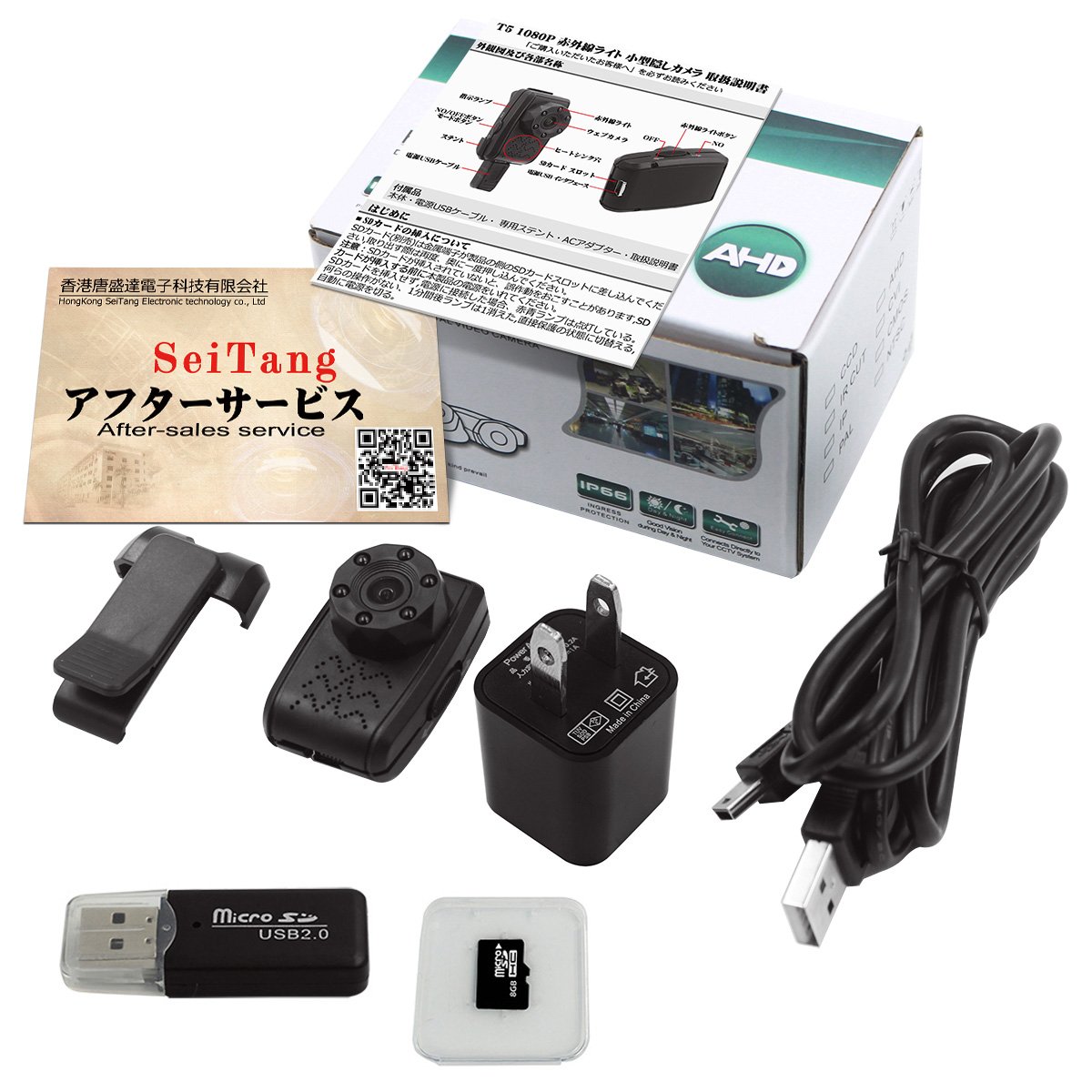

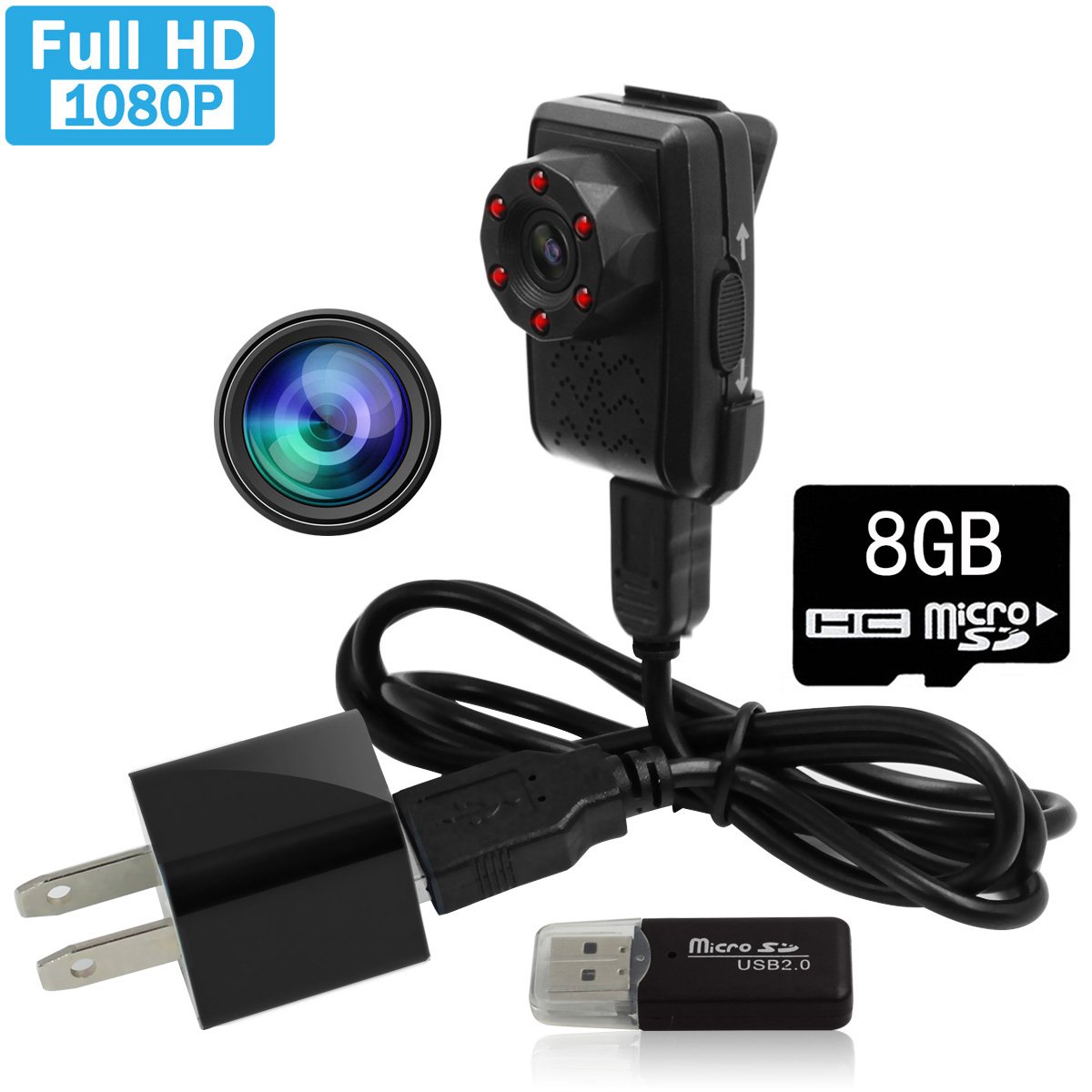

Main body · Power supply USB cable · Special clip · AC adapter · microSD 8GB card · Japanese instruction manual · service card

【3 month warranty】

SeiTang manufacturer's warranty is attached to this product.

We will exchange new items only in case of defect based on correct use within 3 months from purchase.

Please do not hesitate to contact us if you have any questions.

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting · Photography shooting · Motion detection function · Infrared light night vision function · 120 ° wide angle lens · External power source correspondence · Repeat recording function.
• 【Latest Lens Registration】 The motion picture realizes H.264 codec high definition Full HD 1080P standard video resolution "1920 × 1080pix" and video frame rate 30 fps.
• Still picture shooting, wide viewing angle shooting of 120 ° can be taken by measured value.

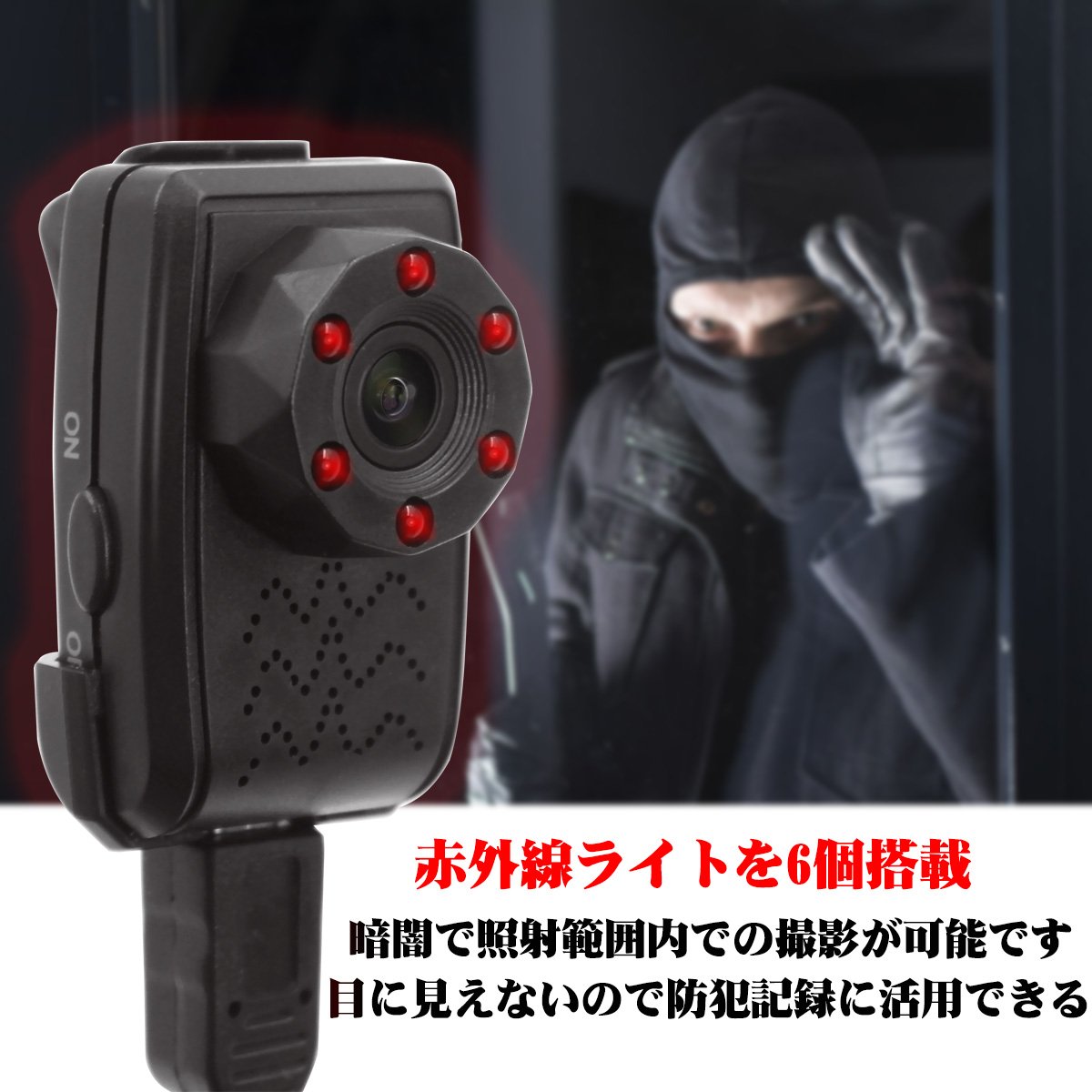

• 【Night vision shooting function】 With invisible type infrared light shooting with confidence in the dark, lighting the infrared light, shooting in the irradiation range is possible even in the dark, because the six lights are invisible, they can be used for crime prevention recording
• I will.
• 【Motion detection recording】 Automatically start and stop recording in response to surrounding movement, Reduce useless recording by motion detection recording, and it is also ideal for crime prevention measures at your home / office.
• [Long time recording] Supports external power supply + repeat recording function, supports up to 32GB microSD card, shootable without concern for adopted operation time.
• [Easy operation] I think that it is easy to use even for beginners, just plug in the power outlet when you want to shoot, there is no need for charging with the external power supply function, built-in microSD 8GB card, no need for separate purchase, you can use immediately.
• Both the mobile power supply and the charger can be connected.

Product information:

Shipping Weight: 68 g

Package Dimensions: 5.69 x 7.29 x 9.80 cm
