Highlights

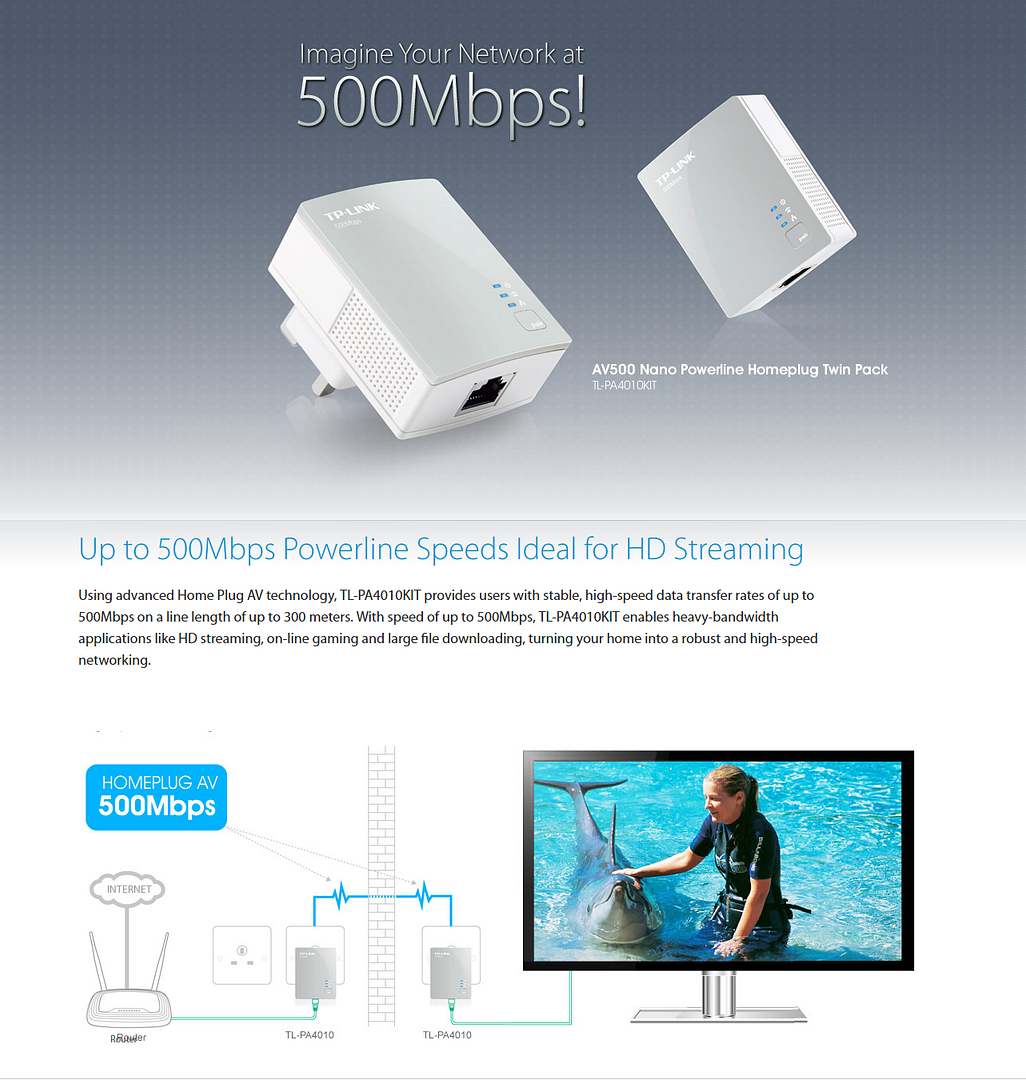

  • HomePlug AV standard compliant， high-speed data transfer rates of up to 500Mbps1

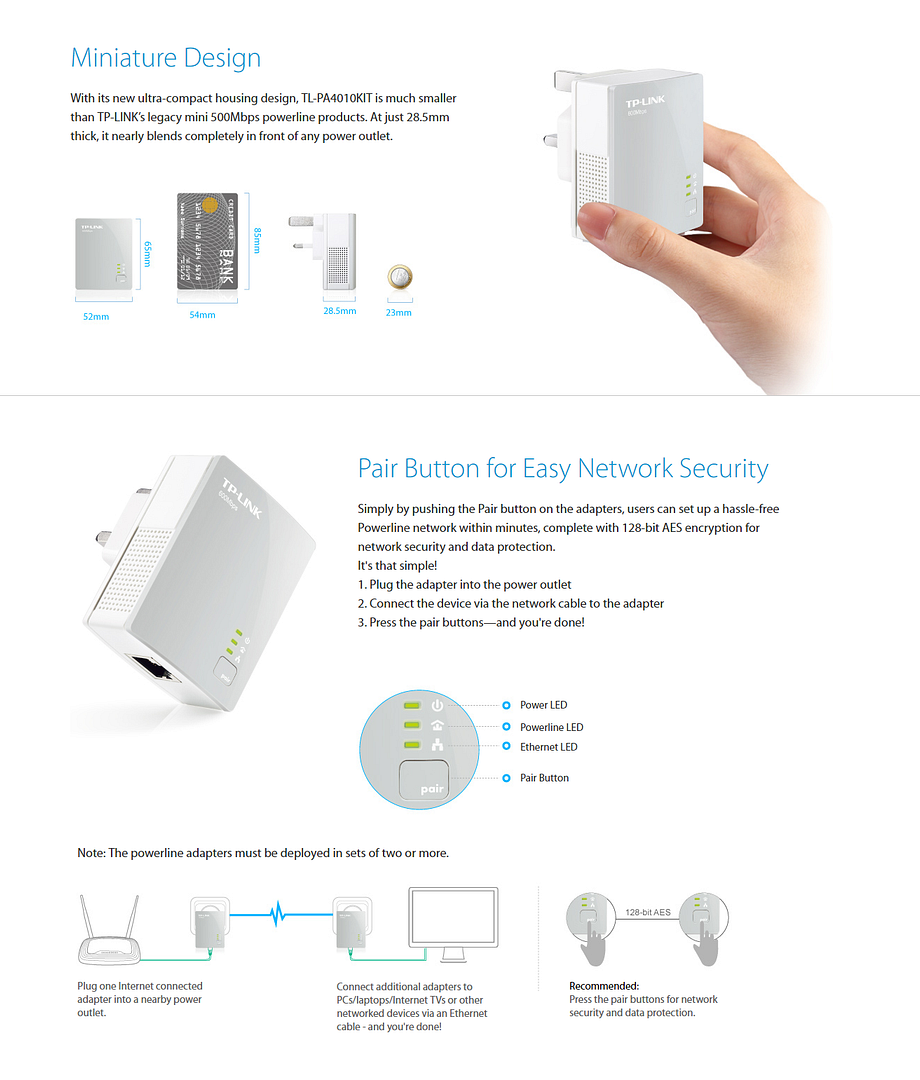

  • Miniature design， smaller than most powerline adapters at the market， blends discreetly in front of any power outlet
  • No new wires， Easy Plug and Play operation， No configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%2

Product Description

HARDWARE FEATURES

Standards and Protocols HomePlug AV， IEEE802.3， IEEE802.3u
Interface 1*10/100Mbps Ethernet Port
Plug Type EU， UK， US
Button Pair Button
Power Consumption Maximum: 4.60W (220V/50Hz)
Typical: 4.26W (220V/50Hz)
Standby: 0.88W (220V/50Hz)
LED Indicator PWR， PLC， ETH
Dimensions ( W x D x H ) 2.6 x 2.0 x 1.1 in.(65×52×28.5mm)
Range 300M in house

SOFTWARE FEATURES

Modulation Technology OFDM
Encryption 128-bit AES Encryption

OTHERS

Certification CE， FCC， RoHS
Package Contents Powerline Ethernet Adapter
Ethernet cable (RJ45)
Resource CD，
Quick Installation Guide
System Requirements Windows 8/7/Vista/XP/2000， Mac， Linux
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box

  • 1 x TP-LINK TL-PA4010KIT AV500 Nano Powerline Adapter Starter Kit (Full Package)

Warranty

  • 2 Years Local Manufacturer Warranty
