Item Descriptions:

Product description

● VVF line cutting decision version.

Precision polished finish with sharp cutting edge, sharp sharpness.

● Do not escape wire material, it is easy to wrap around as you wrap it, easy to enter power, the finish cleanly without crushing the cut edge.

● The leading edge of the gripper section holds the gap as much as possible and it holds even the ultra thin object firmly.

● Package size / length: 263 mm Width: 80 mm Height: 20 mm ● Package Weight: 334 g ● Producing Country: Japan ● Material: Material: S58C Pattern Part: Elastomer Molding Grip Quenching: Total Quenching (Blade Part, Induction Hardening)

: 220 mm ● Application: Extensive use such as electric construction, electrical materials, civil engineering and construction related ● Cutting capacity: iron wire 2.0 mm · copper wire 3.2 mm · VVF (three cores) 2.6 mm · VVF (four-core)

2.0 mm · IV wire 22.0 mm 2 ● Hardness: 54 to 62 HRC (blade part) ● Weight: 310 g ● Total length: 223.5 mm ● Width: 52 mm ● Warning: Grip is not an insulator.

Please turn off the power before use.

● CAUTION: Do not use for applications (cutting, turning, grasping, bending).

Please do not cut the wire above the cutting capacity.

From Amazon

Cutting of 4 VVF core

View larger image

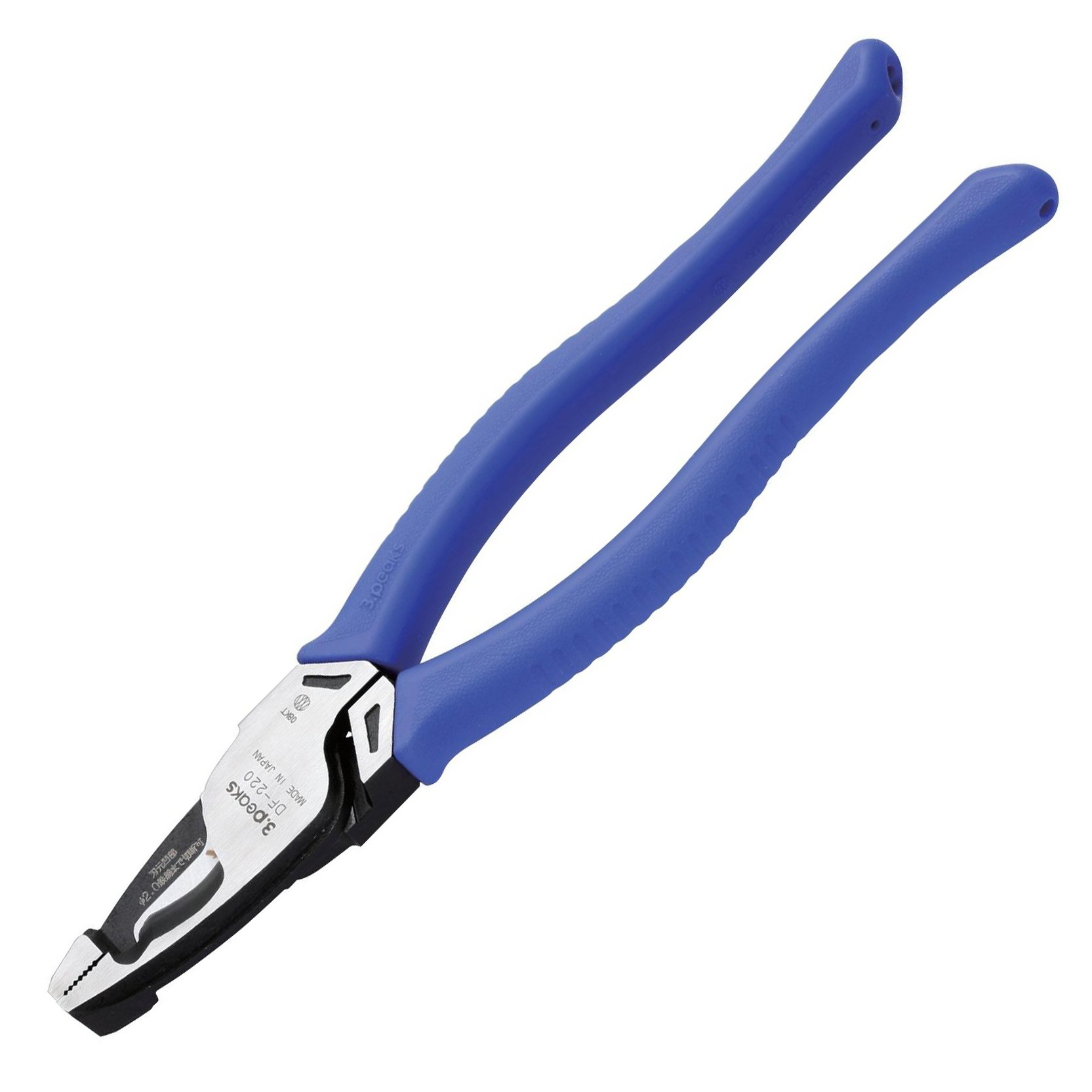

Master item of electric craftmaker

Special tool to cut thick and hard wire material such as cable rope, wire rope, iron wire etc. related to electrical construction.

You can get a beautiful cut with a comfortable sharpness.

Other, it can be used in various ways such as turning, grasping, bending, etc., there is no loss item.

Determined version of VVF wire cutting tool

VVF line (Vinyl insulated Vinyl sheathed Flat-type cable) can be easily cut.

It can also correspond to 4-core cable (2.0 mm diameter).

The cut surface is also beautifully finished.

Cut wire

View larger image

Easy to cut wire

It is suitable for cutting wire work related to electrical work.

It corresponds to various kinds of wires such as 4 VVF core, 3 VVF core, IV wire, iron wire, copper wire.

Also, if it is up to 2.0 mm in diameter, one VVF 4-core cable can be cut.

Wrapped design

View larger image

Wrap the cable

Because it cuts while wrapping it with a long and sharp blade, the cable does not escape.

Also the cutting edge is sharp and sharp by precision polished finish.

Concave portion of special processing

View larger image

Iron wire is OK, too.

A concave part which made special processing is provided to a part of the blade, and the iron wire up to the diameter of 2.0 mm can be cut by sandwiching it here.

Seams with reduced gaps

View larger image

Smear minimum

The leading edge gripping part is designed to minimize the gap.

It is possible to grasp thin things with certainty.

Grip hole for strap attachment

View larger image

Do not drop it while working

There is a grip hole to attach a fall prevention strap.

Prevent the falling of the working tool while working.

(The strap is not included.)

Wide design

View larger image

Easy to enter power

When the cable is sandwiched, the distance between the left and right handles is short, the force is easy to convey with narrow design, easy to grasp the big one.

The handle is also easy to grasp and less tired.

Features:

• (Mm) VA wire (VVF): 2.0 × 4 core ● Fall preventing prevention string (mm) Cutting capacity (1)
• Mounting hole: yes

Product information:

Shipping Weight: 326 g

Package Dimensions: 1.91 x 8.10 x 26.49 cm
