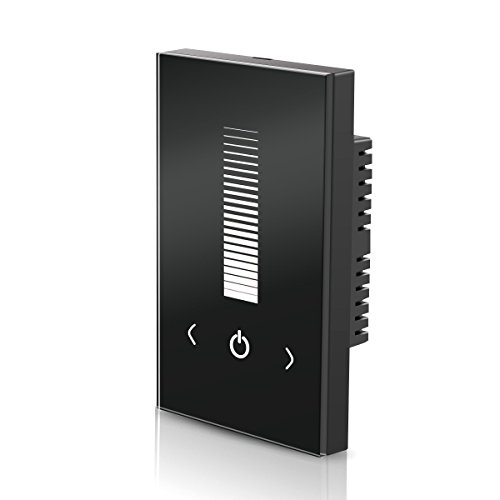

Wall-mounted Glass Touch Panel LED Dimmer Switch Brightness Controller DC 12-24V for Single Color LED Strip Light Lamp-Black








for sigle color(Black)


for RGB(Black)


for RGB(White)


for sigle color(White)

Product Description

Features:
Touch panel is made of glass, fashion, smooth and against scratches
Quickly increase/reduce 255 levels static state brightness
Has the wiring convenient, use the advantages of simple.
Compatible with most 12V-24V single color LED light strips
Adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake.

Specifications:
Color: Black
Working temperature:-20~60¡æ
Power supply voltage: DC 12-24V
Output: 1 channel
Connect way: common anode
Output current:<8A
Output power: 12V:<96W, 24V:<192W
Static power consumption:<1W
Net weight:127g
External dimension: L74 X W120 X H41.8mm

Interface Instruction:
Input:power input pins, input voltage range is 12-24V
Output: power output pins, output voltage is 12-24V, output maximum current is 8A;

Package Included: 1x Glass Touch Pannel Controller 1x User Mannul

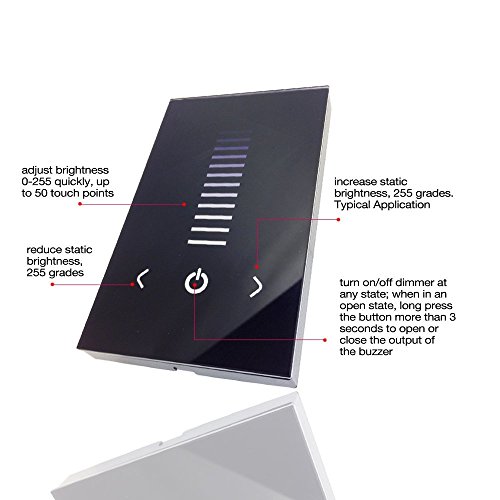

Feature

Compatible with most 12V-24V single color LED light strips, work with DC 12V-24V power supply
Quickly increase/reduce 255 levels static state brightness
High sensitivity and Precise inductive touch control panel
Glass control panel: Smooth to touch and easy to clean
Elegant appearance Classical rectangle controller body; perfect decorative wall switch
Brand : HONGYUE
MPN(PartNumber) : MAX709
EAN : 6921407628663
Package Dimensions(LxWxH) : 16x11x6cm ; 200 g
