Item Descriptions:

"Hdmi av converter (RCA / CVBS) | hdmi rca conversion adapter | hdmi composite"

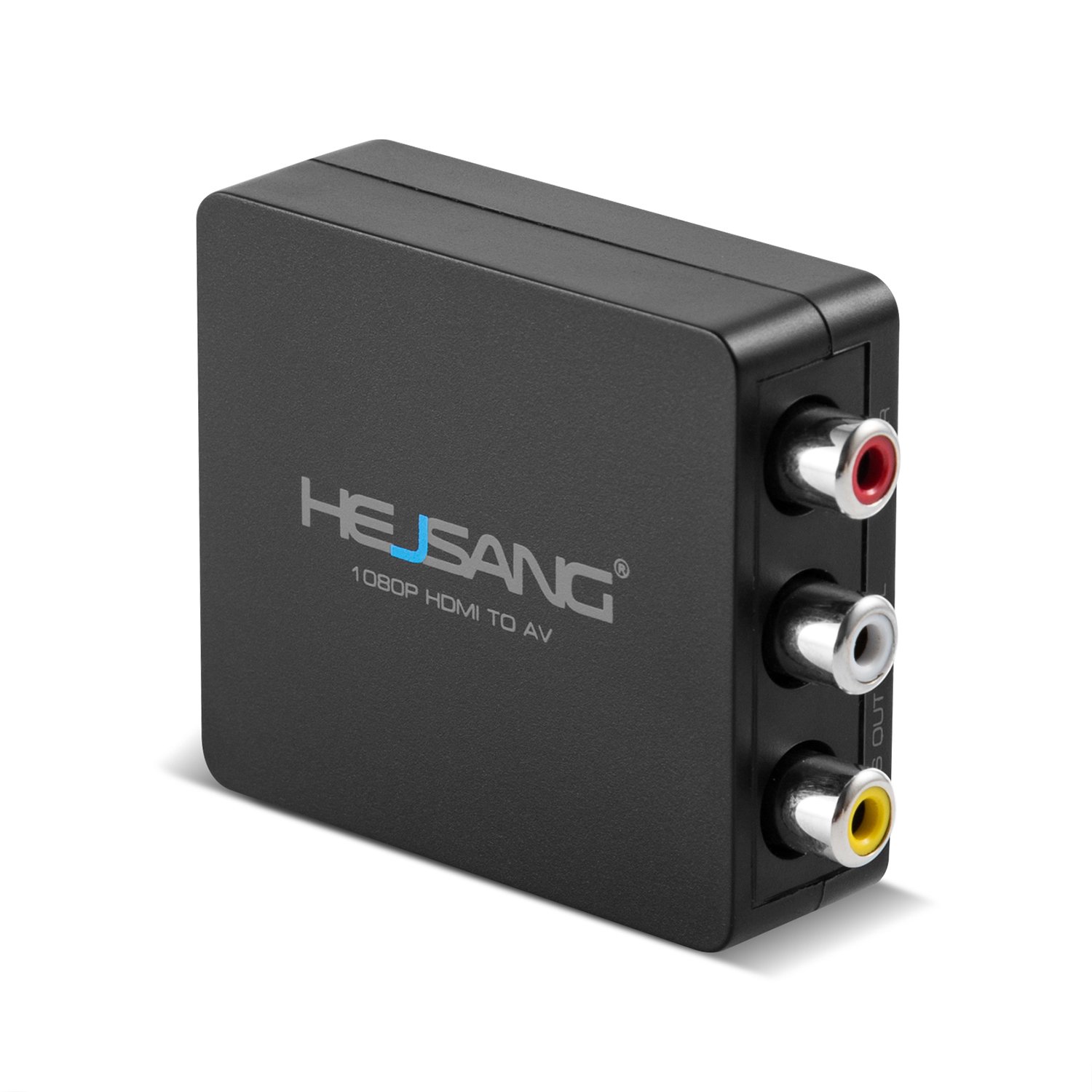

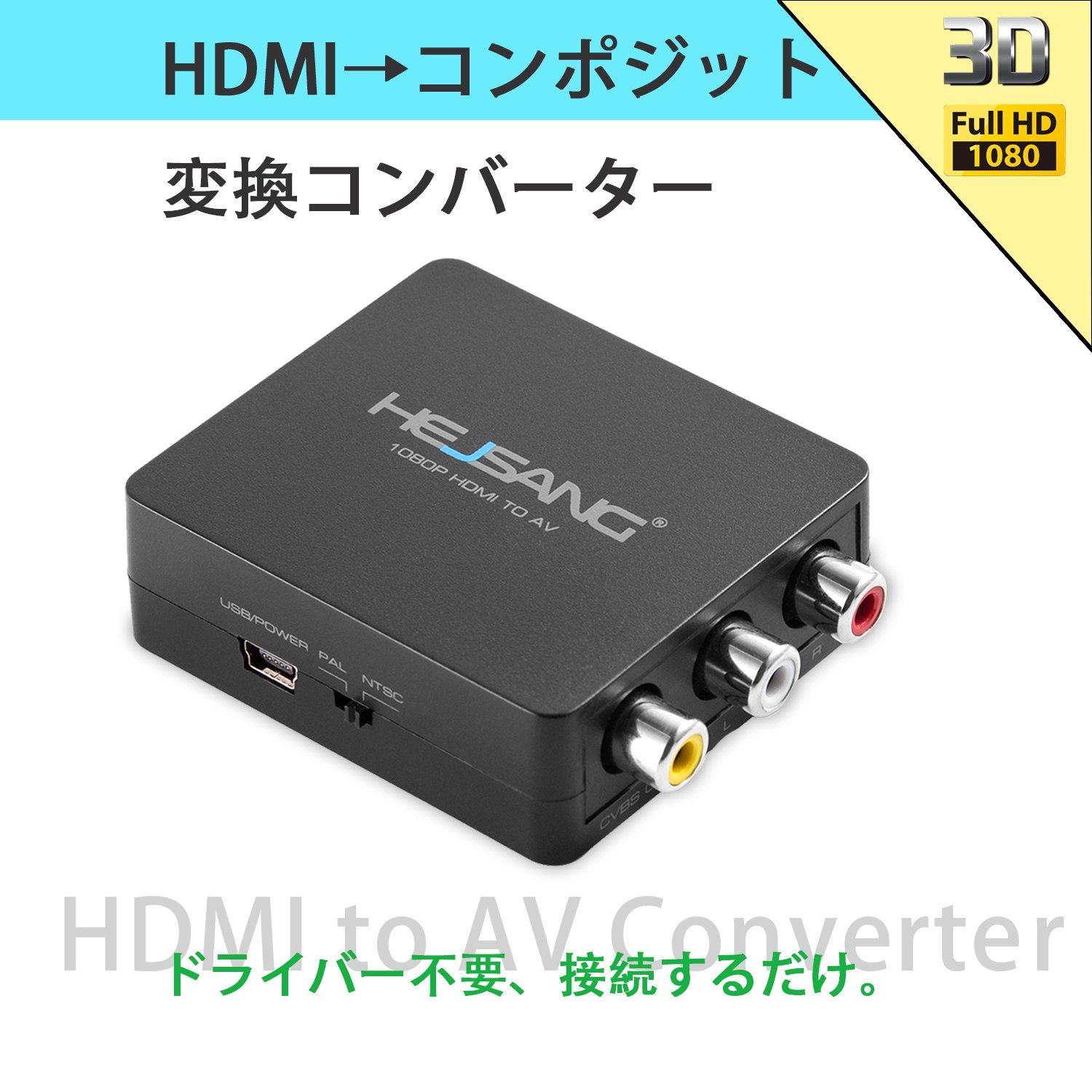

• hdmi av converter

Converter that converts HDMI input to composite output.

Convert HDMI (digital signal) to analog (Composite: yellow, white, red video terminal).

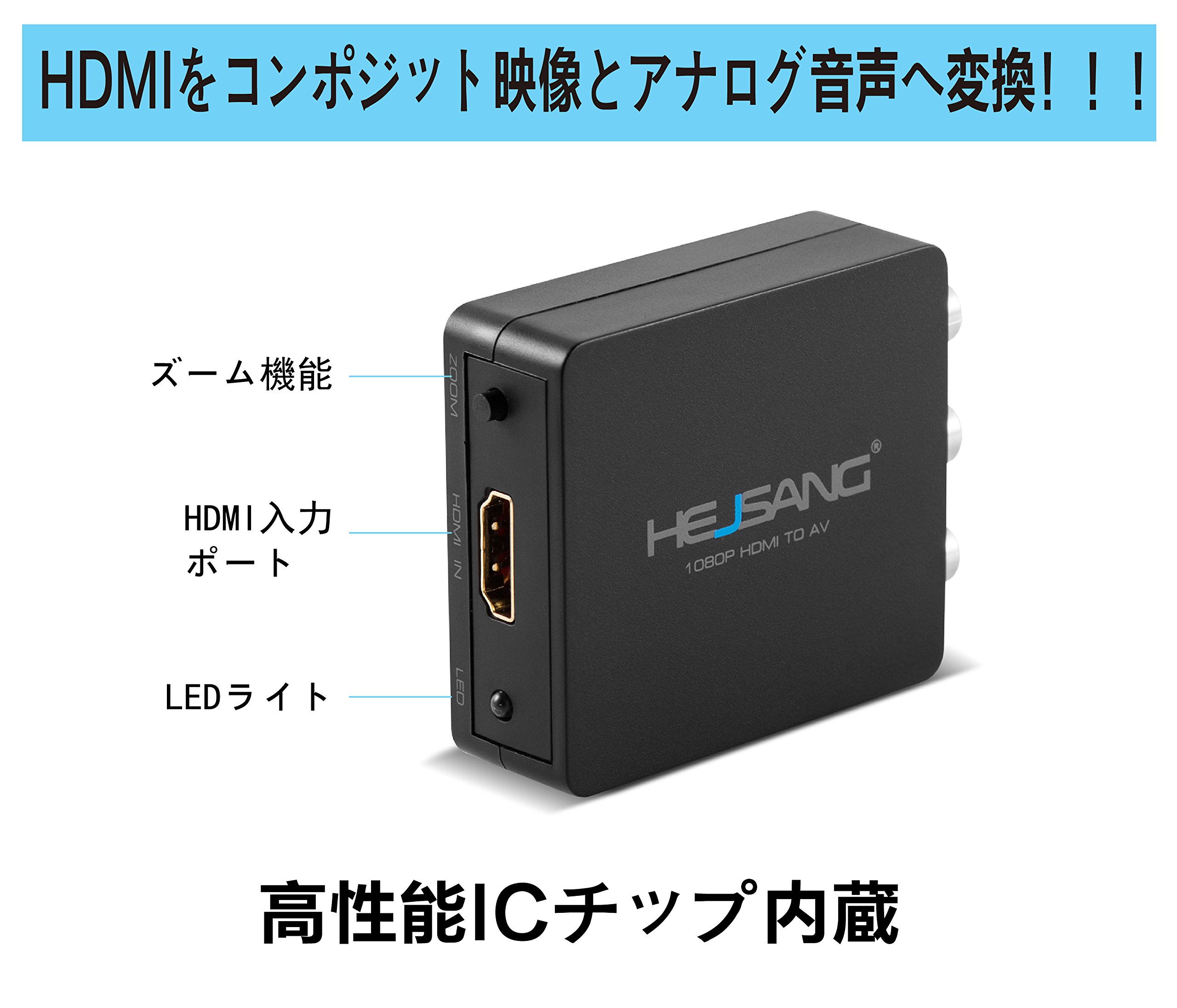

• Built-in high-performance IC chip

To improve the conversion accuracy, it is necessary to reduce the error between the input signal and the output signal.

We adopted a low-consumption, high-performance IC chip that converts signals.

• With zoom function

In order to add the ZOOM function, 100% of the screen is displayed on TVs of different brands.

• Cooling device installed

Since it becomes a cause of trouble if it becomes too high temperature, it is designed so that it does not become high temperature even if it is built in a cooling device and it is used for a long time.

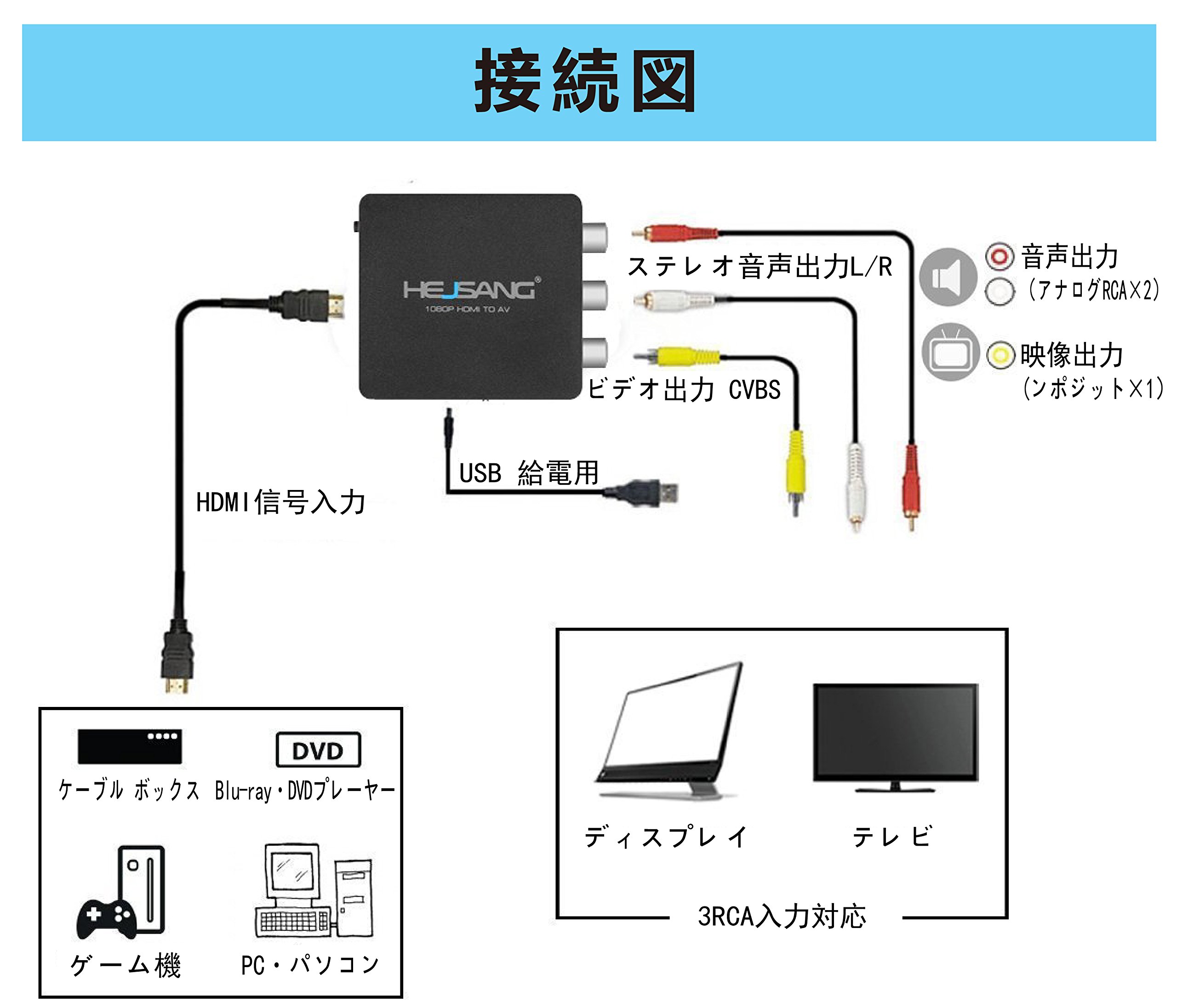

• Easy setting

No driver or power supply is required, you can use it only by connecting.

Easy to use anyone just by connecting various cables.

You can convert HDMI full high vision video and audio to analog.

• If the conditions are met, it can be used without power supply

① It works with bus power

- When connecting to a device that can obtain sufficient power from the HDMI port, you can use it without power supply.

② Power supply with USB cable

- Connecting to the HDMI output of the mobile device In some cases, the power may be insufficient and the operation may become unstable.

In that case connect the supplied USB cable to this product and supply power.

Product Specifications

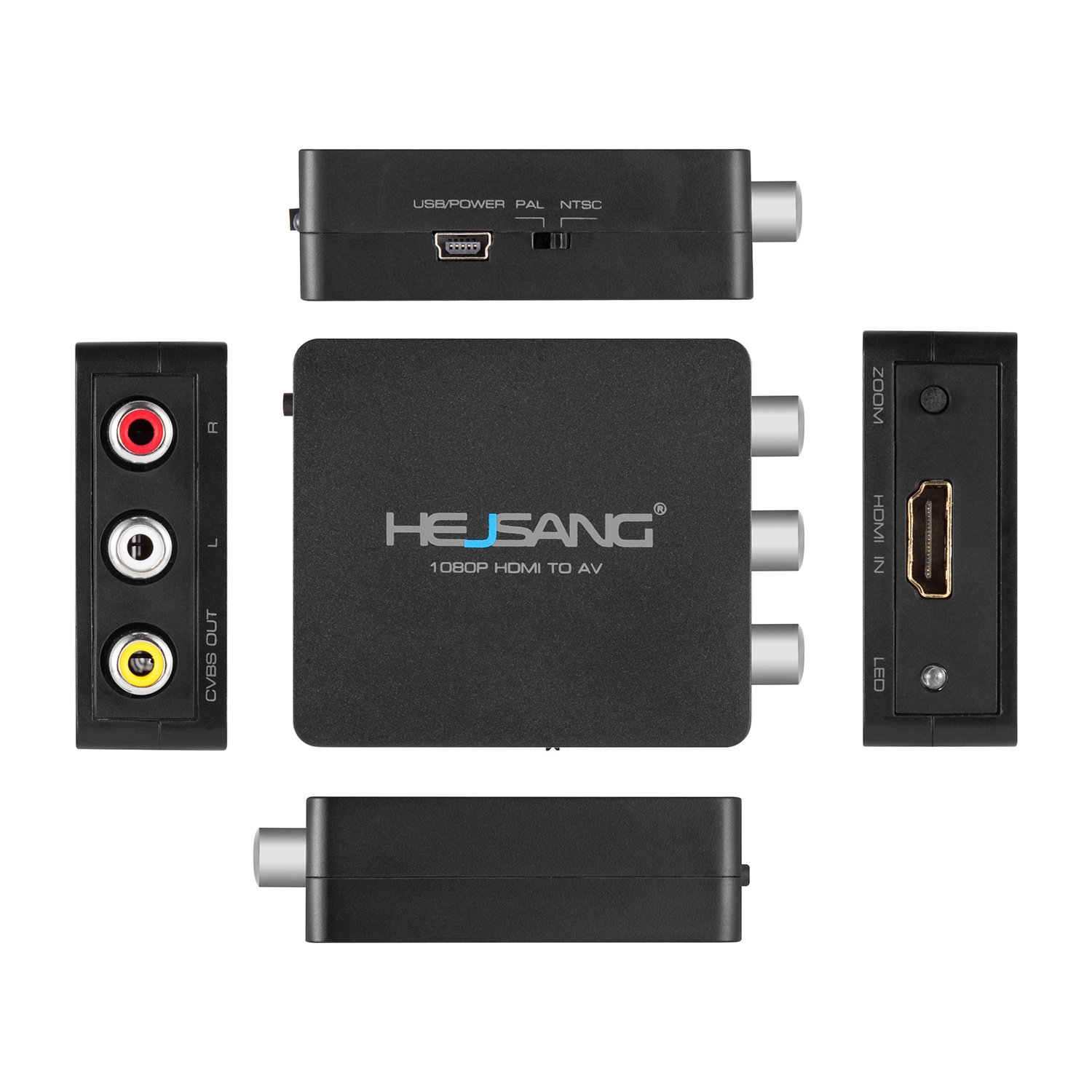

Input terminal: HDMI terminal × 1

Video output terminal: Composite × 1

Audio output terminal: Analog RCA × 2 (audio L / R each x 1)

Corresponding input resolution: 480p / 576p / 720p / 1080i / 1080p @ 60Hz (3D compatible)

DVI format: 800 × 600/1024 × 768/1280 × 720/1280 × 1024/1920 × 1080 / @ 60 Hz etc.

AV video output: 480i / 576i

Corresponding sound signal: PCM (2 ch)

Corresponding signal: NTSC / PAL (switchable)

Version: HDMI 1.3

Copyright protection (HDCP): correspondence

Power supply specification: DC 5 V / 1A (PSE certification / Japan specification)

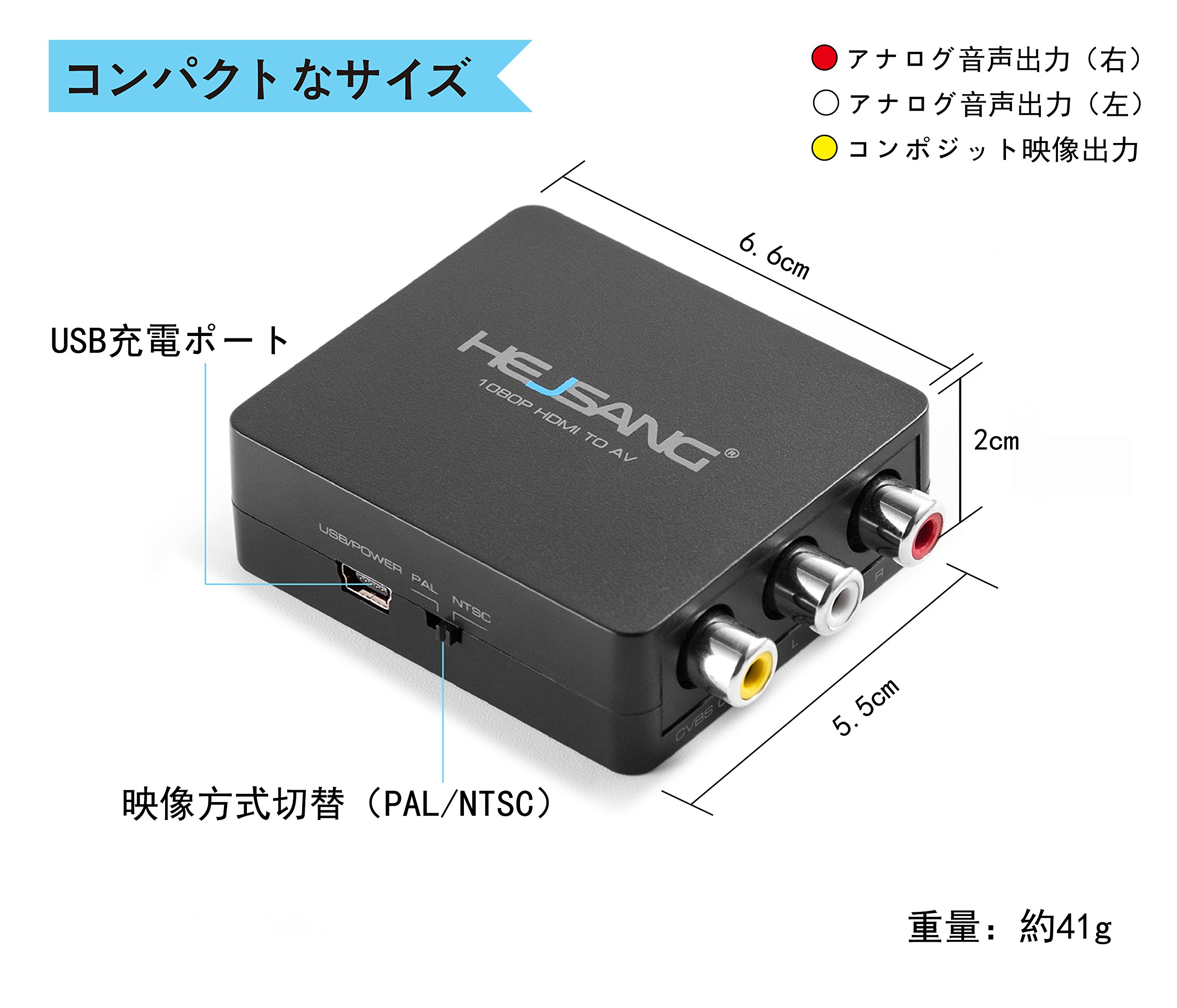

Size: 66 (width) x 55 (depth) x 20 (height) mm

Weight: Approximately 40 g

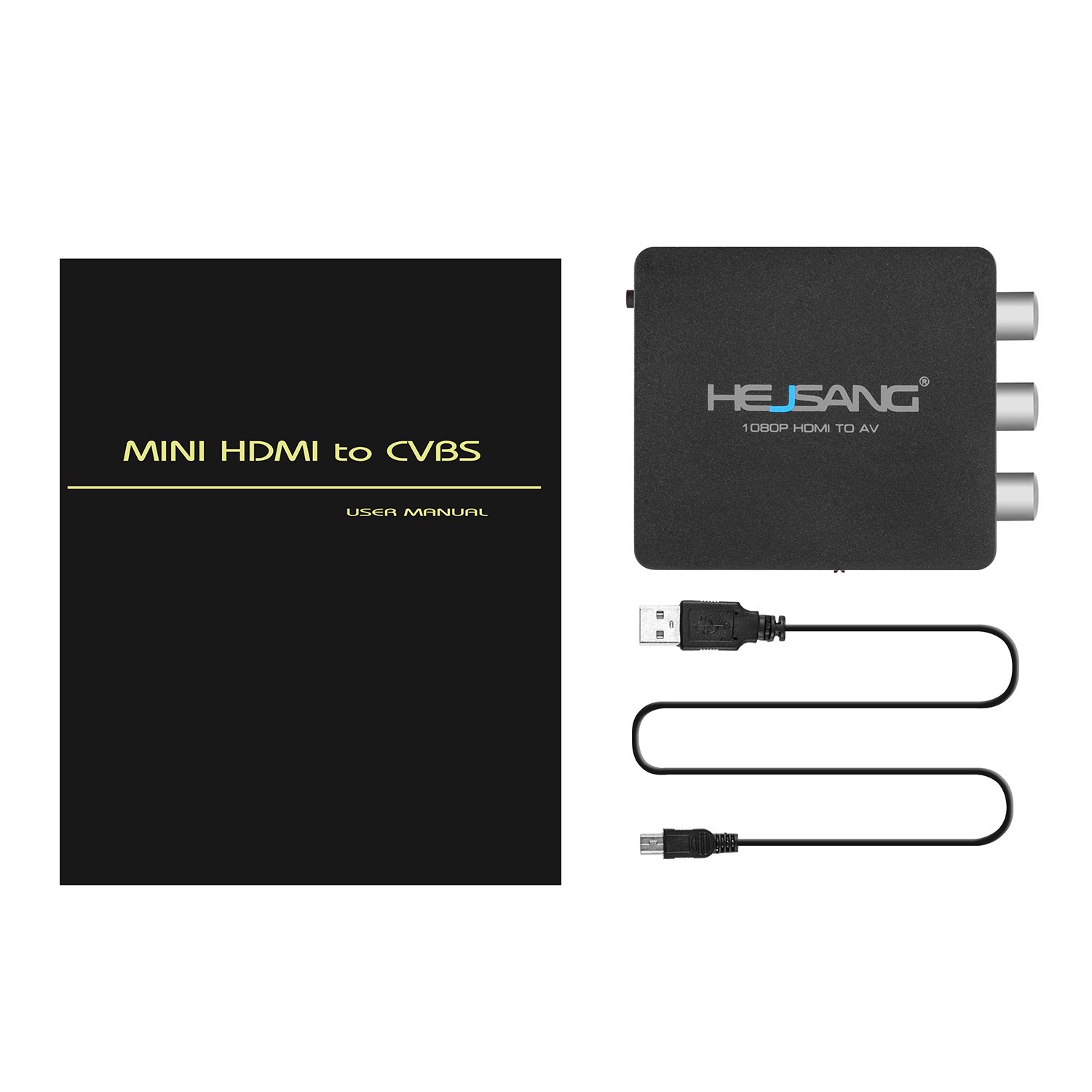

▼ Package contents

1 * HDMI composite converter

1 * mini USB power supply cable

1 * Simple manual (English)

▼ Product warranty

We will exchange the product as initial defect within 15 days after purchase.

There is a 2 year warranty.

※ Although the warranty card is not attached, we manage the warranty period etc. by order number.

▼ Notes

1. This product converts HDMI image to composite terminal and outputs it, it does not output HDMI image as it is.

2. Depending on the image source, it may be blurred due to low resolution at the time of analog conversion, or characters may be collapsed.

3. If sufficient power is not supplied from the HDMI port such as a mobile device, the operation becomes unstable.

In that case, connect the included USB cable and supply power.

4. HDMI to analog (AV / 3 RCA / CVBS) (irreversible)

Features:

• Please enter model number Confirm this is compatible:
• Input terminal: HDMI output terminal: Composite video analog audio (RCA * 3) ◆ Converter that converts HDMI input to composite AV (CVBS / RCA 3) output.
• [High resolution] Corresponding input resolution: 480P / 576i / 576P / 720P / 1080i / 1080P Output signal: NTSC / PAL

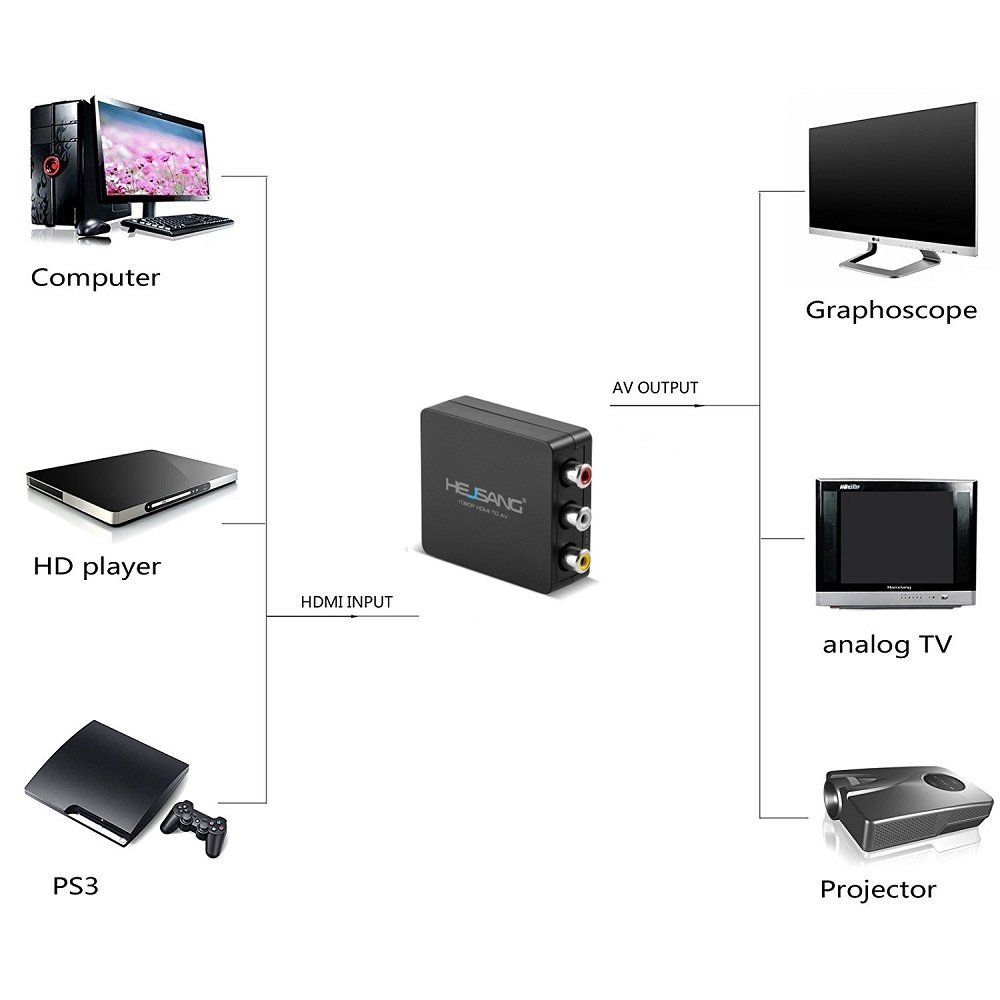

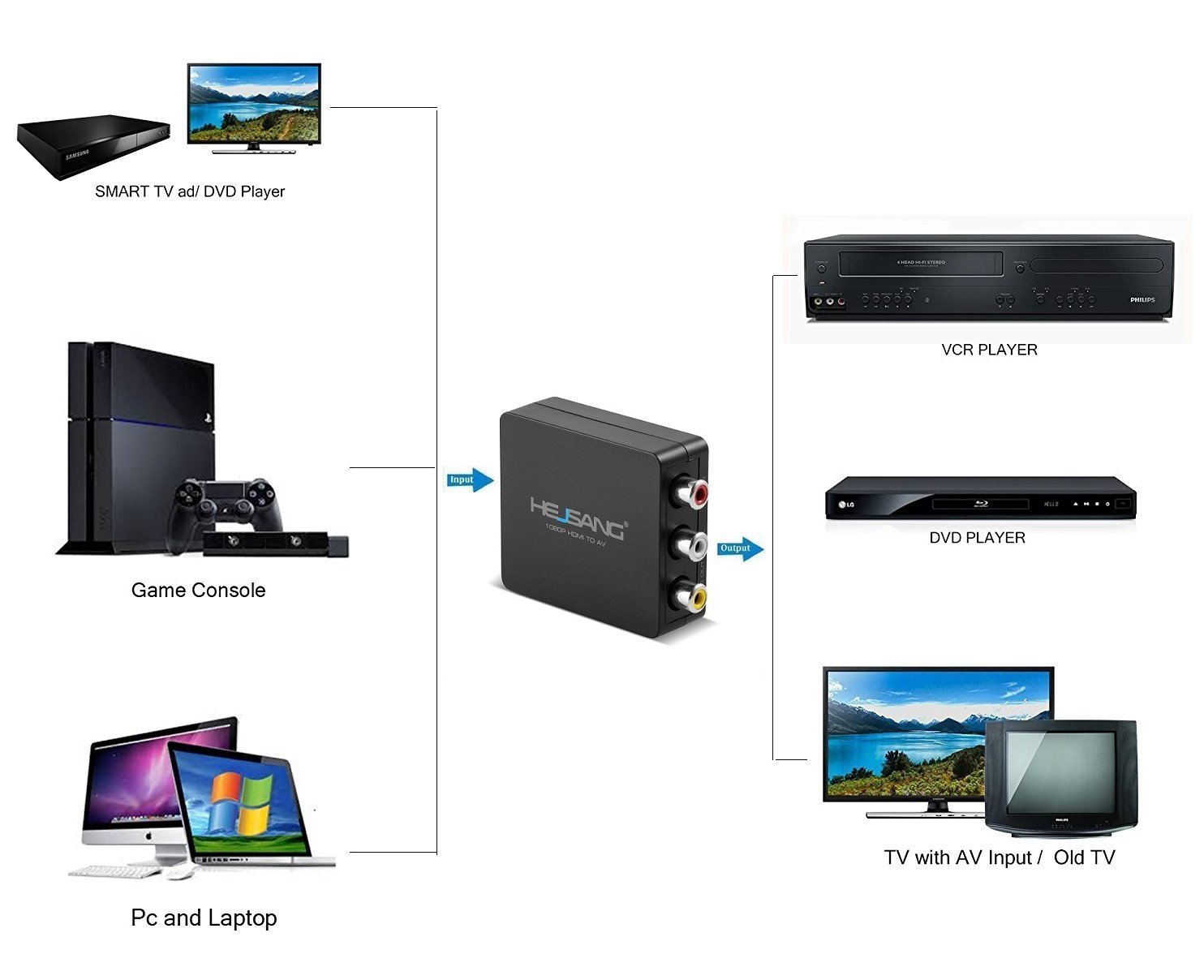

• [HDMI to AV Converter] It converts the images of game machines, smartphones, and recorders that support HDMI output to composite AV, so that images and sound can be projected on older TVs such as CRTs and LCD monitors.
• 【Easy to use】 Instrument of the driver is unnecessary, you can use it immediately by inserting the cable.
• It is very convenient.
• ※ Available for AV → HDMI.
• Please be careful.
• 【Package Contents】 Body, USB Power Cable, Simple Manual (English) ★ ★ ★ There are two years' safe quality assurance.

Product information:

Shipping Weight: 68 g

Package Dimensions: 2.69 x 9.30 x 15.49 cm
