Product Description

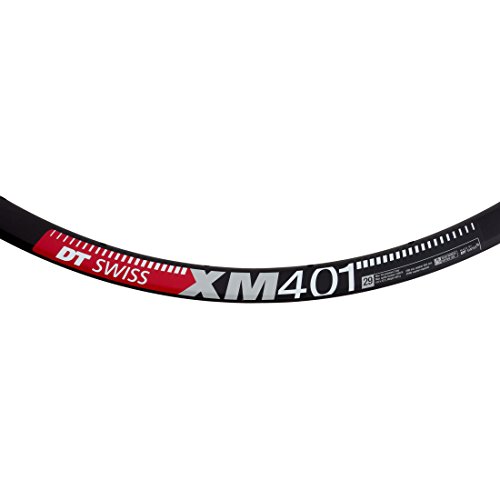

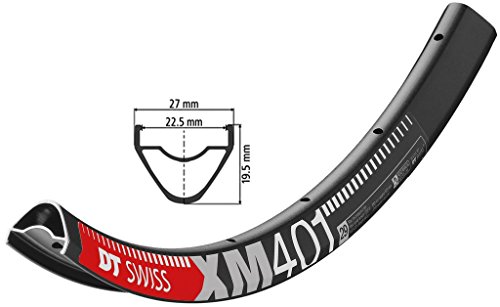

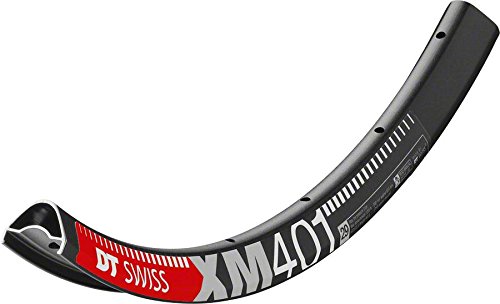

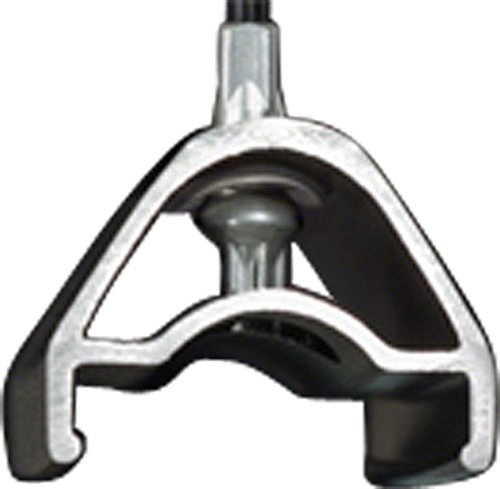

DT Swiss XM 401 Rims. The best of both worlds: light enough for any climb, wide enough for 2.4”tires. High end alloys and sophisticated profiles. Recommended tire size: 1.9" - 2.5"2.0 silver alloy Prolock Squorx Pro Head nipples and PHR washers includedSame rim as used on XM 1501 Spline One wheelsetsPro Head Reinforcement System (PHR) has a larger and more spherical contact area and is designed to balance loads transferred to the rim. The PHR system acts like a ball and socket interface allowing the spoke to pivot and follow the perfect trajectory from hub to rimThe wheel must be built with the supplied PHR washers and Pro Head nipples. The PHR washer must be positioned between the nipple and rim and fit correctly within the radius of the rim. DT Swiss recommends that the contact area between the nipple and PHR washer is greasedIntended use is XC, Trail and All-Mountain ridingERD and weights shown include PHR washers Item SpecificationsColorBlackWeight460Width27MaterialAlloyHub Drilling28Rim Depth19.5Brake CompatibilityDisc OnlyManufacturer Spec ERD603ValvePrestaISO Diameter622 / road / 29"Valve LengthShortWheel Size29Tire TypeClincherTire TypeTubeless CompatibleRim Center Offset0Rim JointWeldedBrake TrackN/ADefined ColorBlackInternal Rim Width22.5
