Item Descriptions:

color:

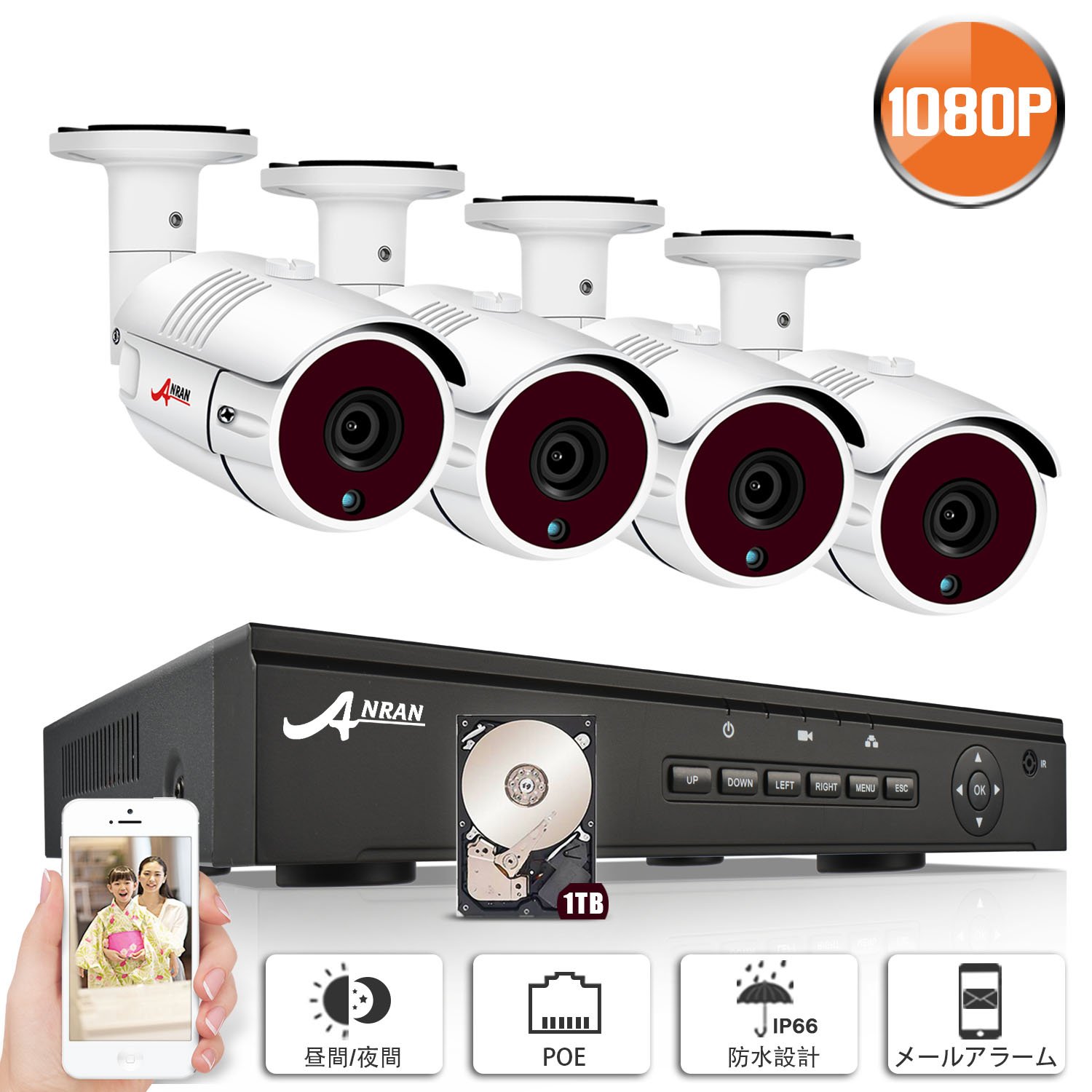

4 units POE camera set 1 TB

ANRAN POE powered camera 4 channel set surveillance camera

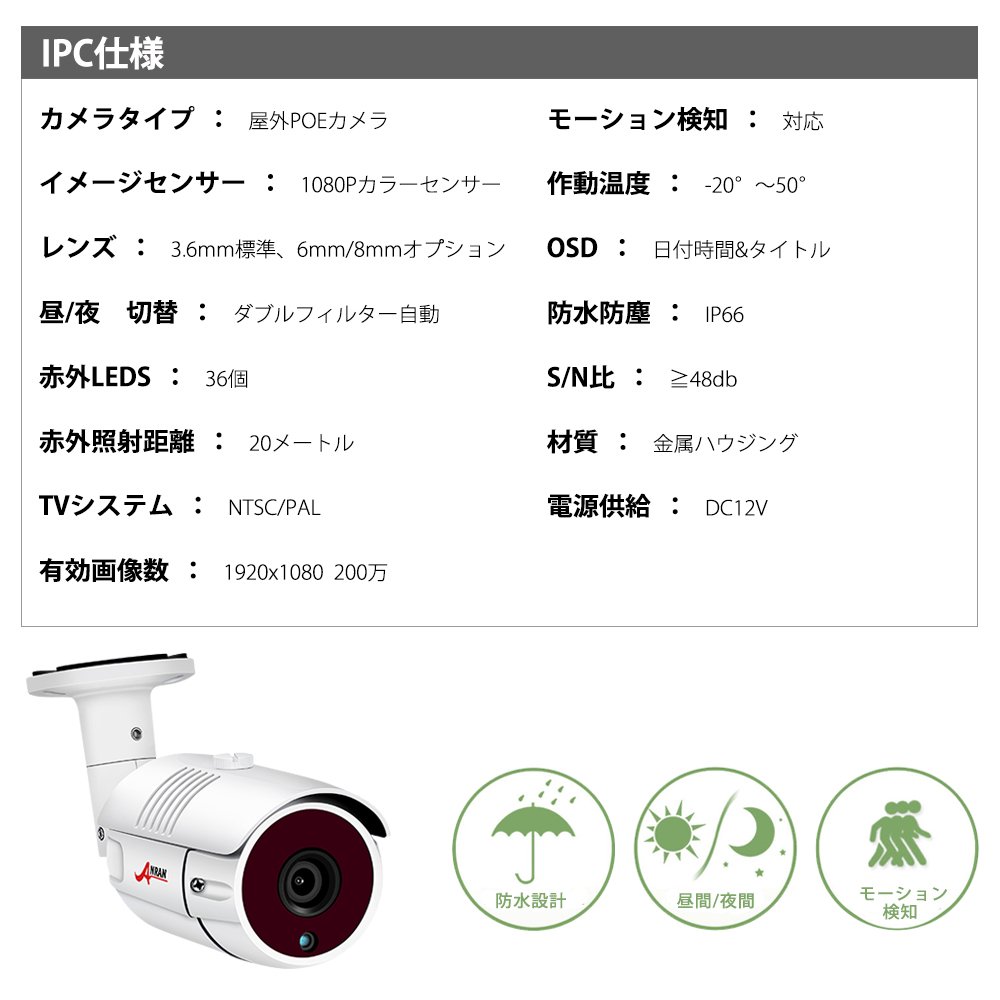

IPC specification

Camera type

Outdoor POE camera

Motion detection

Correspondence

Image sensor

1080 color sensor

Operating temperature

-20 ° C - 50 ° C

lens

3.6 mm standard, 6 mm / 8 mm option

OSD

Date Time & Title

Day and night

Switching double filter automatic

Waterproof dustproof

In case

IP 66

Infrared leds

36 pieces

S / N ratio

≧ 48DB

Infrared irradiation distance

20 meters

Material

Metal housing

Tv system

Ntsc / pal

Power supply

12 VDC

Number of effective images

1920 × 1080 million

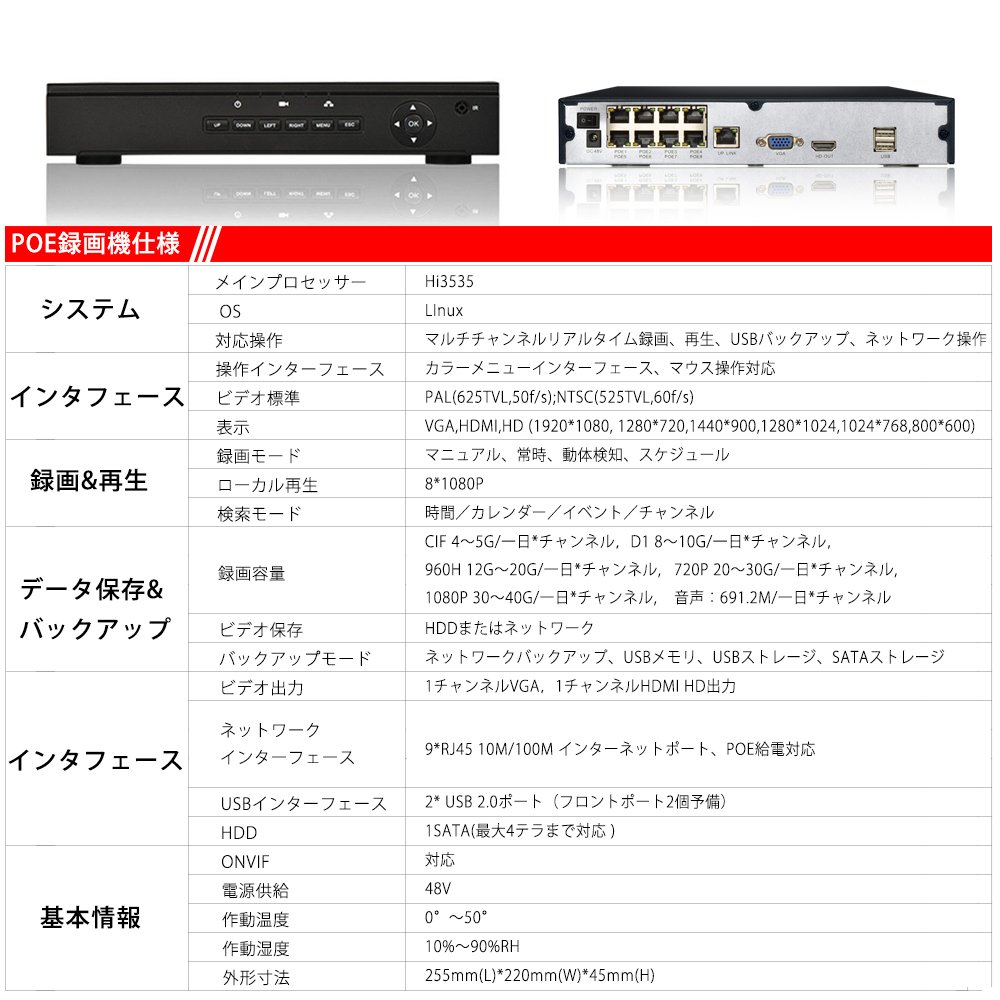

POE recorder specification

Main processor

Hi 3535

Corresponding operation

Multichannel real time recording, playback, USB backup, network operation

ONVIF

Correspondence

Power supply

48V

Operating temperature

0 ° to 50 °

Operating humidity

10% to 90% RH

HDD

SATA (up to 4 terabytes) built-in type

Network interface

9 * RJ 45 10 M / 100 M internet port, POE power supply compatible

Video output

1 channel VGA, 1 channel HDMI HD output

Backup mode

Network backup, USB memory, USB storage, SATA storage

Save video

HDD or network

Recording mode

Manual, always, motion detection, schedule

Interface display

VGA, HDMI, HD (1920 * 1080, 1280 * 720, 1440 * 900, 1280 * 1024, 1024 * 768, 800 * 600

Operation interface

Color menu interface, mouse operation correspondence

★ About Japanese after-sales service, Japanese staff in Japan will be present, China will have an after-sales service center, and free technical support will be offered.

If you have any questions, please do not hesitate to contact us.

Spare parts in domestic service base & residing in Japan staff in Japan!

1. Easy to understand menu

It is created by Japanese staff and it is described up to detailed setting way on it, so anyone can easily set it!

2.

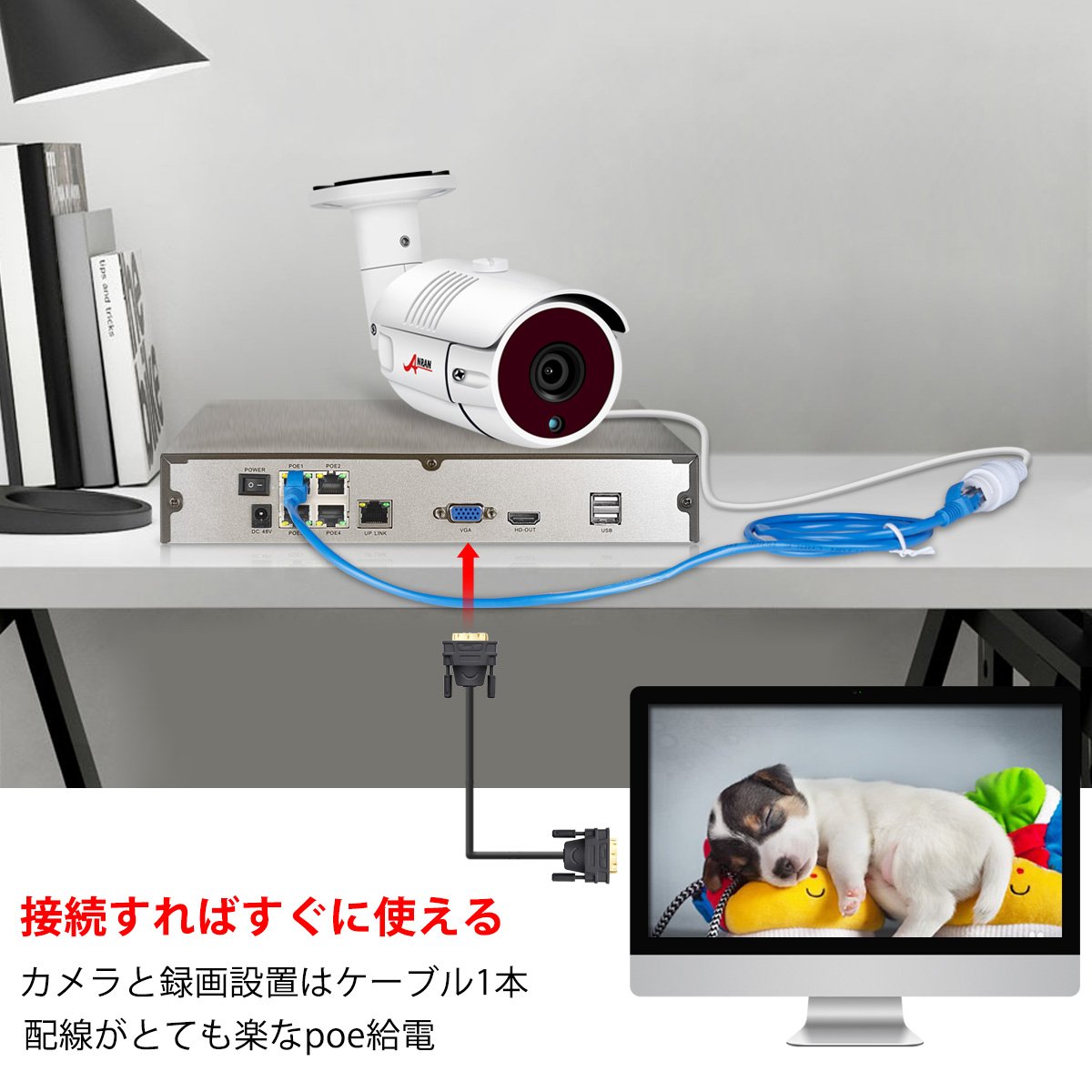

Easy installation

TV, monitor can also be connected directly.

If the Internet is not connected, you can directly connect the TV and monitor, and the recorded contents can be shown.

In case

3. You can monitor with a terminal such as smartphones from the outside in 3 steps

: 1, Connect the LAN cable to the router 2, Download the application (You can download it just by scanning the QR code written on the manual with a smartphone) 3, Register on the operation screen.

If suspicious activity is detected, it will be sent to the set e-mail address.

1. Motion Detection Recording (Motion Recording)

Set monitoring time and sensitivity freely through NVR.

Recording will be done only when there is movement in the preset time.

If there is a problem, the camera will take automatic recording and take pictures.

Also, you can send an email and issue an alarm.

2. Schedule recording

Set the recording time.

Always recording, motion detection recording, you can choose from not recording.

It is possible to set up to record only on fixed days and hours.

You can set the recording start time and end time, which saves HDD.

3.

Alarm function

If suspicious motion is detected by motion setting, message display and built-in buzzer e-mail transmission can be set freely when an abnormality such as video shielding signal loss is detected.

With infrared leds, HDTV, even blackouts, you can take

1. Night vision function

Infrared irradiation distance with 36 infrared leds is 20 meters.

You can take pictures with pitch

2. HDTV.

As a security camera, it is the best job to record all suspicious activity and leave evidence, and then the deciding factor to identify suspicious individuals is the accuracy of the evidence.

1. 2 million pixels high image quality recording

Advanced technology poe cameras are sharply reflected in digital signals.

If you want to check details of the object furthermore, you can select and magnify the details while pressing the mouse on the monitoring screen.

2.

Overwrite function

7 * Continue recording for 24 hours and 365 days

With recorded data overwrite function, automatically delete old data and keep recording.

What is IP 66

It is the level of protection against invasion of foreign matter into the electric machine prescribed by EC (International Electrotechnical Commission).

durability

High waterproof performance not to beat the wind and rain, rain in outdoor use. It adopts a metal body housing resistant to wind weathering, erosion, and aged deterioration, it does not hurt rain, wind, and dusts in the side stroke

It boasts overwhelming durability even in use.

Features:

• Please enter model number Confirm this is compatible:
• ▲ POE power supply function and use the LAN cable used on the Internet.
• It is a technology that can supply power to connected POE compatible equipment.
• AC adapter and power supply construction to POE compatible equipment become unnecessary.
• You can save stable high quality digital images on the recording device than wired cables.
• Furthermore, as a result of testing for this product, we confirmed that the video clearly reaches even with a LAN cable of 150 meters!
• ▲ Are you worried about the image quality of important evidence videos too?
• With 2 megapixel Hi-Vision camera set, we record high definition and detail!
• You can identify the face and car number of the criminal and record vividly regardless of day or night!
• Great success in various places such as home security, hotels, parking lots, shops and so on!

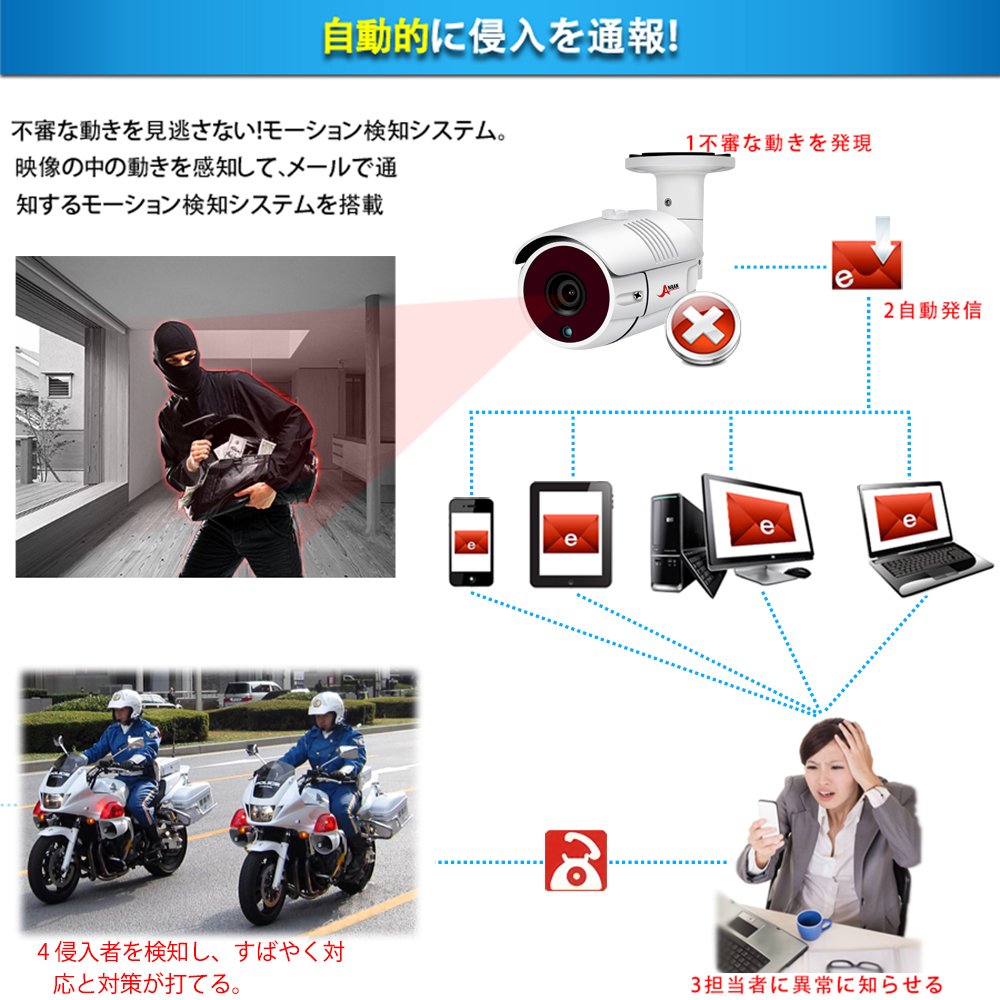

• ▲ Motion detection function ▲ Recording starts when movement is detected.
• Moreover, it sends automatically to the set mail address and reports the intrusion automatically!
• In addition, it is possible to select constant recording and schedule recording according to the actual application!
• Although it is a 4 channel set, the recorder becomes 8 channel type, and up to 8 channels can be added when you want to add a camera.
• ▲ Easy setting.
• You can monitor with a terminal such as a smartphone from the outside in three steps: 1, connect the LAN cable to the router 2, download the application 2 (You can download it just by scanning the QR code written in the manual with a smartphone)
• 3, Register on the operation screen.
• ▲ Easy operation with Japanese interface ♪ Moreover, it is easy to install by Japanese manual prepared by Japanese staff and after-sales service is Japanese compliant!
• Further spare parts at domestic service base & residing in Japan staff in Japan!
• If you have any questions, please do not hesitate (Weekday from 10 o'clock to 16 o'clock 072 - 813 - 23338 Maki Shokai phone let me correspond, time other than [email protected] Maki Shokai)
• Please contact us as soon as possible.
• Three years warranty from confidence in the product itself!

Product information:

Shipping Weight: 5479 g

Package Dimensions: 18.80 x 30.00 x 34.80 cm
